Autoclave
Fison Autoclaves feature different types of Class B steam sterilization chambers. Our laboratory autoclave line fulfils all your sterilization needs including culture media, solvents, laboratory glassware, pipette tips etc. Our range comprises of space friendly Benchtop and Portable autoclaves. The advanced ones come with intuitive digital interface, such as Hydrothermal, Vertical and Horizontal Autoclaves. We offer laboratory autoclaves with a durable stainless steel built, rapid sterilization cycles, efficient heating and advanced safety mechanisms.

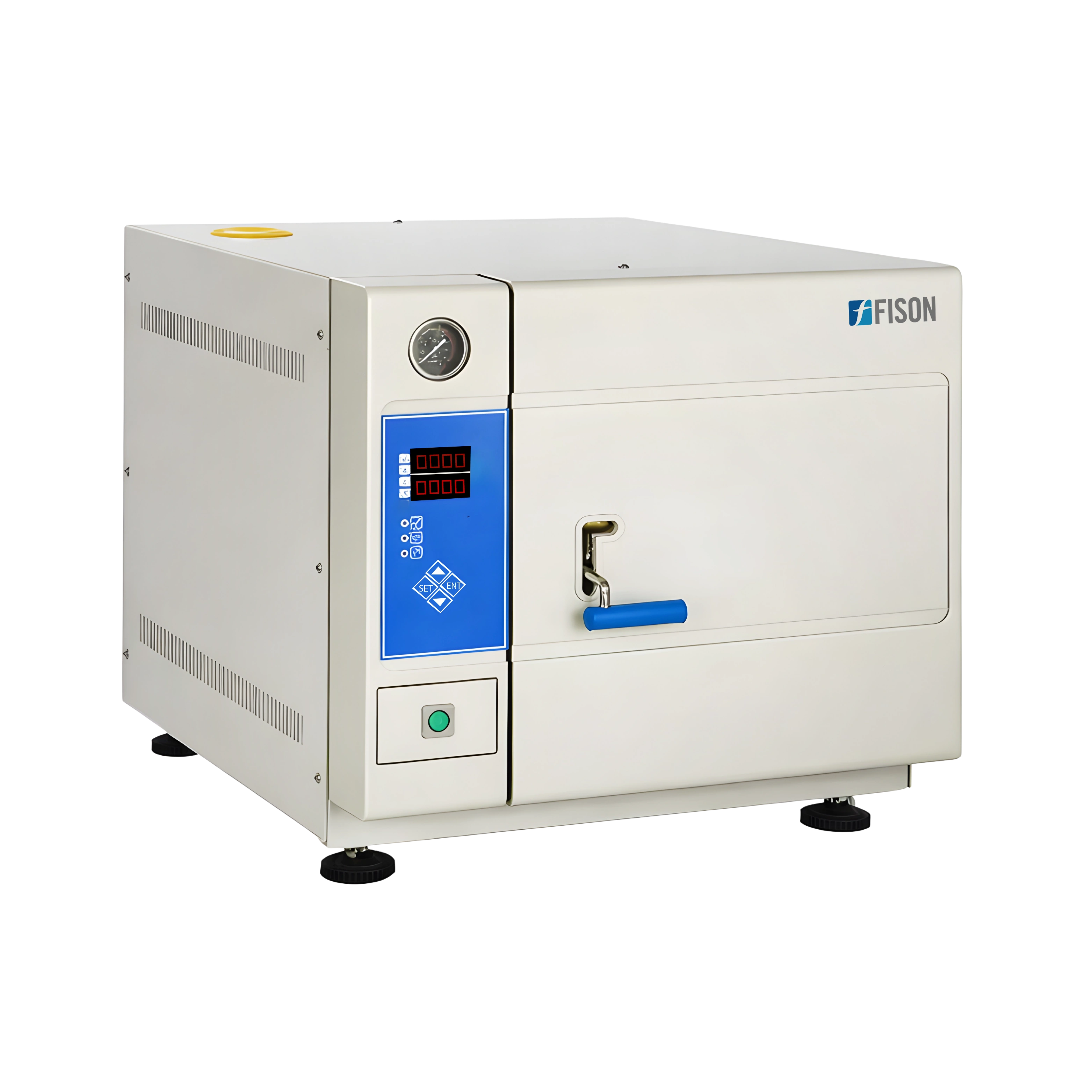

Benchtop Autoclave FM-BA-A100
- Chamber Capacity (Volume) : 35 L
- Chamber dimension : 300 × 500 mm
- Working pressure : 0.22 MPa
- Working temperature : 134°C
Benchtop Autoclave FM-BA-A101
- Chamber Capacity (Volume) : 50 L
- Chamber dimension : 340 × 550 mm
- Working pressure : 0.22 MPa
- Working temperature : 134°C
Benchtop Autoclave FM-BA-B100
- Capacity : 23 L
- Temperature Range : 134 °C /121 °C
- Type : Class B benchtop autoclave
- Recording Accuracy : ±0.5℃
Benchtop Autoclave FM-BA-B101
- Capacity : 18 L
- Temperature Range : 134 °C /121 °C
- Type : Class B benchtop autoclave
- Recording Accuracy : ±0.5℃
Benchtop Autoclave FM-BA-B102
- Capacity : 16 L
- Temperature Range : 134 °C /121 °C
- Type : Class B benchtop autoclave
- Recording Accuracy : ±0.5℃
Benchtop Autoclave FM-BA-B103
- Capacity : 12 L
- Temperature Range : 134 °C /121 °C
- Type : Class B benchtop autoclave
- Recording Accuracy : ±0.5℃
Benchtop Autoclave FM-BA-A102
- Chamber Volume : 50 Liters
- Max working temperature : 1340 ℃ ± 10 ℃
- Max working pressure : 0.22 mpa
- Adjusted sterilizing temperature range : 550 ℃ to 1340 ℃
Horizontal Autoclave FM-HA-A100
- Sterilizing chamber volume : 150 L
- Inner tank dimension : 440×1000 mm
- Design : Cylindrical orientation
- Working pressure : 0.22 MPa
Horizontal Autoclave FM-HA-A101
- Sterilizing chamber volume : 200 L
- Inner tank dimension : 515×1000 mm
- Design : Cylindrical orientation
- Working pressure : 0.22 MPa
Horizontal Autoclave FM-HA-A102
- Sterilizing chamber volume : 280 L
- Inner tank dimension : 600×1000 mm
- Design : Cylindrical orientation
- Working pressure : 0.22 MPa
Horizontal Autoclave FM-HA-A103
- Sterilizing chamber volume : 400 L
- Inner tank dimension : 700×1100 mm
- Design : Cylindrical orientation
- Working pressure : 0.22 MPa
Horizontal Autoclave FM-HA-A104
- Sterilizing chamber volume : 500 L
- Inner tank dimension : 700×1300 mm
- Design : Cylindrical orientation
- Working pressure : 0.22 MPa
Horizontal Autoclave FM-HA-A200
- Sterilizing chamber volume : 150 L
- Inner tank dimension : 440×1000 mm
- Design : Single door rectangular autoclave
- Working pressure : 0.22 MPa
Horizontal Autoclave FM-HA-A201
- Sterilizing chamber volume : 200 L
- Inner tank dimension : 515×1000 mm
- Design : Single door rectangular autoclave
- Working pressure : 0.22 MPa
Horizontal Autoclave FM-HA-A202
- Sterilizing chamber volume : 280 L
- Inner tank dimension : 600×1000 mm
- Design : Single door rectangular autoclave
- Working pressure : 0.22 MPa
Horizontal Autoclave FM-HA-B100
- Capacity : 360 L
- Working Temperature : 105 to 134°C
- Working Pressure : 0.225 MPa
- Steam Pressure : 0.3 to 0.7 MPa
Horizontal Autoclave FM-HA-C100
- Capacity : 90 L
- Temperature Range : 115°C to 134°C
- Pressure Control Range : 0.07 to 0.22 Mpa
- Timer Range : 0 to 99 min
Horizontal Autoclave FM-HA-B101
- Capacity : 600 L
- Operating temperature : 150 ℃
- Maximum working temperature : 139 ℃
- Maximum working pressure : 0.25 MPa
Horizontal Autoclave FM-HA-B102
- Capacity : 500 L
- Operating temperature : 150 ℃
- Maximum working temperature : 139 ℃
- Working pressure range : 0 to 0.25 MPa

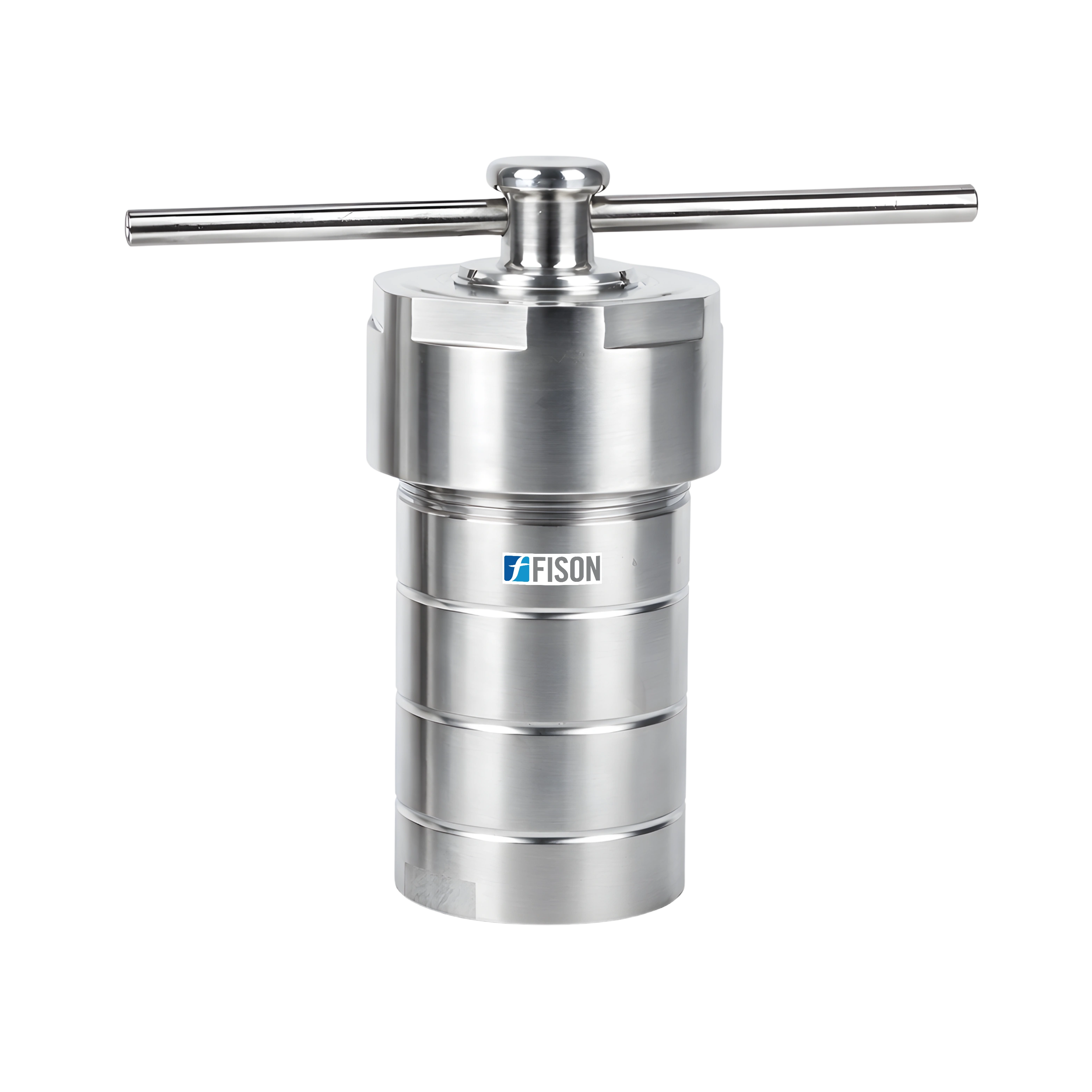

Hydrothermal Autoclave FM-HTA-A100
- Capacity : 200 ml
- Heating / Cooling rate : 5 ℃/min
- Working temperature : ≤ 230 ℃
- Pressure : ≤ 3 Mpa
Hydrothermal Autoclave FM-HTA-A101
- Capacity : 500 ml
- Heating / Cooling rate : 5 ℃/min
- Working temperature : ≤ 230 ℃
- Pressure : ≤ 3 MPa
Hydrothermal Autoclave FM-HTA-102
- Capacity : 100 ml
- Heating / Cooling rate : 5℃/min
- Working temperature : 200℃
- Pressure : 3 Mpa

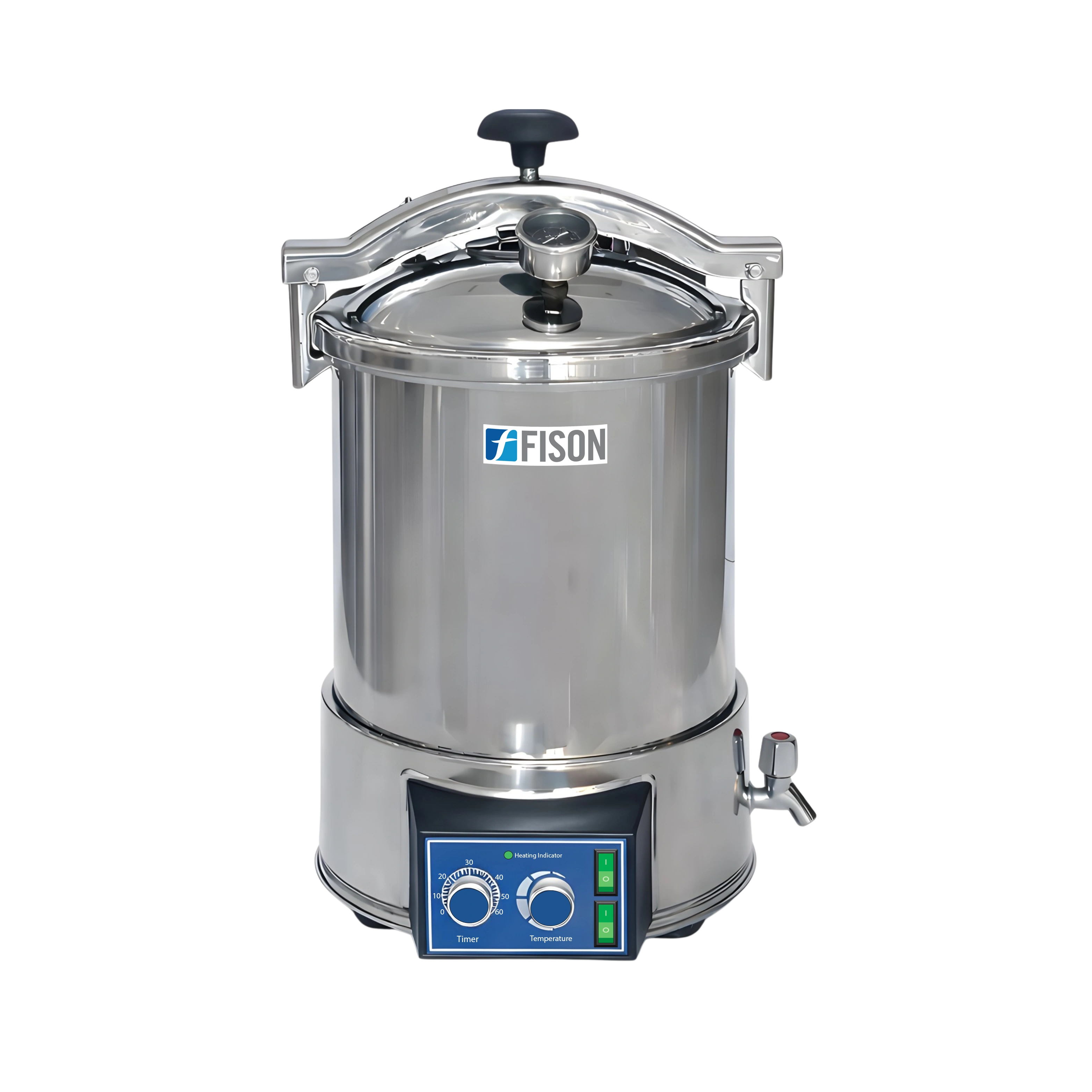

Portable Autoclave FM-PA-A301
- Chamber capacity : 18 L
- Chamber dimension : 280 × 260 mm
- Working temperature : 126 ℃
- Operating pressure : 0.14 to 0.16 MPa
Portable Autoclave FM-PA-A302
- Chamber capacity : 24 L
- Chamber dimension : 280 × 390 mm
- Working temperature : 126 ℃
- Operating pressure : 0.14 to 0.16 MPa
Portable autoclave FM-PA-A101
- Chamber capacity : 18 L
- Chamber dimension : 280 × 260 mm
- Working temperature : 126 ℃
- Operating pressure : 0.14 to 0.16 MPa
Portable autoclave FM-PA-A102
- Chamber capacity : 24 L
- Chamber dimension : 280 × 390 mm
- Working temperature : 126 ℃
- Operating pressure : 0.14 to 0.16 MPa
Portable autoclave FM-PA-A200
- Chamber capacity : 18 L
- Chamber dimension : 280 × 260 mm
- Working temperature : 126℃
- Operating pressure : 0.14 to 0.16 MPa
Portable autoclave FM-PA-A201
- Chamber capacity : 24 L
- Chamber dimension : 280 × 390 mm
- Working temperature : 126℃
- Operating pressure : 0.14 to 0.16 MPa
Vacuum Autoclave FM-VMA-A100
- Capacity : 360 L
- Sterilization Temperature : 150 °C
- Operational Temperature : 139 °C
- Temperature Precision : ±0 to 2 °C
Vertical Autoclave FM-VA-A100
- Capacity : 35 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 60 min
Vertical Autoclave FM-VA-A101
- Capacity : 50 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 60 min
Vertical Autoclave FM-VA-A102
- Capacity : 75 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 60 min
Vertical Autoclave FM-VA-A103
- Capacity : 100 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 60 min
Vertical Autoclave FM-VA-A200
- Capacity : 50 L
- Sterilization temperature : 134°C
- Sterilization pressure : 0.22 MPa
- Timer range : 0 to 99 min
Vertical Autoclave FM-VA-A201
- Capacity : 75 L
- Sterilization temperature : 134°C
- Sterilization pressure : 0.22 MPa
- Timer range : 0 to 99 min
Vertical Autoclave FM-VA-A202
- Capacity : 100 L
- Sterilization temperature : 134°C
- Sterilization pressure : 0.22 MPa
- Timer range : 0 to 99 min
Vertical Autoclave FM-VA-A300
- Capacity : 35 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 99 min / 0 to 9 hr 59 s
Vertical Autoclave FM-VA-A301
- Capacity : 50 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 99 min / 0 to 9 hr 59 s
Vertical Autoclave FM-VA-A302
- Capacity : 75 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 99 min / 0 to 9 hr 59 s
Vertical Autoclave FM-VA-A303
- Capacity : 100 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 99 min / 0 to 9 hr 59 s
Vertical Autoclave FM-VA-B100
- Capacity : 35 L
- Wokring sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B101
- Capacity : 50 L
- Wokring sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B102
- Capacity : 75 L
- Wokring sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B103
- Capacity : 100 L
- Wokring sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B104
- Capacity : 120 L
- Wokring sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B105
- Capacity : 150 L
- Wokring sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B200
- Chamber capacity : 35 L
- Working sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B201
- Chamber capacity : 50 L
- Working sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B202
- Chamber capacity : 75 L
- Working sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B203
- Chamber capacity : 100 L
- Working sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B204
- Capacity : 75L
- Chamber Size : Φ 386 × 695 mm
- Chamber Material : SS30408
- Designed Pressure : 0.28MPa
Vertical Autoclave FM-VA-B300
- Capacity : 100 L
- Chamber Dimensions : Ø 440 × 650 mm
- Working Temperature : 134°C
- Maximum Working Pressure : 0.22 Mpa
Vertical Autoclave FM-VA-C100
- Capacity : 120 L
- Sterilization Temperature Range : 105°C to 138°C
- Pressure Gauge : -0.1 to 0.5 MPa
- Pressure Valve Set Pressure : 0.29 MPa
