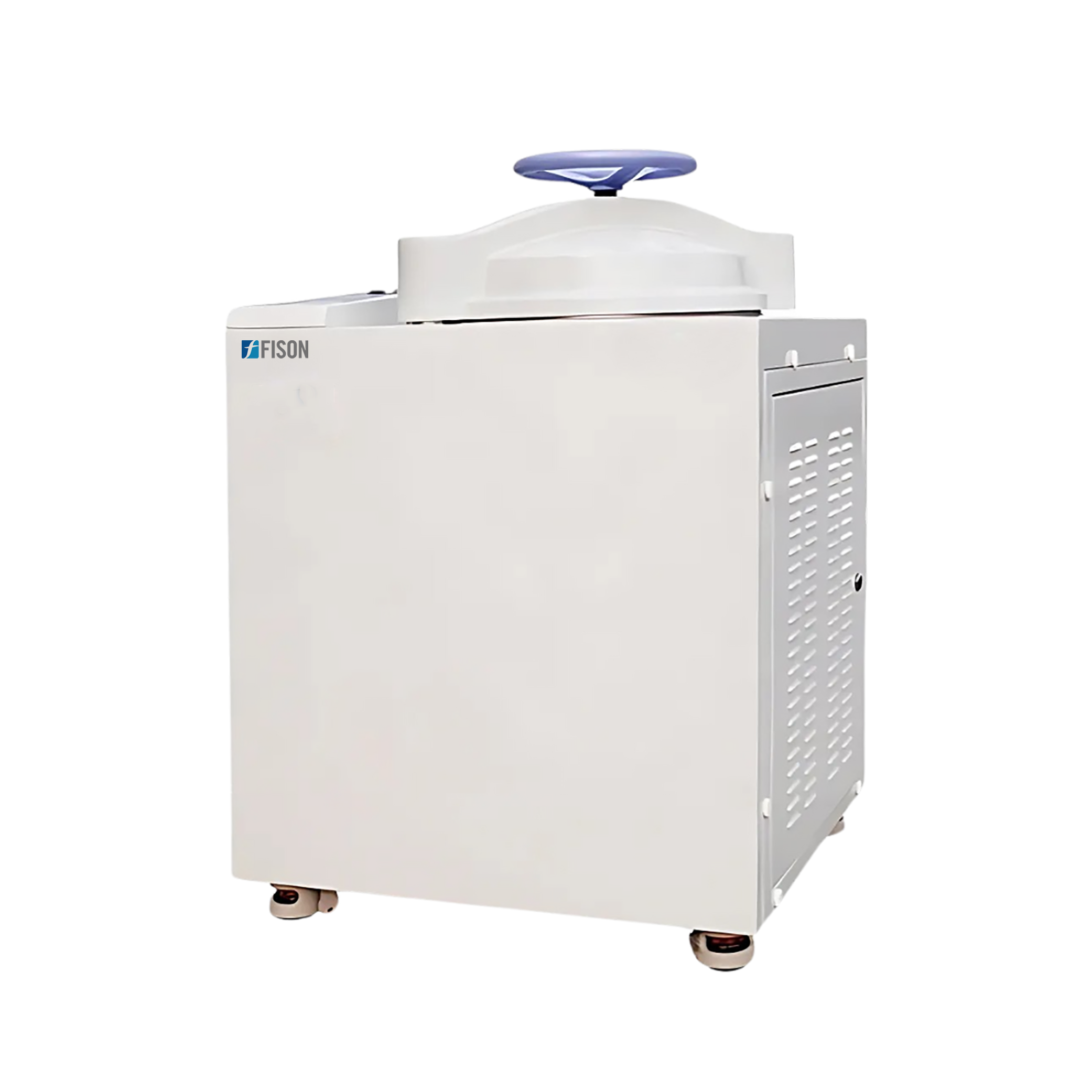

Vertical Autoclave
Fison Vertical Autoclave line features top loading steam sterilizers with different capacities of 35 L to 150 L. Designed with larger chamber volumes to achieve effective sterilization within space-restricted labs. They operate at 134°C and 0.22 MPa for quick autoclaving within few minutes. We offer versatile functions like semiautomatic control, warning buzzer systems, additional bacteria filters, customizable programs and multiple pulse vacuum drying. Our CE certified top loading sterilizers come with advanced safety mechanisms to ensure user-friendly operation.
Capacity
Chamber capacity
Sterilization temperature
Chamber Dimensions
Sterilization Temperature Range
Vertical Autoclave FM-VA-A100
- Capacity : 35 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 60 min
Vertical Autoclave FM-VA-A101
- Capacity : 50 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 60 min
Vertical Autoclave FM-VA-A102
- Capacity : 75 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 60 min
Vertical Autoclave FM-VA-A103
- Capacity : 100 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 60 min
Vertical Autoclave FM-VA-A200
- Capacity : 50 L
- Sterilization temperature : 134°C
- Sterilization pressure : 0.22 MPa
- Timer range : 0 to 99 min
Vertical Autoclave FM-VA-A201
- Capacity : 75 L
- Sterilization temperature : 134°C
- Sterilization pressure : 0.22 MPa
- Timer range : 0 to 99 min
Vertical Autoclave FM-VA-A202
- Capacity : 100 L
- Sterilization temperature : 134°C
- Sterilization pressure : 0.22 MPa
- Timer range : 0 to 99 min
Vertical Autoclave FM-VA-A300
- Capacity : 35 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 99 min / 0 to 9 hr 59 s
Vertical Autoclave FM-VA-A301
- Capacity : 50 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 99 min / 0 to 9 hr 59 s
Vertical Autoclave FM-VA-A302
- Capacity : 75 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 99 min / 0 to 9 hr 59 s
Vertical Autoclave FM-VA-A303
- Capacity : 100 L
- Sterilization temperature : 134°C
- Wokring sterilization pressure : 0.22 MPa
- Timer range : 0 to 99 min / 0 to 9 hr 59 s
Vertical Autoclave FM-VA-B100
- Capacity : 35 L
- Wokring sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B101
- Capacity : 50 L
- Wokring sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B102
- Capacity : 75 L
- Wokring sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B103
- Capacity : 100 L
- Wokring sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B104
- Capacity : 120 L
- Wokring sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B105
- Capacity : 150 L
- Wokring sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B200
- Chamber capacity : 35 L
- Working sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B201
- Chamber capacity : 50 L
- Working sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B202
- Chamber capacity : 75 L
- Working sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B203
- Chamber capacity : 100 L
- Working sterilization temperature : 134°C
- Working sterilization pressure : 0.22 MPa
- Adjustment of Temperature : 105°C to 134°C
Vertical Autoclave FM-VA-B204
- Capacity : 75L
- Chamber Size : Φ 386 × 695 mm
- Chamber Material : SS30408
- Designed Pressure : 0.28MPa
Vertical Autoclave FM-VA-B300
- Capacity : 100 L
- Chamber Dimensions : Ø 440 × 650 mm
- Working Temperature : 134°C
- Maximum Working Pressure : 0.22 Mpa
Vertical Autoclave FM-VA-C100
- Capacity : 120 L
- Sterilization Temperature Range : 105°C to 138°C
- Pressure Gauge : -0.1 to 0.5 MPa
- Pressure Valve Set Pressure : 0.29 MPa
