Microscopes
Fison brings you professional grade Microscopes that are both classroom and research friendly. They feature a versatile range of imaging modes starting from basic brightfield, darkfield, phase contrast to sophisticated fluorescence and polarising ones. We offer you a full collection of compound microscopes including Biological, Inverted, Digital, Stereo, Metallurgical along with Electron microscopes. Our visualization software incorporates high resolution cameras to capture vivid images. Our Microscopes come with advanced optics, wide field of observation, real-time imaging, multi-view mode and much more.
Biological Microscope FM-BM-A100
- Optical System : Finite Optical System
- Viewing Head : Binocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
- Magnification : 40X to 1600X
- Objectives : 195 Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil)
Biological Microscope FM-BM-A101
- Optical System : Finite Optical System
- Viewing Head : Binocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
- Magnification : 40X to 1600X
- Objectives : Plan Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil)
Biological Microscope FM-BM-A102
- Optical System : Finite Optical System
- Viewing Head : Trinocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
- Magnification : 40X to 1600X
- Objectives : 195 Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil)
Biological Microscope FM-BM-A103
- Optical System : Finite Optical System
- Viewing Head : Trinocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
- Magnification : 40X to 1600X
- Objectives : Plan Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil)
Biological Microscope FM-BM-A104
- Optical System : Finite Optical System
- Viewing Head : Monocular viewing head, 45° inclined, 360° rotation
- Magnification : 40X to 1600X
- Objectives : 195 Achromatic objectives 4x, 10x, 40x (Spring)
Biological Microscope FM-BM-A105
- Optical System : Infinite Optical System
- Viewing Head : Trinocular viewing head, 30° inclined, 360° rotation, Interpupillary distance 48 to 75 mm, dioptre adjustment ± 5, Video adapter C munt 1X for Digital camera
- Eyepiece : Extra Wide field EW10X/22 mm and Eyepiece tube 30 mm
- Objectives : Infinite Plan Achromatic objectives 4X, 10X, 40X (Spring), 100X (Spring, oil)
Biological Microscope FM-BM-C100
- Optical System : Infinity Optical System, F = 200 mm
- Viewing Head : Siedentopf-Binocular Head, Inter-pupillary distance 52 to 75 mm, 30° inclined, 360° rotable
- Eyepiece : WF 10X/18 mm with the high point
- Objective : Infinite Plan Achromatic Objective 4X / 0.13, 10X / 0.30, 40X / 0.70 (S), 100X / 1.25 (S,O)
Biological Microscope FM-BM-C101
- Optical System : Infinity Optical System, F = 200 mm
- Viewing Head : Siedentopf Trinocular Head, inter-pupillary distance 52 to 75 mm, 30° inclined, trinocular light is split 50/50 by a high quality prism.
- Eyepiece : WF 10X/18 mm with the high point
- Objective : Infinite Plan Achromatic Objective 4X / 0.13, 10X / 0.30, 40X / 0.70 (S), 100X / 1.25 (S,O)
Biological Microscope FM-BM-C102
- Optical System : Infinity Optical System, F = 200 mm
- Viewing Head : Siedentopf Binocular Head, Inter-pupillary distance 47 to 75 mm, 30° inclined, 360° rotable
- Eyepiece : WF 10X/20 mm with the high point
- Objective : Infinite Plan Achromatic Objective 4X / 0.10, 10X / 0.25, 40X / 0.65 (S), 100X / 1.25 (S,O)
Biological Microscope FM-BM-C103
- Optical System : Infinity Optical System, F = 200 mm
- Viewing Head : Siedentopf Trinocular Head, inter-pupillary distance 48 to 75 mm, 30° inclined, trinocular light is split 50/50 by a high quality prism.
- Eyepiece : WF 10X/20 mm with the high point
- Objective : Infinite Plan Achromatic Objective 4X / 0.10, 10X / 0.25, 40X / 0.65 (S), 100X / 1.25 (S,O)
Biological Microscope FM-BM-D100
- Optical system : Finite optical system
- Viewing head : Compensation trinocular head, 45° inclined, interpupillary distance 48 to75 mm
- Nosepiece : 4 Holes revolving nosepiece, inward
- Objective : Plan Achromatic Objective PL 4X/0.10
Plan Phase Contrast Objectives
PL10XPh/0.25
PL40XPh/0.65 (Spring)
PL100XPh/1.25 (Spring, oil)
Biological Microscope FM-BM-D101
- Optical system : Infinite optical system
- Viewing head : Compensation trinocular head, 45° inclined, interpupillary distance 48 to75 mm
- Nosepiece : 4 Holes revolving nosepiece, inward
- Objective : Infinity Plan Phase Contrast Objectives
E Plan 10XPh/0.25
E Plan 20XPh/0.40
E Plan 40XPh/0.65(Spring)
E Plan 100XPh/1.25(Spring, oil)
Biological Microscope FM-BM-C104
- Optical System : Finite optical system
- Viewing Head : Siedentopf Trinocular Head, inter-pupillary distance 50 to 75 mm, 30° inclined, 360° rotatable
- Eyepiece : WF 10X/20 mm
- Objective : Plan Objective 4X, 10X, 40X (S), 100X / 1.25 (S, O)
Biological Microscope FM-BM-C105
.png "Biological Microscope FM-BM-C105")
- High Point Ocular : WF10× / 20mm (23.2)
- Infinity Plan Objectives : 4× / 0.10 (Working Distance = 12.10mm), 10× / 0.25 (Working Distance = 4.64mm), 20× / 0.40(S) (Working Distance = 2.41mm), 40× / 0.66(S) (Working Distance = 0.65mm), 100× / 1.25(S, Oil) (Working Distance = 0.12mm)
- Binocular Head : Inclination Angle 30°, Rotation Angle 360°, Interpupillary Distance: 48mm to 75mm
- Nosepiece : Quintuple
Digital Microscope FM-DM-A300
- Optical system : Infinity-corrected Optical System
- Viewing head : Binocular Interpapillary Distance 55 mm – 75 mm
- LCD Touch pad Screen : 9.7 inches IPS touch screen
- Digital system software : Windows 10 & HDMI output
Digital Microscope FM-DM-A100
- Optical system : Infinite optical system
- Viewing head : Seidentopf Binocular head, 30° inclined, Interpupillary 48 to 75 mm
- LCD Touch pad Screen : 8 Inch TFT Touching screen, 5.0 Mega Pixel CMOS Chip
- Digital system software :
Supports Wi-Fi and Bluetooth, USB 2.0, Mini US, HDMI, SD Card Operation System Android 4.2.2, Touch Scope Software
Digital Microscope FM-DM-A101
- Optical system : Infinite optical system
- Viewing head : Seidentopf Binocular head, 30° inclined, Interpupillary 48 to 75 mm
- LCD Touch pad Screen : 8 Inch TFT Touching screen, 5.0 Mega Pixel CMOS Chip
- Digital system software :
Supports Wi-Fi and Bluetooth, USB 2.0, Mini US, HDMI, SD Card Operation System Android 4.2.2, Touch Scope Software
Digital Microscope FM-DM-A200
- Optical system : Infinite optical system
- Viewing head : Seidentopf Binocular head, 30° inclined, Interpupillary 48 to 75 mm
- LCD Touch pad Screen : 8 Inch TFT Touching screen, 5.0 Mega Pixel CMOS Chip
- Digital system software :
Supports Wi-Fi and Bluetooth, USB 2.0, Mini US, HDMI, SD Card Operation System Android 4.2.2, Touch Scope Software
Digital Microscope FM-DM-A201
- Optical system : Infinite optical system
- Viewing head : Seidentopf Binocular head, 30° inclined, Interpupillary 48 to 75 mm
- LCD Touch pad Screen : 8 Inch TFT Touching screen, 5.0 Mega Pixel CMOS Chip
- Digital system software :
Supports Wi-Fi and Bluetooth, USB 2.0, Mini US, HDMI, SD Card Operation System Android 4.2.2, Touch Scope Software
Digital Microscope FM-DM-B100
- Viewing head : Sliding trinocular head inclined at 45°; 360° rotation; Interpupillary distance: 55 to 75 mm; Adjustable tube diopter
- Head light path : Switch E100: P0/E0: P100
- Optical system : Achromatic optical system
- Illumination : Built-in Illumination 6 V 20 W Halogen Lamp; Plan-concave Mirror
Digital Microscope FM-DM-B101
- Viewing head : Trinocular head inclined at 30°; Interpupillary distance: 48 to 75 mm; Adjustable tube diopter
- Optical system : Achromatic optical system
- Illumination : 3W Kohler illumination
- Light distribution : LED
Digital Microscope FM-DM-B200
- Viewing head : Seidentopf trinocular head inclined at 45°; Interpupillary distance: 54 to 75 mm
- Head diopter : Both tubes adjustable
- Head light path : Switch E100: P0/E0: P100
- Optical system : Greenough optical system
Digital Microscope FM-DM-A301
- Image System : 11.6-inch HDMI Screen
- Camera : HDMI 4K digital camera (with U-disk interface)
- LWD Infinity Plan Objective : L Plan FL 4× / 0.11 (W.D.= 12.1 mm)
- LWD Infinity Plan Phase Contrast Objectives : L Plan FL PHP 10× / 0.25 (W.D.= 10.3 mm)
L Plan FL PHP 20× / 0.45 (W.D.= 5.8 mm)
L Plan FL PHP 40× / 0.65 (W.D.= 5.1 mm)
Handheld Digital Microscope FM-HDM-A100
- Magnification : 0X to 1000XL
- Lens structure : 5G+IR
- Lens angle : 16o (depends on the lens)
- Working temperature : 0 oC to 40 oC
Fluorescence Microscopes FM-FM-A100
- Optical system : Infinite optical system
- Viewing head : Binocular head inclined at 30°, interpupillary distance 48 to 75 mm
- Eyepiece : High eye point, extra wide field eyepiece EW10x/ 22 mm
- Objectives :
LWD Infinite Plan Objectives 4X/ 0.1, WD 18 mm 10X/ 0.25, WD 10 mm 20X/ 0.4, WD 5.1 mm 40X/ 0.6, WD 2.6 mm
Fluorescence Microscopes FM-FM-A101
- Optical system : Infinite optical system
- Viewing head : Trinocular head inclined at 30°, interpupillary distance 48 to 75 mm
- Eyepiece : High eye point, extra wide field eyepiece EW10x/ 22 mm
- Objectives :
LWD Infinite Plan Objectives 4X/ 0.1, WD 18 mm 10X/ 0.25, WD 10 mm 20X/ 0.4, WD 5.1 mm 40X/ 0.6, WD 2.6 mm
Fluorescence Microscopes FM-FM-A102
- Optical system : Infinite optical system
- Viewing head : Binocular head inclined at 30°, interpupillary distance 48 to 75 mm
- Eyepiece : High eye point, extra wide field eyepiece EW10x/ 22 mm
- Objectives :
LWD Infinite Plan Objectives 4X/ 0.1, WD 18 mm 40X/ 0.6, WD 2.6 mm Infinite Plan Phase Objectives PH 10X/0.25, WD 10 mm PH 20X/0.4, WD 5.1 mm
Fluorescence Microscopes FM-FM-A103
- Optical system : Infinite optical system
- Viewing head : Trinocular head inclined at 30°, interpupillary distance 48 to 75 mm
- Eyepiece : High eye point, extra wide field eyepiece EW10x/ 22 mm
- Objectives :
LWD Infinite Plan Objectives 4X/ 0.1, WD 18 mm 40X/ 0.6, WD 2.6 mm Infinite Plan Phase Objectives PH 10X/0.25, WD 10 mm PH 20X/0.4, WD 5.1 mm
Fluorescence Microscope FM-FM-A200
- Optical system : Infinite optical system
- Viewing head : Compensation free binocular head inclined at 30°, interpupillary distance 48 to 75 mm
- Eyepiece : Wide field eyepiece EW10X/ 18 mm
- Objectives : Infinite semi-plan achromatic objective 4X, 10X, 40X, 100X
Fluorescence Microscope FM-FM-A201
- Optical system : Infinite optical system
- Viewing head : Compensation free trinocular head inclined at 30°, interpupillary distance 48 to 75 mm
- Eyepiece : Wide field eyepiece EW10X/ 18 mm
- Objectives : Infinite semi-plan achromatic objective 4X, 10X, 40X, 100X
Fluorescence Microscope FM-FM-A202
- Optical system : Infinite optical system
- Viewing head : Compensation free binocular head inclined at 30°, interpupillary distance 48 to 75 mm
- Eyepiece : Wide field eyepiece EW10X/ 18 mm
- Objectives : Infinite plan achromatic objective 4X, 10X, 40X, 100X
Fluorescence Microscope FM-FM-A203
- Optical system : Infinite optical system
- Viewing head : Compensation free trinocular head inclined at 30°, interpupillary distance 48 to 75 mm
- Eyepiece : Wide field eyepiece EW10X/ 18 mm
- Objectives : Infinite plan achromatic objective 4X, 10X, 40X, 100X
Fluorescence Microscope FM-FM-A204
- Viewing head : Siedentopf trinocular head inclined at 30º Interpupillary adjustable distance 47 mm to 78 mm
- Eyepiece : WF10X/20 mm
- Objectives : Infinite plan achromatic objectives: 4x, 10x, 40x, 100x (s, oil)
- Nosepiece : Backward Quintuple Coding Nosepiece
Inverted Biological Microscope FM-BM-B100
- Optical System : Finite optical system
- Viewing head : Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm
- Eyepiece : WF10X/ 20 mm
- Long working distance plan objective : LWDPL 4X/ 0.1 W.D. 25 mm
LWDPL 10X/0.25 phase contrast W.D. 11 mm
LWDPL 20X/ 0.4 phase contrast W.D. 6 mm
LWDPL 40X/ 0.6 W.D. 3.8 mm
Inverted Biological Microscope FM-BM-B101
- Optical System : Infinite optical system
- Viewing head : Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm
- Eyepiece : WF10X/ 22 mm
- Long working distance plan objective : Not applicable
Inverted Biological Microscope FM-BM-B200
- Optical system : Infinite optical system
- Viewing head : Seidentopf binocular viewing head, inclined at 45°, 360° rotation, interpupillary distance adjustable 48 to 75 mm
- Eyepiece : Wide field eyepiece WF10X/ 22 mm, Eyepiece tube diameter: 30 mm
- Objectives :
Infinite plan achromatic objective 4×/0.10 WD=22 LWD Infinite plan achromatic phase objective 10 ×/ 0.25 WD=6 LWD Infinite plan achromatic phase objective 20 ×/ 0.4 WD=3.1 LWD Infinite plan achromatic phase objective 40 ×/ 0.55 WD=2.2
Inverted Fluorescence Microscope FM-FM-B100
- Optical System : Infinite
- Viewing Head : Trinocular head, Inclination 45°, Interpupillary distance 48 to 76 mm, 360° rotation, with trinocular port for digital camera, Light distribution (both): 100:0 (100% for eyepiece), 80:20 (80% for trinocular head, and 20% for eyepiece)
- Eyepiece : Wide field eyepiece WF 10X/22mm, adjustable diopter
- Nosepiece : 5 positions, with bidirectional rotation on ball bearings and click stop
Inverted Fluorescence Microscope FM-FM-B101
.png "Inverted Fluorescence Microscope FM-FM-B101")
- Viewing Head : Trinocular head with Bertrand lens, inclined at 45°, Interpupillary 47 to 78mm, 3 position beam split ratio: 50/50, 100/0, 0/100
- Eyepiece : SW10×/25mm, φ30mm
- Optical System : Infinite optical system
- Illumination : Kohler illumination, 12V/100W halogen lamp, ECO Auto-off function (automatically shut off in 15 mins if no users)

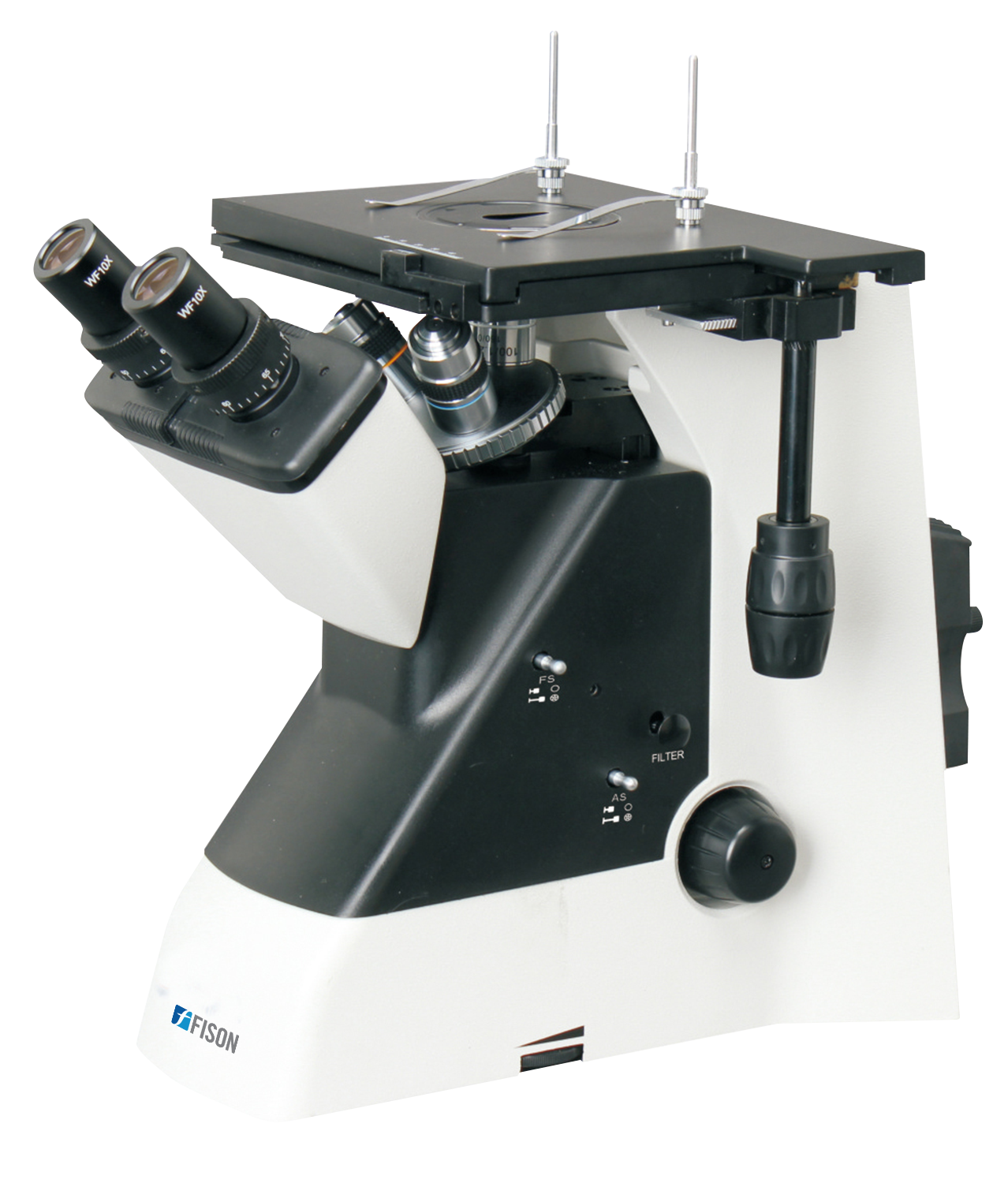

Metallurgical Microscope FM-MM-A100
- Optical system : Finite optical system
- Viewing head : Sliding binocular viewing head 45° inclined
- Objective : Achromatic Objective 10X/ 0.25 WD= 6.3 mm, Plan achromatic objective 40X/ 0.65 WD= 0.7 mm
- Eyepiece : WF10X/ 18 mm, WF12.5X/ 14 mm
Metallurgical Microscope FM-MM-A200
- Optical system : Infinite optical system
- Viewing head : Seidentopf type trinocular head
- Objective :
Infinite Plan Achromatic Objectives 4X/ 0.10/∞/- WD 17.8 mm 10X/ 0.25/∞/- WD 10.0 mm 20X/ 0.40/∞/0 WD 5.8 mm 40X/ 0.65/∞/0 WD 2.90 mm - Eyepiece : Extra wide field EWF10X/ 22 mm
Metallurgical Microscope FM-MM-A201
- Optical system : Infinite optical system
- Viewing head : Seidentopf type trinocular head
- Objective :
Infinite Plan Achromatic Objectives 5X/ 0.12/∞/- WD 15.5 mm 10X/ 0.25/∞/- (BF/DF) WD 10.0 mm 20X/ 0.40/∞/0 (BF/DF) WD 4.3 mm 50X/ 0.75/∞/0 WD 0.32 mm 100X/ 0.80/∞/0 WD 2.00 mm - Eyepiece : Extra wide field EWF10X/ 22 mm
Metallurgical Microscope FM-MM-A300
- Optical system : Infinite optical system
- Viewing head : Siedentopf trinocular viewing head, inclined at 30° interpupillary distance 48 to 75 mm
- Objective :
Infinite Plan Apochromatic Objectives 5X/0.17/∞/- (BF/DF) WD 8.6 mm 10X/0.28/∞/- (BF/DF) WD 3.4 mm 20X/0.5/∞/0 (BF/DF) WD 1.1 mm 50X/0.85/∞/0 (BF/DF) WD 0.5 mm 100X/0.95(dry)/∞/0 (BF) WD 0.1 mm - Eyepiece : Extra wide field EW10X/ 20, EW10X/ 20 eyepiece with scale of cross hair
Metallurgical Microscope FM-MM-A400
- Optical system : Infinite optical system
- Viewing head : Siedentopf type trinocular viewing head, inclined at 30° interpupillary 48 to 75 mm adjustable distance
- Objective :
Infinite Plan Apochromatic Objectives 5X/0.12/∞/- (BF) LWD 15.5 mm 10X/0.25/∞/- (BF) LWD 10 mm 20X/0.4/∞/0 (BF) LWD 5.8 mm 50X/0.75/∞/0 (BF) LWD 0.32 mm 100X/0.8/∞/0 (BF) LWD 2 mm - Eyepiece : Extra wide field eyepiece EX10X/ 22 mm
Metallurgical Microscope FM-MM-A401
- Optical system : Infinite optical system
- Viewing head : Siedentopf type trinocular viewing head, inclined at 30° interpupillary 48 to 75 mm adjustable distance
- Objective :
Infinite Plan Apochromatic Objectives 5X/0.12/∞/- (BF/DF) LWD 12 mm 10X/0.25/∞/- (BF/DF) LWD 10 mm 20X/0.4/∞/0 (BF/DF) LWD 4.3 mm 50X/0.75/∞/0 (BF/DF) LWD 0.32 mm 100X/0.8/∞/0 (BF/DF) LWD 2 mm - Eyepiece : Extra wide field eyepiece EX10X/ 22 mm

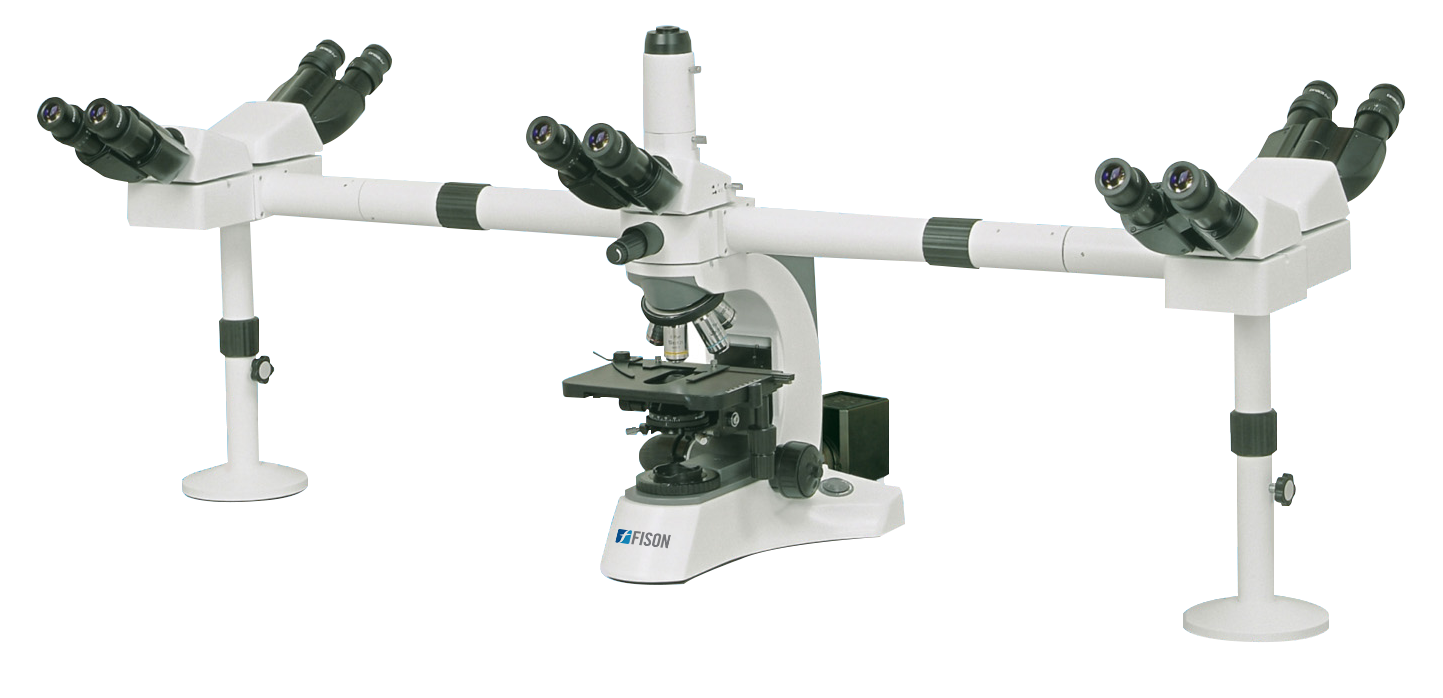

Multi-viewing Biological Microscope FM-MBM-A100
- Optical system : Infinite optical system
- Trinocular viewing head :
Inclination angle 30°, 360° rotatable Interpupillary distance 48 to 75 mm No. of viewing head 1 pc - Binocular viewing head :
Inclination angle 30°, 360° rotatable Interpupillary distance 48 to 75 mm No. of viewing head 4 pcs - Eyepiece : Extra wide field EW10X/22, Eyepiece tube diameter 30 mm (10 pcs)
Multi-viewing Biological Microscope FM-MBM-A101
- Optical system : Infinite optical system
- Trinocular viewing head :
Inclination angle 30°, 360° rotatable Interpupillary distance 48 to 75 mm No. of viewing head 1 pc - Binocular viewing head :
Inclination angle 30°, 360° rotatable Interpupillary distance 48 to 75 mm No. of viewing head 2 pcs - Eyepiece : Extra wide field EW10X/22, Eyepiece tube diameter 30 mm (6 pcs)
Multi-viewing Biological Microscope FM-MBM-A102
- Optical system : Infinite optical system
- Trinocular viewing head :
Inclination angle 30°, 360° rotatable Interpupillary distance 48 to 75 mm No. of viewing head 1 pc - Binocular viewing head :
Inclination angle 30°, 360° rotatable Interpupillary distance 48 to 75 mm No. of viewing head 1 pc - Eyepiece : Extra wide field EW10X/22, Eyepiece tube diameter 30 mm (4 pcs)
Multi-viewing Biological Microscope FM-MBM-A103
- Optical system : Infinite optical system
- Trinocular viewing head :
Inclination angle 30°, 360° rotatable Interpupillary distance 48 to 75 mm No. of viewing head 1 pc - Binocular viewing head :
Inclination angle 30°, 360° rotatable Interpupillary distance 48 to 75 mm No. of viewing head 1 pc - Eyepiece : Extra wide field EW10X/22, Eyepiece tube diameter 30 mm (4 pcs)
Polarizing microscope FM-PM-A100
- Optical System : Infinite optical system
- Viewing head : Seidentopf trinocular head inclined at 30°, Interpupillary 48-75 mm
- Polarizer : Fixed reflected polarizer
- Analyzer : 360° dial rotation, minimum scale reading 0.1° (Vernier scale)
Polarizing microscope FM-PM-A101
- Optical System : Infinite optical system
- Viewing head : Seidentopf trinocular head inclined at 30°, Interpupillary 48-75 mm
- Polarizer : Transmitted 360° rotatable 0° adjustable position polarizer
Fixed reflected polarizer - Analyzer : 360° dial rotation, minimum scale reading 0.1° (Vernier scale)
Polarizing microscope FM-PM-A102
- Optical System : Infinite optical system
- Viewing head : Seidentopf trinocular head inclined at 30°, Interpupillary 48-75 mm
- Polarizer : 360° rotatable 0° adjustable position polarizer
- Analyzer : 360° dial rotation, minimum scale reading 0.1° (Vernier scale)
Polarizing Microscope FM-PM-A200
- Optical System : Finite optical system
- Viewing head : Seidentopf type binocular head inclined at 30°, 360° Rotatable
- Polarizer : Sliding in/out of optical path, located on the top of collector
- Analyzer : Rotatable analyzer with gradation 0°-90°
Polarizing Microscope FM-PM-A201
- Optical System : Finite optical system
- Viewing head : Seidentopf type trinocular head inclined at 30°, 360° Rotatable
- Polarizer : Sliding in/out of optical path, located on the top of collector
- Analyzer : Rotatable analyzer with gradation 0°-90°
Polarizing Microscope FM-PM-A300
- Optical System : Finite optical system
- Viewing head : Monocular head inclined at 45 °
- Polarizer : 0°-90° rotatable located on top of the collector
- Analyzer : Fixed analyzer
Polarizing Microscope FM-PM-A301
- Optical System : Finite optical system
- Viewing head : Monocular head inclined at 45 °
- Polarizer : Sliding in/out of optical path, located on the top of collector
- Analyzer : Rotatable analyzer with gradation 0°-90°
Polarizing Microscope FM-PM-A302
- Optical System : Finite optical system
- Viewing head : Sliding binocular head inclined at 45 °
- Polarizer : Sliding in/out of optical path, located on the top of collector
- Analyzer : Rotatable analyzer with gradation 0°-90°
Polarizing Microscope FM-PM-A303
- Optical System : Finite optical system
- Viewing head : Sliding trinocular head inclined at 45 °
- Polarizer : Sliding in/out of optical path, located on the top of collector
- Analyzer : Rotatable analyzer with gradation 0°-90°
Measuring microscope FM-PMM-A100
- Total magnification : 100X
- Objective : Achromatic objective 10X
- Condenser : N.A. 0.25
- Illumination source : Pen light, no. 7 battery (with Holder)
Measuring microscope FM-PMM-A101
- Total magnification : 50X
- Objective : Achromatic objective 5X
- Condenser : N.A. 0.12
- Illumination source : Pen light, no. 7 battery (with Holder)
Measuring microscope FM-PMM-A102
- Total magnification : 40X
- Objective : Achromatic objective 4X
- Condenser : N.A. 0.1
- Illumination source : Pen light, no. 7 battery (with Holder)
Measuring microscope FM-PMM-A103
- Total magnification : 20X
- Objective : Achromatic objective 2X
- Condenser : N.A. 0.05
- Illumination source : Pen light, no. 7 battery (with Holder)
Measuring microscope FM-PMM-A200
- Total magnification : 100X
- Objective : Achromatic objective 10X
- Condenser : N.A. 0.25
- Illumination source : No pen battery
Measuring microscope FM-PMM-A201
- Total magnification : 50X
- Objective : Achromatic objective 5X
- Condenser : N.A. 0.12
- Illumination source : No pen battery
Measuring microscope FM-PMM-A202
- Total magnification : 40X
- Objective : Achromatic objective 4X
- Condenser : N.A. 0.1
- Illumination source : No pen battery
Measuring microscope FM-PMM-A203
- Total magnification : 20X
- Objective : Achromatic objective 2X
- Condenser : N.A. 0.05
- Illumination source : No pen battery
Scanning Electron Microscope FM-SEM-A100
- Magnification : 1x to 2,500,000x
- Resolution : 1.0 nm at 15 kV (SE), 1.5 nm at 1 kV (SE), 0.8 nm at 30 kV (STEM)
- Voltage : 20 V to 30 kV
- Electron Gun : Schottky Field Emission Electron Gun, In- cylinder Deceleration, Electromagnetic Composite Objective, Water-cooled Thermostatic Objective
Stereo Microscope FM-SM-A100
- Optical system : Greenough zoom optical system
- Viewing Head : 45° inclined and 360° rotable binocular viewing head, interpupillary distance 54-76 mm
- Eyepieces : EW 10X/20 mm with diopter adjustment
- Objectives : Zoom Objective 1x - 4.5x, Standard 1x objective
Stereo Microscope FM-SM-A101
- Optical system : Greenough zoom optical system
- Viewing Head : 60° inclined and 360° rotable trinocular viewing head, interpupillary distance 54-76 mm
- Eyepieces : EW 10X/20 mm with diopter adjustment
- Objectives : Zoom Objective 1x - 4.5x, Standard 1x objective
Stereo Microscope FM-SM-A200
- Main body : Sharp stereo erect image over wide field view
- Optical system : Greenough system
- Viewing head : 45° inclined binocular head and unrotable body with locked-in eyepiece
- Widefield eyepiece : WF 10X / 20 mm
Stereo Microscope FM-SM-A201
- Main body : Sharp stereo erect image over wide field view
- Optical system : Greenough system
- Viewing head : 45° inclined binocular head and unrotable body with locked-in eyepiece
- Widefield eyepiece : WF 10X / 20 mm
Stereo Microscope FM-SM-A202
- Main body : Sharp stereo erect image over a wide field of view
- Optical system : Greenough system
- Viewing head : Binocular head with 45° inclined body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
- Widefield eyepiece : WF 10 X
Stereo Microscope FM-SM-A300
- Main body : Sharp stereo erect image over wide field view
- Optical system : Greenough system
- Viewing head : Straight viewing 90° Upright head and rotational body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
- Widefield eyepiece : WF 10 X / 20 mm
Stereo Microscope FM-SM-A301
- Main body : Sharp stereo erect image over wide field view
- Optical system : Greenough system
- Viewing head : Binocular 45° inclined head and Non-auxiliary body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
- Widefield eyepiece : WF 10 X / 20 mm
Stereo Microscope FM-SM-A302
- Main body : Sharp stereo erect image over wide field view
- Optical system : Greenough system
- Viewing head : Binocular 45° inclined head and 90° rotational body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
- Widefield eyepiece : WF10 X / 20 mm
Stereo Microscope FM-SM-A303
- Main body : Sharp stereo erect image over wide field view
- Optical system : Greenough system
- Viewing head : Binocular 45° inclined head and 360° rotational body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
- Widefield eyepiece : WF 10 X / 20 mm
Stereo Microscope FM-SM-A304
- Main body : Sharp stereo erect image over wide field view
- Optical system : Greenough system
- Viewing head : Binocular 45° inclined head and 360° rotational body Left ocular tube dioptre adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
- Widefield eyepiece : WF 10 X / 20 mm
Stereo Microscope FM-SM-A400
- Optical System : Greenough zoom optical system
- Viewing head : Binocular 60° inclined head and 90° rotational body Left ocular tube diopter adjustment of +/- 5dp Interpupillary distance 55 to 75 mm
- Widefield eyepiece : WF10 X / 22 mm
- Objective : Zoom objective 0.67X to 4.5X
Stereo Microscope FM-SM-A401
- Magnification : 17 x to 110 x
- Objective : 0.7 x to 4.5 x
- Sensor : 1/3 inches COMS Sensor
- Resolution : 1920 × 1080 P@60FS (2.0 MP)
Stereo Microscope FM-SM-A402
- Body : Built-in camera with HDR image, 1/3 inches COMS, 2.0 MP; HDMI output; support for SD card
- Objective : 0.7 x to 4.5 x
- Sensor : 1/3 inches COMS Sensor
- Resolution : 1920 × 1080 P@60FS (2.0 MP)
Stereo Microscope FM-SM-A500
- Optical System : Parallel optical zoom system
- Viewing Head : Binocular Head, 20° Inclination, Interpupillary Distance 55-75mm
- Eyepiece : EW10×/22
- Zoom Objective : 0.8X to 8X
Stereo Microscope FM-SM-A600
- Optical system : Greenough optical system
- Viewing head : Trinocular heads with 360° rotation and 45° inclination
Distribution ratio : 3:7
Interpupillary distance : 52 to 75 mm (Adjustable) - Eyepiece : WF 10 X / 22 mm, with diopter adjustment
- Zoom objectives : Continuous zoom from 0.8 x to 5 x, extendable to 45mm to 211mm with additional objectives
