Gel Imaging System
Fison Gel Imaging Systems are precise for molecular biology experiments across laboratories and research institutes. They include filters that provide uniform light distribution as well as an anti-ultraviolet observation filter for user safety. They offer real-time observation and include a camera for taking photographs of the gel. These are crafted of steel which adds to their durability. Our gel imaging systems are ideal for the observation and photography of electrophoresis gels.
Blue Light Transilluminator FM-BLT-A100
- Blue LED Wavelength : 470nm
- Image Area (L×W) : 170 × 130mm
- Filter Color : Amber
- LED Life : About 10,000 Hours

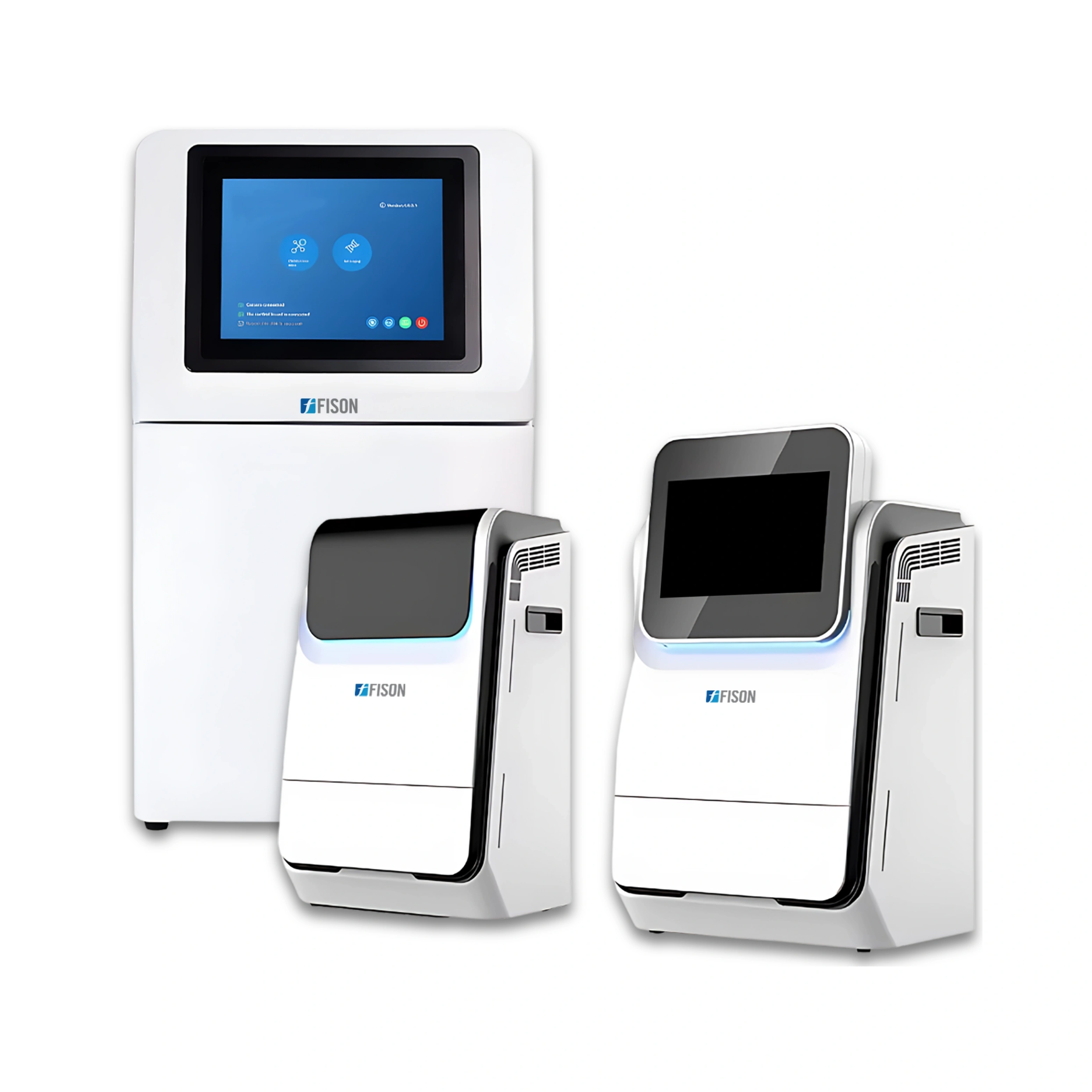

Chemiluminescence Imager FM-CI-A100
- Resolution : 9.0 Megapixels
- Sensor : Back illuminated Cooled CMOS sensor
- Dynamic Range : 4.8 OD
- Temperature : -30°C regulated (-65°C below ambient)
Chemiluminescence Imager FM-CI-A101
- Resolution : 6 Megapixels
- Sensor : Front illuminated Cooled CCD sensor
- Linear Range : 4.8 OD
- Temperature : -30°C regulated (-65°C below ambient)

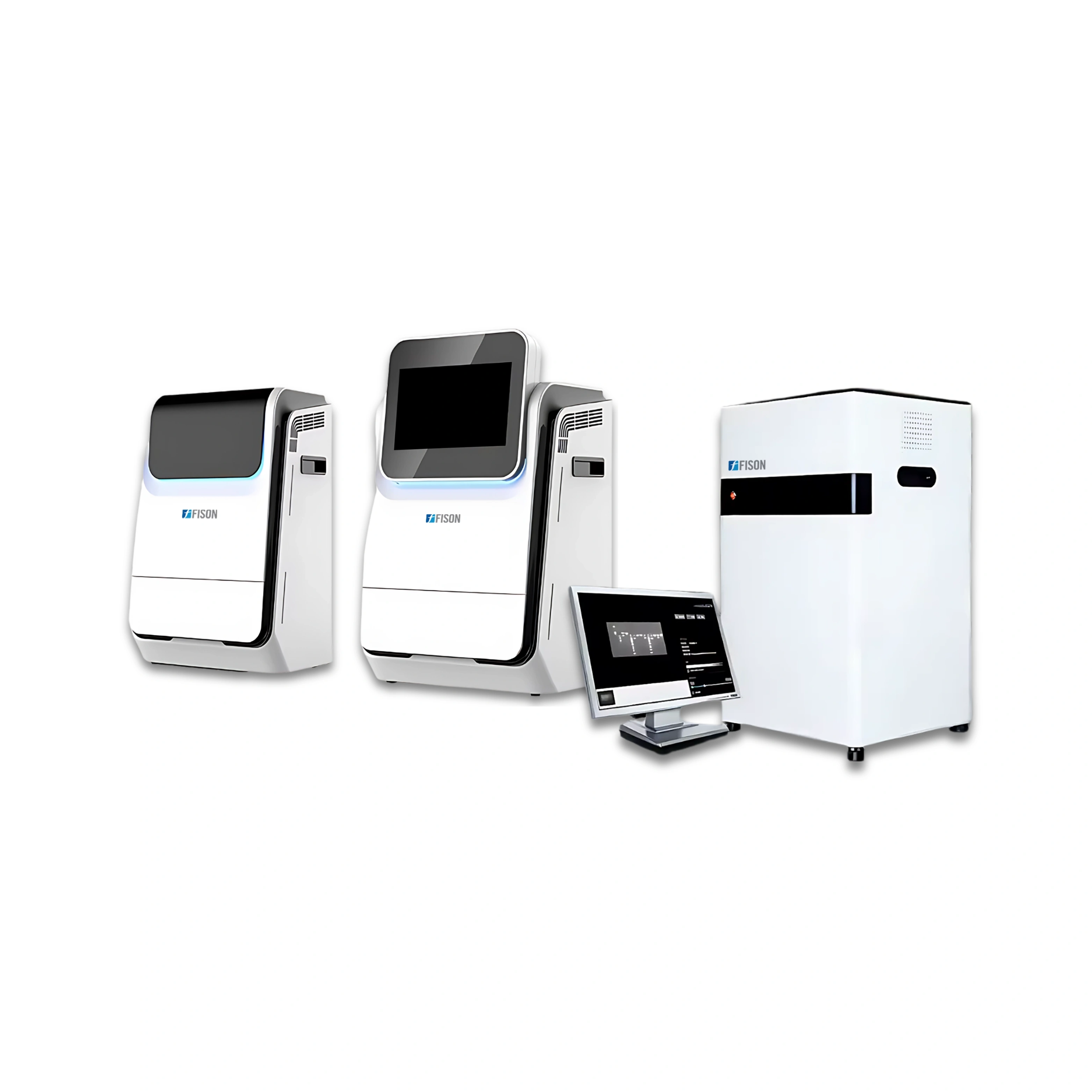

Gel Doc Imaging System FM-GIS-A100
- Resolution : 5 Megapixels (2592×1944)
- Quantum Efficiency : 0.77
- Linear Range : 4.8 OD
- Pixel Density : 16-bit (65,536 Grey scales)
Gel Doc Imaging System FM-GIS-A101
- Resolution : 20 Megapixels (4800 × 4440)
- Quantum Efficiency : 0.82
- Linear Range : 4.8 OD
- Pixel Density : 16-bit (65,536 Grey scales)
Gel Doc Imaging System FM-GIS-A102
- Resolution : 6.3 Megapixels (3072×2048)
- Quantum Efficiency : 0.97
- Linear Range : 4.8 OD
- Pixel Density : 16-bit (65,536 Grey scales)

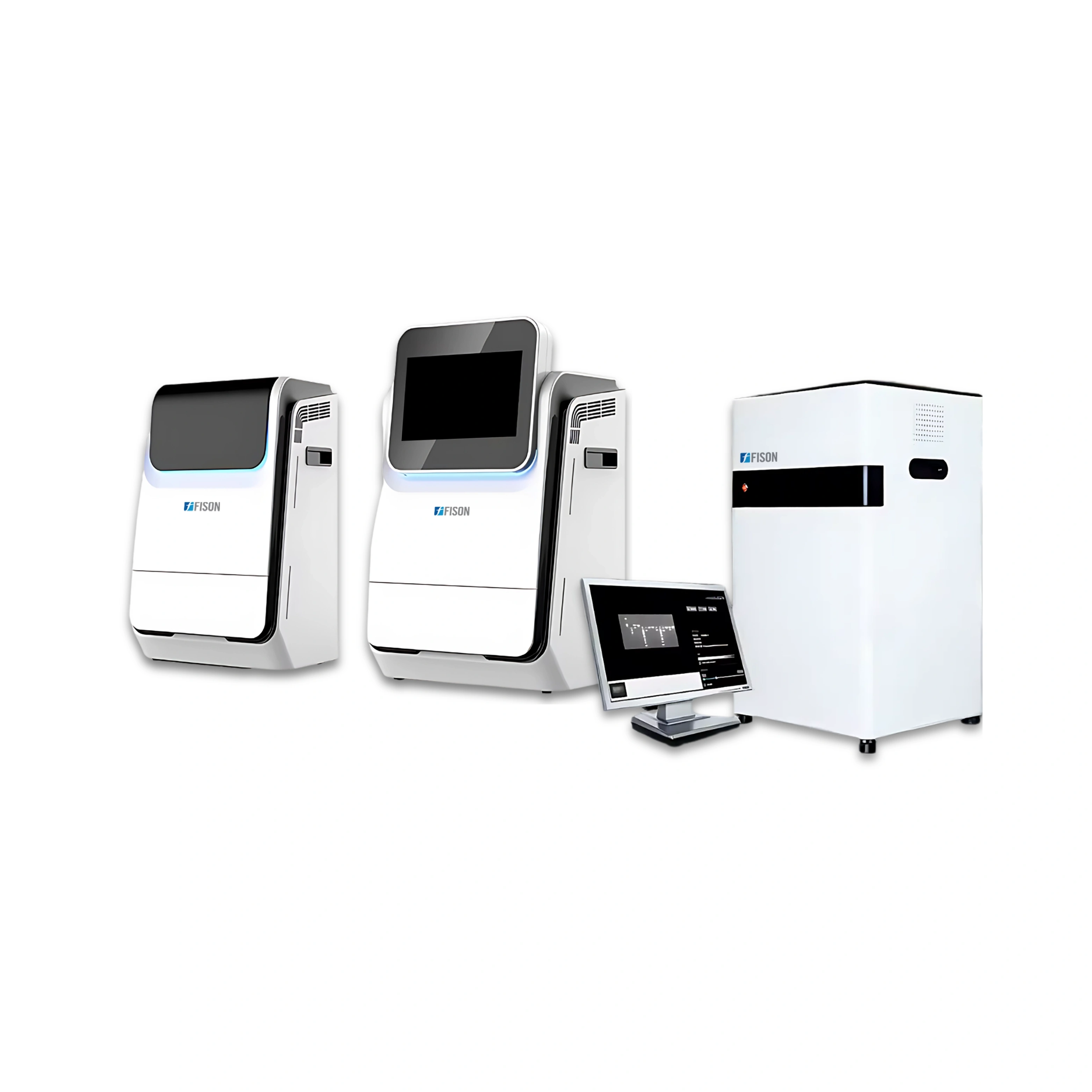

Multispectral Imager FM-MI-A100
- Resolution : 9.0 Megapixels
- Sensor : Cooled Back-illuminated CMOS
- Linear Range : 4.8 OD
- Temperature : -30°C regulated
Multispectral Imager FM-MI-A101
- Resolution : 6 Megapixels
- Sensor : Front illuminated CCD
- Linear Range : 4.8 OD
- Temperature : -30°C regulated
Multispectral Imager FM-MI-A102
- Resolution : 9.0 Megapixels
- Sensor : Cooled Back-illuminated CMOS
- Linear Range : 4.8 OD
- Temperature : -30°C regulated
Multispectral Imager FM-MI-A103
- Resolution : 6 Megapixels
- Sensor : Front illuminated CCD
- Linear Range : 4.8 OD
- Temperature : -30°C regulated

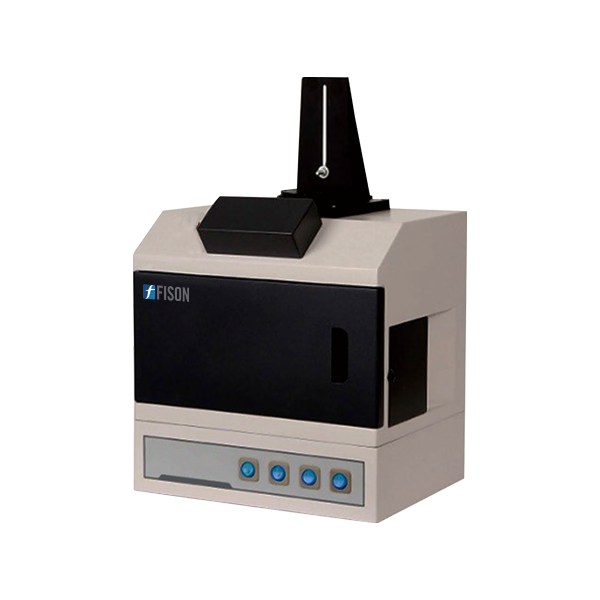

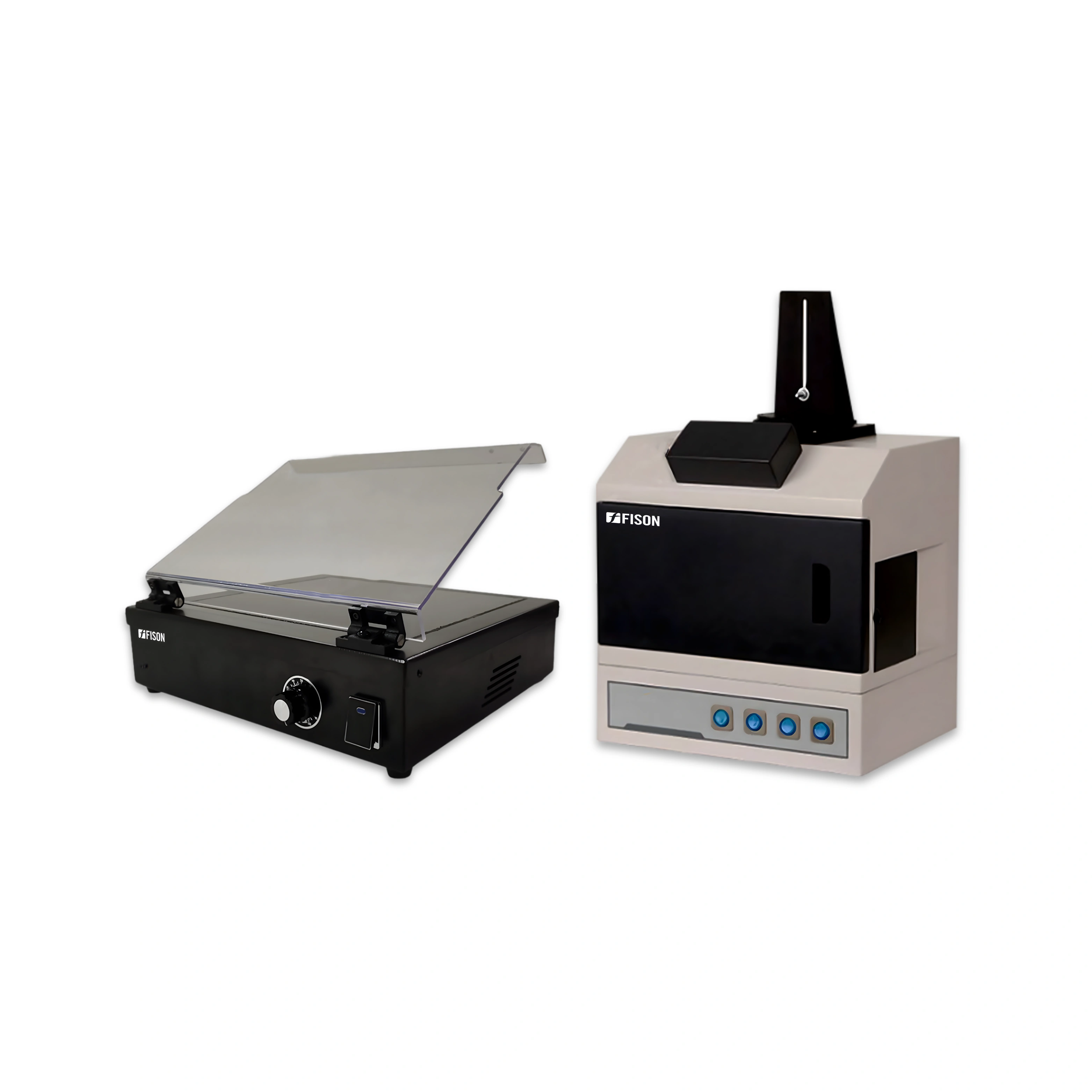

UV Trans-illuminator FM-UVT-A100
- Transmission area (W×L) : 200×150 mm
- Transmission UV Wavelength : (midrange wave)302 nm
- Reflectance UV Wavelength : (short range wave) 254 nm, (long range wave) 365 nm
- UV lamp : 6W x 10 pcs
UV Trans-illuminator FM-UVT-A101
- Transmission Area : 215×265mm
- Wavelength : Single wavelength: 302nm (peak)
- Light Intensity : Adjustable
- Surface : Toughened glass surface
UV Trans-illuminator FM-UVT-A102
- Transmission Area : 215×265mm
- Wavelength : Dual wavelength：302nm (peak)，365nm or 254nm (peak)
- Light Intensity : Adjustable
- Surface : Toughened glass surface
