Calorimeter
Fison Calorimeters are designed for precise measurement of multiple parameters in both industrial and laboratory settings. Our range includes Automatic Bomb Calorimeter, Heat Flow Calorimeter and Differential Scanning Calorimeter. They feature automatic wavelength selection with an accuracy of ±1 nm, ensuring precise results. Their durable construction makes them suitable for various environments, while the USB interface allows for seamless data transmission. Our calorimeters are simple and intuitive making them a reliable choice.

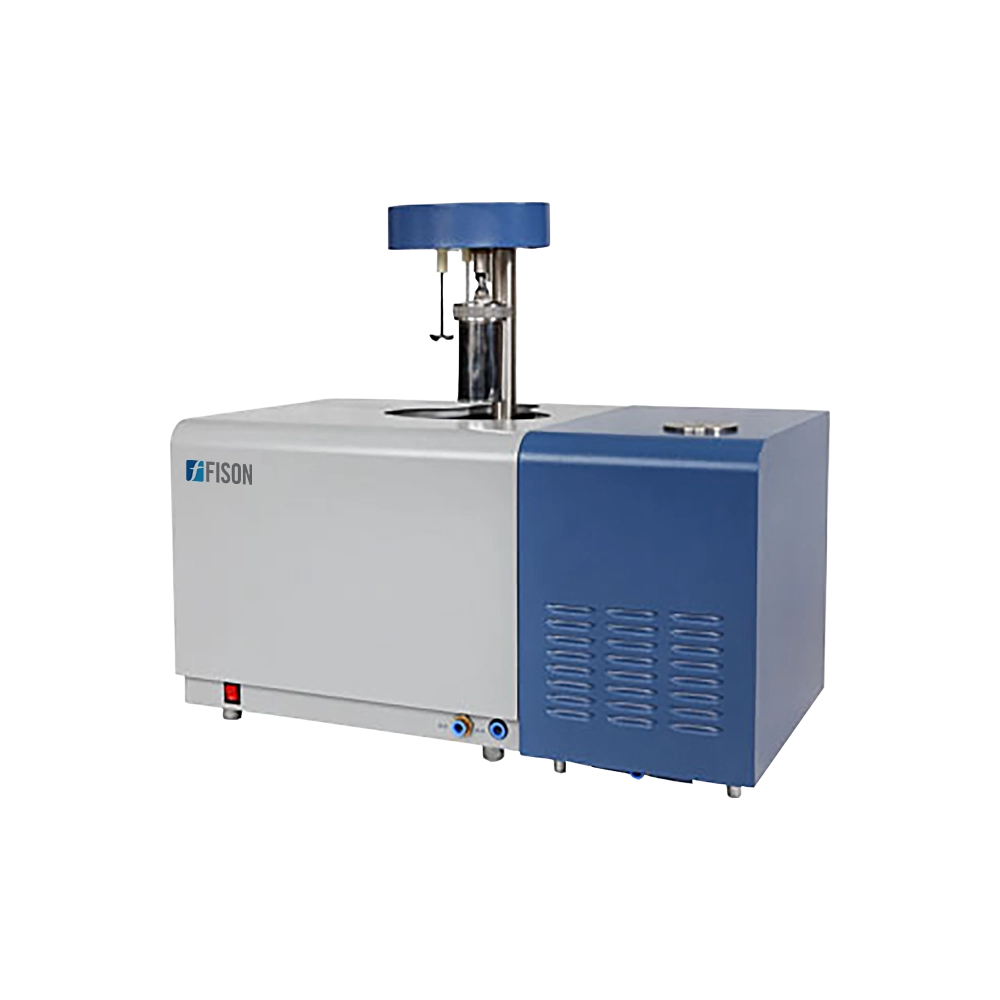

Automatic Bomb Calorimeter FM-ABC-A100
- Calorimeter type : Isoperibol
- Temperature range : 5℃ to 40℃
- Measuring range : 5 MJ/kg to 40 MJ/kg （Can be expanded 0 to 50000J）
- Temperature resolution : 0.0001℃
Automatic Bomb Calorimeter FM-ABC-B100
.png "Automatic Bomb Calorimeter FM-ABC-B100")
- Energy Measurement Range : 0 to 50000J
- Heat Capacity Stability : ≤0.2% within 12 months
- Measurement Consistency (RSD) : ≤0.08%
- Bomb Volume : 250ml
Differential Scanning Calorimeter FM-DSC-A100
- Temperature range : RT to 550°C
- Thermal resolution : 0.001°C
- Temperature variations : ± 0.001°C
- Temperature repeatability : ± 0.1°C

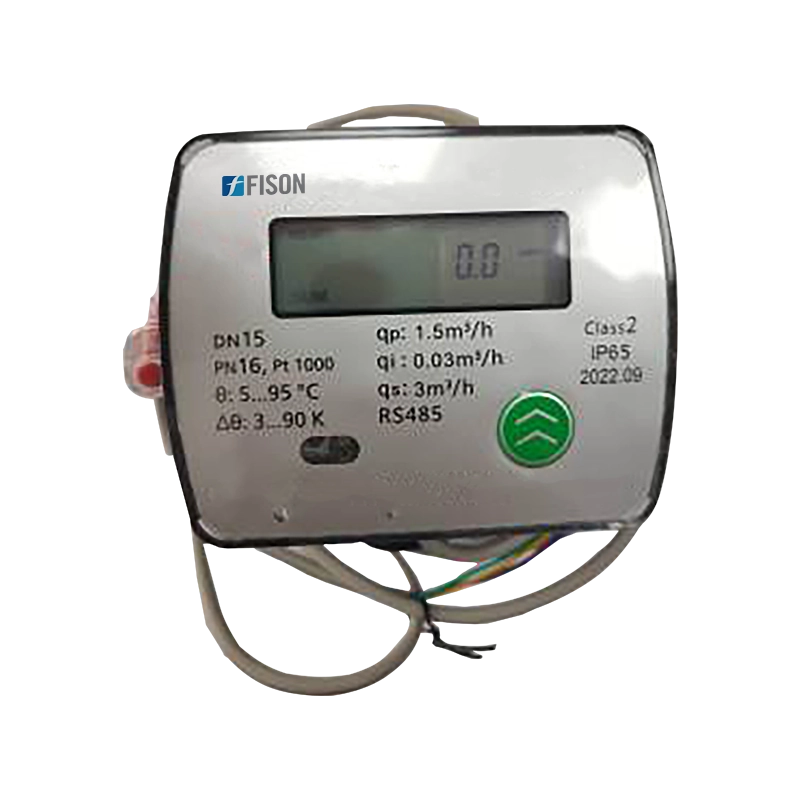

Heat Flow Calorimeter FM-HFC-A100
- Diameter : DN15
- Min. Flow qmin : 0.03 m³/h
- Quantity of Flow (qp) : 1.5 m³/h
- Max Flow qmax : 3 m³/h
Heat Flow Calorimeter FM-HFC-A101
- Diameter : DN20
- Min. Flow qmin : 0.05 m³/h
- Quantity of Flow (qp) : 2.5 m³/h
- Max Flow qmax : 5 m³/h
Heat Flow Calorimeter FM-HFC-A102
- Diameter : DN25
- Min. Flow qmin : 0.07 m³/h
- Quantity of Flow (qp) : 3.5 m³/h
- Max Flow qmax : 7 m³/h
Heat Flow Calorimeter FM-HFC-A103
- Diameter : DN32
- Min. Flow qmin : 0.12 m³/h
- Quantity of Flow (qp) : 6 m³/h
- Max Flow qmax : 12 m³/h
Heat Flow Calorimeter FM-HFC-A104
- Diameter : DN40
- Min. Flow qmin : 0.2 m³/h
- Quantity of Flow (qp) : 10 m³/h
- Max Flow qmax : 20 m³/h
