Specifications

Analytical Method	Energy Dispersive X-ray Fluorescence (EDXRF)
Operating Temperature	-20°C to +50°C
PDA with Touchscreen	CPU: 2G, System Memory: 8G
Intelligent Analysis	Automatic test mode selection based on sample matrix
Excitation Source	50KV/200µA – Ag/Rh/W end window integrated miniature X-ray tube and high voltage power supply
Collimator & Filter	Multiple collimators with automatic switching functions
Detector	High-Resolution Silicon Drift Detector (SDD)
Sample States	Solids, liquids, powders
Detection Limit	5 to 500 ppm, depending on element and sample matrix
Analysis Time	3 to 60 seconds
Element Detection	Displays up to 40 elements
Display Range	ppm to 99.99%
Safety Features	Automatic shutdown of X-ray tube, Pb-lined instrument frame, radiation levels comply with international safety standards
Power Supply	Rechargeable Li-ion battery, standard 6800mAh, provides up to 12 hours of operation per charge; 110/220V universal adapter for charging
Size	235 × 82 × 260 mm
Weight	Without battery: 1.35 kg, With battery: 1.49 kg

Features

• Lightweight and compact design
• Bluetooth connectivity
• Dual Functionality
• Durable construction
• Efficient workflow
• Simple operation

Applications

• Handheld XRF Gold Analyzer is used for Gold and Precious Metal Analysis, Mining and Exploration, Quality Control in Manufacturing, and Counterfeit Detection.

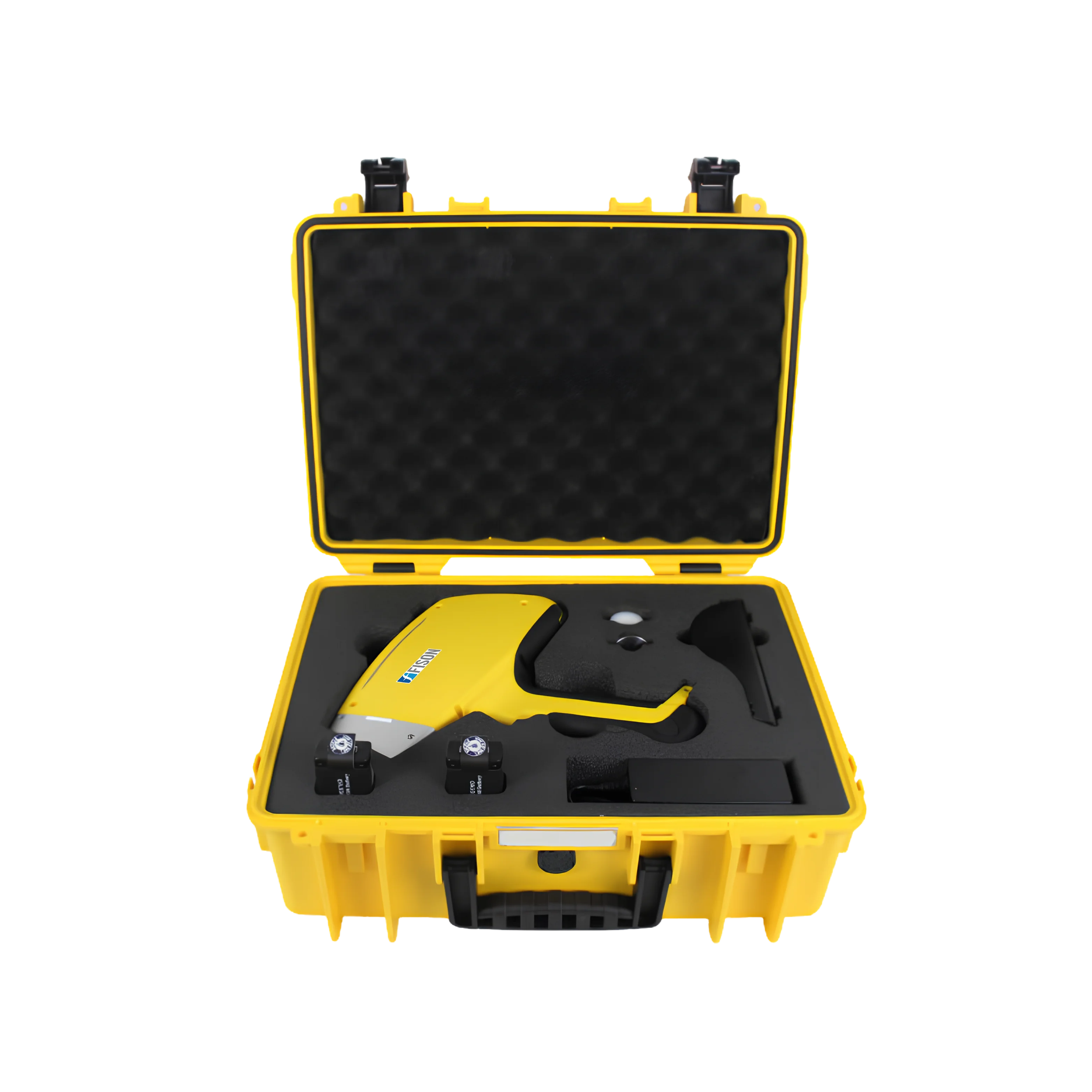

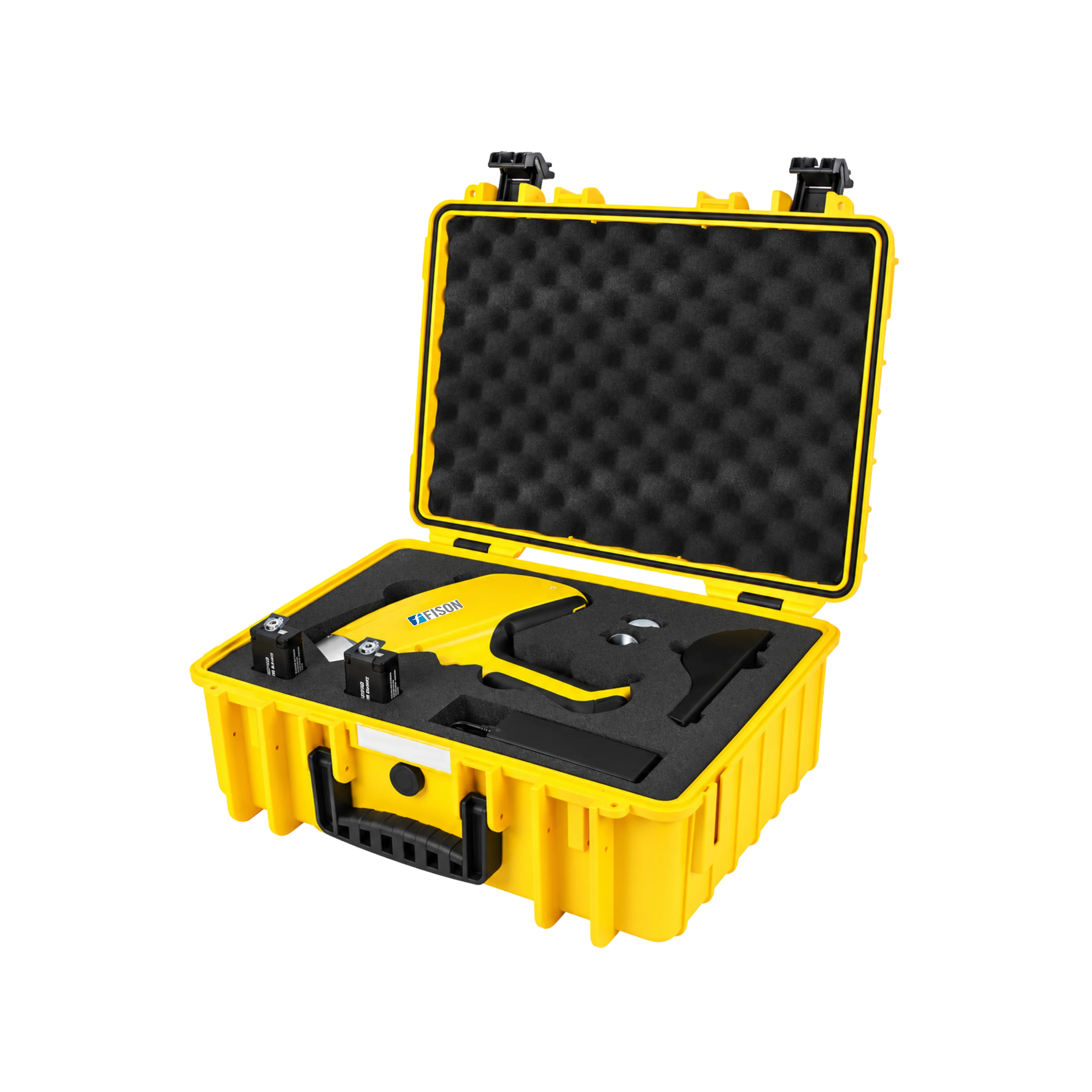

Standards

• 1. Power cable and adapter

  2. 2 batteries

  3. Battery Seat Charge

  4. 2G Memory card

  5. Memory card reader

  6. USB Cable

  7. 1 standard sample

  8. Sample cup for powder and liquid sample

  9. Test membrane

Accessories Optional

• 1. Stand
