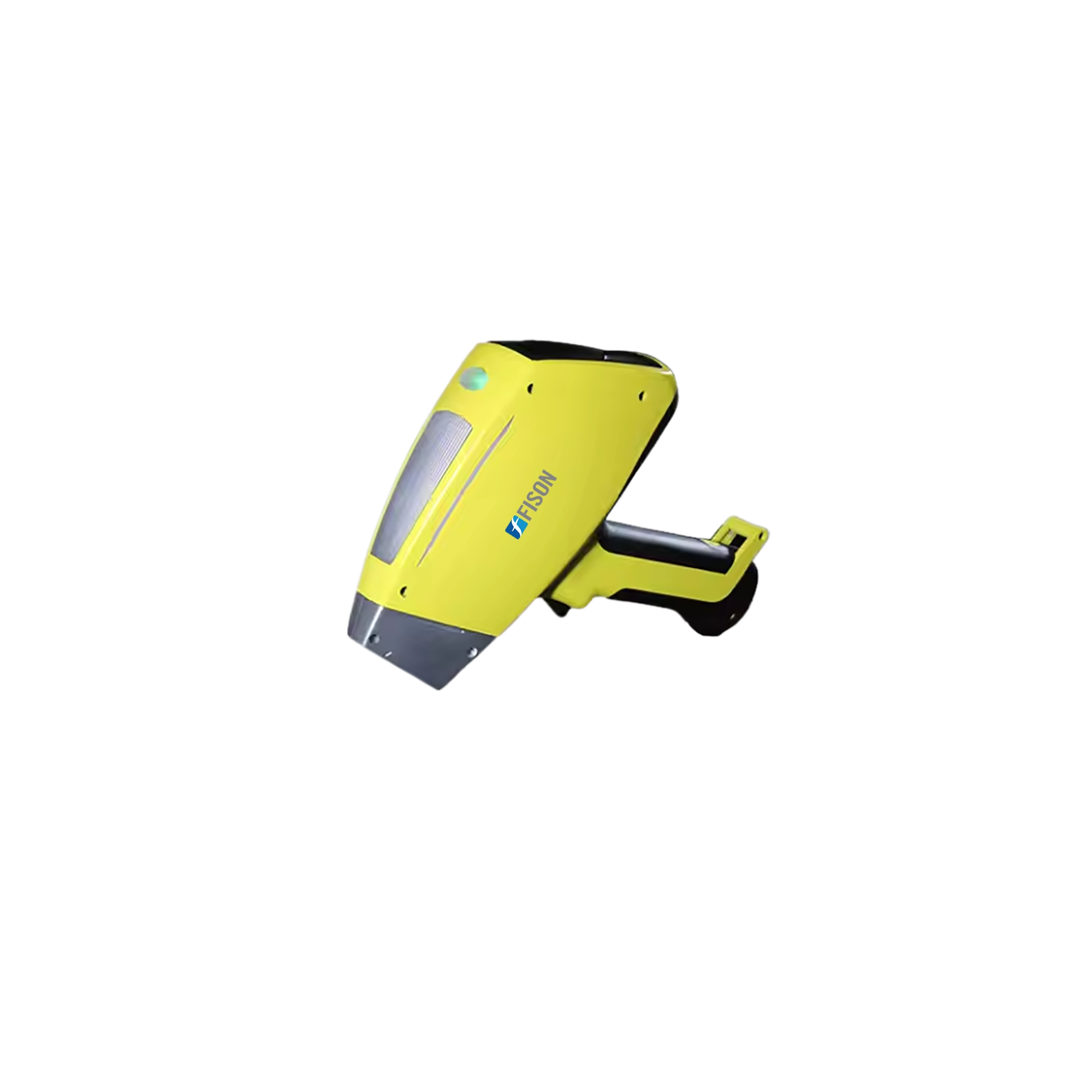

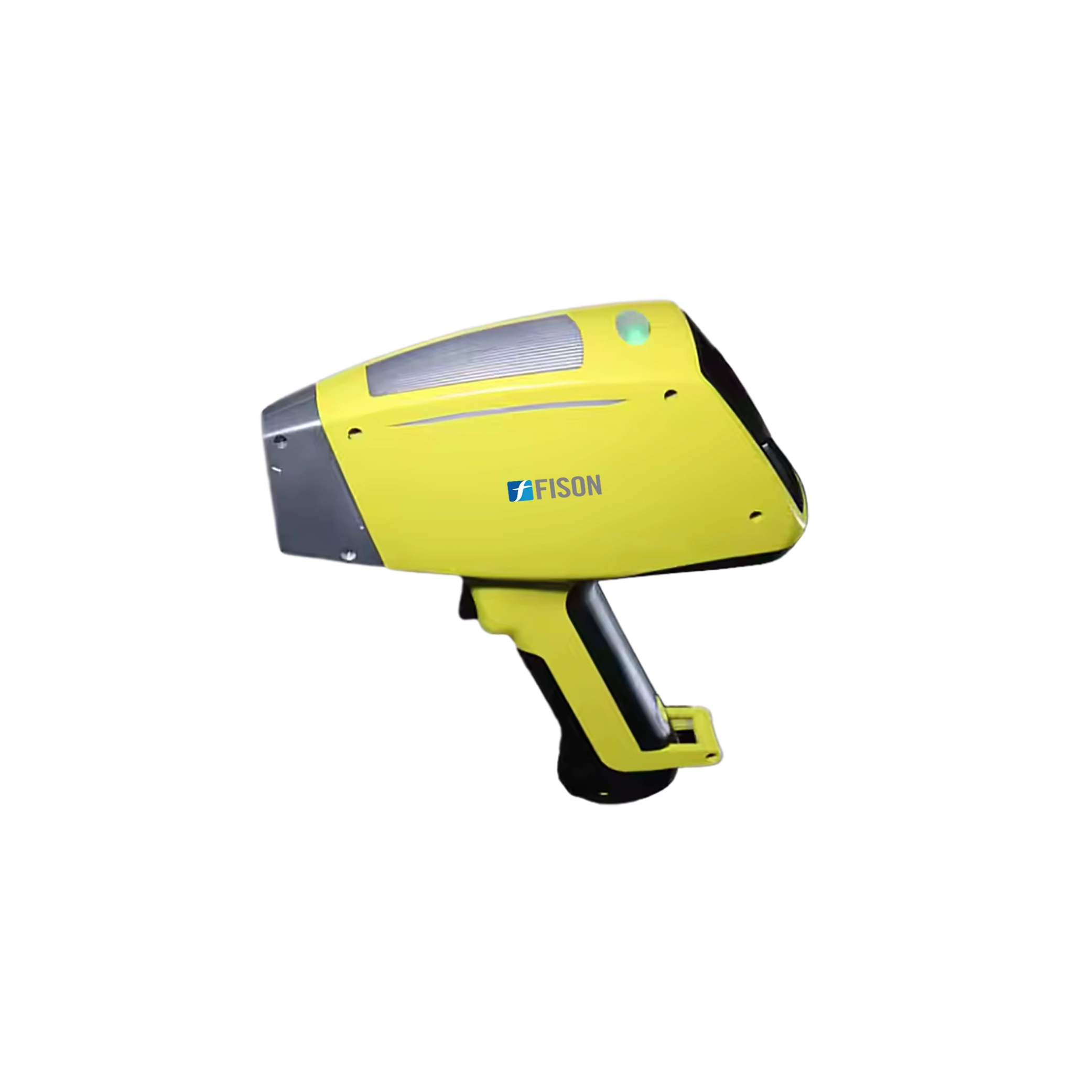

Handheld XRF Gold Analyzer FM-XGA-A200
Handheld XRF Gold Analyzer FM-XGA-A200 offers non-destructive elemental analysis for precise and reliable identification without damage. It is equipped with a BOOST Si-PIN detector for high sensitivity and authentic detection. This unit provides a durable 4.3-inch touchscreen for clear and detailed visuals. It comes with a built-in double beam technology for automatic sample sensing. Our analyzer has a compact, portable design for convenient use and transport.
Specifications
| Target Elements | Ag (standard), Au (optional), W (optional), Rh (optional) |
| Range of detection | All elements between Mg to U |
| Excitation source | 0 to 50KV/200μA |
| Detector | BOOST Si-PIN detector, SDD detector |
| Memory | 32GB storage |
| Connectivity Options | USB, Bluetooth, Wi-Fi connectivity |
| Heat dissipation | T-shaped radiator |
| Safety features | Waterproof, dust-proof, shockproof |
| Battery Life | 8 hours |
| Power Supply | 100 to 220VAC, 50/60Hz |
| Product Dimension | 254 ×79 × 280 mm |
| Packaging Dimension | 530 × 230 × 450 mm |
| Net Weight | 6 kg |
| Gross Weight | 7.5kg |
Features
- High-speed processing chip
- Intelligent battery system
- Real-time environmental sensing
- Automatic brightness adjustment
- Remote configuration and maintenance
- Customizable reporting
- Professional operating system and software
- Multi-language display support
Applications
- Handheld XRF Gold Analyzer FM-XGA-A200 is used to detect and analyzing all elements ranging from Magnesium (Mg) to Uranium (U) with high precision, making it ideal for applications in jewellery industries, gold analysis, precious metal identification, and alloy composition testing.
Accessories
- Excitation source: Ag
Battery: 7.2V 48.96Wh
Power supply: Wire
