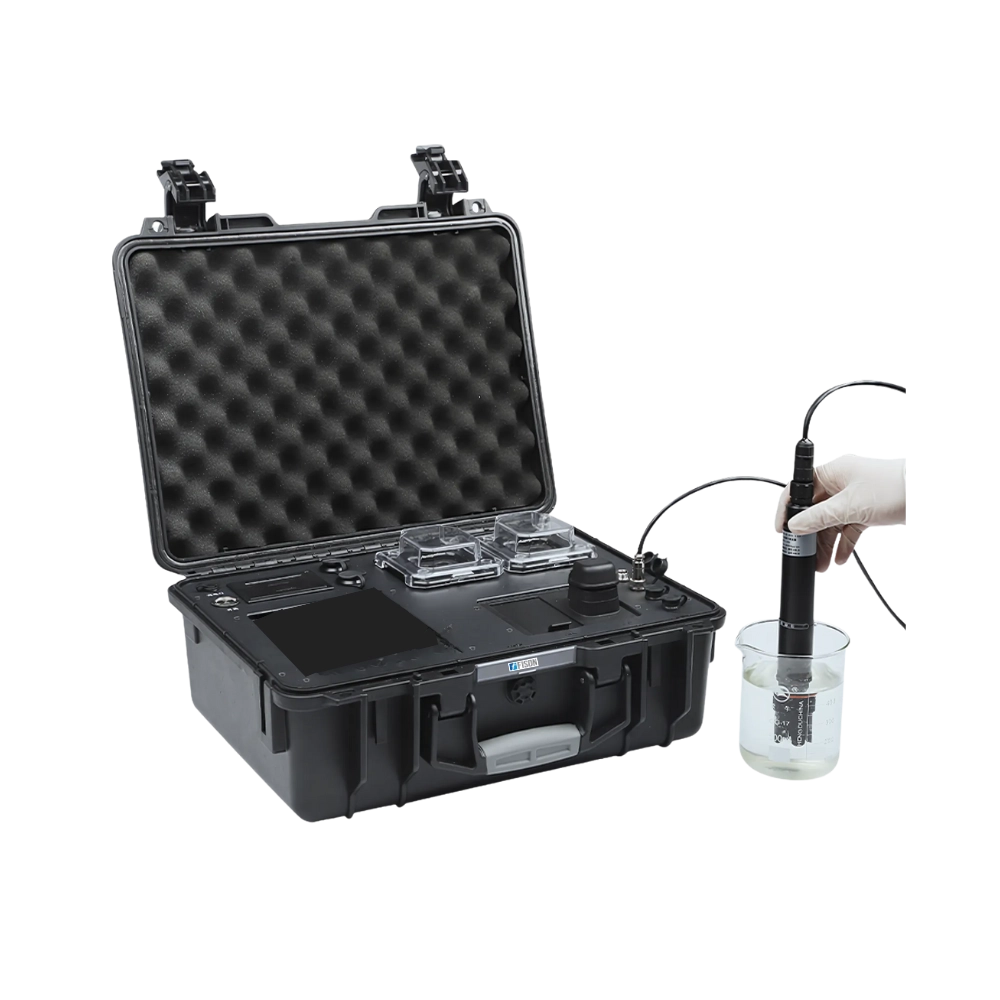

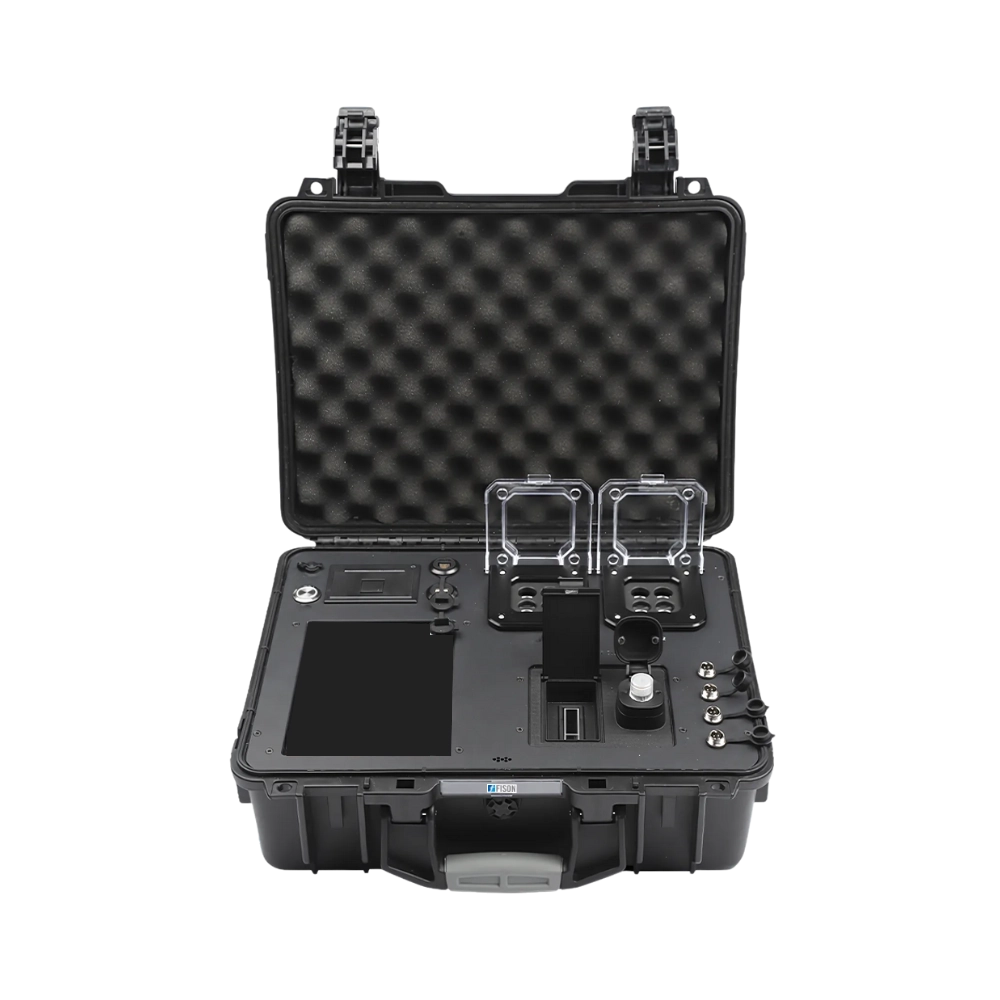

Water Quality Detector FM-WQD-A100
Water Quality Detector FM-WQD-A100 supports an extensive range of analytical parameters through spectral module and sensor module technologies. It is designed with an integrated digestion and detection system, dual temperature zones and high-precision optical sensing. A powerful lithium battery and onboard thermal printer support uninterrupted field operation. This versatile device is a complete solution for high-accuracy multi-parameter water testing.
Specifications
| pH measurement range | 5.5 to 9.5 |
| Chlorine measurement range | 1 to 50mg/L, 10 to 500mg/L |
| Hardness measurement range | 4 to 200, 20 to 1000 |
| Ammonia measurement range | 0.05 to 7.5, 0.2 to 15, 2 to 50, 4 to 200 |
| Nitrate measurement range | 1 to 20, 0.5 to 100 |
| Prefabricated colorimetric test tube | 16mm |
| Colorimetric dish | Below 50mm |
| Operating system | Android intelligent operating system |
| Indication error | ≤±5% |
| Repeatability | <0.5% |
| Stability | <0.5% |
| Resolution | 0.001 |
| Optical stability | ≤±0.001Abs/20 minutes (100000 hours lifespan |
| Automatic calibration | Automatic |
| Dissolving quantity | 8, independently controlled by dual temperature zones |
| Heating speed | rise to 165℃ within 10 minutes |
| Dissolving temperature | adjustable from room temperature to 200 ℃ |
| Dissolving capacity | 0-10ml |
| Temperature control mode | intelligent PID temperature control |
| Temperature control accuracy | ± 0.5℃ |
| Preset resolution accuracy | COD, Total phosphorus, total nitrogen, permanganate, sulphate, formaldehyde |
| Custom resolution mode | 4 |
| Screen display | 8 inches high-definition touch screen 1024×768 resolution |
| Printing method | Micro thermal printer |
| Operation videos | Demonstration videos of operation steps for ≥4 projects |
| Upload function | Wireless networking is available to upload data to the cloud platform, which can be viewed in real-time on mobile phones and computers |
| Battery capacity | Lithium battery 48V8AH |
| Full charge usage time | Taking COD as an example, simultaneous digestion and detection can be used continuously for more than 6 hours |
| Data transmission | USB, RJ45, WIFI |
| Sensor interfaces | 4, can be inserted and detected simultaneously, can be stored on schedule or manually |
| Data storage | 10 million sets, can be freely accessed and viewed |
| Power supply | DC48V2A |
| Dimension (L×B×H) | 430×350×200mm |
| Packaging dimension (L×B×H) | 550×400×550 mm |
| Net weight | 15 kg |
| Gross weight | 20 kg |
Features
- Dual zone digestion
- Fiber optic technology
- Pre-set calibration mode
- High-capacity storage<strong> </strong>
- Built-in wireless data transmission
Applications
- Our Water Quality Detector can be used extensively in municipal treatment plant, research institutes, industrial wastewater analysis and environmental monitoring stations to detect pollutants in surface water, groundwater, sewage and industrial effluent.
Accessories Optional
Accessories Quantity pH reagent 100 times/box (5 boxes) Chlorine reagent 100 times/box (5 boxes) Hardness reagent 50 times/box (10 boxes) Nitrate reagent 100 times/box (5 boxes) Ammonia reagent 100 times/box (5 boxes) 5ml Digital display pipette 1 pc 1ml Digital display pipette 1 pc 5ml Pipette tip 28pcs/box (1 box) 1ml Pipette tip 100pcs/box (1 box) 24 holes Test tube rack 1 pc Colorimetric dish 40×10mm×4/box (1 box) Colorimetric tube 16mm×4 (1box) Filter paper 1box Mirror cloth 1 pc Gloves 1 set Print paper 30×57 mm Accessory box 470x360x148 mm (1 pc) Charger 48V/2A (1 pc)
