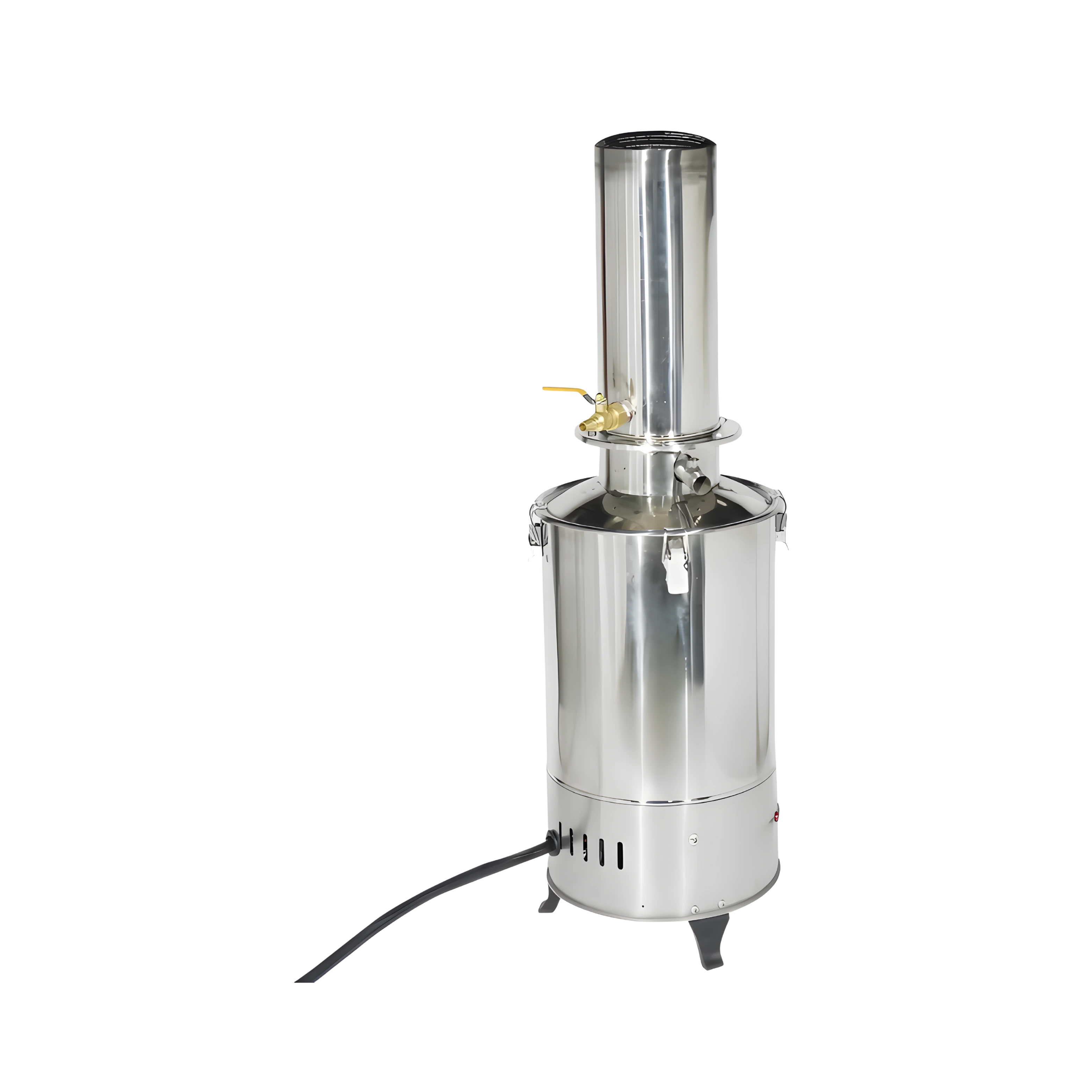

Water Distillation Unit FM-WDU-A102

Water Distillation Unit FM-WDU-A102

Water Distillation Unit FM-WDU-A102 is designed for easy use with a 20L capacity. The distiller is made of stainless steel, guaranteeing its durability. Evaporation tank, condenser, and heater ensure longevity and robust performance. Our system boasts water shortage protection, automatically alarming and cutting off heating when the liquid level is too low to safeguard the heater. This device is known to provide pure distilled water with simple to handle approach

Specifications

Capacity 20 L
Output ≥ 20 L/H
Power Supply 380 V
Power Consumption 15 kW
Exterior Dimension (Dia × H) 405 × 980 mm
Packaging Dimension (L×W×H) 410 × 410 × 1055 mm
Net Weight 11 Kg
Gross Weight 13.5 Kg

Features

  • Safeguards the heater from potential damage
  • User-friendly experience
  • Water Distillation Features safety and reliability in use
  • Employs electric heating distillation to produce high-quality distilled water

Applications

  • Water Distillation Unit is ideal for medical treatment, chemical industry, scientific research, and laboratories.

Alternative Models Of Water Distillation Unit

Water Distillation Unit FM-WDU-A100

  • Distillation Capacity: 5 L/H
  • Conductivity at 20℃: 2.72 µs/cm
  • Storage Tank: About 4.8 L
Catalog

Water Distillation Unit FM-WDU-A101

  • Capacity: 10 L
  • Voltage: 380
  • Output power (L/H): ≥10 (L/H)
Catalog

Water Distillation Unit FM-WDU-A103

  • Water Yield: 10L/H
  • Heating Power: 7.5KW
  • Voltage: 380V 50Hz
Catalog

Automatic Distillation Unit

Fison Automatic Distillation Units employ fully automated evaluation of fluid boiling characteristics. They facilitate real-time monitoring of distillation parameters, such as temperature and pressure. They are incorporated with advanced AI algorithms for operational regulation. Their safety mechanisms include overheat protection, fire detection and thermal cut-off. We offer Automatic Distillation Units with barometric pressure corrected sensors and modern compressors.

Automatic Distillation Unit FM-ADU-A100

  • Heating Power : 2 kW
  • Cooling Power : 0.5 kW
  • Steam Temperature Range : 0 to 400℃
Catalog

Automatic Distillation Unit FM-ADU-B100

  • Temperature range of bath : 0 to 60℃
  • Temperature control precision of bath : ±0.5℃
  • Temperature control precision of receiving chamber : ±1℃
Catalog
