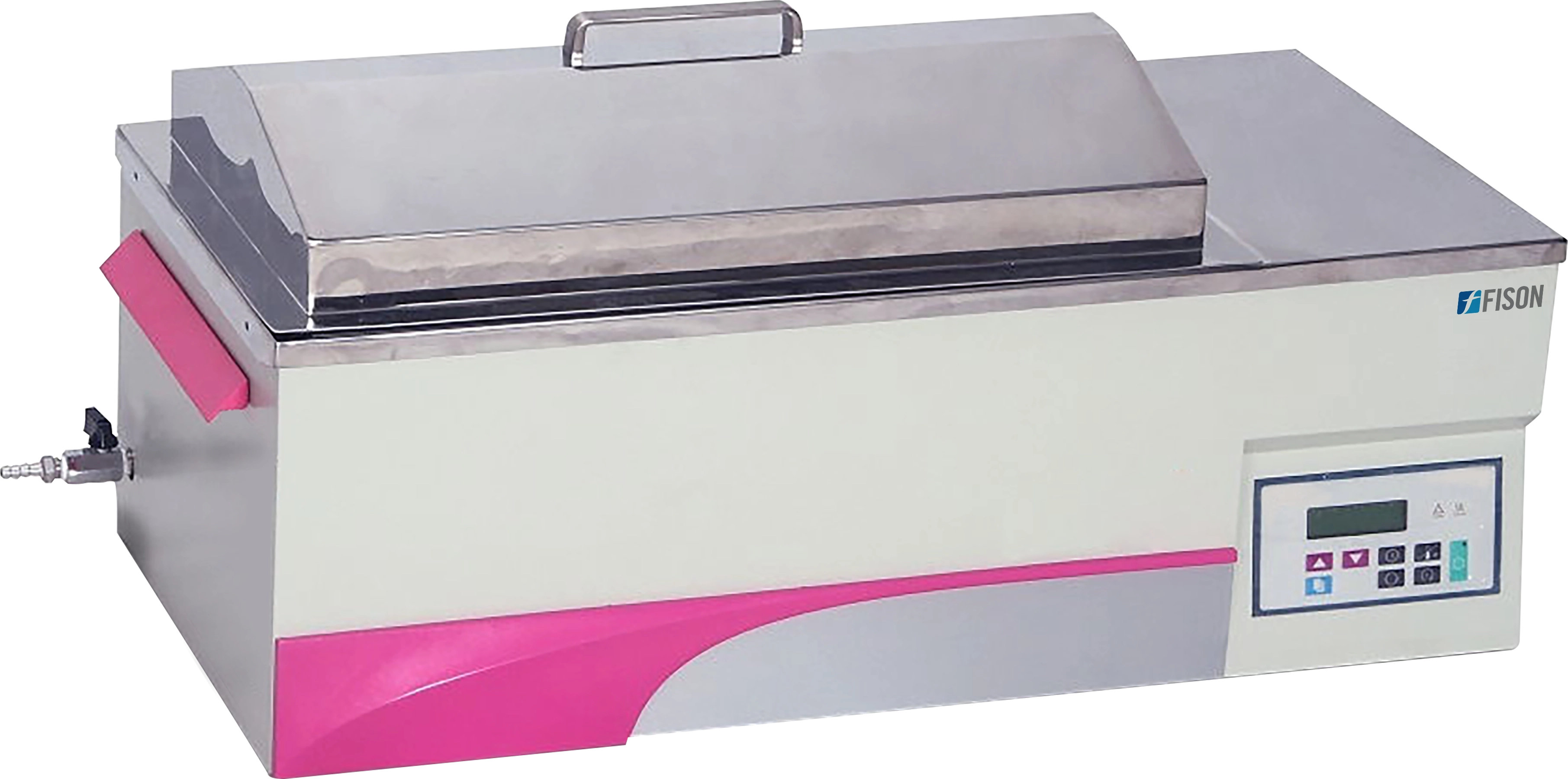

Water Bath Shaker FM-WBS-A201

Water Bath Shaker FM-WBS-A201

Water Bath Shaker FM-WBS-A201 is a benchtop reciprocating water bath shaker with microprocessor PID controlled system. It has 20 to 200 rpm speed range, RT to 100 °C temperature control range, and 494 × 316 mm tray size. Designed with finely electro-polished stainless steel gabled lid cover to minimize heat loss and evaporation. Non-volatile memory retains preset parameters during a power failure and restarts unit automatically after the power is restored. Easy-to-read LCD digital display provides a user-friendly interface which helps to minimize errors in establishing running conditions.

Specifications

Volume 50 L
Gable Lid Included Yes
Shaking mode Reciprocal
Temperature range RT to 100°C
Temperature accuracy ± 0.1°C
Temperature uniformity ± 0.2°C @37°C 100 rpm
Timer 1 minute to 500 hours
Stroke 16 (Default setting), changeable to 24
Speed range 20 to 180 rpm
Tray size (W×D) 494 × 316 mm
Inner dimension (W×D×H) 568 × 360 × 250 mm
External dimension (W×D×H) 855 × 420 × 430 mm
Packing dimension (W×D×H) 925 × 490 × 590 mm
Net weight 33 kg
Gross weight 49 kg
Power 2000 W
Power supply 220-240 V, 50/60 Hz

Features

  • Reciprocal shaking mode
  • 20 to 180 rpm speed range
  • Easy-to-read LCD digital display
  • Microprocessor PID controlled system
  • High quality SS304 stainless steel, for better durability of Interior parts
  • Standard stainless steel tray, without clamps
  • Low water level or over temperature protection
  • Uniform and quiet agitation, with continuous 24 hour operation
  • Complied with CE, ISO standards

Applications

  • Used in cell culture, fermentation, hybridization, and research of biochemical reaction, enzyme, cellular tissue and all that require high temperature and oscillation frequency.

Standard Configuration

  • Flask Capacity 50 ml 100 ml 250 ml 500 ml 1000 ml
    Flask No.s 24 24 15 11 6
