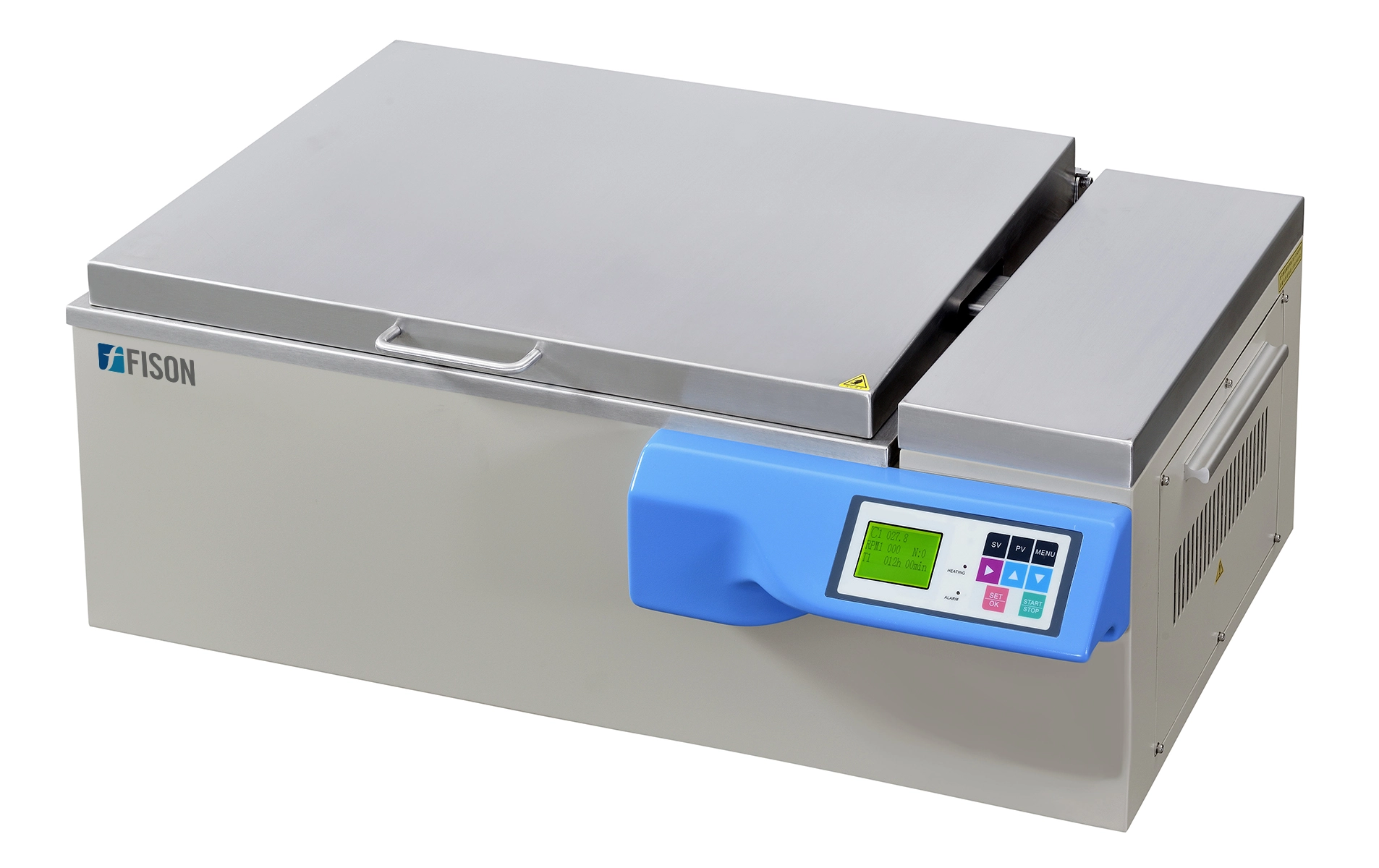

Water Bath Shaker FM-WBS-A101
Water Bath Shaker FM-WBS-A101 is a benchtop reciprocating water bath shaker with microprocessor PID controlled system and 83 L capacity. It has 20 to 200 rpm speed range, RT to 100 °C temperature control range, and 24 × 250 ml standard flask configuration. Designed with LCD display, drainage vale, electro-polished stainless steel lid cover and stainless steel chamber, tray, spring, flask holder. Dual over temperature functions with automatic cut-off in case of low water level or over temperature for heating parts. Used in germ culture, fermentation, hybridization, and research of biochemical reaction, enzyme, cellular tissue and all that require high temperature and oscillation frequency.
Specifications
| Capacity | 83 L |
| Control | Microprocessor PID controlled system |
| Speed range | 20 to 200 rpm |
| Speed accuracy | ±1 rpm |
| Oscillation amplitude | Φ25 mm |
| Convection mode | Forced convection |
| Oscillation mode | Linear reciprocating |
| Drive | Suspension orbit drive |
| Temperature control range | RT to 100℃ |
| Temperature control accuracy | ± 0.1℃ (constant temperature status) |
| Temperature uniformity | ± 0.2℃ |
| Timing range | 0 to 999.59 h |
| Display | LCD (Simultaneous display of set and working parameters) |
| Flask tray size | 590 × 390 mm |
| Tray number | 1 pc |
| Chamber dimension (D × W × H) | 700 × 455 × 260 mm |
| Overall dimension (D × W × H) | 945 × 495 × 408 mm |
| Power supply | AC 200 to 240V, 50 to 60 Hz |
| Power | 2200 W |
| Net weight | 55 kg |
Features
- Micro-processing PID controller system
- Featured with acoustic and visual alarm
- LCD display
- Stainless steel chamber, tray, spring and flask holder
- Electro-polished stainless steel lid cover
- Anti-vibration suspension buffer ensure low noise and avoid vibration of shaker
- Drainage valve on the left side for water draining, cleaning and sterilization
- Ideal temperature controller
- Automatic recovery from power failure
- Operating parameter memory function avoids monotonous operations
- Automatic stop of heating and alarm activation for over temperature
- Dry heating prevention
- Automatic stop at end timing activating acoustic and visual alarm
Applications
- Used in germ culture, fermentation, hybridization, and research of biochemical reaction, enzyme, cellular tissue and all that require high temperature and oscillation frequency. Also has application in research of medicine, biology, numerator, pharmacy and environmental protection.
Accessories Optional
Accessories no. Accessories name Dimension Unit 1 Stainless steel universal spring tray 590 × 390 × 80 mm 1 2 Stainless steel flask tray 590 × 390 × 80 mm 1
Configuration
Specification Capacity Standard Flask tray 24 × 250 ml Optional Flask 15 × 500 ml 8 × 1000 ml Universal spring tray 590 × 390 × 80 mm Note: Can choose either standard or optional as an option
