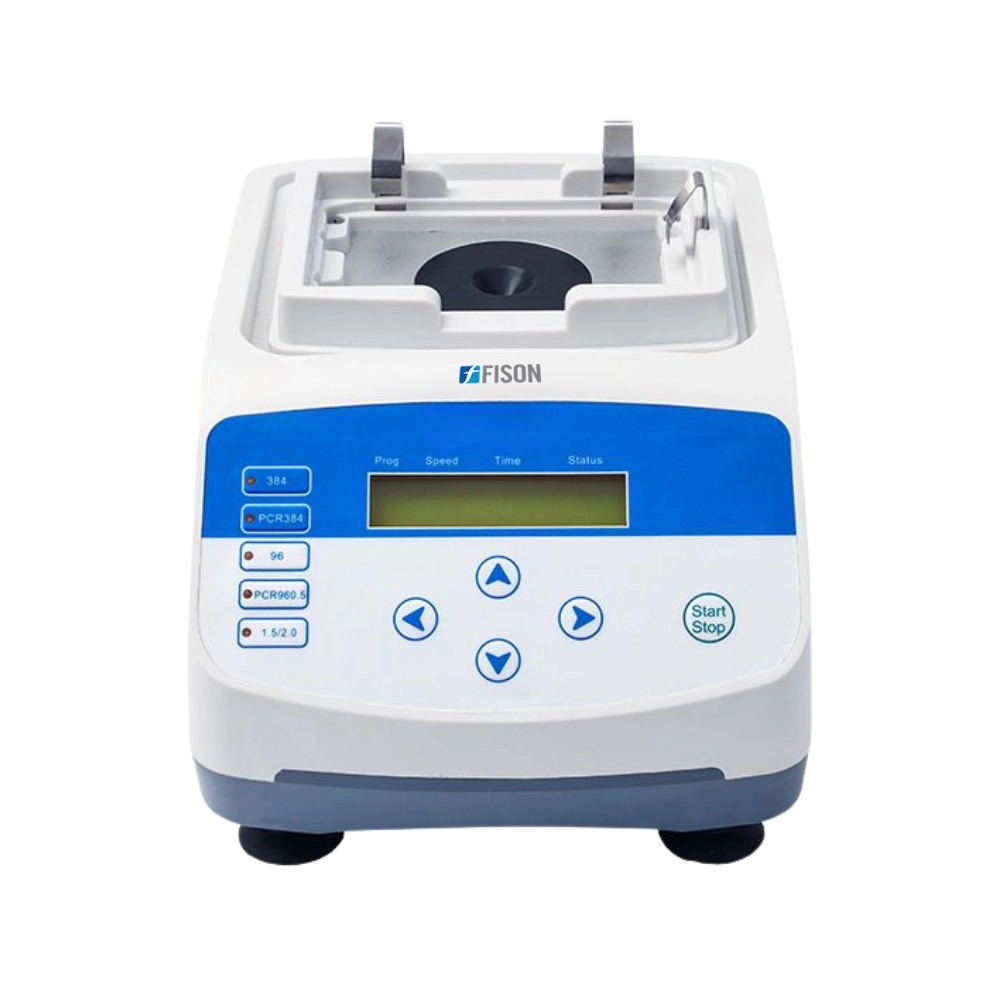

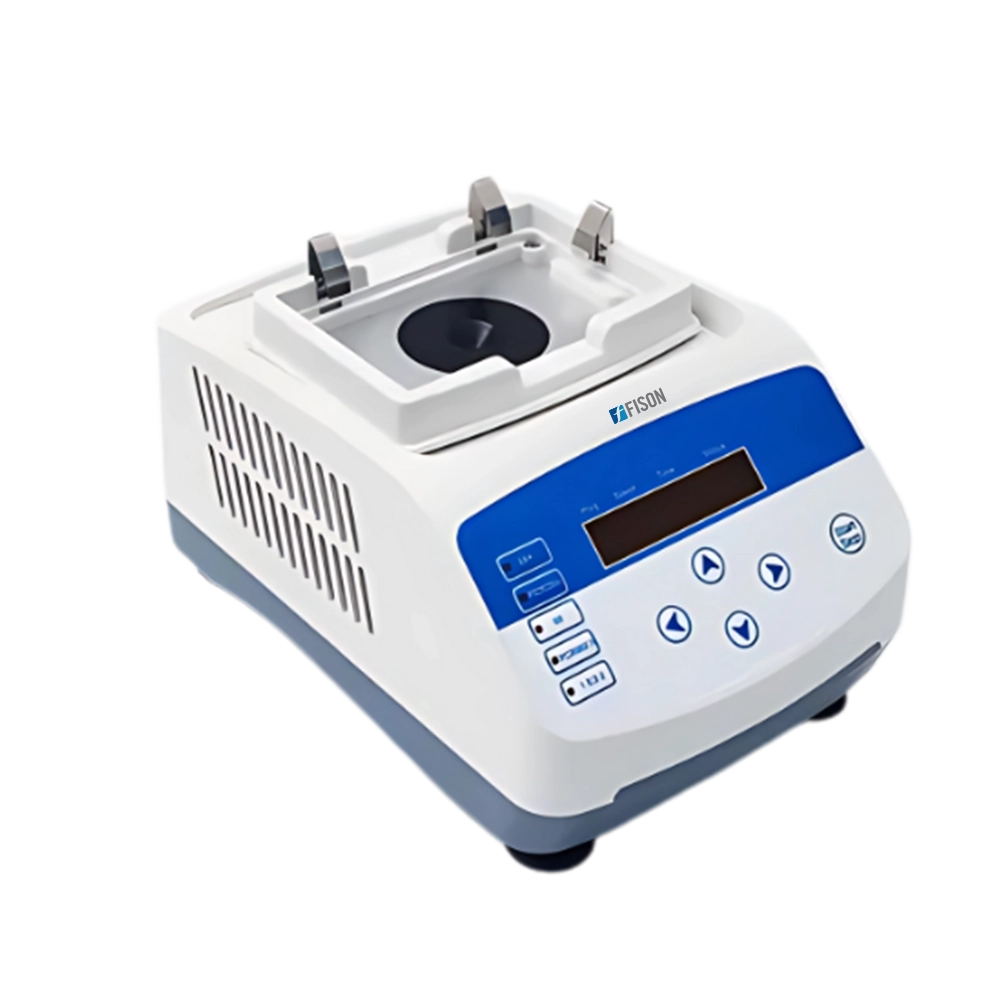

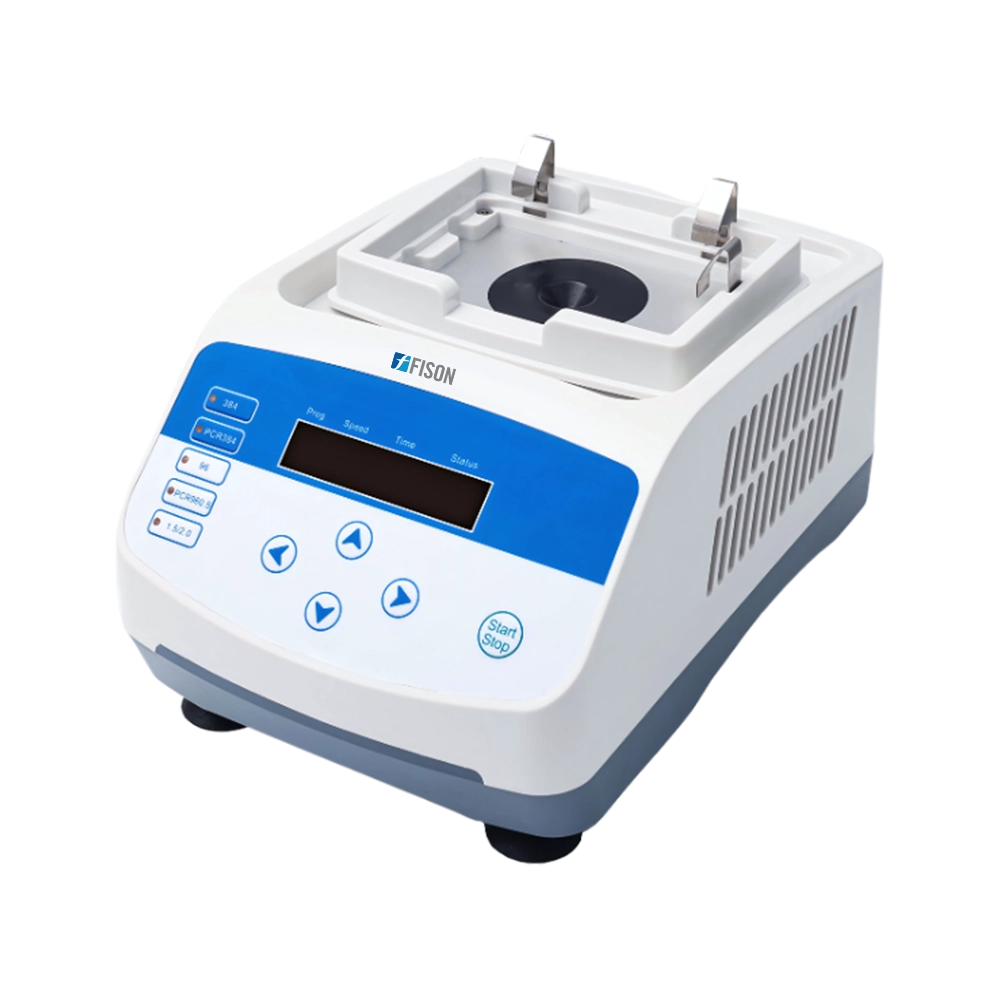

Vortex Mixer FM-VM-C100

Vortex Mixer FM-VM-C100 offers an adjustable speed range from 200 to 3000 rpm, allowing precise control to accommodate a variety of mixing requirements. This is equipped with 5 intuitive preset buttons, enabling fast and seamless operation. It features pre-stored programs that enhance versatility and repeatable results. Our Mixer is powered by a brushless motor, offering maintenance-free, smooth, and energy-efficient operation.

Specifications

Speed 200rpm to 3000rpm
Vortex (Max.) Speed 3500rpm
Timer 1min to 99h59m/0: infinite time
Amplitude 3mm
Noise <50dB
Power Supply AC100 to 230V,50 to 60Hz
Power Consumption 60W
Dimension (W×D×H) 220 × 300 × 170 mm
Weight 7.9 kg

Features

  • Reliable low-noise operation
  • Stable vibration-free operation
  • Adaptable universal compatibility
  • Shock-resistant construction
  • Secure non-slip base

Applications

  • Vortex Mixer FM-VM-C100 is a versatile laboratory device designed for precise and efficient mixing and vortexing. It is ideal for use in research labs, scientific institutions, and clinical settings, supporting a wide range of lab equipment and applications.

Accessories Optional

  • 96×0.2ml Centrifuge Tube Rack, PCR plate
    24×0.5ml Centrifuge Tube Rack
    24×1.5/2.0ml Centrifuge Tube Rack
    8×10/15ml +3×5/7ml tube rack 6×50ml tube rack

Alternative Models Of Vortex Mixer

Fison Vortex Mixer is constructed with a heavy, non-slip base to absorb vibrations and prevent the mixer from moving during operation. They feature digital controls and an LED/LCD screen for precise RPM settings and timers. Their chemical-resistant coatings are used for durability and to handle accidental spills. The built-in timer sets a specific mixing duration for extended applications, ranging from seconds to hours. Our Vortex Mixer accommodates various tube sizes for versatile lab use, including microcentrifuge and test tubes.

Vortex Mixer FM-VM-A200

  • Shaking Mode: Orbital
  • Orbital Diameter: 4 mm
  • Speed Range: 0 to 2500 rpm
Catalog

Vortex Mixer FM-VM-A201

  • Shaking Mode: Orbital
  • Orbital Diameter: 4 mm
  • Speed Range: 2500 rpm
Catalog

Vortex Mixers FM-VM-B100

  • Speed Range: Touch : 0 to 3000 rpm
    Run : 100 to 3000 rpm
  • Operation mode: Touch / Run operation
  • Temperature: Temperature 5 to 40℃
Catalog

Tube Roller Mixer

Our Tube Roller Mixers provide efficient sample mixing in tubes and bottles with smooth and consistent rotation. They are perfect for blending blood, reagents, and other liquids without creating foam or splashes. Easy to use and maintain, our mixers offer adjustable speed settings and roller spacing to fit different tube sizes. With quiet operation and versatile configurations, they are ideal for a variety of laboratory applications

Tube Roller Mixer FM-TRM-A100

  • Speed : Shaking: 0 to 80 times/min
    Rolling: 0 to 80 turns/min
  • Swing amplitude : 22mm ± 1mm
  • Roller size : 236 mm
Catalog

Powder Mixer

Fison Powder Mixer is crafted for low energy consumption, making it ideal for blending free-flowing materials with similar physical properties. Their intensifier bar enhances blending efficiency, particularly for challenging formulations. The gentle mixing action minimizes mechanical wear, extending the lifespan of both the mixer and the materials being processed. They ensure that materials are mixed homogeneously with minimal segregation, even for powders with differing particle sizes or densities. Our Powder Mixers are capable of achieving high throughput with reduced mixing times, for high-volume production lines.

Powder Mixer FM-PWM-A100

  • Total Volume : 300L
  • Operation Volume : 120L
  • Maximum Loading : 60kg
Catalog

Mini Vortex Mixer

Fison Mini Vortex Mixer is capable of vortexing samples at high speeds, ensuring thorough mixing even in small volumes. They allow the user to adjust the mixing speed based on the sample requirements. Their built-in overload protection prevents damage by automatically adjusting the motor under excessive strain. The cooling system prevents the sample from overheating during prolonged mixing sessions. Our Mini Vortex Mixers are crafted to consume less energy than their larger counterparts, making them more energy-efficient.

Mini Vortex Mixer FM-MVM-A100
  • Capacity : 50ml
  • Speed : 3500 rpm
  • Amplitude : 4mm (Horizontal rotation)
Catalog
Mini Vortex Mixer FM-MVM-A101
  • Speed : 2800rpm
  • Orbital Diameter : 3.6mm
  • Operation : Touch/Continuous
Catalog

Mini Vortex Mixer FM-MVM-B100

  • Control Method : Knob Speed Regulation
  • Motor : Brushless Motor
  • Shaking Orbit : 4.5 mm (circle)
Catalog

Multi Tube Vortex Mixer

Fison Multi Tube Vortex Mixer is equipped with suction feet, which provide safety and minimize movement during high-speed operation. The mixer has an interchangeable tube holder, making it compatible with various test tube sizes. Their anti-slip rubber feet have stability by preventing movement during high-speed operation. They also minimize vibrations, ensuring safer and more efficient mixing. They feature variable speed, and the timer provides customizable mixing settings, ensuring optimal results. Our Multi Tube Vortex Mixer has a digital control panel for seamless operation and monitoring.

Multi Tube Vortex Mixer FM-MTVM-A100

  • RPM Range : 1500 to 3000 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 4 mm
Catalog
Multi Tube Vortex Mixer FM-MTVM-A101
  • RPM Range : 500 to 3000 rpm
  • Amplitude : 4 mm horizontal swing
  • Operating Mode : Run
Catalog
Multi-tube Vortex Mixer FM-MTVM-B100
  • Speed : 500rpm to 2500rpm
  • Speed Control Accuracy : ±1rpm
  • Timer : 1min to 99h59m/0: infinite time
Catalog

Roller Mixer

Fison Roller Mixer has adjustable speed settings for precise control, ensuring optimal mixing for various sample types and requirements. The multi-tube compatibility accommodates various tube sizes, making it suitable for diverse applications. Their anti-skid base allows for secure placement during operation, eliminating movement and enhancing safety. They offer variable roller speeds, allowing precise adjustments to suit different sample requirements. They operate efficiently across a wide temperature range for various laboratory environments. Our roller mixer supports viscous liquids for handling samples like gels or thick solutions.

Roller Mixer FM-RM-A100

  • Speed : 20 to 80 rpm
  • Motor Type : Brush Motor
  • Type : Rotating Shaking
Catalog

Roller Mixer FM-RM-A101

  • Speed : 20 to 80 rpm
  • Motor Type : Brushless Motor
  • Type : Rotating Shaking
Catalog
Roller Mixer FM-RM-A102
  • Speed : 20 to 80 rpm
  • Motor Type : Brushless Motor
  • Type : Rotating Shaking
Catalog
