Vortex Mixers FM-VM-B100 Vortex Mixers FM-VM-B100 Vortex Mixers FM-VM-B100

Vortex Mixers FM-VM-B100

Vortex Mixer FM-VM-B100 is a versatile tool designed for fast and efficient mixing with minimal vibration. This mixer is perfect for handling various tube sizes, ranging from 50ml down to 2ml, making it easy to mix multiple samples at once. Equipped with a robust brushless motor, ensures stable performance without compromising on power. Enhanced with options for precise control or continuous mixing, this mixer offers speeds ranging from 0 to 3000 rpm in touch mode and 100 to 3000 rpm in run mode, configured to fit your preferences.

Specifications

Speed Range Touch : 0 to 3000 rpm
Run : 100 to 3000 rpm
Operation mode Touch / Run operation
Temperature Temperature 5 to 40℃
Humidity 80% RH
Control mode Digital display & Button
Display LCD
Motor Brushless motor
Time 1 min - 8h
Amplitude 4.5 mm (Circular oscillation)
Protective Class IP21
Power Consumption 20 W
Power Supply AC 100 to 240 V / DC12 V
Packing size 290 × 200 × 140 mm
Weight 2.8 kg

Features

  • Stable operation throughout usage
  • Effortless switching between touch and run modes
  • Digital display for easy monitoring and adjustment
  • Timing functions for precise control, with options ranging from 1 minute to 8 hours
  • Vortex Mixers operate optimally within a temperature range of 5 to 40°C

Applications

  • Vortex mixers find applications across a spectrum of industries, including pharmaceuticals, research laboratories, biotechnology, food and beverage, and environmental testing

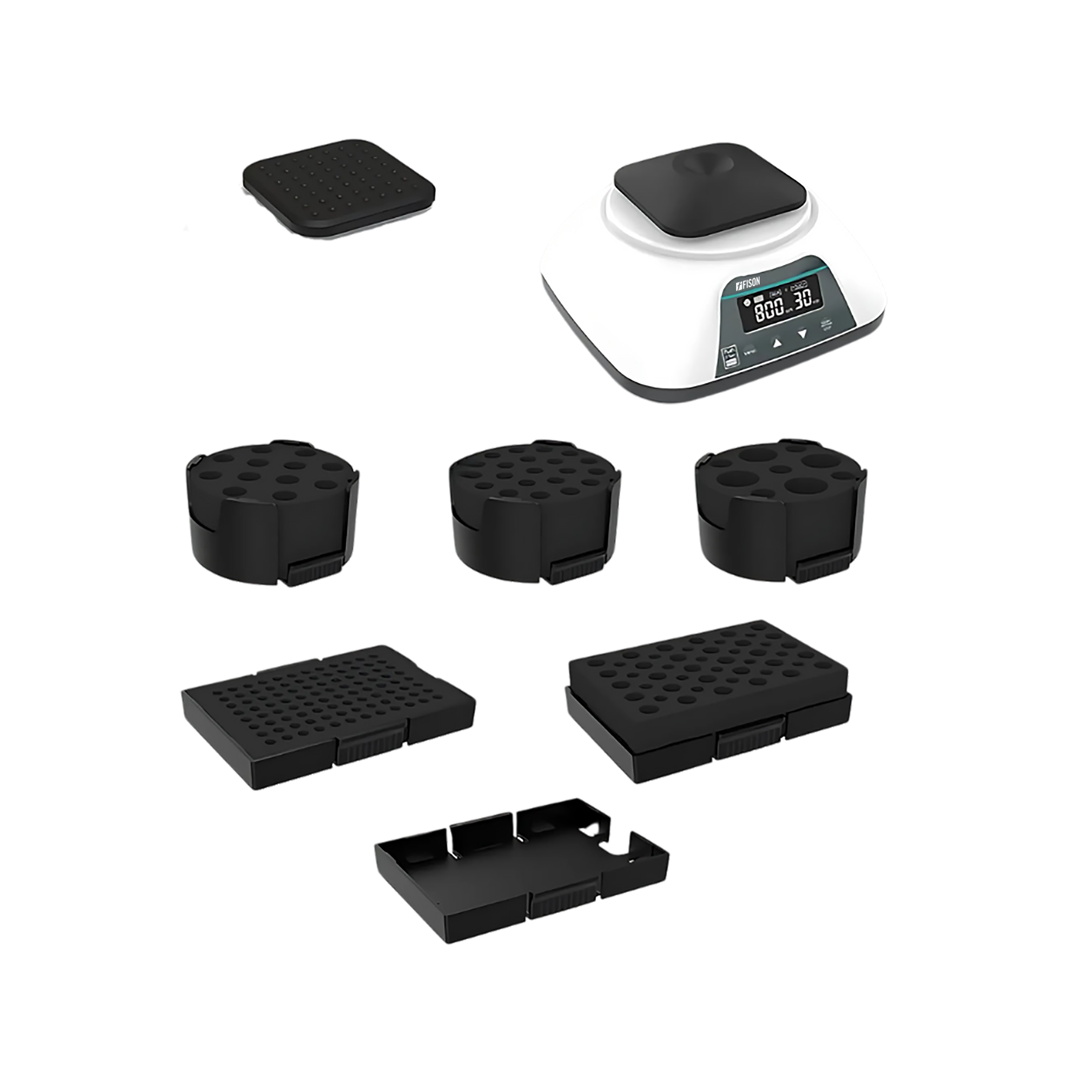

Optional Rotor Selection

  • Rotor No Specification
    Rotor no 1 Centrifuge tube / Test tube
    Rotor no 2 Flask / Multi tube
    Rotor no 3 Φ12 mm Blood collection tube ×21
    Rotor no 4 5ml / 15 ml Centrifuge tube × 12
    Rotor no 5 50 ml Centrifuge tube × 4
    5ml/15ml Centrifuge tube × 5
    Rotor no 6 0.2 ml Centrifuge tube × 96 well plate
    Rotor no 7 0.5 ml Centrifuge tube × 20
    1.5 / 2.0 ml well plate Centrifuge tube × 30
    Rotor no 8 Cell culture plate

Alternative Models Of Vortex Mixer

Fison Vortex Mixer is constructed with a heavy, non-slip base to absorb vibrations and prevent the mixer from moving during operation. They feature digital controls and an LED/LCD screen for precise RPM settings and timers. Their chemical-resistant coatings are used for durability and to handle accidental spills. The built-in timer sets a specific mixing duration for extended applications, ranging from seconds to hours. Our Vortex Mixer accommodates various tube sizes for versatile lab use, including microcentrifuge and test tubes.

Vortex Mixer FM-VM-A200

  • Shaking Mode: Orbital
  • Orbital Diameter: 4 mm
  • Speed Range: 0 to 2500 rpm
Catalog

Vortex Mixer FM-VM-A201

  • Shaking Mode: Orbital
  • Orbital Diameter: 4 mm
  • Speed Range: 2500 rpm
Catalog

Vortex Mixer FM-VM-C100

  • Speed: 200rpm to 3000rpm
  • Vortex (Max.) Speed: 3500rpm
  • Timer: 1min to 99h59m/0: infinite time
Catalog

Tube Roller Mixer

Our Tube Roller Mixers provide efficient sample mixing in tubes and bottles with smooth and consistent rotation. They are perfect for blending blood, reagents, and other liquids without creating foam or splashes. Easy to use and maintain, our mixers offer adjustable speed settings and roller spacing to fit different tube sizes. With quiet operation and versatile configurations, they are ideal for a variety of laboratory applications

Tube Roller Mixer FM-TRM-A100

  • Speed : Shaking: 0 to 80 times/min
    Rolling: 0 to 80 turns/min
  • Swing amplitude : 22mm ± 1mm
  • Roller size : 236 mm
Catalog

Powder Mixer

Fison Powder Mixer is crafted for low energy consumption, making it ideal for blending free-flowing materials with similar physical properties. Their intensifier bar enhances blending efficiency, particularly for challenging formulations. The gentle mixing action minimizes mechanical wear, extending the lifespan of both the mixer and the materials being processed. They ensure that materials are mixed homogeneously with minimal segregation, even for powders with differing particle sizes or densities. Our Powder Mixers are capable of achieving high throughput with reduced mixing times, for high-volume production lines.

Powder Mixer FM-PWM-A100

  • Total Volume : 300L
  • Operation Volume : 120L
  • Maximum Loading : 60kg
Catalog

Mini Vortex Mixer

Fison Mini Vortex Mixer is capable of vortexing samples at high speeds, ensuring thorough mixing even in small volumes. They allow the user to adjust the mixing speed based on the sample requirements. Their built-in overload protection prevents damage by automatically adjusting the motor under excessive strain. The cooling system prevents the sample from overheating during prolonged mixing sessions. Our Mini Vortex Mixers are crafted to consume less energy than their larger counterparts, making them more energy-efficient.

Mini Vortex Mixer FM-MVM-A100
  • Capacity : 50ml
  • Speed : 3500 rpm
  • Amplitude : 4mm (Horizontal rotation)
Catalog
Mini Vortex Mixer FM-MVM-A101
  • Speed : 2800rpm
  • Orbital Diameter : 3.6mm
  • Operation : Touch/Continuous
Catalog

Mini Vortex Mixer FM-MVM-B100

  • Control Method : Knob Speed Regulation
  • Motor : Brushless Motor
  • Shaking Orbit : 4.5 mm (circle)
Catalog

Multi Tube Vortex Mixer

Fison Multi Tube Vortex Mixer is equipped with suction feet, which provide safety and minimize movement during high-speed operation. The mixer has an interchangeable tube holder, making it compatible with various test tube sizes. Their anti-slip rubber feet have stability by preventing movement during high-speed operation. They also minimize vibrations, ensuring safer and more efficient mixing. They feature variable speed, and the timer provides customizable mixing settings, ensuring optimal results. Our Multi Tube Vortex Mixer has a digital control panel for seamless operation and monitoring.

Multi Tube Vortex Mixer FM-MTVM-A100

  • RPM Range : 1500 to 3000 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 4 mm
Catalog
Multi Tube Vortex Mixer FM-MTVM-A101
  • RPM Range : 500 to 3000 rpm
  • Amplitude : 4 mm horizontal swing
  • Operating Mode : Run
Catalog
Multi-tube Vortex Mixer FM-MTVM-B100
  • Speed : 500rpm to 2500rpm
  • Speed Control Accuracy : ±1rpm
  • Timer : 1min to 99h59m/0: infinite time
Catalog

Roller Mixer

Fison Roller Mixer has adjustable speed settings for precise control, ensuring optimal mixing for various sample types and requirements. The multi-tube compatibility accommodates various tube sizes, making it suitable for diverse applications. Their anti-skid base allows for secure placement during operation, eliminating movement and enhancing safety. They offer variable roller speeds, allowing precise adjustments to suit different sample requirements. They operate efficiently across a wide temperature range for various laboratory environments. Our roller mixer supports viscous liquids for handling samples like gels or thick solutions.

Roller Mixer FM-RM-A100

  • Speed : 20 to 80 rpm
  • Motor Type : Brush Motor
  • Type : Rotating Shaking
Catalog

Roller Mixer FM-RM-A101

  • Speed : 20 to 80 rpm
  • Motor Type : Brushless Motor
  • Type : Rotating Shaking
Catalog
Roller Mixer FM-RM-A102
  • Speed : 20 to 80 rpm
  • Motor Type : Brushless Motor
  • Type : Rotating Shaking
Catalog
