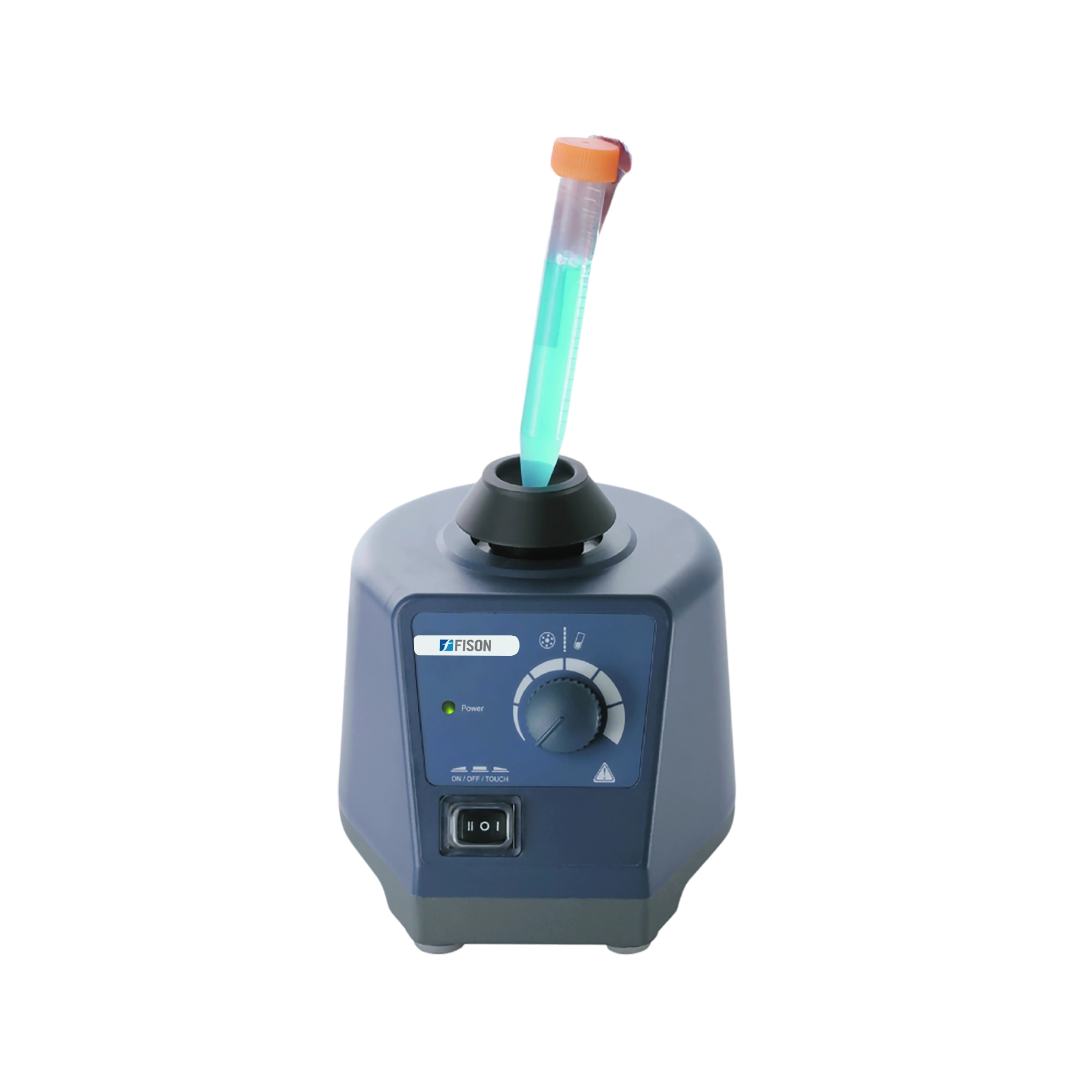

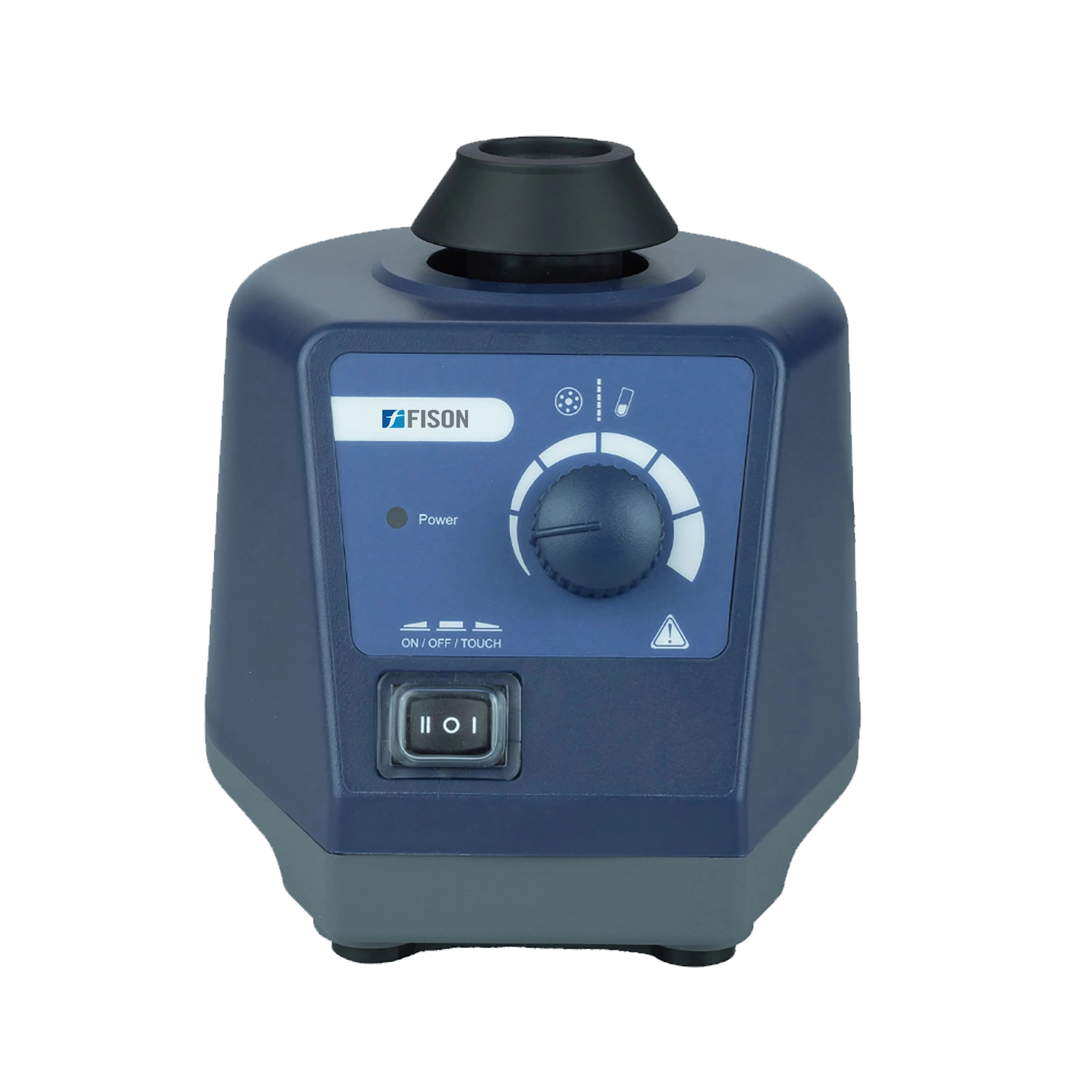

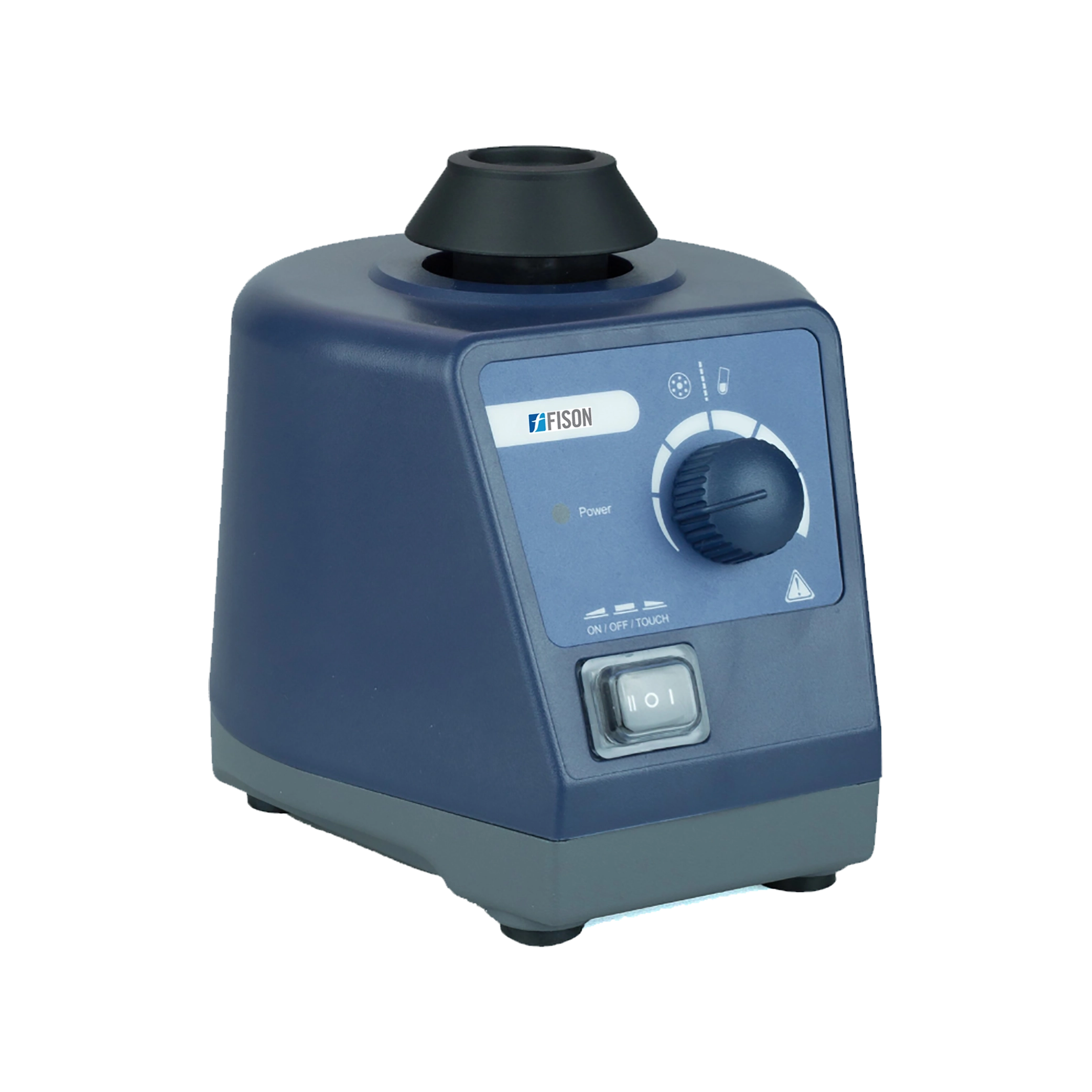

Vortex Mixer FM-VM-A200 is a compact, bench-top device offers orbital shaking with continuous/touch operation mode. It features adjustable speed range 0 to 2500 rpm, LED power indicator, aluminum cast base, two directional power switch with IP21 protection level, and works well under 5° to 40°C ambient temperature. Equipped with shaded pole motor to provide variable speed range, specially designed vacuum suction feet for body stability, can be used for various mixing applications with optional adapters.
| Shaking Mode | Orbital |
| Orbital Diameter | 4 mm |
| Speed Range | 0 to 2500 rpm |
| Speed operation | Adjustable |
| Speed Display | Scale |
| Operation Mode | Continuous/touch operation |
| Speed Control | Knob |
| Power switch | Two directional |
| Ambient Temp. | 5 to 40℃ |
| Relative Humidity | 0.8 |
| Protection Type | IP21 |
| Cast base | Aluminum |
| Feet | Vacuum suction |
| Motor type | Shaded pole motor |
| Motor Input | 58 W |
| Motor Output | 10 W |
| Power Consumption | 60 W |
| Power supply | AC110/220 V ± 10%, 50/60 Hz |
| Dimensions (W×D×H) | 127×160×130mm |
| Weight | 3.5 kg |
Vortex Mixers used for mixing liquid components in tubes, re-suspension of cells, across bioscience, microbiology, biochemical research and analytical laboratories.
Standard top cup, for <Ø30 mm tubes
Universal top plate and vacuum suction foot package
Tube holding rod
Tube adapter, for 48 holes test tubes, Ø6 mm
Tube adapter, for 15 holes test tubes, Ø10 mm
Tube adapter, for 24 holes test tubes, Ø10 mm
Tube adapter, for 16 holes test tubes, Ø12 mm
Tube adapter, for 8 holes test tubes, Ø16 mm
Tube adapter, for 8 holes test tubes, Ø20 mm
Platform pad, for <Ø99 mm tubes and small vessels
Rubber vacuum suction foot with screw
