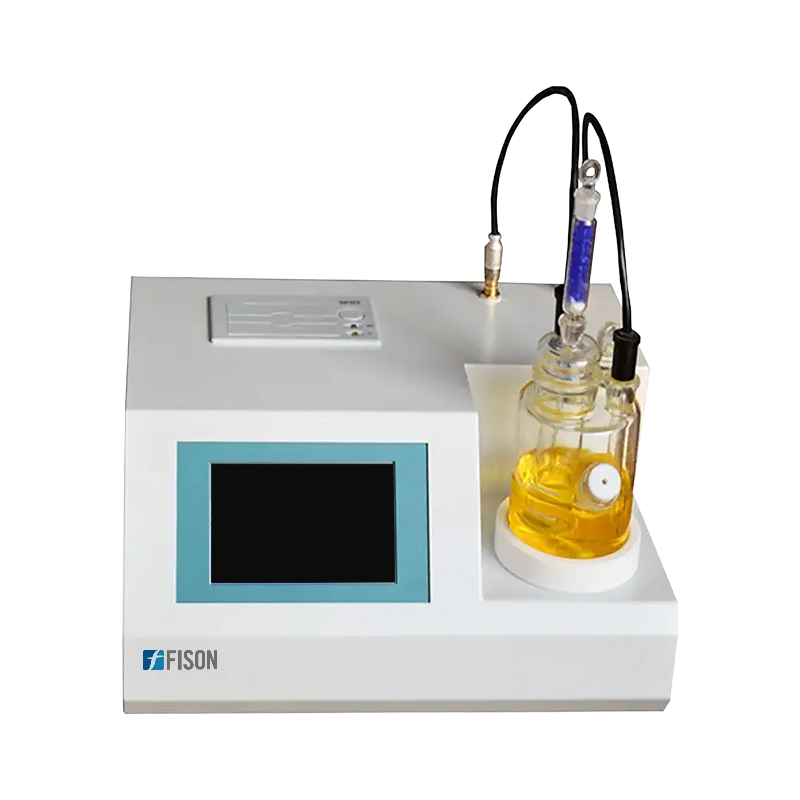

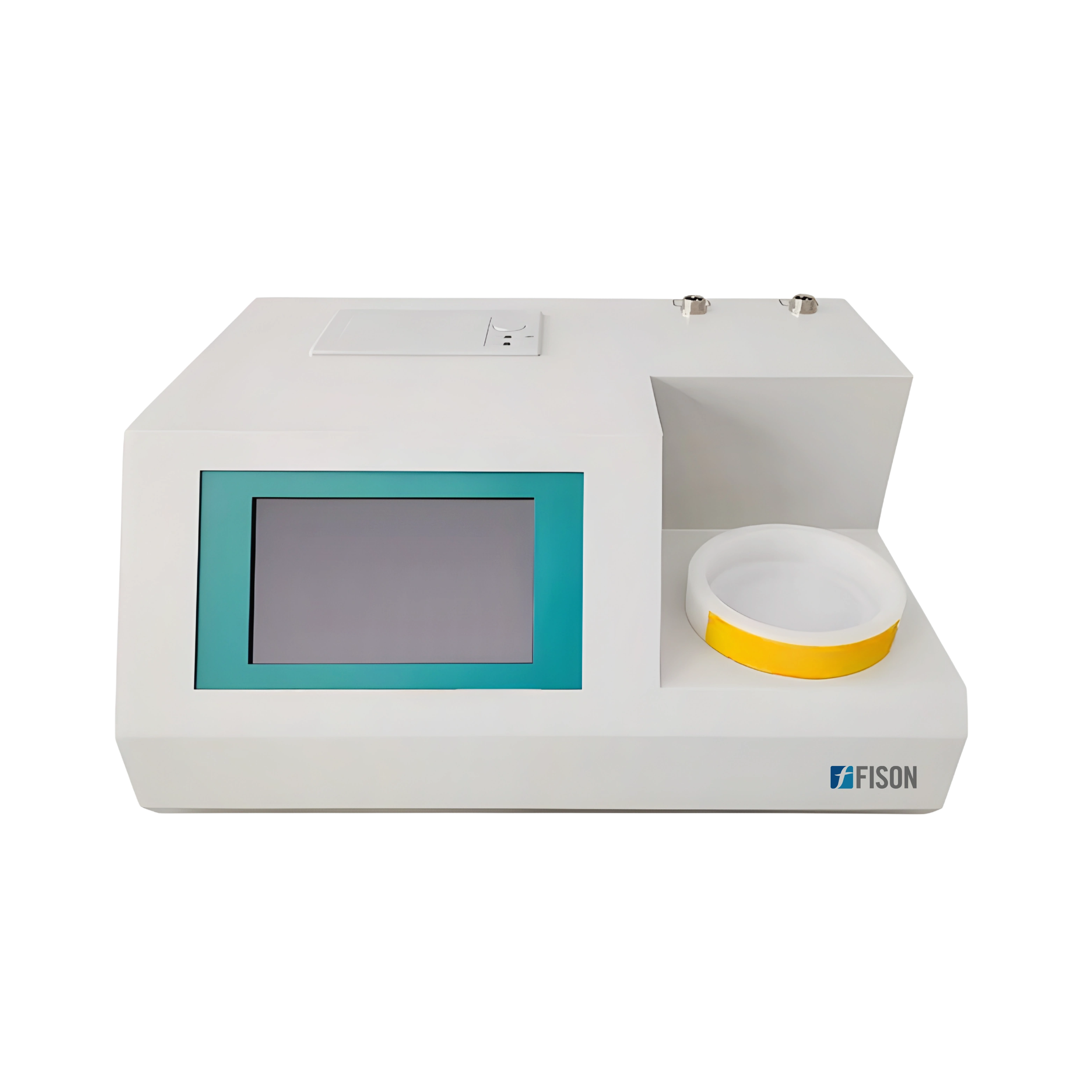

Karl Fischer titrator FM-AKT-C100
Karl Fischer titrator FM-AKT-C100 is a volumetric moisture testing unit programmed by Itanium and a double CPU with direct A/D conversion for testing electrode data. It is characterized by auto stirring and analyzing functions. The enclosed titration system avoids deviations and improves the quality index.
Specifications
| Testing range | 0.01 µg to 200 mg of H 2 O |
| Water content range | 0.0001 % to 100 % |
| Sensitivity | 0.01 µg H 2 O |
| Rate of electrolysis | 2.4 mg H2 O/min |
| Electrolysis current | Auto-control within 430 mA |
| Accuracy | Water content: 2 µg H2O to 100 µg H2O, Deviations: ≤ ±1 µg Water Content: 100 µg H2O to 1000 µg H2O, Deviations: ≤ ±2.9 µg Water Content: > 1000 µg H2O, Deviations: ≤ ±0.2% (excluding deviations of sample injection) |
| Ambient temperature | 5 °C to 40 °C |
| Relative humidity | < 85 % |
| Power consumption | < 40 W |
| Power supply | AC 220 V ± 10 %, 50 Hz ± 2.5 Hz |
| Dimensions | 390 × 270 × 190 mm |
| Weight | 7 kg |
Features
- Electric current auto-control and compensation by microcontroller unit
- Karl Fischer reagent for 1000 continuous sample testing
- Digital display and operation by touch LCD panel
- Preinstalled with cubature, statistical calculation and elementary arithmetic
- High sensitivity and quick analyzing speed
- Cold rolled steel plate exterior with electrostatic anti-corrosive layer
- Automatic data printing
- Network management through USB or RS232 interface communication
Applications
- Used in chemical industries, petroleum and power industries, pharmaceutical industries, pesticides, rigs, natural gas plants,etc
