Visible Spectrophotometer FM-VS- D100 Visible Spectrophotometer FM-VS-D100

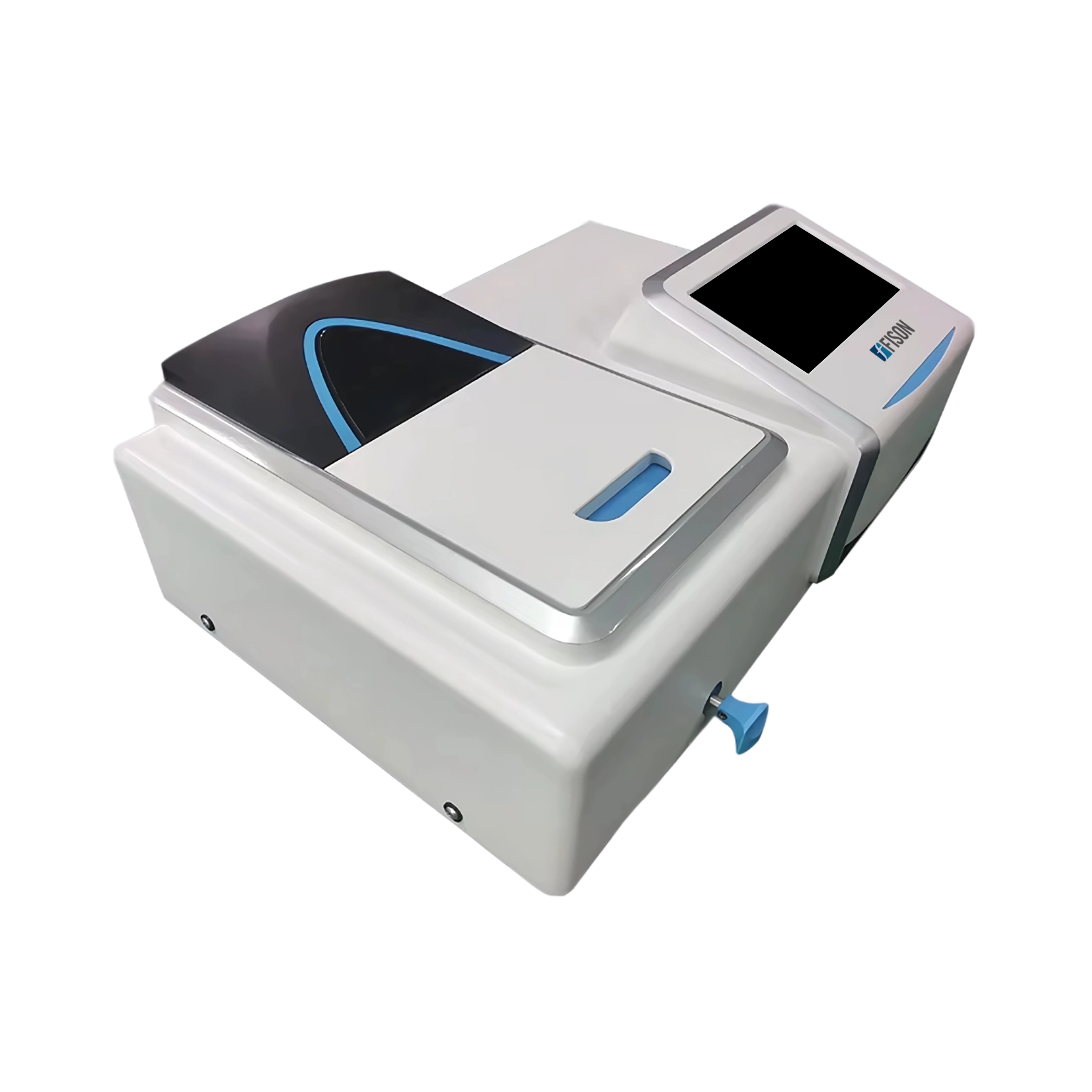

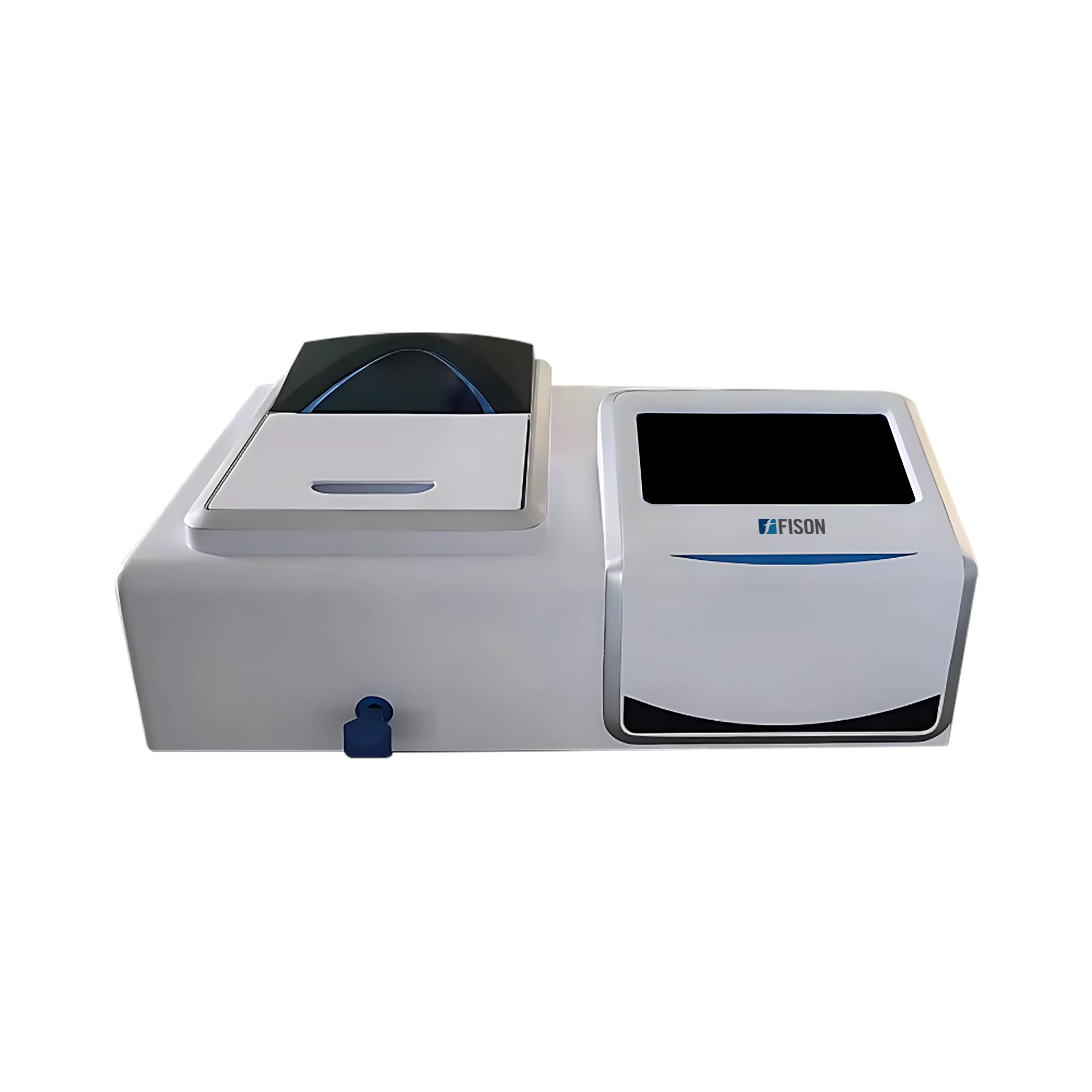

Visible Spectrophotometer FM-VS-D100

Visible Spectrophotometer FM-VS-D100 operates within wavelength range of 320 to 1100 nm with ±0.5 nm accuracy. It is designed with 7-inch touchscreen and versatile sample holders for seamless operation. Equipped with advanced optics, light source and a silicon photodiode detector to ensure high performance and reliability. Its user-friendly interface and robust build make it an ideal choice for laboratories and research centers.

Specifications

Wavelength range 320 to 1100 nm
Spectral bandwidth 2 nm
Wavelength accuracy ±0.5 nm
Wavelength reproducibility ≤0.2 nm
Monochromator Single beam, plane grating of 1200L/mm
Photometric accuracy ±0.3%T (0 to 100%T)
Photometric reproducibility ≤0.2%T
Photometric range -0.301 to 2A
Working mode T, A, C, E
Stray light ≤0.1%T (Nal 220 nm, NaNO2 360 nm)
Baseline flatness ±0.003A
Stability ≤0.002A/h (at 500 nm, after warming up)
Light source Tungsten halogen lamp
Detector Silicon photodiode
Display 7 inches colourful touch screen
Power supply AC: 90 to 250 V, 50 V/60 Hz
Dimension (L×B×H) 470×325×220 mm
Packaging dimension (L×B×H) 58×44×32 cm
Weight 8 kg

Features

  • PC connectivity via USB
  • Automatic data saving
  • Multiple measurement methods
  • Tungsten halogen lamp

Applications

  • Our Visible Spectrophotometer is an ideal choice for quality control, clinical diagnostics and research labs for quantitative analysis of substances across different wavelengths.

Accessories

  • 4 position 0.5 to 5 cm Manual cell holder

    4 glass cells (1 cm)

Alternative Models Of Visible Spectrophotometer

Fison Visible Spectrophotometer features a high-resolution LCD screen, offering clear and precise monitoring of parameters. They automatically set the wavelength, ensuring precise adjustments and simplifying the measurement process for accurate results. The large sample compartment fits cuvettes with various path lengths for efficient testing. Their data restoration after a sudden power cut ensures that important test results are not lost. Our Visible Spectrophotometer have grating optical system that ensures high spectral resolution.

Visible Spectrophotometer FM-VS-A100

  • Wavelength range: 325 nm to 1000 nm
  • Spectral bandwidth: 4 nm
  • Optical system: Single beam, grating 1200 lines / mm
Catalog

Visible Spectrophotometer FM-VS-A101

  • Wavelength range: 325 nm to 1000 nm
  • Spectral bandwidth: 4 nm
  • Optical system: Single beam, grating 1200 lines / mm
Catalog

Visible Spectrophotometer FM-VS-A102

  • Wavelength range: 320 nm to 1100 nm
  • Spectral bandwidth: 4 nm
  • Optical system: Single beam, grating 1200 lines / mm
Catalog
Visible Spectrophotometer FM-VS-A103
  • Wavelength range: 320 nm to 1100 nm
  • Spectral bandwidth: 2 nm
  • Optical system: Single beam, grating 1200 lines / mm
Catalog
Visible Spectrophotometer FM-VS-B100
  • Wavelength Range: 320 to 1100 nm
  • Bandwidth: 4 nm
  • Wavelength Accuracy: ±0.5 nm
Catalog

Visible Spectrophotometer FM-VS-C100

  • Wavelength Range: 360 to 780 nm
  • Wavelength Interval: 10nm
  • Half Bandwidth: 5nm
Catalog

Single Beam UV-Visible Spectrophotometer

Fison Single Beam UV-Visible Spectrophotometers are designed for accurate measurement of light absorbance and transmittance. They provide a wide wavelength range, covering the UV and visible spectrum for diverse applications. These units include automatic wavelength adjustment, ensuring precise and consistent wavelength selection. Our Spectrophotometers retain data after power loss, ensuring secure results. They provide USB and printer connectivity, allowing easy data transfer and efficient reporting.

Single Beam UV-Visible Spectrophotometer FM-UVS-A101

  • Wavelength range : 200 nm to 1000 nm
  • Spectral bandwidth : 4 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog

Single Beam UV-Visible Spectrophotometer FM-UVS-A102

  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 4 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog
Single Beam UV-Visible Spectrophotometer FM-UVS-A103
  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 2 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog

Fluorescence Spectrophotometer

Fison Fluorescence Spectrophotometers offer high sensitivity and selectivity, detecting low-concentration samples with superior accuracy. They are equipped with an advanced optical system, ensuring precise detection. These units provide automatic wavelength adjustment for accurate and consistent wavelength selection. They feature a user-friendly interface, offering a digital display and control system for easy operation. Our spectrophotometers come with a compact and durable construction for long-term reliability.

Fluorescence Spectrophotometer FM-FS-A100
  • Light source : LED
  • Exciting optical system : Interference optical filter
  • Optical filter bandwidth : 10nm
Catalog

Fluorescence Spectrophotometer FM-FS-A101

  • Light source : Xenon lamp 150 W
  • Exciting optical system : Interference optical filter
  • Optical filter bandwidth : 10 nm
Catalog

Fluorescence Spectrophotometer FM-FS-A200

  • Light source : 150 W xenon lamp
  • Excitation wavelength : 200 nm to 900 nm
  • Emission wavelength : 200 nm to 900 nm
Catalog

Double Beam UV-Visible Spectrophotometer

Fison Double Beam UV-Visible Spectrophotometers provide high-precision optical system. They provide accurate and stable measurement of absorbance and transmittance. These units feature a double beam design, simultaneously measuring the sample and reference to reduce errors and improve accuracy. They include USB and printer connectivity, enabling seamless data transfer and efficient reporting. Our spectrophotometers offer a wide wavelength range for versatile analytical applications.

Double Beam UV-Visible Spectrophotometer FM-UVS-C100
  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 1.8 nm
  • Optical system : Double beam, grating 1200 lines / mm
Catalog
Double Beam UV-Visible Spectrophotometer FM-UVS-C101
  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 1.0 nm
  • Optical system : Double beam, grating 1200 lines / mm
Catalog

Double Beam UV-Visible Spectrophotometer FM-UVS-C102

  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 0.5, 1, 2 and 4 nm
  • Optical system : Double beam, grating 1200 lines / mm
Catalog

Single Beam Scanning UV-Visible Spectrophotometer

Fison Single Beam UV-Visible Spectrophotometers are designed for accurate measurement of light absorbance and transmittance. They provide a wide wavelength range, covering the UV and visible spectrum for diverse applications. These units include automatic wavelength adjustment, ensuring precise and consistent wavelength selection. Our Spectrophotometers retain data after power loss, ensuring secure results. They provide USB and printer connectivity, allowing easy data transfer and efficient reporting.

Single Beam Scanning UV-Visible Spectrophotometer FM-UVS-B100

  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 4 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog
Single Beam Scanning UV-Visible Spectrophotometer FM-UVS-B101
  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 2 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog
Single Beam Scanning UV-Visible Spectrophotometer FM-UVS-B102
  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 1.8 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog

Atomic Absorption Spectrophotometer

Fison Atomic Absorption Spectrophotometers offer high precision and sensitivity for detecting metal concentrations in various samples. They feature an advanced optical system with a high-resolution monochromator for enhanced spectral accuracy. These units provide automated sample handling, reducing manual intervention. They include a user-friendly interface and digital controls for easy operation. Our spectrophotometers deliver multiple calibration modes, allowing single and multi-element analysis to ensure versatility.

Atomic Absorption Spectrophotometer FM-AAS-A100

  • Wavelength range  : 190 to 900 nm
  • Wavelength accuracy : ≤ ±0.5 nm
  • Wavelength repeatability : ≤0.3 nm (single direction)
Catalog

Atomic Absorption Spectrophotometer FM-AAS-A101

  • Wavelength range  : 190 to 900 nm
  • Wavelength accuracy : ± 0.15 nm
  • Wavelength repeatability : ≤ 0.04 nm
Catalog
Atomic Absorption Spectrophotometer FM-AAS-A200
  • Wavelength Range : 190 to 900 nm
  • Wavelength Accuracy : ±0.5 nm
  • Resolution : Two spectral lines of Mn at 279.5 nm and 279.8 nm, separable with spectral bandwidth of 0.2 nm and valley-peak energy ratio < 30%
Catalog
