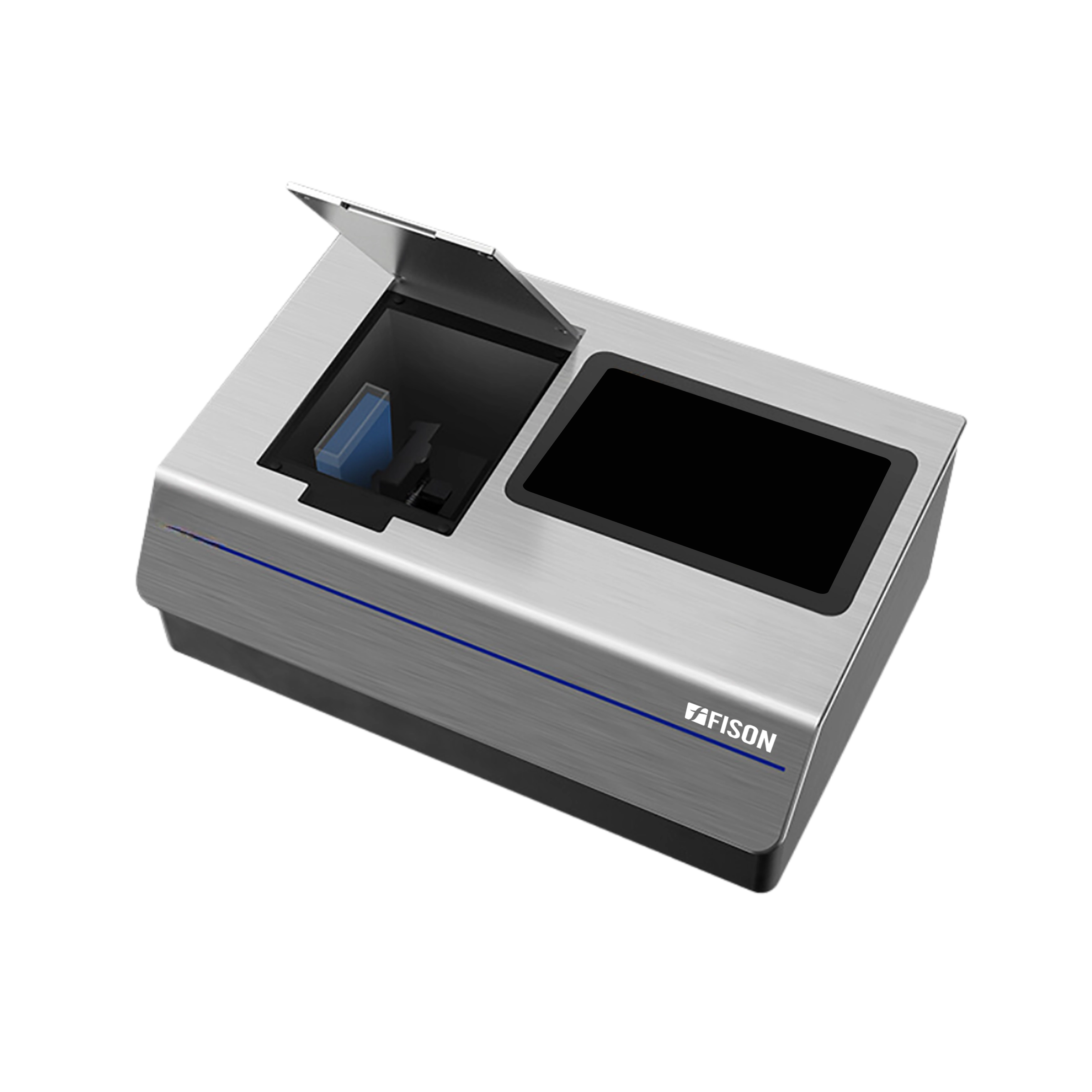

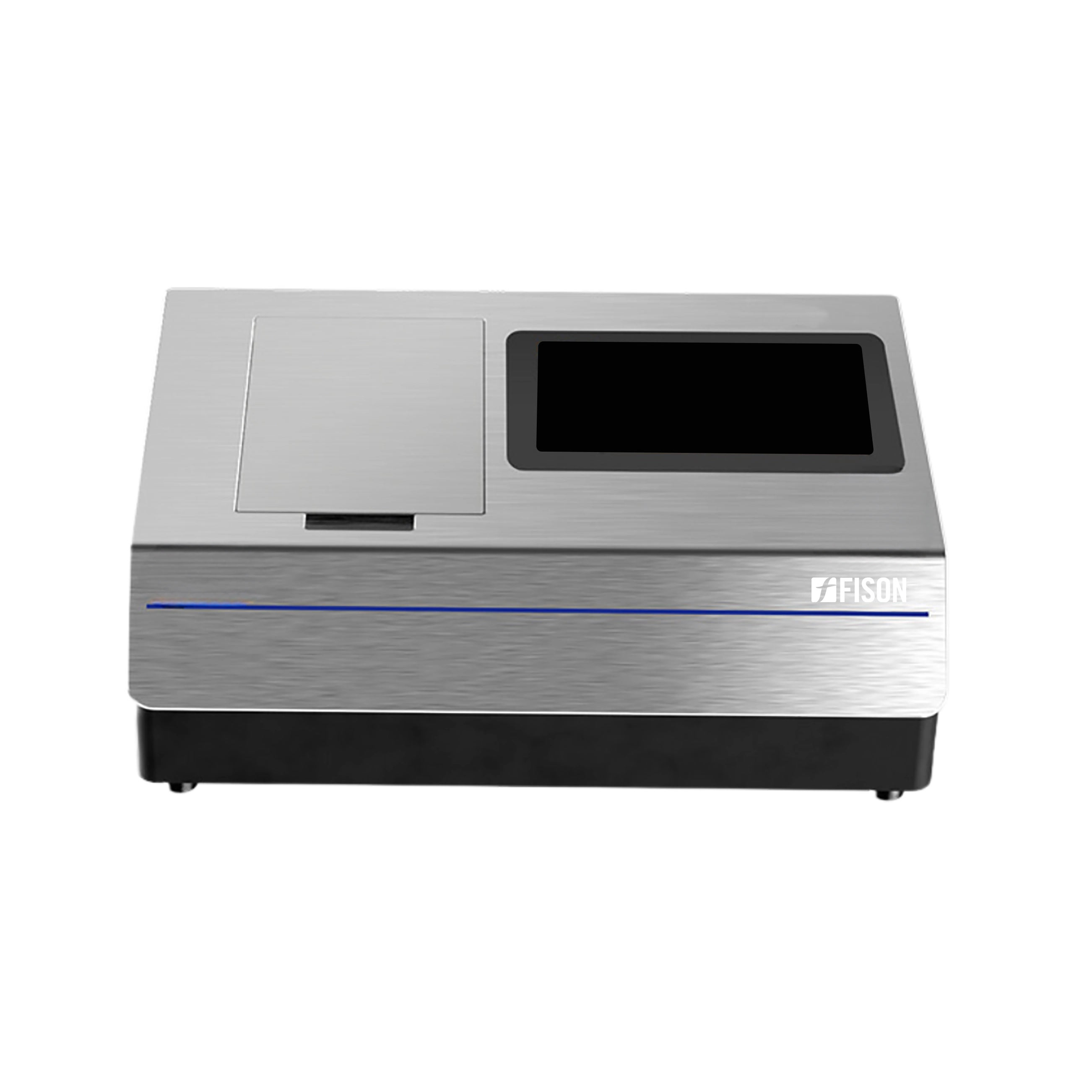

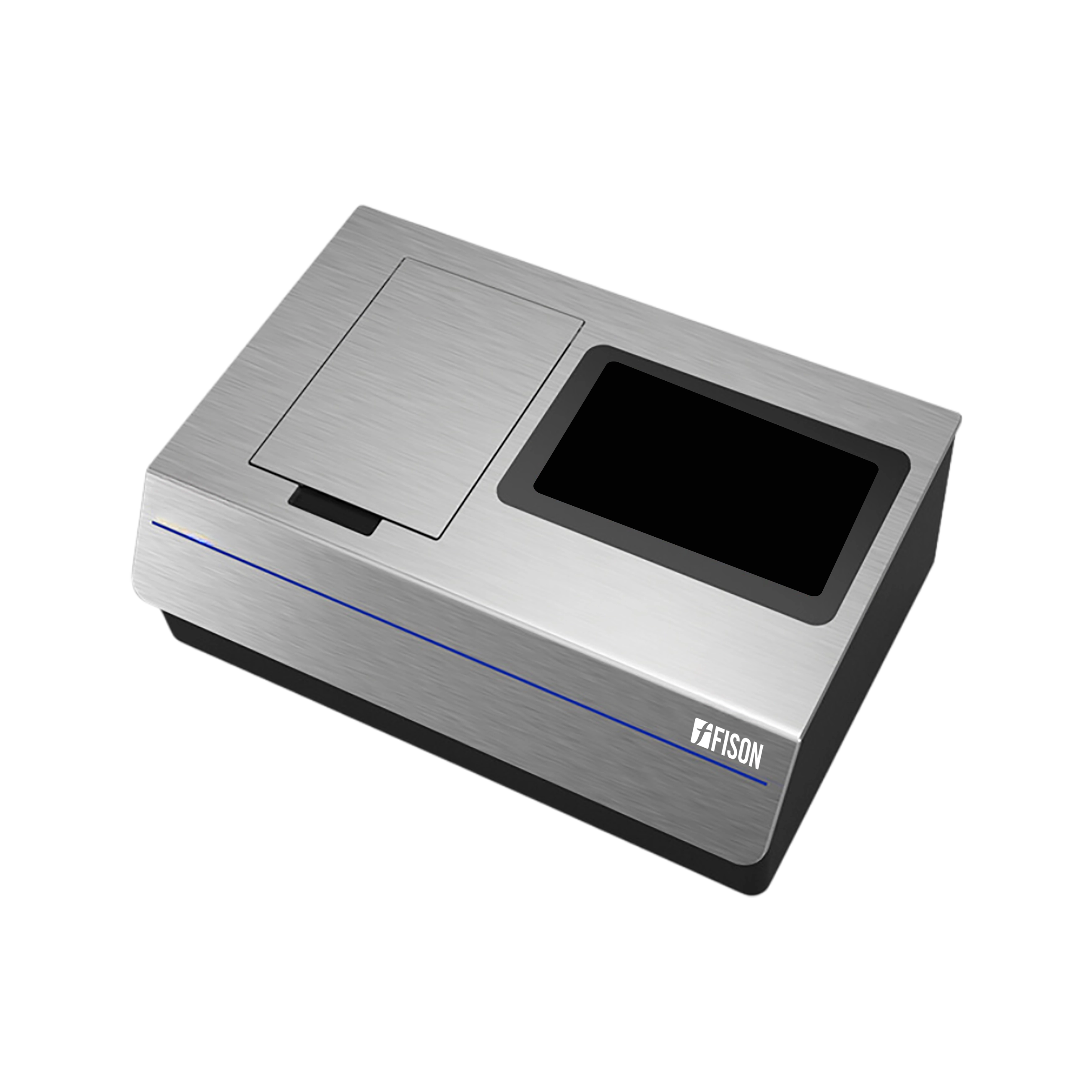

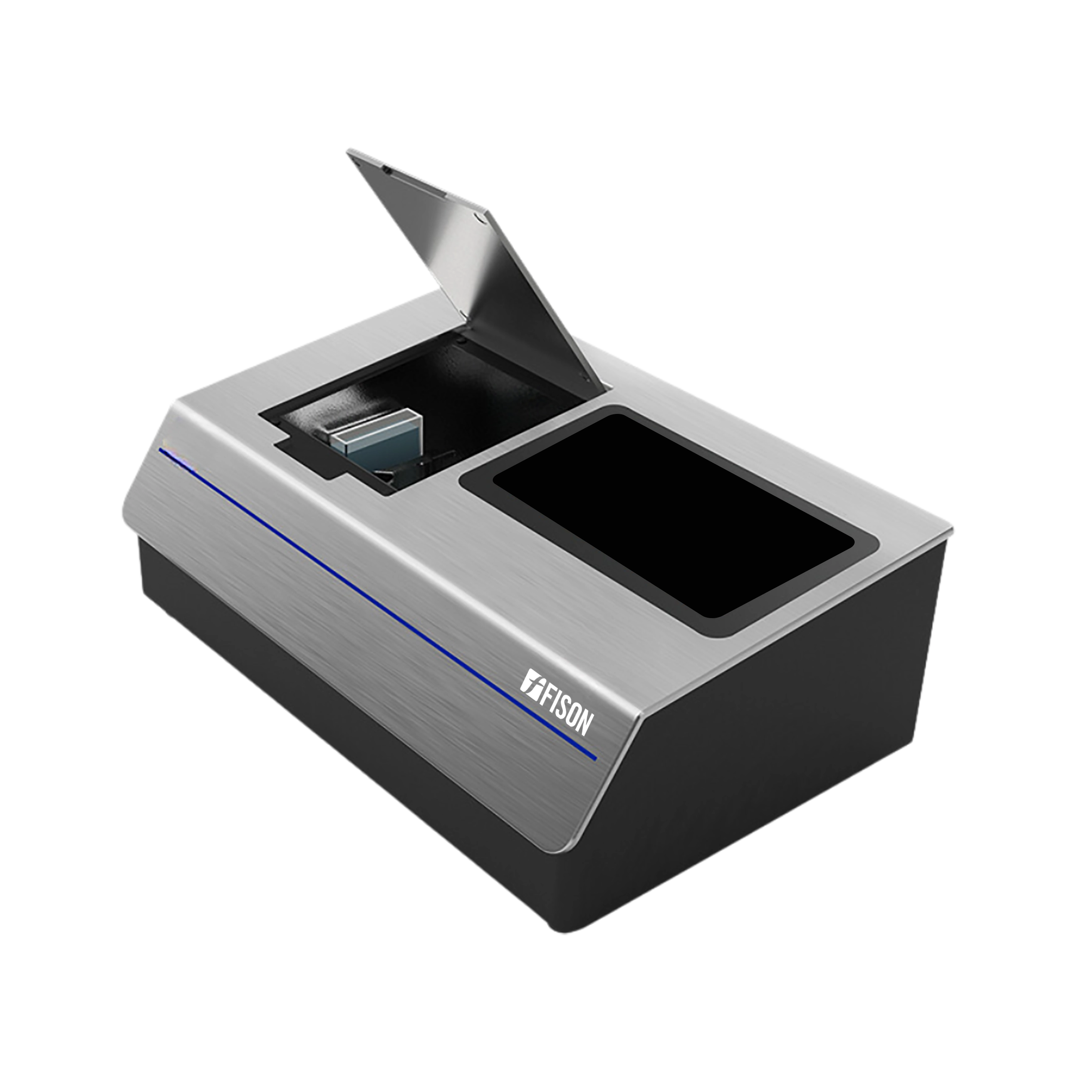

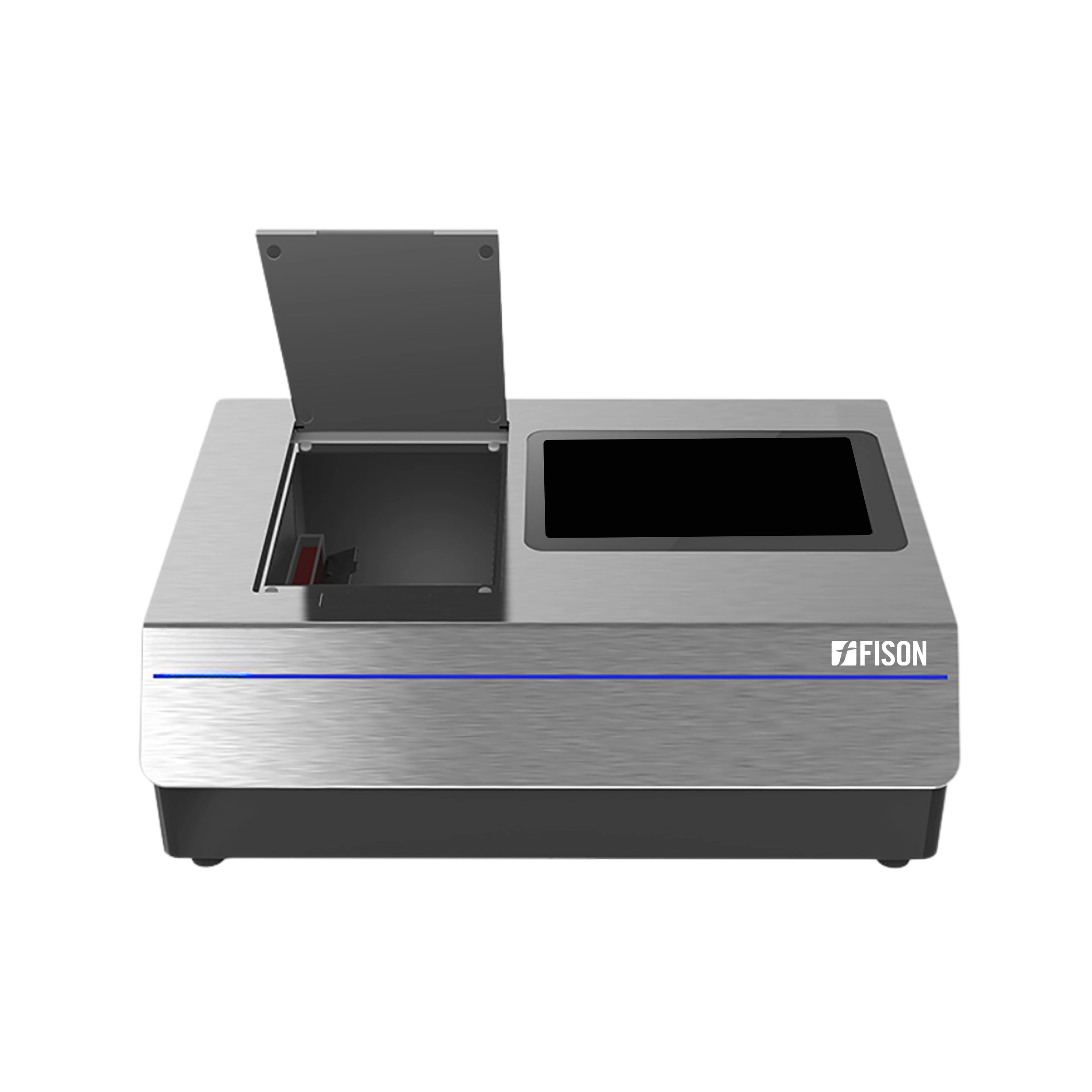

Visible Spectrophotometer FM-VS-C100 features a wavelength range of 360 to 780 nm, ensuring precise measurement across the visible spectrum. This is equipped with advanced zero calibration it adapts to varying measurements for high-accuracy results. Its multivariate light source simulation ensures accurate colour measurements under various conditions. Our Spectrophotometer offers dual array sensors to ensure precise measurements with accuracy.
Specifications
Wavelength Range | 360 to 780 nm |
Wavelength Interval | 10nm |
Half Bandwidth | 5nm |
Transmittance Range | 0 to 200% |
Measuring Aperture | Transmission: Φ 10 mm |
Integrating Sphere Size | Φ 40 mm |
Repeatability | Spectral transmittance: standard deviation within 0.05% (400 to 700nm: within 0.04%); Chromaticity value: within ΔE*ab 0.015 |
Operating Temperature Range | 0 to 40°C |
Storage Temperature Range | -20 to 50°C |
Light Source | Combined full spectrum LED light source |
Spectral Method | Plat grating spectrometer |
Sensor | Silicon photodiode array (dual row 40 groups) |
Observer Angle | 2°/10° |
Measuring Time | Fast mode: about 0.8s |
Illumination | Transmission: D/0 (diffuse illumination, 0° Viewing) |
Illuminant Life Span | Full scan, 1 pg OFN at m/z 272 with S/N ≥ 30:1 (RMS) |
Display | TFT true color 7-inch, capacitive touchscreen |
Interface | USB, print serial port |
Data Storage | 1000 Standards, 10000 test samples |
Dimensions (L×H×W) | 370 × 300 × 200 mm |
Weight | 9.6kg |
Features
Applications
Accessories
Name | Quantity |
Power Adapter | 1 Pc |
Quality Management Software | 1 Pc |
Data Cable | 1 Pc |
Transmission Blackboard | 1 Pc |
Transmission Test Fixture Assembly | 1 Pc |
10mm Cuvette | 1 Pc |
50mm Cuvette | 1 Pc |
50mm cuvette fixture | 1 Pc |
Accessories Optional
Fison Visible Spectrophotometer features a high-resolution LCD screen, offering clear and precise monitoring of parameters. They automatically set the wavelength, ensuring precise adjustments and simplifying the measurement process for accurate results. The large sample compartment fits cuvettes with various path lengths for efficient testing. Their data restoration after a sudden power cut ensures that important test results are not lost. Our Visible Spectrophotometer have grating optical system that ensures high spectral resolution.
Fison Single Beam UV-Visible Spectrophotometers are designed for accurate measurement of light absorbance and transmittance. They provide a wide wavelength range, covering the UV and visible spectrum for diverse applications. These units include automatic wavelength adjustment, ensuring precise and consistent wavelength selection. Our Spectrophotometers retain data after power loss, ensuring secure results. They provide USB and printer connectivity, allowing easy data transfer and efficient reporting.
Fison Fluorescence Spectrophotometers offer high sensitivity and selectivity, detecting low-concentration samples with superior accuracy. They are equipped with an advanced optical system, ensuring precise detection. These units provide automatic wavelength adjustment for accurate and consistent wavelength selection. They feature a user-friendly interface, offering a digital display and control system for easy operation. Our spectrophotometers come with a compact and durable construction for long-term reliability.
Fison Double Beam UV-Visible Spectrophotometers provide high-precision optical system. They provide accurate and stable measurement of absorbance and transmittance. These units feature a double beam design, simultaneously measuring the sample and reference to reduce errors and improve accuracy. They include USB and printer connectivity, enabling seamless data transfer and efficient reporting. Our spectrophotometers offer a wide wavelength range for versatile analytical applications.
Fison Single Beam UV-Visible Spectrophotometers are designed for accurate measurement of light absorbance and transmittance. They provide a wide wavelength range, covering the UV and visible spectrum for diverse applications. These units include automatic wavelength adjustment, ensuring precise and consistent wavelength selection. Our Spectrophotometers retain data after power loss, ensuring secure results. They provide USB and printer connectivity, allowing easy data transfer and efficient reporting.
Fison Atomic Absorption Spectrophotometers offer high precision and sensitivity for detecting metal concentrations in various samples. They feature an advanced optical system with a high-resolution monochromator for enhanced spectral accuracy. These units provide automated sample handling, reducing manual intervention. They include a user-friendly interface and digital controls for easy operation. Our spectrophotometers deliver multiple calibration modes, allowing single and multi-element analysis to ensure versatility.
Wavelength range | 190 to 900 nm |
Wavelength accuracy | ±0.5 nm |
Resolution | Two spectral lines of Mn at 279.5 nm and 279.8 nm, can be separated with spectral bandwidth of 0.2 nm and valley-peak energy ratio less than 30% |
Baseline stability | 0.005 A/30 min |
Background correction | D2 lamp background correction capability at 1A is better than 30 times |
Lamp turret | 2 lamps powered simultaneously (one preheated) |
Lamp current adjustment | 0 to 20 mA |
Lamp power supply mode | 400 Hz square wave pulse |
Monochromator | Single beam, Czerny-Turner design grating monochromator |
Grating | 1800 lines/mm |
Focal length | 277 mm |
Blazed wavelength | 250 nm |
Spectral bandwidth | 0.1 nm, 0.2 nm, 0.4 nm, 1.2 nm, automatic change |
Spectral adjustment | Manual adjustment for wavelength and slit |
