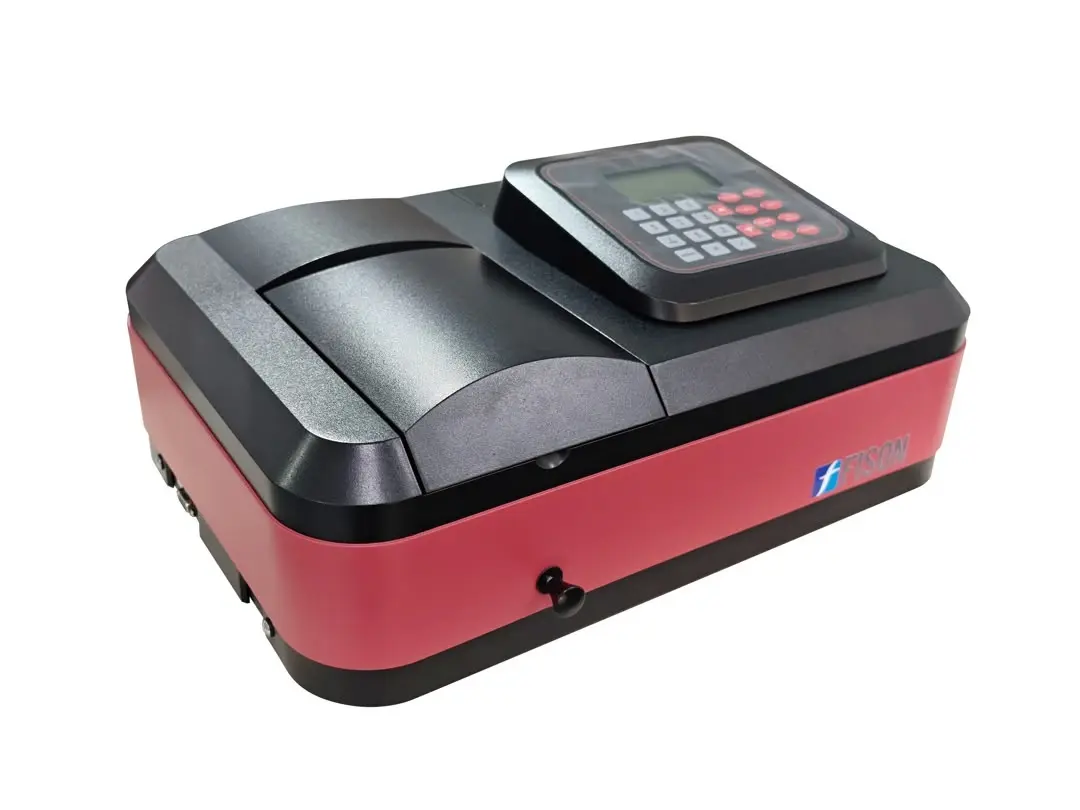

Visible Spectrophotometer FM-VS-B100

Visible Spectrophotometer FM-VS-B100

Visible Spectrophotometer FM-VS-B100 features single-chip microcomputer control, ensuring precise and efficient automated analysis. It enhances accuracy and simplifies operation by automatically selecting the optimal wavelength for each measurement. This unit enables the rapid creation of standard concentration values to create a standard curve for quantitative measurement. Our visible spectrophotometer uses an imported silicon photodiode detector for accurate and consistent results.

Specifications

Wavelength Range 320 to 1100 nm
Bandwidth 4 nm
Wavelength Accuracy ±0.5 nm
Wavelength Repeatability ≤0.2 nm
Path Length 5mm to 100mm
Photometric Accuracy ±0.3% τ
Photometric Repeatability 0.1% τ
Stray Light ≤0.05% τ (360 nm NaNO2)
Stability 0.001 A/h at 500 nm
Photometric Mode T, A, C, E
Wavelength Setting Automatic
Photometric Display Range -0.3 to 3 A
Detector Imported Silicon Photodiode
Light Source Imported Tungsten Lamp
Quantitative Measurement K and B Factors Input for Curve
Power Consumption 120 W
Power Supply AC 220V/50Hz, 110V/60Hz
Dimensions (W × D × H) 480 × 350 × 220 mm
Weight 11 kg

Features

  • Built-in LCD Screen Display
  • Automated wavelength adjustment
  • Advanced closed optical path
  • Integrated double exhaust system
  • Automatic filter replacement
  • Includes large data and curve storage

Applications

  • Visible Spectrophotometer FM-VS-B100 measures the intensity of light absorbed by a sample at different wavelengths. It is used to determine volatile phenols and measure hydrogen concentrations in environmental testing, water analysis, wastewater treatment, as well as chemical and scientific research.

Accessories

  • 1cm glass cuvette × 4 pcs
    Dust Cover × 1 pc
    Power line × 1 pc

Accessories Optional

  • Round Test Tube Holder
    20mm Glass Cuvette × 4 pcs
    40mm Glass Cuvette × 4 pcs
    50mm Glass Cuvette × 4 pcs

Alternative Models Of Visible Spectrophotometer

Fison Visible Spectrophotometer features a high-resolution LCD screen, offering clear and precise monitoring of parameters. They automatically set the wavelength, ensuring precise adjustments and simplifying the measurement process for accurate results. The large sample compartment fits cuvettes with various path lengths for efficient testing. Their data restoration after a sudden power cut ensures that important test results are not lost. Our Visible Spectrophotometer have grating optical system that ensures high spectral resolution.

Visible Spectrophotometer FM-VS-A100

  • Wavelength range: 325 nm to 1000 nm
  • Spectral bandwidth: 4 nm
  • Optical system: Single beam, grating 1200 lines / mm
Catalog

Visible Spectrophotometer FM-VS-A101

  • Wavelength range: 325 nm to 1000 nm
  • Spectral bandwidth: 4 nm
  • Optical system: Single beam, grating 1200 lines / mm
Catalog

Visible Spectrophotometer FM-VS-A102

  • Wavelength range: 320 nm to 1100 nm
  • Spectral bandwidth: 4 nm
  • Optical system: Single beam, grating 1200 lines / mm
Catalog
Visible Spectrophotometer FM-VS-A103
  • Wavelength range: 320 nm to 1100 nm
  • Spectral bandwidth: 2 nm
  • Optical system: Single beam, grating 1200 lines / mm
Catalog
Visible Spectrophotometer FM-VS-C100
  • Wavelength Range: 360 to 780 nm
  • Wavelength Interval: 10nm
  • Half Bandwidth: 5nm
Catalog

Single Beam UV-Visible Spectrophotometer

Fison Single Beam UV-Visible Spectrophotometers are designed for accurate measurement of light absorbance and transmittance. They provide a wide wavelength range, covering the UV and visible spectrum for diverse applications. These units include automatic wavelength adjustment, ensuring precise and consistent wavelength selection. Our Spectrophotometers retain data after power loss, ensuring secure results. They provide USB and printer connectivity, allowing easy data transfer and efficient reporting.

Single Beam UV-Visible Spectrophotometer FM-UVS-A101

  • Wavelength range : 200 nm to 1000 nm
  • Spectral bandwidth : 4 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog

Single Beam UV-Visible Spectrophotometer FM-UVS-A102

  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 4 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog
Single Beam UV-Visible Spectrophotometer FM-UVS-A103
  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 2 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog

Fluorescence Spectrophotometer

Fison Fluorescence Spectrophotometers offer high sensitivity and selectivity, detecting low-concentration samples with superior accuracy. They are equipped with an advanced optical system, ensuring precise detection. These units provide automatic wavelength adjustment for accurate and consistent wavelength selection. They feature a user-friendly interface, offering a digital display and control system for easy operation. Our spectrophotometers come with a compact and durable construction for long-term reliability.

Fluorescence Spectrophotometer FM-FS-A100
  • Light source : LED
  • Exciting optical system : Interference optical filter
  • Optical filter bandwidth : 10nm
Catalog

Fluorescence Spectrophotometer FM-FS-A101

  • Light source : Xenon lamp 150 W
  • Exciting optical system : Interference optical filter
  • Optical filter bandwidth : 10 nm
Catalog

Fluorescence Spectrophotometer FM-FS-A200

  • Light source : 150 W xenon lamp
  • Excitation wavelength : 200 nm to 900 nm
  • Emission wavelength : 200 nm to 900 nm
Catalog

Double Beam UV-Visible Spectrophotometer

Fison Double Beam UV-Visible Spectrophotometers provide high-precision optical system. They provide accurate and stable measurement of absorbance and transmittance. These units feature a double beam design, simultaneously measuring the sample and reference to reduce errors and improve accuracy. They include USB and printer connectivity, enabling seamless data transfer and efficient reporting. Our spectrophotometers offer a wide wavelength range for versatile analytical applications.

Double Beam UV-Visible Spectrophotometer FM-UVS-C100
  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 1.8 nm
  • Optical system : Double beam, grating 1200 lines / mm
Catalog
Double Beam UV-Visible Spectrophotometer FM-UVS-C101
  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 1.0 nm
  • Optical system : Double beam, grating 1200 lines / mm
Catalog

Double Beam UV-Visible Spectrophotometer FM-UVS-C102

  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 0.5, 1, 2 and 4 nm
  • Optical system : Double beam, grating 1200 lines / mm
Catalog

Single Beam Scanning UV-Visible Spectrophotometer

Fison Single Beam UV-Visible Spectrophotometers are designed for accurate measurement of light absorbance and transmittance. They provide a wide wavelength range, covering the UV and visible spectrum for diverse applications. These units include automatic wavelength adjustment, ensuring precise and consistent wavelength selection. Our Spectrophotometers retain data after power loss, ensuring secure results. They provide USB and printer connectivity, allowing easy data transfer and efficient reporting.

Single Beam Scanning UV-Visible Spectrophotometer FM-UVS-B100

  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 4 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog
Single Beam Scanning UV-Visible Spectrophotometer FM-UVS-B101
  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 2 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog
Single Beam Scanning UV-Visible Spectrophotometer FM-UVS-B102
  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 1.8 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog

Atomic Absorption Spectrophotometer

Fison Atomic Absorption Spectrophotometers offer high precision and sensitivity for detecting metal concentrations in various samples. They feature an advanced optical system with a high-resolution monochromator for enhanced spectral accuracy. These units provide automated sample handling, reducing manual intervention. They include a user-friendly interface and digital controls for easy operation. Our spectrophotometers deliver multiple calibration modes, allowing single and multi-element analysis to ensure versatility.

Atomic Absorption Spectrophotometer FM-AAS-A100

  • Wavelength range  : 190 to 900 nm
  • Wavelength accuracy : ≤ ±0.5 nm
  • Wavelength repeatability : ≤0.3 nm (single direction)
Catalog

Atomic Absorption Spectrophotometer FM-AAS-A101

  • Wavelength range  : 190 to 900 nm
  • Wavelength accuracy : ± 0.15 nm
  • Wavelength repeatability : ≤ 0.04 nm
Catalog
Atomic Absorption Spectrophotometer FM-AAS-A200
  • Main specification :
    Wavelength range190 to 900 nm
    Wavelength accuracy±0.5 nm
    ResolutionTwo spectral lines of Mn at 279.5 nm and 279.8 nm, can be separated with spectral bandwidth of 0.2 nm and valley-peak energy ratio less than 30%
    Baseline stability0.005 A/30 min
    Background correctionD2 lamp background correction capability at 1A is better than 30 times
  • Light source system :
    Lamp turret2 lamps powered simultaneously (one preheated)
    Lamp current adjustment0 to 20 mA
    Lamp power supply mode400 Hz square wave pulse
  • Optical system :
    MonochromatorSingle beam, Czerny-Turner design grating monochromator
    Grating1800 lines/mm
    Focal length277 mm
    Blazed wavelength250 nm
    Spectral bandwidth0.1 nm, 0.2 nm, 0.4 nm, 1.2 nm, automatic change
    Spectral adjustmentManual adjustment for wavelength and slit
Catalog
