Vertical Shaking Incubator FM-SI-A301

Vertical Shaking Incubator FM-SI-A301

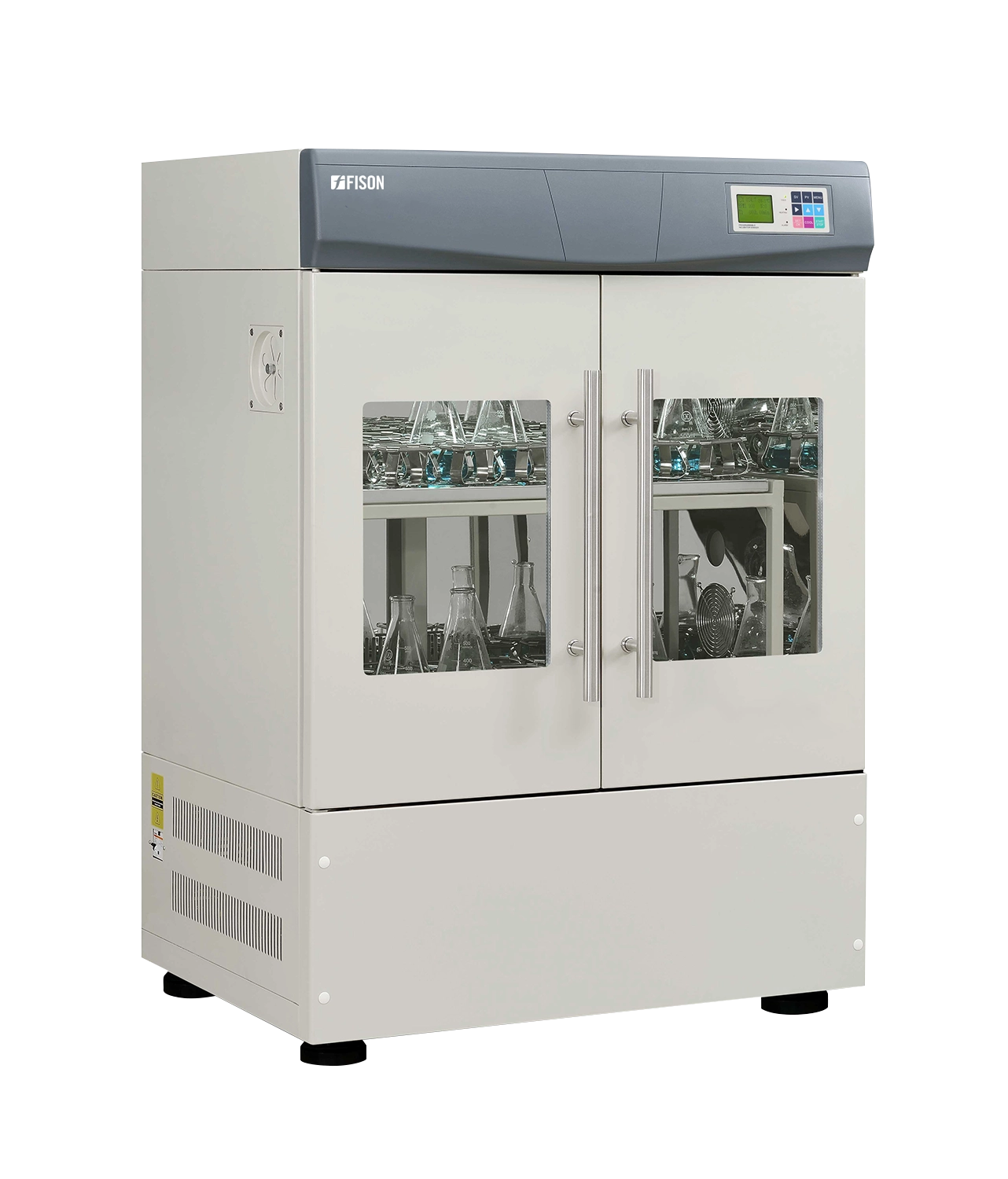

Vertical Shaking Incubator FM-SI-A301 with reciprocal shaking mode is a microprocessor PID controlled system along LCD backlight display. It comes with high precision shaking speed range of 30 to 300 rpm and temperature function. Designed as double door unit with double layer and transparent window for clear observation. Inside chamber is made up of stainless steel & powder coated outer steel body. The LCD screen displays multiple data at same time. Its smooth running start/stop system helps in preventing liquid spillage. It is useful for quality, research and testing purpose across laboratories, institutes.

Specifications

Chamber Capacity 639 L
Controller PID (Environmental Scanning Microprocessor)
Shaking mode Reciprocal
Rotating speed 30 to 300 rpm
Rotating accuracy ± 1 rpm
Vibration range 35 mm
Temperature range RT +5°C to 60°C
Temperature accuracy ± 0.1°C
Temperature uniformity ± 1°C
Working environment temperature 25 °C
Working environment humidity 20% to 90%
Drive mode Single shaft balance device
Circulation mode High speed convection
Display LCD (simultaneous display of working and set parameters)
Refrigerant -
Cooling consumption -
Heating consumption 800 W
Timing range 0 to 999.59 h continuous
Shaking plate size 920 × 520 mm
Shaking plate quantity 2 pcs
Chamber material Polished stainless steel
External material Steel
Safety function Audio and visual alarm for over temperature, alarm for over speed
Power 1100 W
Power supply AC 220 V to 240 V, 50/60 Hz
Internal dimension (W × D × H) 1100 × 700 × 830 mm
External dimension (W × D × H) 1200 × 850 × 1550 mm
Net weight 325 kg

Features

  • Microprocessor PID control with acoustic and visual alarm
  • LCD backlight display with working parameters
  • Offers reciprocal shaking mode and convection circulation mode
  • Durable single shaft drive technology
  • Constant temperature and refrigeration are optional
  • Automatic power cut, audio and visual alarm for over temperature
  • Data recovery after automatic power off
  • Built-in lighting system for convenient observation
  • 120 W AC inductive brushless motor
  • Stainless steel chamber and powder coated steel body
  • Smooth shaking mode provide stable and reliable operation
  • Transparent glass window and built-in light for observation
  • Automatic stop function when door is open

Applications

  • Used for microbial cell cultures, entomology, solubility tests, metabolic studies, stability studies, haematological studies, food processing, quality control analysis, mixing of reagents, pilot scale and pharmacy experiments.

Accessories

  • Accessories no. Accessories name Unit
    1 Fluorescent lamp 1
    2 UV lamp 1
    3 Shaking tray 2
    4 Flask clamp 500 ml × 28 and 1000 ml × 22

Accessories Optional

  • Accessories no. Accessories name Unit
    1 Humidity testing / control system 1
    2 Gas inlet 1
    3 Illumination system 15000 Lux 1

Standard Configuration

  • Specification Standard Quantity Maximum capacity
    Flask clamp (PCS) 50 ml - 164
    100 ml - 164
    250 ml 45 90
    500 ml 35 70
    1000 ml - 36
    Universal spring tray Tube rack Available for both stainless steel and ABS plastic
    Standard size 920 × 520 × 80 mm
    Flask clamp, spring tray, tube rack, Microplate holder and PCR tube clamp are available
    Note: Other sizes listed above can be offered as standard configuration to replace the size with standard quantity alternatively.
