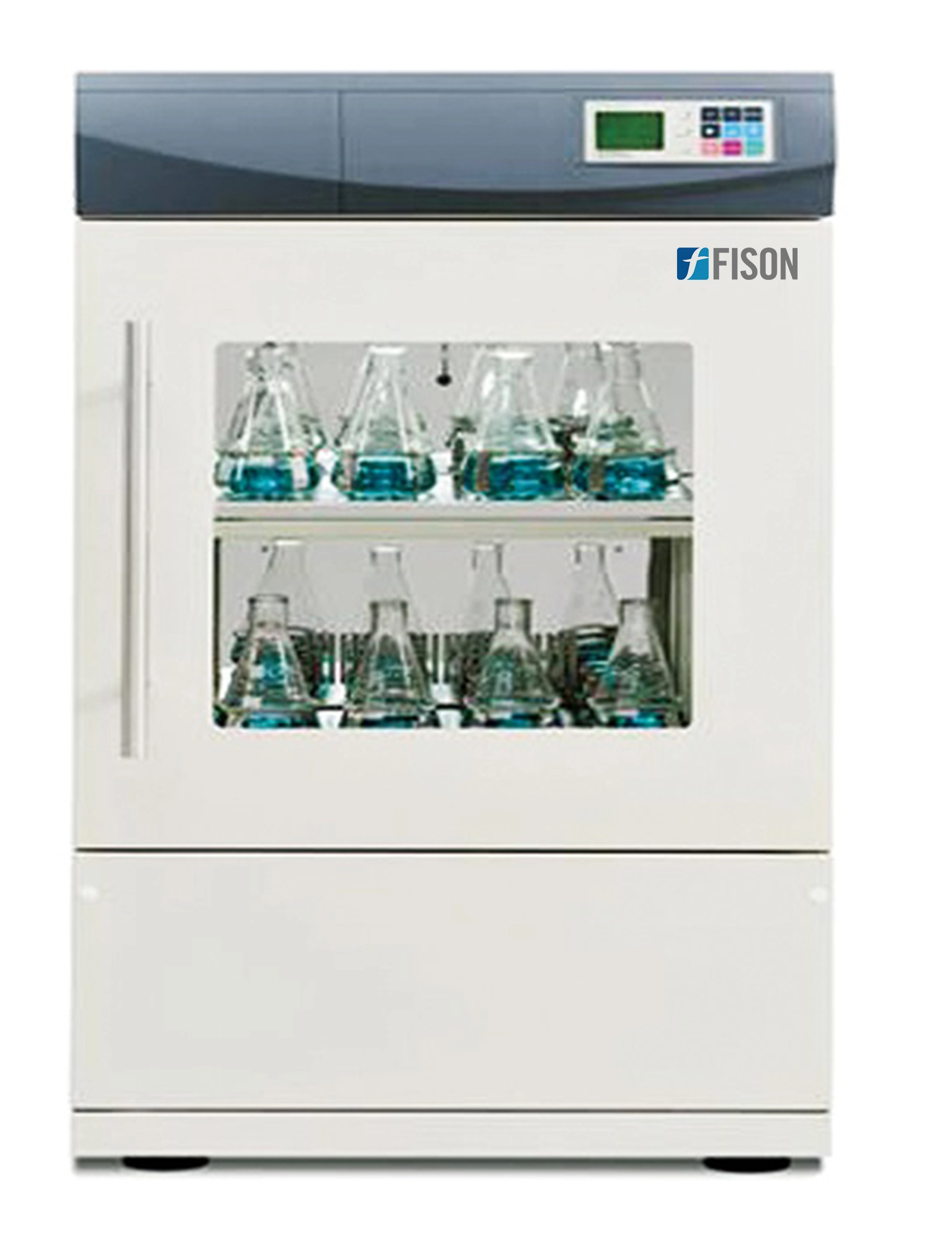

Vertical Shaking Incubator FM-SI-A201

Vertical Shaking Incubator FM-SI-A201

Vertical Shaking Incubator FM-SI-A201 is a microprocessor PID controlled system with LCD display. It comes with high precision shaking speed range of 40 to 300 rpm and temperature function. Designed as single door unit with double layer and transparent window for clear observation. Inside chamber is made up of stainless steel & outer body is made up of cold-rolled steel with antibacterial power coating. Equipped with large LCD screen, it displays multiple data at same time. Its smooth running start/stop system helps in preventing liquid spillage. It is useful for quality, research and testing purpose across laboratories, institutes.

  •  Microprocessor PID control system with LCD display
  •  Offers rotary shaking mode and forced convection circulation mode
  •  Audio and visual alarm for over temperature
  •  Data recovery after automatic power off
  •  CFC free, R134a Refrigerant
  •  Built-in lighting system for convenient observation
  •  Stainless steel chamber and anti-bacteria powder coated cold rolled steel body
  •  Smooth shaking mode provide stable and reliable operation
  •  Transparent glass window and built-in light for observation

Chamber capacity 20 L
Controller PID
Shaking mode Rotary shaking
Rotating speed 40 to 300 rpm
Rotating accuracy ± 1 rpm
Vibration range 25 mm
Temperature range 4°C to 60°C
Temperature accuracy ± 0.1°C
Temperature uniformity ± 1°C
Drive mode Unishaft drive
Circulation mode Forced convection
Display LCD
Refrigerant CFC free, R134a referigerant
Cooling consumption 200 W
Heating consumption 500 W
Timing range 0 to 500 h
Shaking plate size 500 mm × 350 mm
Shaking plate quantity 2 pcs
Standard capacity 500 ml × 12, 250 ml × 15
Chamber material Mirror stainless steel
External material Cold-rolled steel with anti-bacteria powder coating
Safety function Audio and visual alarm for over temperature, alarm for over speed, independent over temperature protector, shutdown protection for door opening and leakage or over current protection.
Power 830 W
Power supply AC 110/220 V ± 10%, 50/60 Hz
Internal dimension (W × D × H) 600 × 440 × 650 mm
External dimension (W × D × H) 700 × 600 × 1250 mm
Packaging dimension (W × D × H) 800 × 700 × 1400 mm
Gross weight 232 kg

Used for microbial cell cultures, entomology, solubility tests, metabolic studies, stability studies, haematological studies, food processing, quality control analysis and mixing of reagents.
