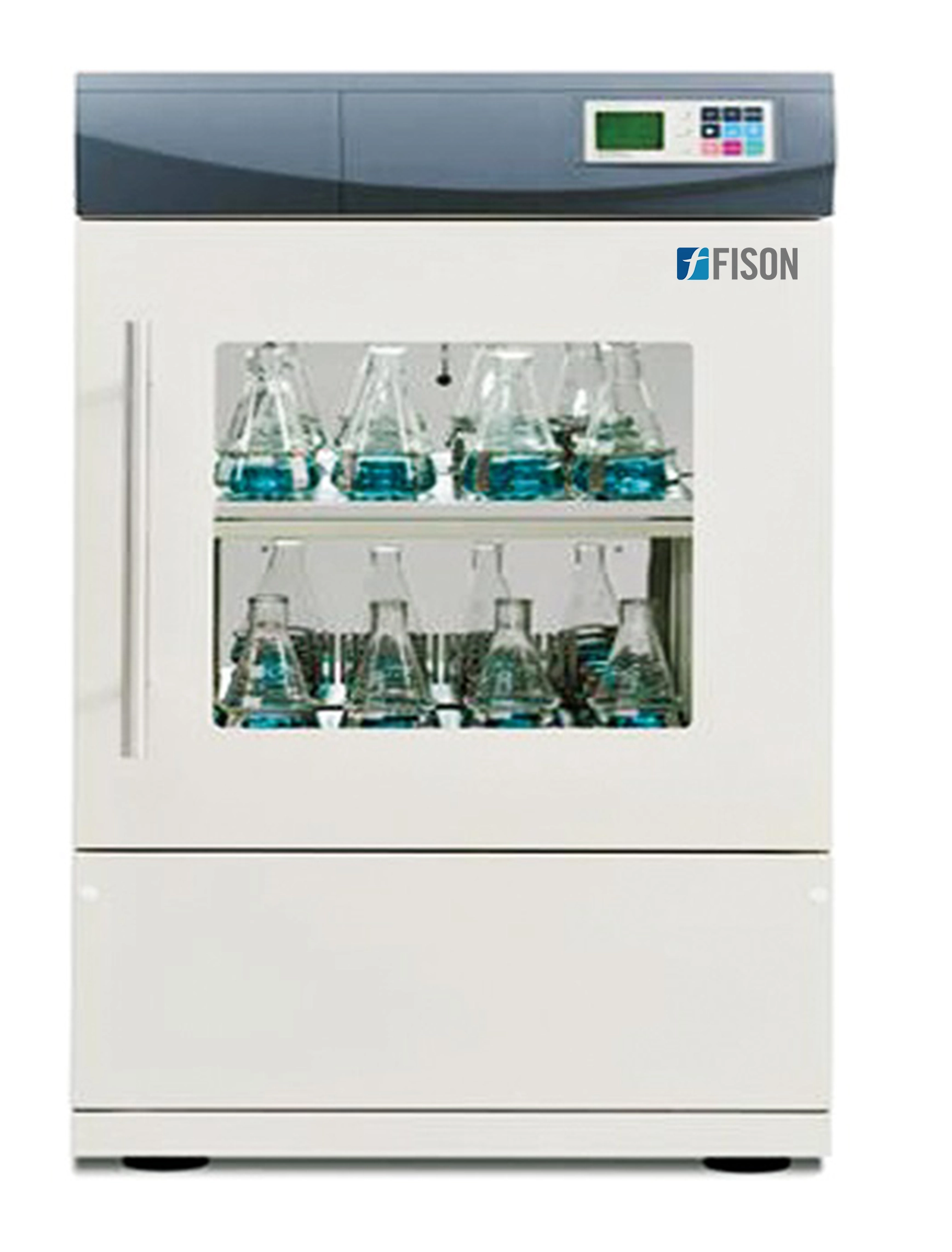

Vertical Shaking Incubator FM-SI-A200 is a microprocessor PID controlled system with LCD display. It comes with high precision shaking speed range of 40 to 300 rpm and temperature function. Designed as single door unit with double layer and transparent window for clear observation. Inside chamber is made up of stainless steel & outer body is made up of cold-rolled steel with antibacterial power coating. Equipped with large LCD screen, it displays multiple data at same time. Its smooth running start/stop system helps in preventing liquid spillage. It is useful for quality, research and testing purpose across laboratories, institutes.
Specifications
Chamber capacity | 20 L |
Controller | PID |
Shaking mode | Rotary shaking |
Rotating speed | 40 to 300 rpm |
Rotating accuracy | ± 1 rpm |
Vibration range | 25 mm |
Temperature range | RT+5°C to 60°C |
Temperature accuracy | ± 0.1°C |
Temperature uniformity | ± 1°C |
Drive mode | Unishaft drive |
Circulation mode | Forced convection |
Display | LCD |
Refrigerant | - |
Cooling consumption | - |
Heating consumption | 500 W |
Timing range | 0 to 500 h |
Shaking plate size | 500 mm × 350 mm |
Shaking plate quantity | 2 pcs |
Standard capacity | 500 ml × 12, 250 ml × 15 |
Chamber material | Mirror stainless steel |
External material | Cold-rolled steel with anti-bacteria powder coating |
Safety function | Audio and visual alarm for over temperature, alarm for over speed, independent over temperature protector, shutdown protection for door opening and leakage or over current protection. |
Power | 600 W |
Power supply | AC 110/220 V ± 10%, 50/60 Hz |
Internal dimension (W × D × H) | 600 × 440 × 650 mm |
External dimension (W × D × H) | 700 × 600 × 1250 mm |
Packaging dimension (W × D × H) | 800 × 700 × 1400 mm |
Gross weight | 200 kg |
Features
Applications
Fison Vertical Shaking Incubator provides precise and uniform temperature regulation with a wide range, and it is suitable for bacterial, yeast, or cell culture incubation. They feature adjustable shaking speeds, ensuring thorough mixing for optimal aeration. Their alarms detect over-temperature and mechanical failures to enhance safety. These offer programmable temperature settings, allowing for automated and reproducible experimental protocols. The transparent viewing window allows easy sample monitoring. Our Vertical Shaking Incubator includes a digital control panel with a display for easy setup and monitoring.
