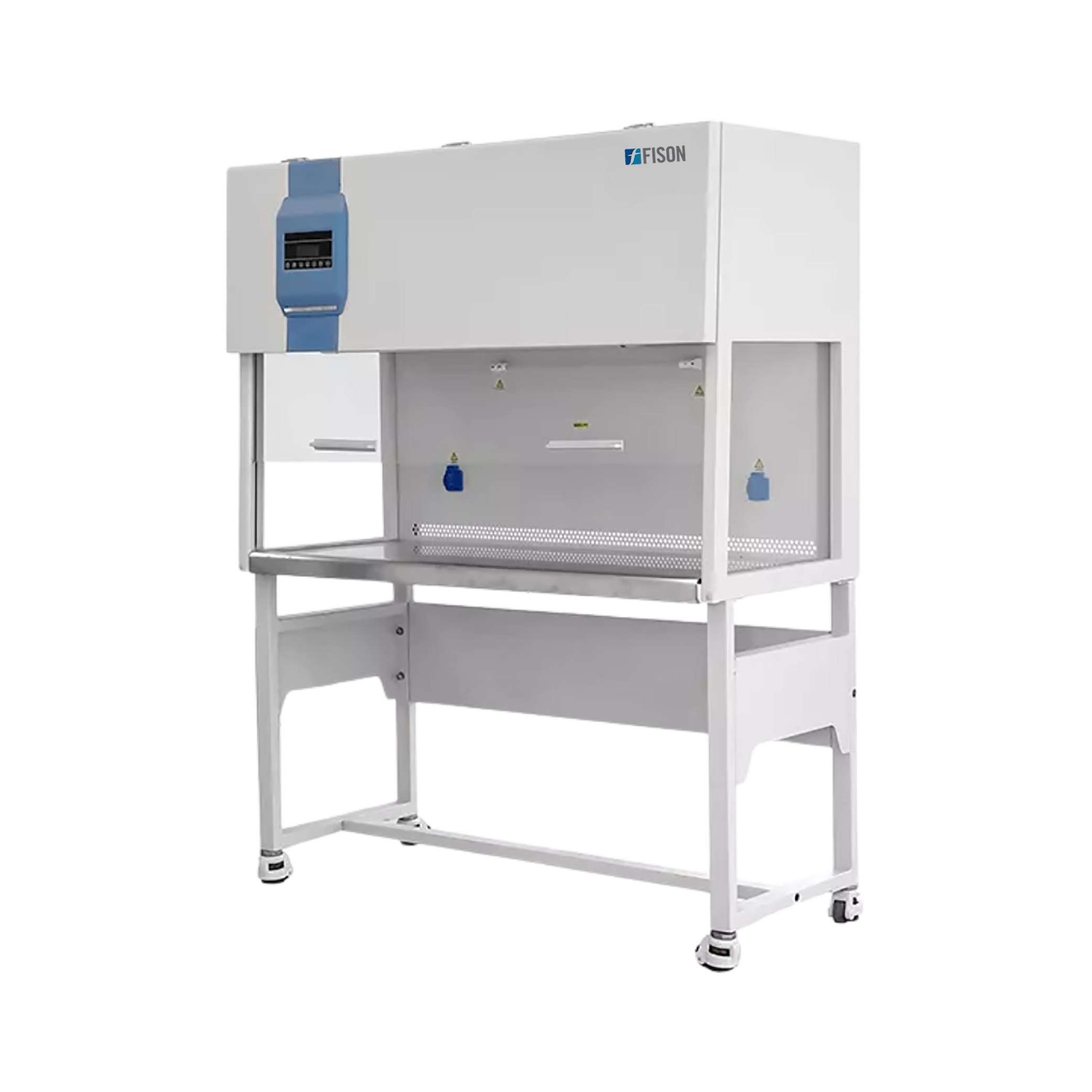

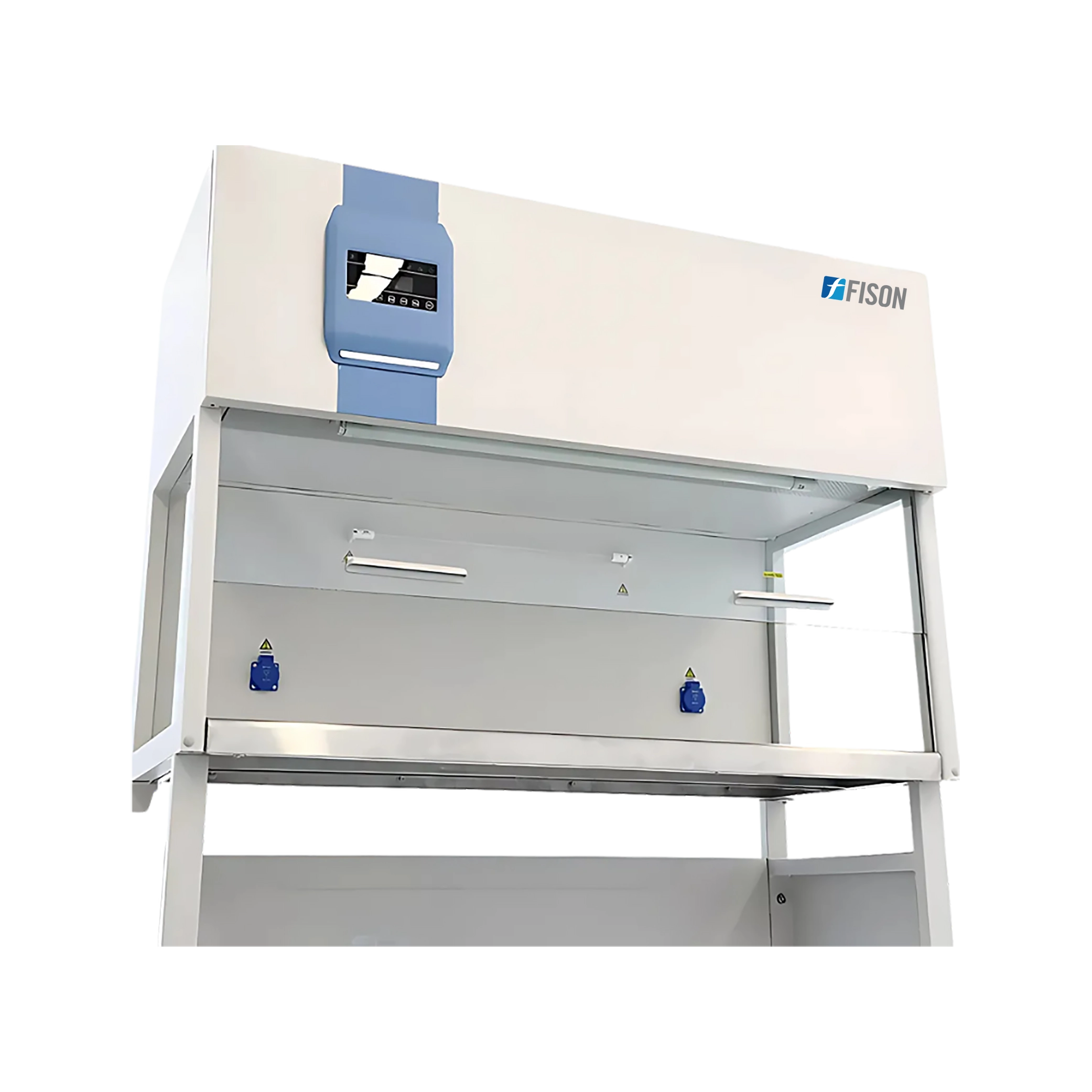

Vertical Laminar Flow Cabinet FM-VLC-A100
Vertical Laminar Flow Cabinet FM-VLC-A100 is professional localized air purification equipment with ergonomic design makes work more comfortable and offers 99.999% efficiency at 0.3 µm HEPA Filter. It features anti-radiation tempered glass and sterilization interlock with automatic control. It is best suitable for pharmaceuticals, medical and health, scientific research laboratories of universities and colleges, photoelectric /microelectronics manufacturing and other fields.
Specifications
| Flow Type | Vertical |
| Average Velocity | 2–5 m/s |
| Vibration Amplitude | 2 µm |
| Exhaust Filter Efficiency | H13 HEPA, 99.99% at 0.3 µm |
| Fluorescent Lamp Intensity | ≥ 300 Lux |
| Cleanliness Classification | ISO 14644.1 Class 5 |
| Sound Emission | 62 dB(A) |
| Power | 1200 W |
| Power Supply | AC 220V / 50Hz |
| Internal Dimensions (W×D×H) | 1300 × 516 × 520 mm (51.2 × 20.3 × 20.5 inches) |
| External Dimensions (W×D×H) | 1370 × 611 × 1754 mm (53.9 × 24.1 × 69.1 inches) |
| Packing Dimensions (W×D×H) | 1505 × 745 × 1280 mm (59.3 × 29.3 × 50.4 inches) |
| Net Weight | 150 kg |
| Gross Weight | 178 kg |
Features
- The front arc convex design prevents liquid from flowing out and is more safer

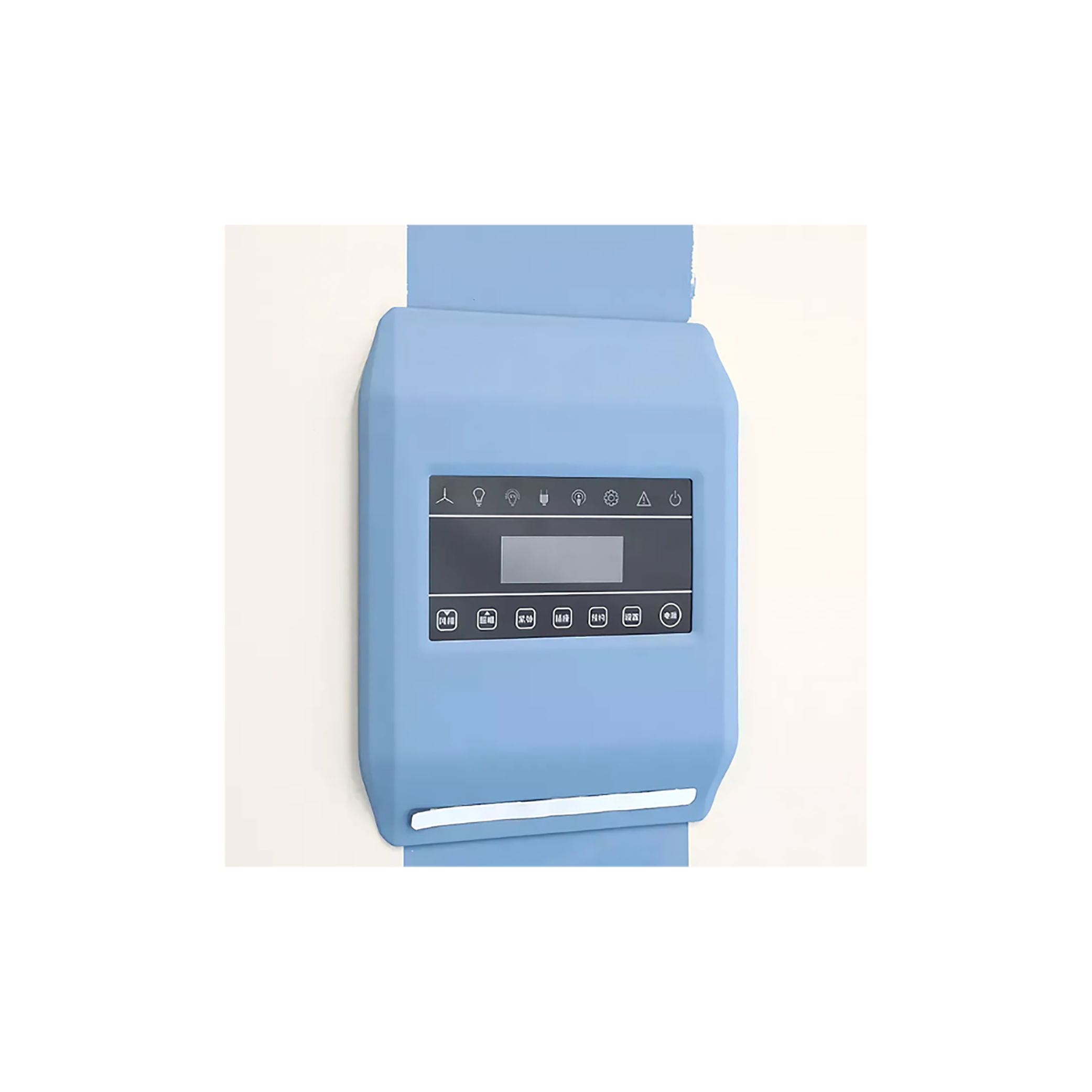

- Intelligent control, easy to operate
- One button UV lamp sterilization, intelligent interlock to prevent radiation to people
- Have waterproof socket that prevent liquid from entering the socket, and use electricity safely
Applications
- It is best suitable for pharmaceuticals, medical and health, scientific research laboratories of universities and colleges, photoelectric /microelectronics manufacturing, and other fields.
