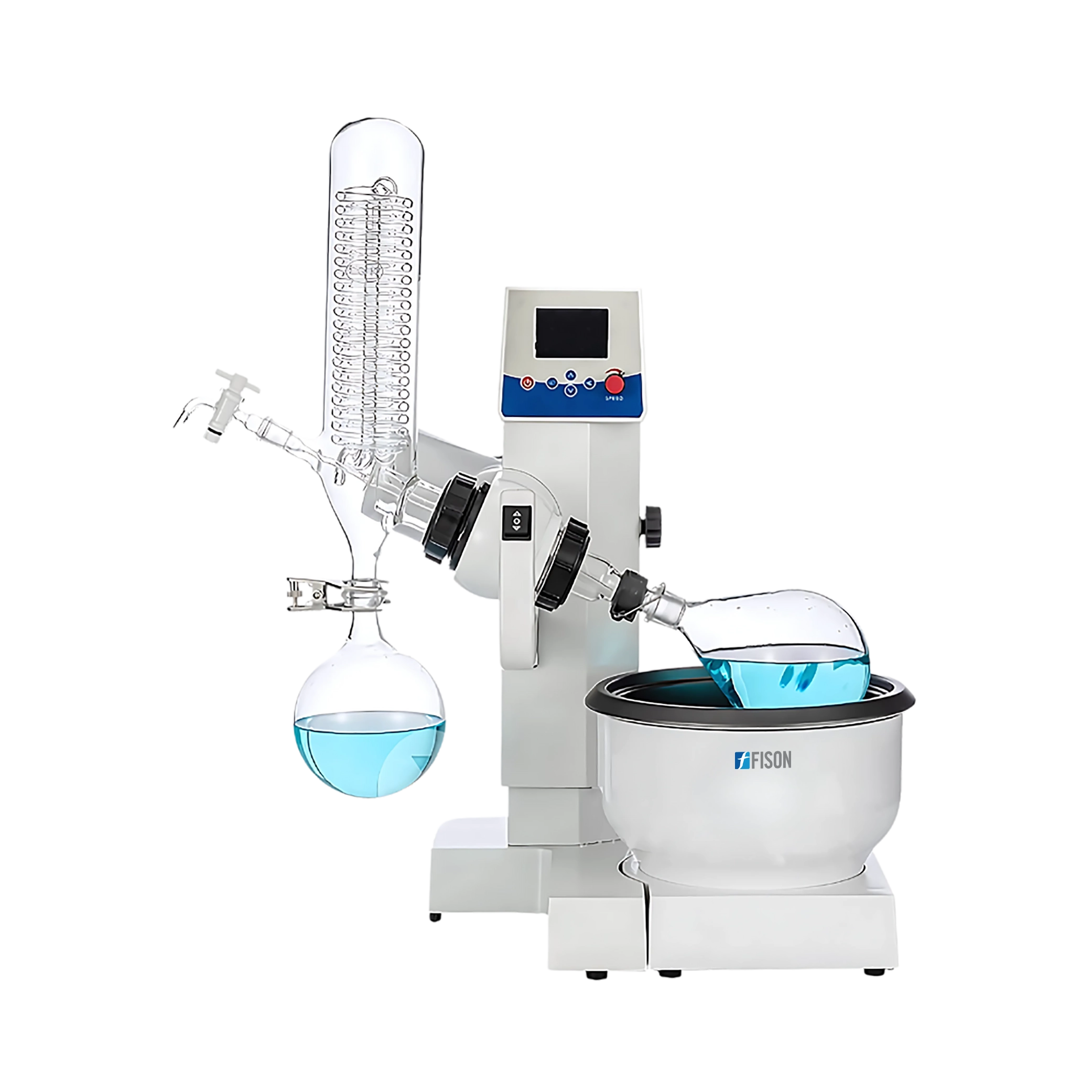

Rotary Evaporator FM-RE-A100

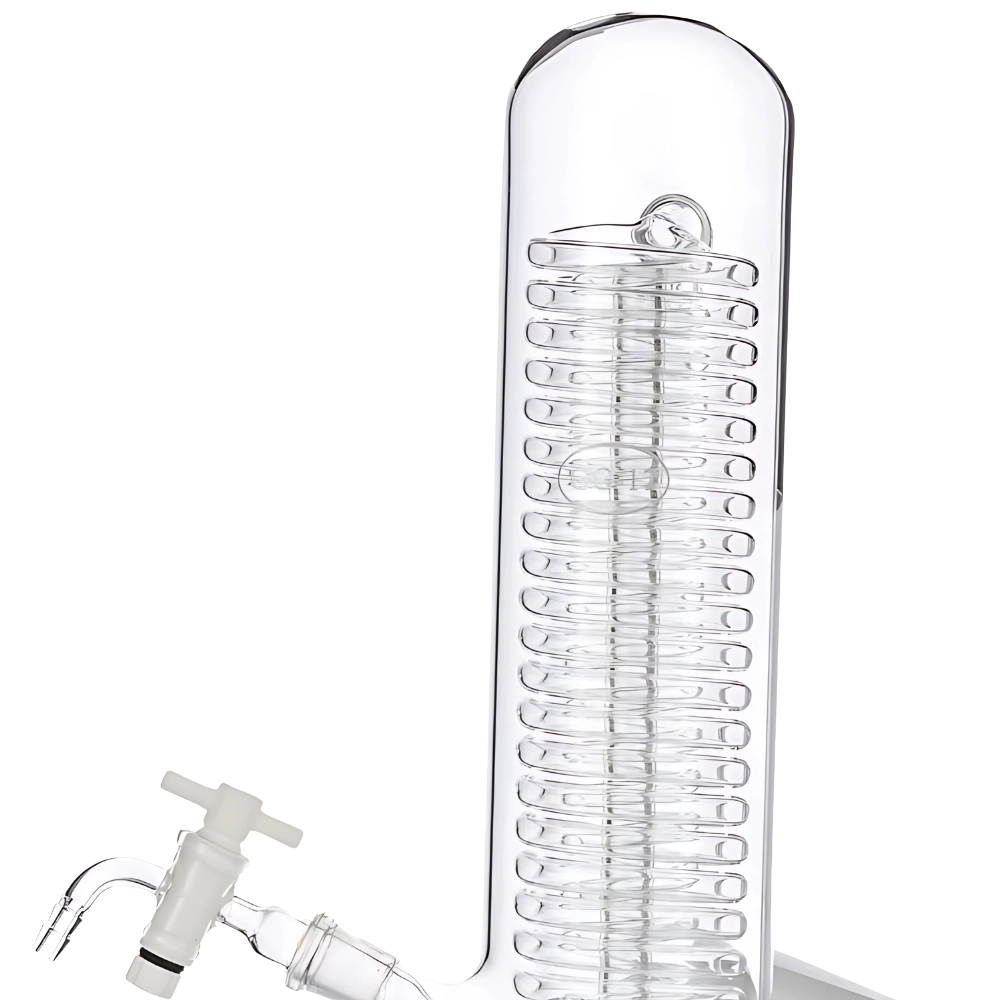

Rotary Evaporator FM-RE-A100 operates at maximum speed of 250 rpm, efficiently evaporating solvents. In between room temperature to 99℃ under a vacuum of 0.098Mpa it allows rapid and effective collections. Equipped with a double-layer condenser that improves heat exchange. Made with borosilicate glass, which is resistant to thermal shock and chemical reactions, offers high durability.
Specifications
| Rotating Speed | 0 to 250 rpm |
| Temperature Control Range | RT to 99 ℃ |
| Temperature Control Accuracy | ±1 ℃ |
| Vacuum | 0.098 Mpa |
| Rotary Flask Capacity | Eggplant shape 1L φ 131 mm |

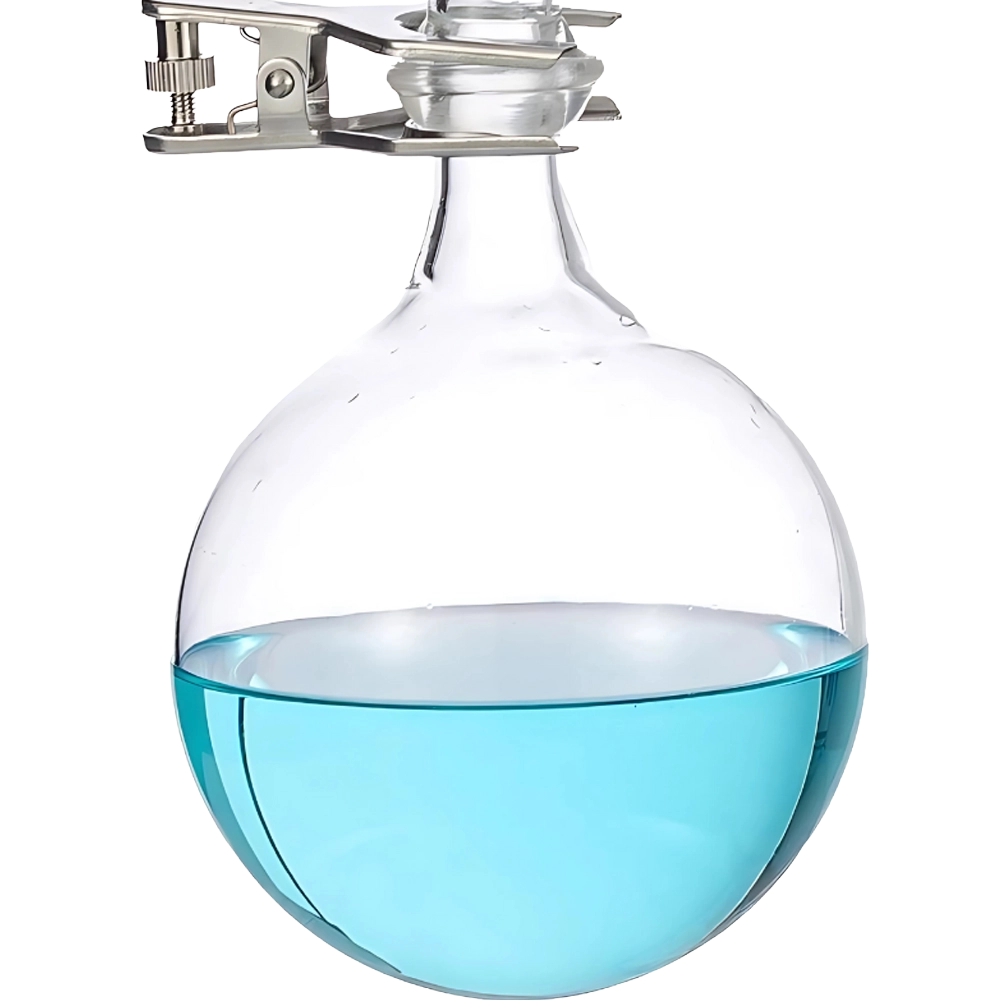

| Collecting Flask Capacity | Spherical shape 1L φ 131 mm |

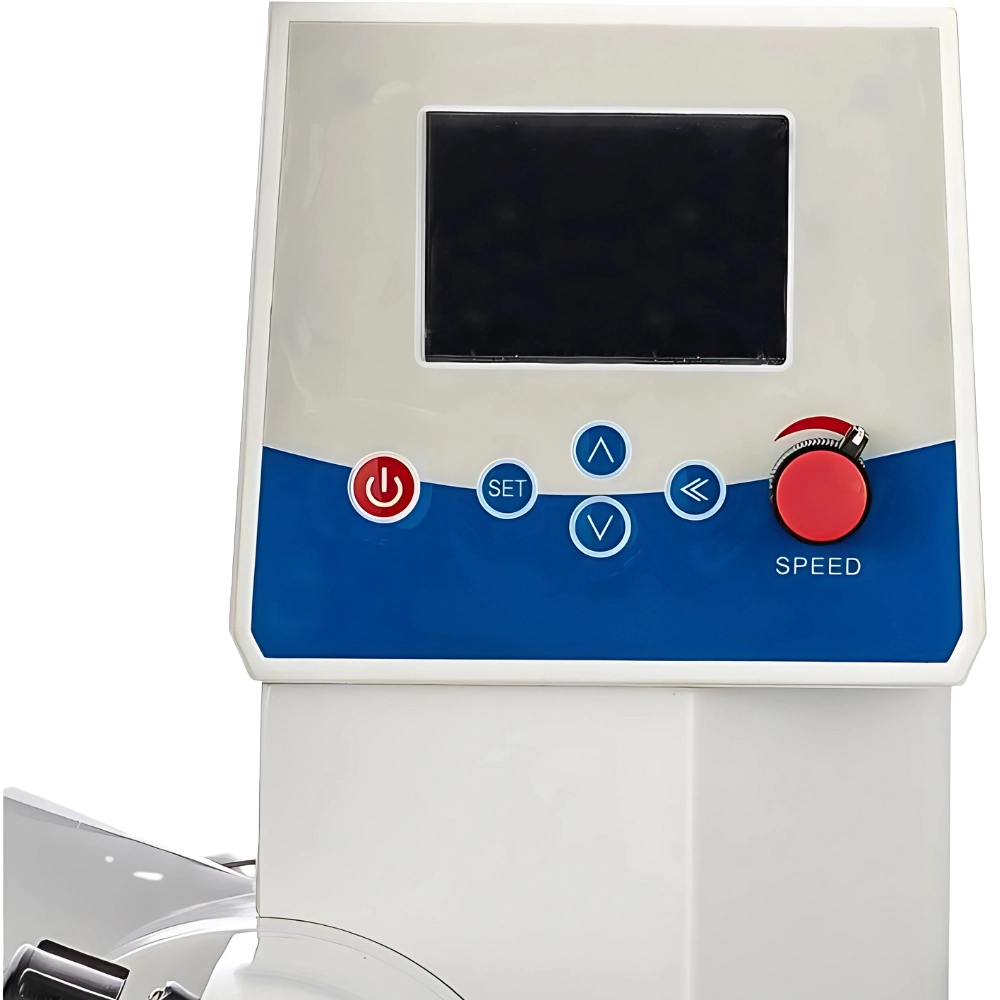

| Control Panel | Digital display of temperature Digital display of temperature and speed LCD display of temperature and speed |
| Lifting Stroke of the main Machine | 120 mm |
| Condensing Area | 0.17 m2 |
| Water bath Capacity | Φ 235 × 145 H; About 6.2L |
| Rotating Motor Power | 40 W （Brushless DC motor） |
| Lifting Motor Power | 20 W |
| Heating Power | 1200 W |
| Vacuum Pump Speed of Evacuation | 30 L/ Min |
| Vacuum Pump Ultimate Pressure Vacuum | ≥ 0.095 Mpa 50 mbar |
| Vacuum Pump Head | 2 |
| Vacuum Pump Motor Power | 220V AC/50Hz |
| Voltage and Frequency | 220V/50 Hz 110 V/60 Hz |
| Total Power | 1260 W |
| Dimensions | 620 × 620 × 470 mm |
| Weight | 25 Kg |
Features
- Low noise operations
- High vacuum with PTFE and fluoro rubber seals
- Dual heating or rotating system
- Electric lift
- Easy to assemble and disassemble
- Digital and LCD interfaces
Applications
- Rotary evaporators are primarily used in pharmaceutical, chemical, and biopharmaceutical industries for processes like concentration, crystallization, drying, separation, and solvent recovery.
Accessories Optional
Vacuum Pump
Chiller
Safety Condenser
