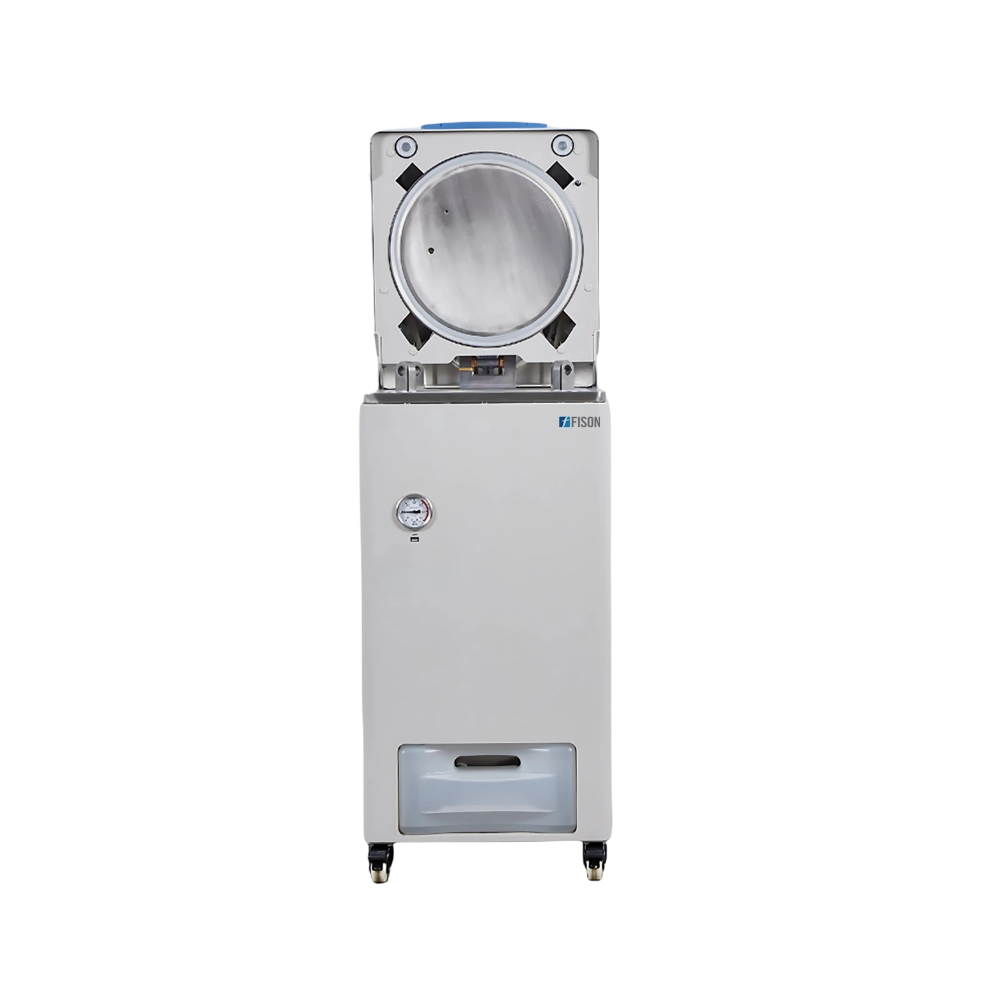

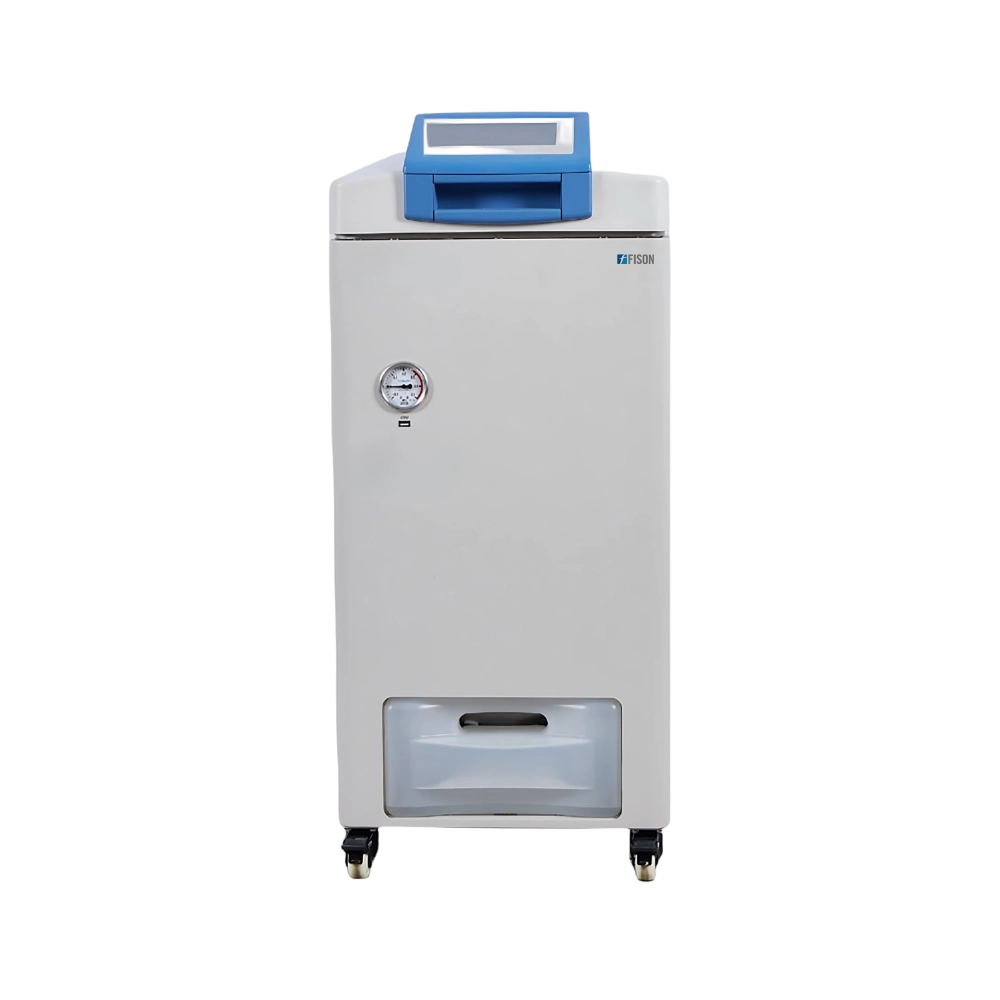

Vertical Autoclave FM-VA-C100 Vertical Autoclave FM-VA-C100

Vertical Autoclave FM-VA-C100

Vertical Autoclave FM-VA-C100 offers a spacious 120L capacity for sterilizing large batches efficiently. It operates at 105°C to 138°C, ensuring reliable decontamination for various applications. Its automated water filling system includes an integrated water tank, ensuring continuous and hassle-free operation. Our autoclave features an intuitive 7-inch color LCD touchscreen that supports glove-friendly and pen-touch operation for seamless control.

Specifications

Capacity 120 L
Sterilization Temperature Range 105°C to 138°C
Pressure Gauge -0.1 to 0.5 MPa
Pressure Valve Set Pressure 0.29 MPa
Chamber Material SUS304 Steel (option SUS316L)
Working Environment 5°C to 40°C, Relative Humidity ≤85%
Temperature Display Accuracy 0.1°C
Lid Open Way One-button Open with Interlock Sensor
Sterilization Time Range 1 to 6000 min
Melting Temperature 60°C to 115°C
Melting Time 1 to 6000 min
Warming Temperature 45°C to 79°C
Warming Time 1 to 9999 min
Drying Time 1min to 300min
Exhaust Speed Control Fully Automatic Internal Discharging with 6 levels
Memory Function 60 Programs Saved in System, 999 Cycles Saved by USB
Appointment Timer Range Auto Start-up Appointment: 0 to 15 days
Cooling Lock OPEN Temperature Range 40°C to 99°C (Solid, Waste, Agar, Self-defined) 40°C to 80°C (Liquid)
Sterilization Modes Liquid, Liquid with Warming, Solid, Wrapped Instrument, Fabric, Rubber, Fast, Waste, Agar, Self-defined
Controller Inspiration II Smart Microcomputer Controller
Cooling Way Fast Cooling Fan
Safety Devices Evenly Distributed interlock device, Electric double interlock, Lid closing check, Dry scorch protection, Safety valve, Water level sensor, Over-temperature/Pressure protection, Temperature/Pressure monitor, Electrical safety (Overcurrent/Short circuit/leakage), Cooling lock, Anti-scald lid and bench corner, and Automatic Troubleshooting
Biosafety Function Option for 0.2µm Biosafety Filter (basic model + S)
Rated Power (W) 4600
Power Requirement 220V+10% 32A 50HZ/60HZ
Chamber Dimensions (Dia × H) (mm) Ø500×658
Outer Dimensions (Dia × H) (mm) 665×1090
Net Weight 267kg

Features

  • Seamless Data Management
  • Customizable Exhaust Control
  • Secure Multi-Level Access
  • Extensive Sterilization Record Storage

Applications

  • Vertical Autoclave FM-VA-C100 is used for sterilization and is widely used in Medical and Healthcare, Laboratories and Research Institutes, the Food and Beverage Industry, Veterinary Clinics, Educational Institutions, and the Industrial and Cosmetic Industry.

Accessories

  • Accessory

    Quantity

    Water level plate

    1 pc

    Baskets (480 mm x 250 mm)

    2 pcs

    Drainage tubes

    2 pcs

Accessories Optional

  • Accessory

    Quantity

    Water purifier

    1 pc

    Drum Ø30x20cm

    1 pc

    Sterilization indicator tape

    5 pcs

    Spare heater

    2 pcs

    Door gasket

    2 pcs

    Spare fuse

    3 pcs

    RO membrane

    1 pc

    Water filter

    1 pc

    Tray

    1 pc

    Bucket Ø40X22cm

    1 pc
