Vertical Autoclave FM-VA-B300

Vertical Autoclave FM-VA-B300

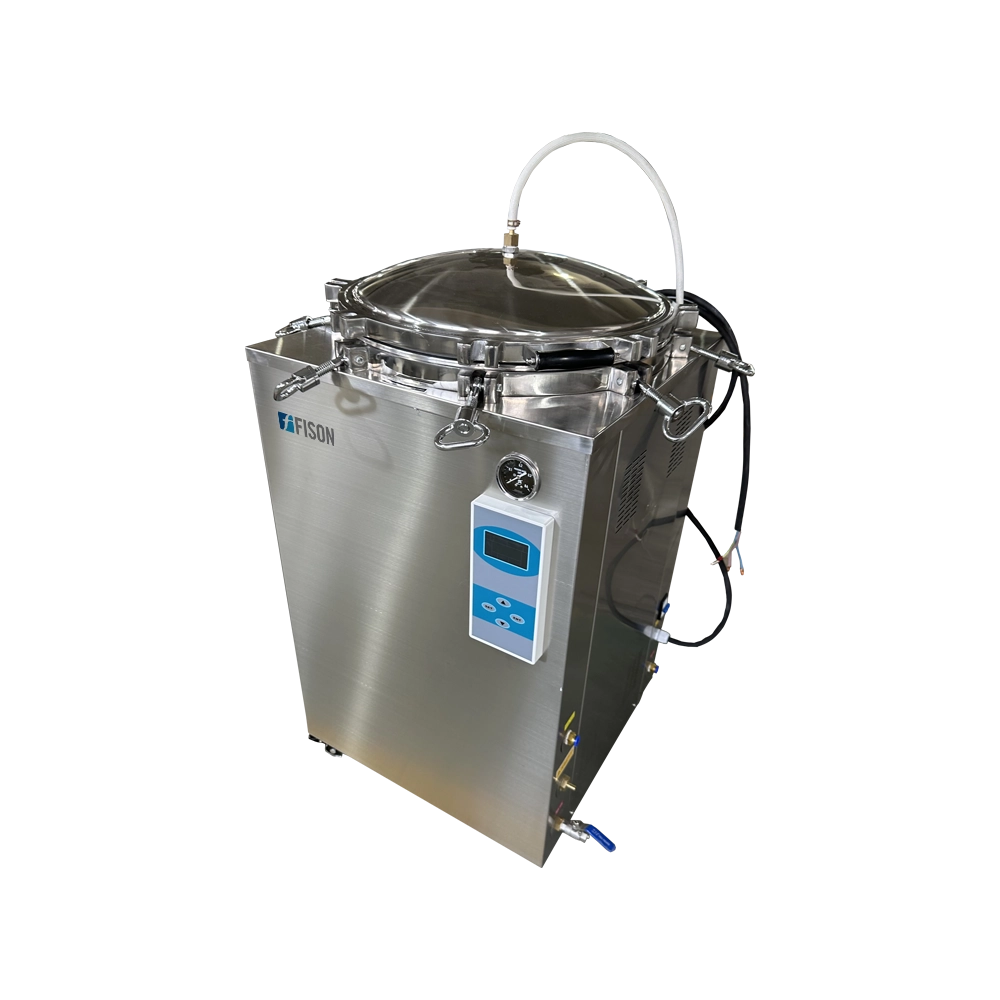

Vertical Autoclave FM-VA-B300 is a microcomputer-controlled sterilizer that generates high-pressure steam for efficient sterilization. It is crafted with high-quality stainless steel for corrosion resistance and easy maintenance. This offers boiling disinfection at low temperatures or rapid cooling pressure sterilization at higher temperatures for thorough sterilization. Our vertical autoclave includes a counter-pressure mechanism to preserve sample integrity.

Specifications

Capacity 100 L
Chamber Dimensions Ø 440 × 650 mm
Working Temperature 134°C
Maximum Working Pressure 0.22 Mpa
Temperature Range 105 to 134°C
Timer Range 0 to 99min
Safety Features Safety interlock protection, Automatic heating power cut-off
Power Consumption 4.5 KW
Power Supply AC220V 50HZ
Dimensions 580 × 560 × 1060 mm
Packaging Dimensions 640 × 640 × 1170 mm
Net Weight 73 Kg
Gross Weight 95 Kg

Features

  • Built-in printer
  • Utilizes F0 cycle
  • Inbuilt steam generation
  • Integrated dry-burn protection
  • Includes current overload safety system

Applications

  • Vertical Autoclave FM-VA-B300 is used for the sterilization of food packaging, utensils, and instruments, and is ideal for microbial decontamination and sterility testing in food research laboratories, pharmaceutical labs, clinical settings, and microbiological research facilities.

Alternative Models Of Vertical Autoclave

Fison Vertical Autoclave line features top loading steam sterilizers with different capacities of 35 L to 150 L. Designed with larger chamber volumes to achieve effective sterilization within space-restricted labs. They operate at 134°C and 0.22 MPa for quick autoclaving within few minutes. We offer versatile functions like semiautomatic control, warning buzzer systems, additional bacteria filters, customizable programs and multiple pulse vacuum drying. Our CE certified top loading sterilizers come with advanced safety mechanisms to ensure user-friendly operation.

Vertical Autoclave FM-VA-A100

  • Capacity: 35 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A101

  • Capacity: 50 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A102

  • Capacity: 75 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog
Vertical Autoclave FM-VA-A103
  • Capacity: 100 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog
Vertical Autoclave FM-VA-A200
  • Capacity: 50 L
  • Sterilization temperature: 134°C
  • Sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A201

  • Capacity: 75 L
  • Sterilization temperature: 134°C
  • Sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A202

  • Capacity: 100 L
  • Sterilization temperature: 134°C
  • Sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A300

  • Capacity: 35 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog
Vertical Autoclave FM-VA-A301
  • Capacity: 50 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog
Vertical Autoclave FM-VA-A302
  • Capacity: 75 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A303

  • Capacity: 100 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-B100

  • Capacity: 35 L
  • Wokring sterilization temperature: 134°C
  • Working sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-B101

  • Capacity: 50 L
  • Wokring sterilization temperature: 134°C
  • Working sterilization pressure: 0.22 MPa
Catalog
Vertical Autoclave FM-VA-B102
  • Capacity: 75 L
  • Wokring sterilization temperature: 134°C
  • Working sterilization pressure: 0.22 MPa
Catalog
Vertical Autoclave FM-VA-B103
  • Capacity: 100 L
  • Wokring sterilization temperature: 134°C
  • Working sterilization pressure: 0.22 MPa
Catalog

Horizontal Autoclave

Fison Horizontal Autoclave has larger load capacity of up to 600 L. They operate in temperature range of 134°C to 150°C for rapid sterilization. Our front-loading autoclaves come in cylindrical and rectangular orientation. They are durable and built of corrosion resistant stainless steel. They feature innovative safety systems with warning buzzers, thermo-pressure controllers and automatic water cut off. Our advanced horizontal autoclaves are equipped with intuitive digital interface for automatic operation.

Horizontal Autoclave FM-HA-A100

  • Chamber  capacity : 150 L
  • Inner tank dimension : 440×1000 mm
  • Design : Cylindrical orientation
Catalog

Horizontal Autoclave FM-HA-A101

  • Chamber  capacity : 200 L
  • Inner tank dimension : 515×1000 mm
  • Design : Cylindrical orientation
Catalog
Horizontal Autoclave FM-HA-A102
  • Chamber  capacity : 280 L
  • Inner tank dimension : 600×1000 mm
  • Design : Cylindrical orientation
Catalog

Portable Autoclave

Fison Portable Autoclaves are compact and lightweight steam sterilizers. They feature both electric and LPG type heating to facilitate versatile operation. Adjustable thermostat, auto shut off, pressure gauges and safety valves ensure effective sterilization. Our space-efficient autoclaves are appropriate for medical, dental, laboratory, and field settings. We offer Portable Autoclaves working at 126? and 0.16 MPa with loading capacities of 18 L- 24 L.

Portable autoclave FM-PA-A101
  • Chamber capacity : 18 L
  • Chamber dimension : 280 × 260 mm
  • Working temperature : 126 ℃
Catalog

Portable autoclave FM-PA-A102

  • Chamber capacity : 24 L
  • Chamber dimension : 280 × 390 mm
  • Working temperature : 126 ℃
Catalog

Portable autoclave FM-PA-A200

  • Chamber capacity : 18 L
  • Chamber dimension : 280 × 260 mm
  • Working temperature : 126℃
Catalog

Benchtop Autoclave

Fison Benchtop Autoclaves are compact, low wattage steam sterilizers. They operate at effective working conditions of 134°C and 0.22 MPa. They feature thermo-pressure controllers, automatic safety locks, alarm system and digital display. They are certified with successful vacuum and B&D test procedures to ensure cost-effective yet streamline performance. We offer space saving Benchtop autoclaves appropriate for small labs and dental clinics.

Benchtop Autoclave FM-BA-A100
  • Chamber Capacity : 35 L
  • Chamber dimension : 300 × 500 mm
  • Working pressure : 0.22 MPa
Catalog
Benchtop Autoclave FM-BA-A101
  • Chamber Capacity : 50 L
  • Chamber dimension : 340 × 550 mm
  • Working pressure : 0.22 MPa
Catalog

Benchtop Autoclave FM-BA-A102

  • Chamber Volume : 50 Liters
  • Max working temperature : 1340 ℃ ± 10 ℃
  • Max working pressure : 0.22 mpa
Catalog

Hydrothermal Autoclave

Fison Hydrothermal Autoclaves are constructed with corrosion-resistant material to facilitate unconventional chemical reactions. They feature inert internal liners to prevent interactions between the solution and vessel walls. Equipped with thermo-pressure regulators for process monitoring. Reliable seepage-proof design along with rupture discs ensure additional safety. Our high-pressure reactors enable you to conduct advanced hydrothermal applications such as nanomaterial synthesis, crystal growth, chemical transformations and more.

Hydrothermal Autoclave FM-HTA-102

  • Capacity : 100 ml
  • Heating / Cooling rate : 5℃/min
  • Working temperature : 200℃
Catalog
Hydrothermal Autoclave FM-HTA-A100
  • Capacity : 200 ml
  • Heating / Cooling rate : 5 ℃/min
  • Working temperature : ≤ 230 ℃
Catalog
Hydrothermal Autoclave FM-HTA-A101
  • Capacity : 500 ml
  • Heating / Cooling rate : 5 ℃/min
  • Working temperature : ≤ 230 ℃
Catalog

Vacuum Autoclave

Fison Vacuum autoclave features a rectangular cross-section with a European ring-type jacket and reinforcing ribs, ensuring operational stability. They are constructed with stainless steel for steam-contact surfaces, ensuring durability for up to various sterilization cycles. The jacket is crafted from high-quality carbon steel, ensuring safety for pressure vessel applications. Their double pulsation process effectively removes interior air, improving drying performance. Our Vacuum Autoclave features a variety of safety and alarming systems, ensuring reliable protection in critical situations.

Vacuum Autoclave FM-VMA-A100

  • Capacity : 360 L
  • Sterilization Temperature : 150 °C
  • Operational Temperature : 139 °C
Catalog
