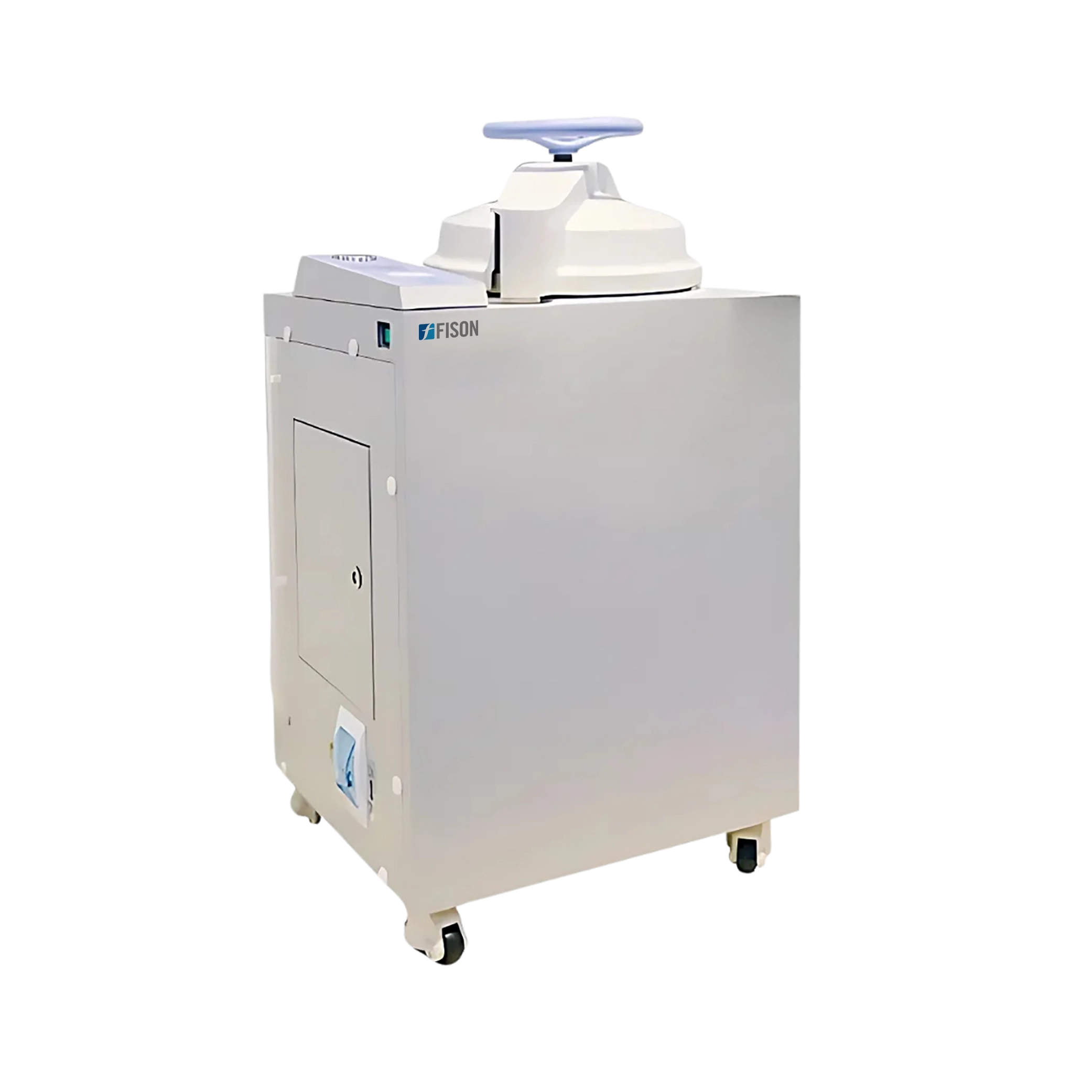

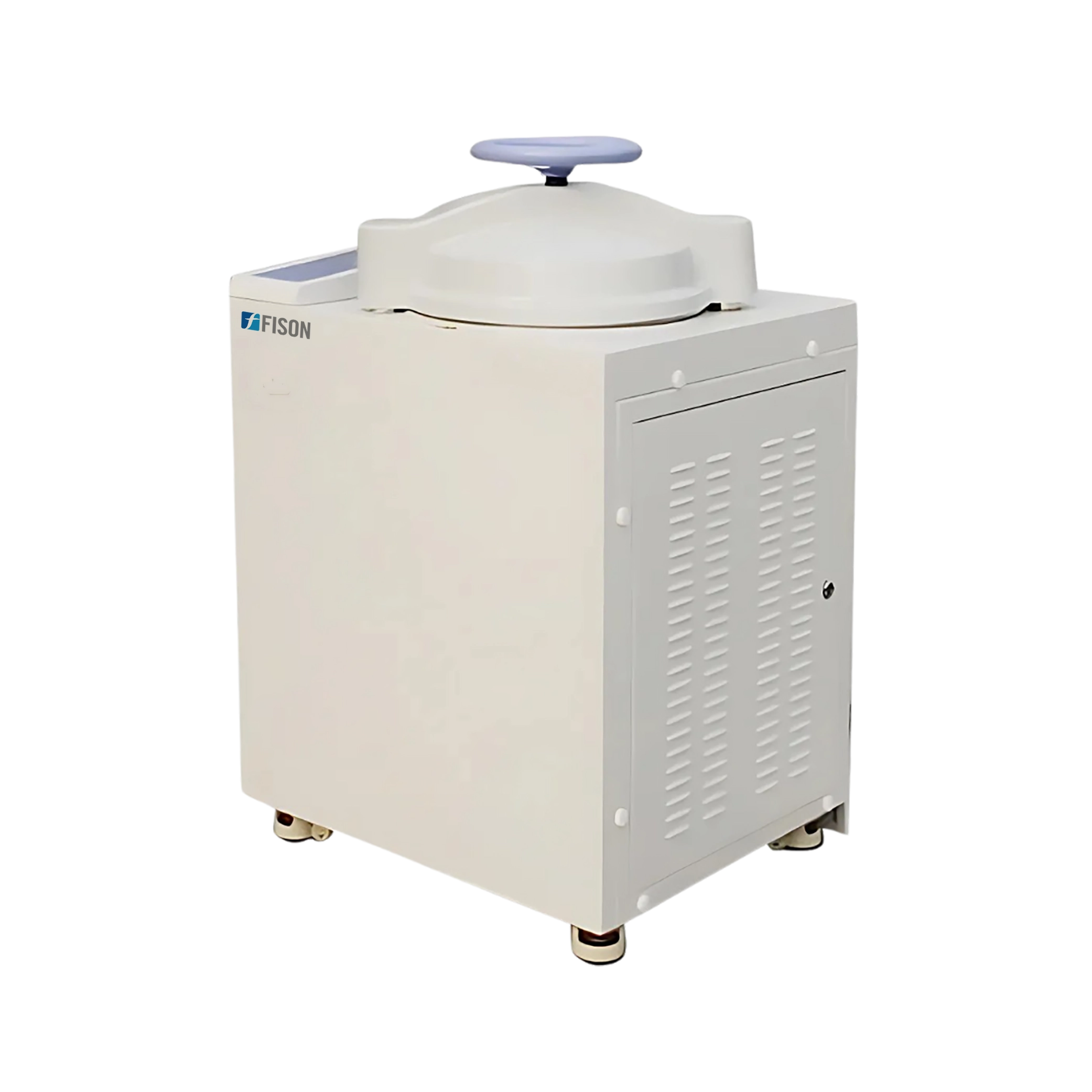

Vertical Autoclave FM-VA-B204

Vertical Autoclave FM-VA-B204 offers a capacity of 75L and operates within a temperature range of 105 to 136℃. It features single-chip microcomputer control, enabling fully automatic heating and release functions. Utilizes gravity displacement and positive pressure pulsation exhaust to remove load and cold air from the sterilization chamber. Provides 4 preset and 1 customizable program for sterilization of wrapped or unwrapped items, rubber products, dressings, and other materials.

Specifications

Capacity 75L
Chamber Size Φ 386 × 695 mm
Chamber Material SS30408
Designed Pressure 0.28MPa
Designed Temperature 150℃
Working Pressure 0.23Mpa
Working Temperature 105 to 136℃
Temperature Display Accuracy 0.1℃
Timing Range 0 to 999min
Dynamic Pulse Exhaust Times 0 to 9 times
Dynamic Pulse Exhaust Temperatures 105 to 134℃
Standard SS Basket 2pcs
Basket Size Φ 365 × 260 mm
Dimension (W × D × H) 640 × 550 × 1080 mm
Packing Dimension (W × D × H) 750 × 745 × 1240 mm
Weight 115 kg

Features

  • Equipped with LED screen display
  • SUS304 stainless steel sterilization chamber and basket
  • Audio and visual safety alarms
  • Water shortage protection function
  • Door safety protection
  • Power safety and anti-dry burning protection
  • Hand wheel-operated door opening
  • Over-pressure and over-temperature protection
  • Includes an optional sterilization bucket
  • Quick access window for easy maintenance

Applications

  • Vertical Autoclave is used for sterilizing laboratory equipment, glassware, surgical instruments, culture media, and food containers. It finds applications in laboratories, hospitals, research facilities, pharmaceutical manufacturing, and the food industry.

Accessories Optional

  • Bucket

Alternative Models Of Vertical Autoclave

Fison Vertical Autoclave line features top loading steam sterilizers with different capacities of 35 L to 150 L. Designed with larger chamber volumes to achieve effective sterilization within space-restricted labs. They operate at 134°C and 0.22 MPa for quick autoclaving within few minutes. We offer versatile functions like semiautomatic control, warning buzzer systems, additional bacteria filters, customizable programs and multiple pulse vacuum drying. Our CE certified top loading sterilizers come with advanced safety mechanisms to ensure user-friendly operation.

Vertical Autoclave FM-VA-A100

  • Capacity: 35 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A101

  • Capacity: 50 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A102

  • Capacity: 75 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog
Vertical Autoclave FM-VA-A103
  • Capacity: 100 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog
Vertical Autoclave FM-VA-A200
  • Capacity: 50 L
  • Sterilization temperature: 134°C
  • Sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A201

  • Capacity: 75 L
  • Sterilization temperature: 134°C
  • Sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A202

  • Capacity: 100 L
  • Sterilization temperature: 134°C
  • Sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A300

  • Capacity: 35 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog
Vertical Autoclave FM-VA-A301
  • Capacity: 50 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog
Vertical Autoclave FM-VA-A302
  • Capacity: 75 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A303

  • Capacity: 100 L
  • Sterilization temperature: 134°C
  • Wokring sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-B100

  • Capacity: 35 L
  • Wokring sterilization temperature: 134°C
  • Working sterilization pressure: 0.22 MPa
Catalog

Vertical Autoclave FM-VA-B101

  • Capacity: 50 L
  • Wokring sterilization temperature: 134°C
  • Working sterilization pressure: 0.22 MPa
Catalog
Vertical Autoclave FM-VA-B102
  • Capacity: 75 L
  • Wokring sterilization temperature: 134°C
  • Working sterilization pressure: 0.22 MPa
Catalog
Vertical Autoclave FM-VA-B103
  • Capacity: 100 L
  • Wokring sterilization temperature: 134°C
  • Working sterilization pressure: 0.22 MPa
Catalog

Horizontal Autoclave

Fison Horizontal Autoclave has larger load capacity of up to 600 L. They operate in temperature range of 134°C to 150°C for rapid sterilization. Our front-loading autoclaves come in cylindrical and rectangular orientation. They are durable and built of corrosion resistant stainless steel. They feature innovative safety systems with warning buzzers, thermo-pressure controllers and automatic water cut off. Our advanced horizontal autoclaves are equipped with intuitive digital interface for automatic operation.

Horizontal Autoclave FM-HA-A100

  • Sterilizing chamber  volume : 150 L
  • Inner tank dimension : 440×1000 mm
  • Design : Cylindrical orientation
Catalog

Horizontal Autoclave FM-HA-A101

  • Sterilizing chamber  volume : 200 L
  • Inner tank dimension : 515×1000 mm
  • Design : Cylindrical orientation
Catalog
Horizontal Autoclave FM-HA-A102
  • Sterilizing chamber  volume : 280 L
  • Inner tank dimension : 600×1000 mm
  • Design : Cylindrical orientation
Catalog

Portable Autoclave

Fison Portable Autoclaves are compact and lightweight steam sterilizers. They feature both electric and LPG type heating to facilitate versatile operation. Adjustable thermostat, auto shut off, pressure gauges and safety valves ensure effective sterilization. Our space-efficient autoclaves are appropriate for medical, dental, laboratory, and field settings. We offer Portable Autoclaves working at 126? and 0.16 MPa with loading capacities of 18 L- 24 L.

Portable autoclave FM-PA-A101
  • Chamber capacity : 18 L
  • Chamber dimension : 280 × 260 mm
  • Working temperature : 126 ℃
Catalog

Portable autoclave FM-PA-A102

  • Chamber capacity : 24 L
  • Chamber dimension : 280 × 390 mm
  • Working temperature : 126 ℃
Catalog

Portable autoclave FM-PA-A200

  • Chamber capacity : 18 L
  • Chamber dimension : 280 × 260 mm
  • Working temperature : 126℃
Catalog

Benchtop Autoclave

Fison Benchtop Autoclaves are compact, low wattage steam sterilizers. They operate at effective working conditions of 134°C and 0.22 MPa. They feature thermo-pressure controllers, automatic safety locks, alarm system and digital display. They are certified with successful vacuum and B&D test procedures to ensure cost-effective yet streamline performance. We offer space saving Benchtop autoclaves appropriate for small labs and dental clinics.

Benchtop Autoclave FM-BA-A100
  • Chamber Capacity (Volume) : 35 L
  • Chamber dimension : 300 × 500 mm
  • Working pressure : 0.22 MPa
Catalog
Benchtop Autoclave FM-BA-A101
  • Chamber Capacity (Volume) : 50 L
  • Chamber dimension : 340 × 550 mm
  • Working pressure : 0.22 MPa
Catalog

Benchtop Autoclave FM-BA-A102

  • Chamber Volume : 50 Liters
  • Max working temperature : 1340 ℃ ± 10 ℃
  • Max working pressure : 0.22 mpa
Catalog

Hydrothermal Autoclave

Fison Hydrothermal Autoclaves are constructed with corrosion-resistant material to facilitate unconventional chemical reactions. They feature inert internal liners to prevent interactions between the solution and vessel walls. Equipped with thermo-pressure regulators for process monitoring. Reliable seepage-proof design along with rupture discs ensure additional safety. Our high-pressure reactors enable you to conduct advanced hydrothermal applications such as nanomaterial synthesis, crystal growth, chemical transformations and more.

Hydrothermal Autoclave FM-HTA-102

  • Capacity : 100 ml
  • Heating / Cooling rate : 5℃/min
  • Working temperature : 200℃
Catalog
Hydrothermal Autoclave FM-HTA-A100
  • Capacity : 200 ml
  • Heating / Cooling rate : 5 ℃/min
  • Working temperature : ≤ 230 ℃
Catalog
Hydrothermal Autoclave FM-HTA-A101
  • Capacity : 500 ml
  • Heating / Cooling rate : 5 ℃/min
  • Working temperature : ≤ 230 ℃
Catalog

Vacuum Autoclave

Fison Vacuum autoclave features a rectangular cross-section with a European ring-type jacket and reinforcing ribs, ensuring operational stability. They are constructed with stainless steel for steam-contact surfaces, ensuring durability for up to various sterilization cycles. The jacket is crafted from high-quality carbon steel, ensuring safety for pressure vessel applications. Their double pulsation process effectively removes interior air, improving drying performance. Our Vacuum Autoclave features a variety of safety and alarming systems, ensuring reliable protection in critical situations.

Vacuum Autoclave FM-VMA-A100

  • Capacity : 360 L
  • Sterilization Temperature : 150 °C
  • Operational Temperature : 139 °C
Catalog
