Vertical Autoclave FM-VA-B200

Vertical Autoclave FM-VA-B200

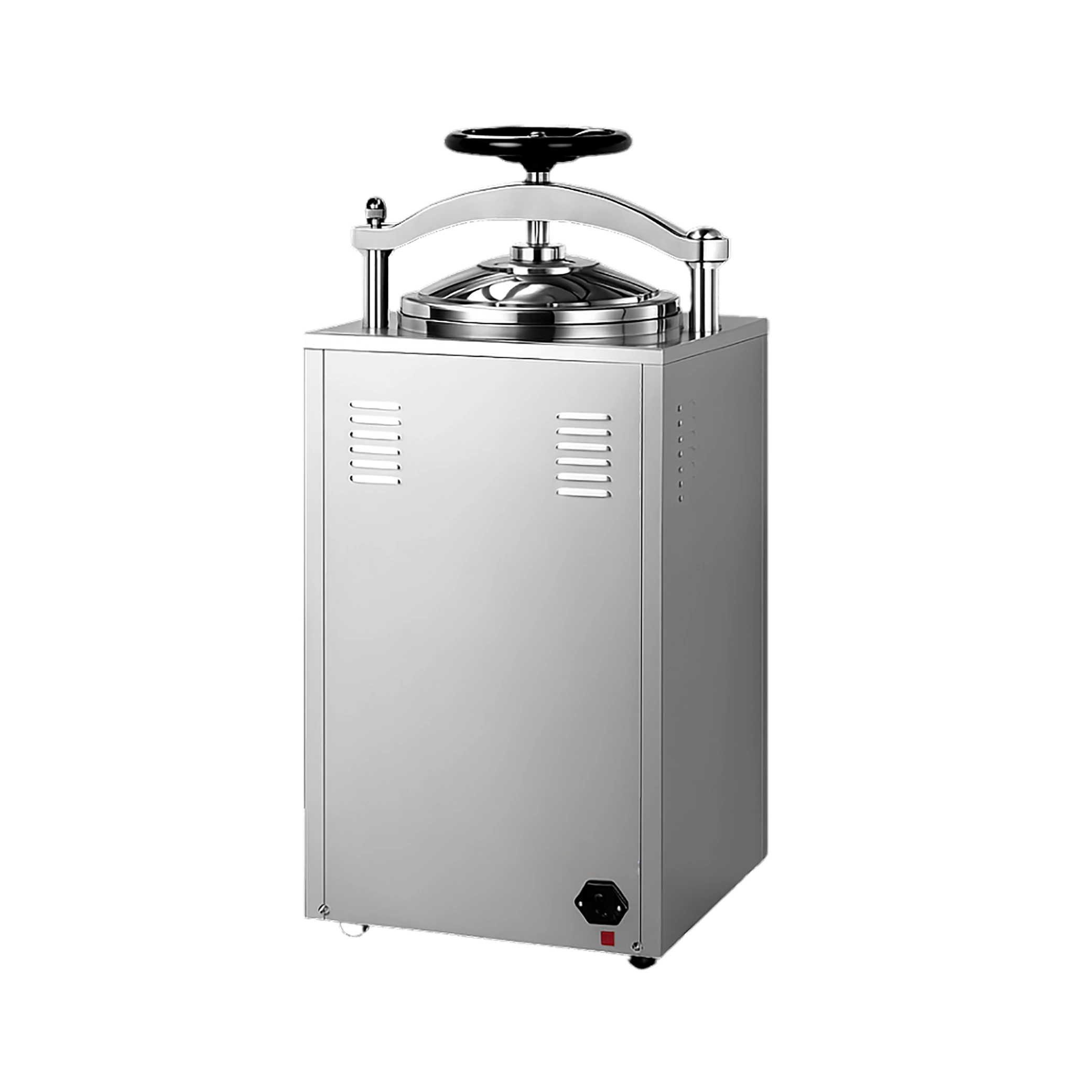

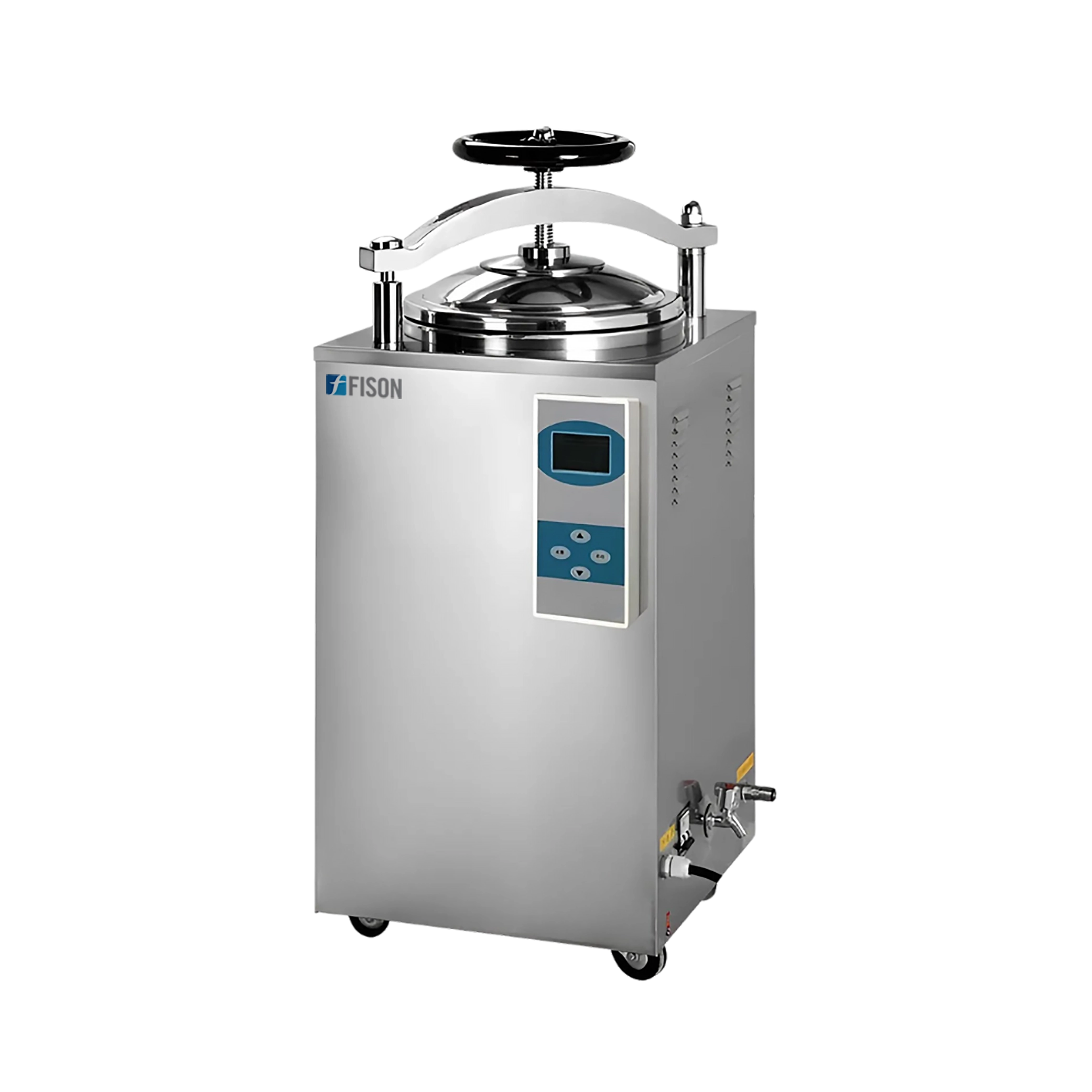

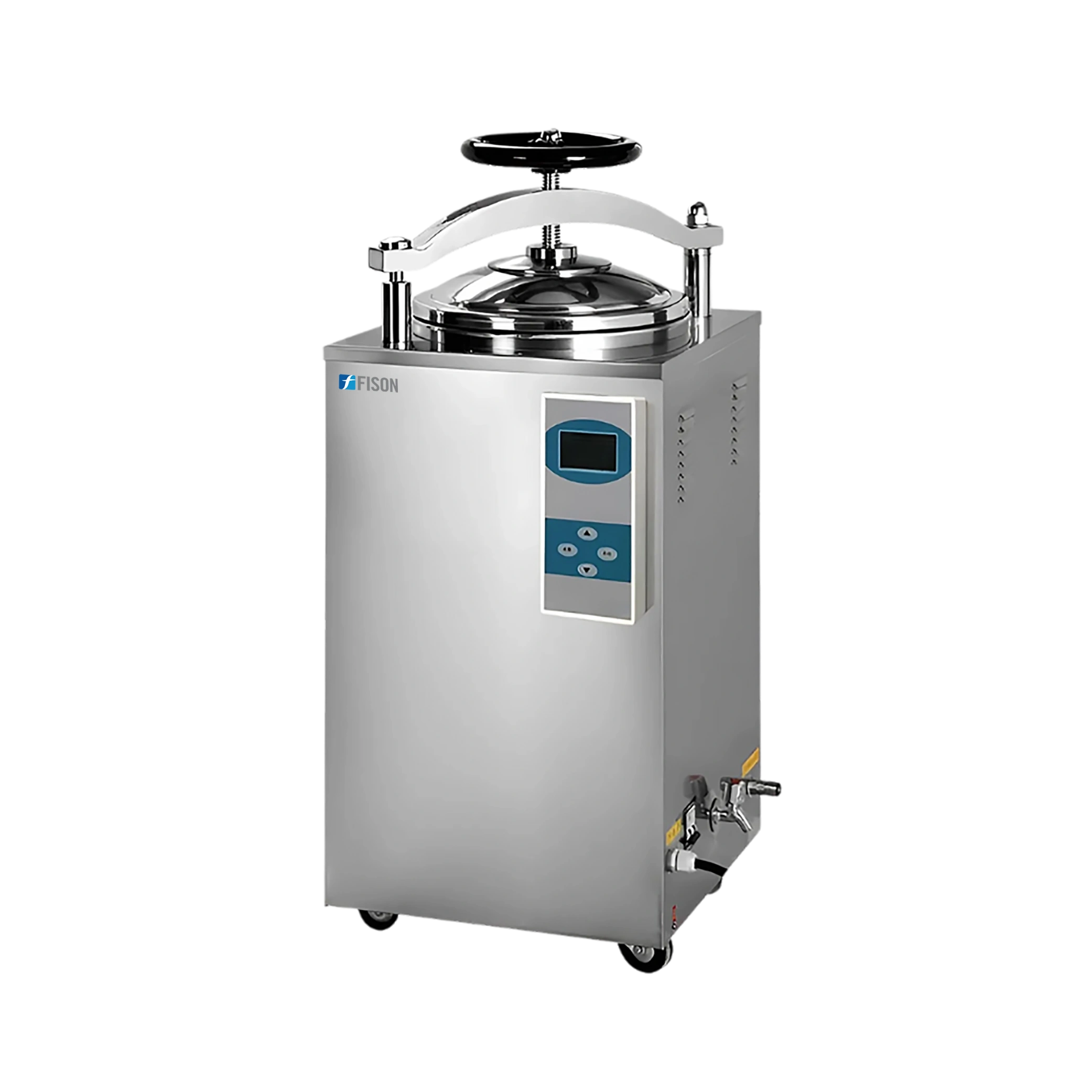

Vertical Autoclave FM-VA-B200 is a top-loading, vertical pressure steam sterilizer with full stainless steel body design, hand wheel type, quick to open door structure with self-inflating type seal to prevent leakage. Autoclave offers drying function, 35 L chamber capacity, 134°C working sterilization temperature, and 0.22 MPa working sterilization pressure. Design features four wheels (casters) at the base for easy movement, LCD screen with touch keypad that displays the working status of autoclave, two stainless steel baskets, auto discharge mechanism, auto shut off with beep reminder, and alarm system to protect against over-temperature and over-pressure. It works on electric heating or direct heating by immersing copper tubes of heating elements.

  •  Full Stainless steel body structure
  •  Handwheel type quick door open structure with door safety lock system
  •  Digital LCD screen with touch keypad show working status of autoclave
  •  Equipped with Drying Function System
  •  Auto discharge the cool air, and steam discharging automatically after sterilization
  •  Automatic shutdown with beep sound as sterilization completes
  •  A self-inflating type seal is used to prevent leakage
  •  Two stainless steel sterilizing baskets as a standard accessory
  •  Designed with four wheels (casters) at the base for easy movement of autoclave
  •  Auto power cut in case of water shortage
  •  Over-temperature & Over-pressure auto-protection
  •  Easy to operate, safe, and reliable
  •  Comply with strict international directives and standards

Chamber capacity 35 L
Working sterilization temperature 134°C
Working sterilization pressure 0.22 MPa
Adjustment of Temperature 105°C to 134°C
Maximum working pressure 0.23 MPa
Timer range 0 to 99 min / 0 to 99 hr 59 min
Control Precision: Temperature ≤ ± 1°C Heat Average
Digital display LCD Display
Maximum power consumption 2.5 kW
Power supply AC 220 V 50 Hz
Chamber dimension (Φ × D) 318 × 450 mm
Dimension (L × W × H) 450 ×450 × 1010 mm
Packaging dimension (L × W × H) 570 × 550 × 1150 mm
Net weight 56 kg
Gross weight 72 kg

Vertical autoclave is used for effective sterilization of glassware, biological materials, culture media, etc. across the medicine and health care industry, Biotechnology, Microbiology, pharmaceutical industry, and others.

2 Units of stainless steel basket
