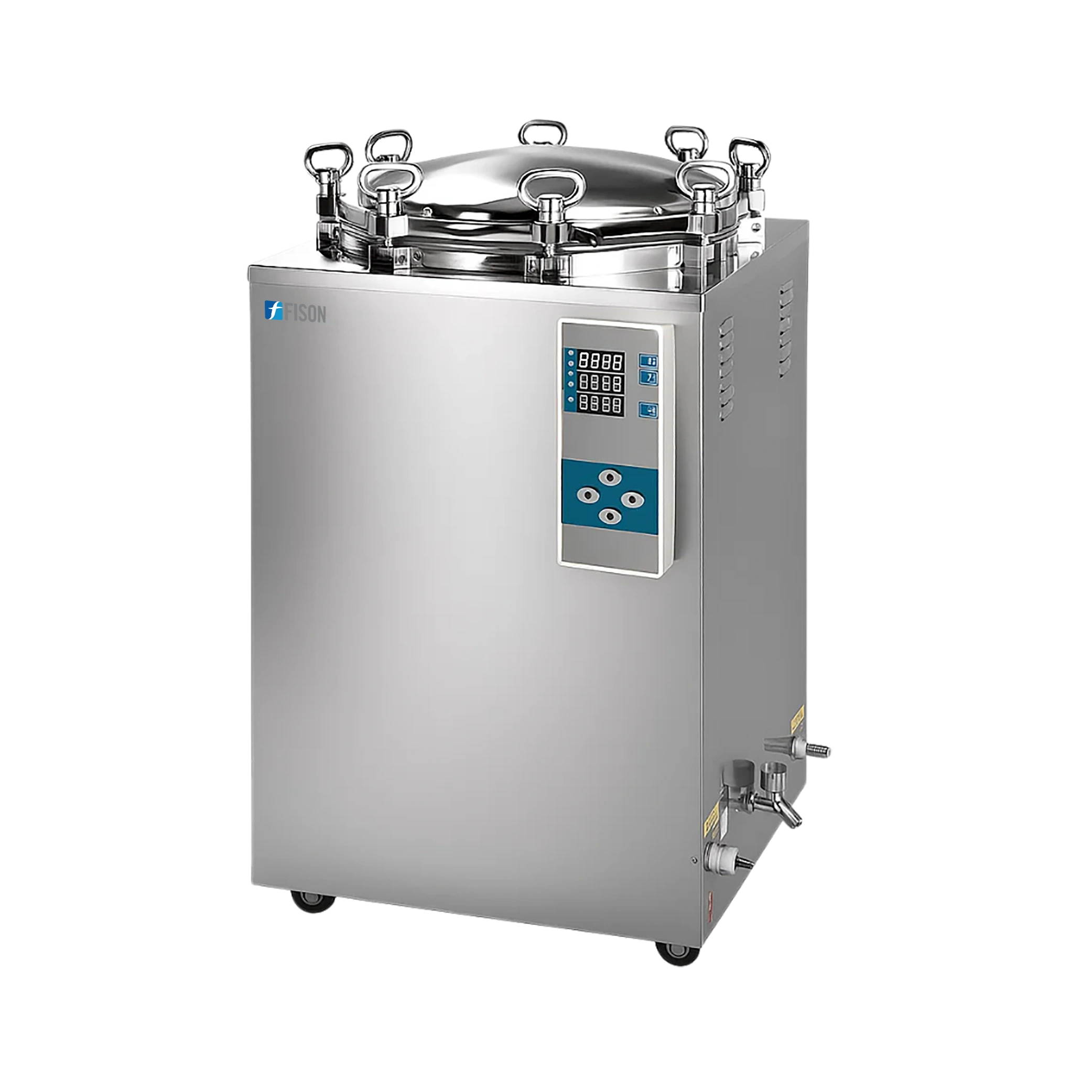

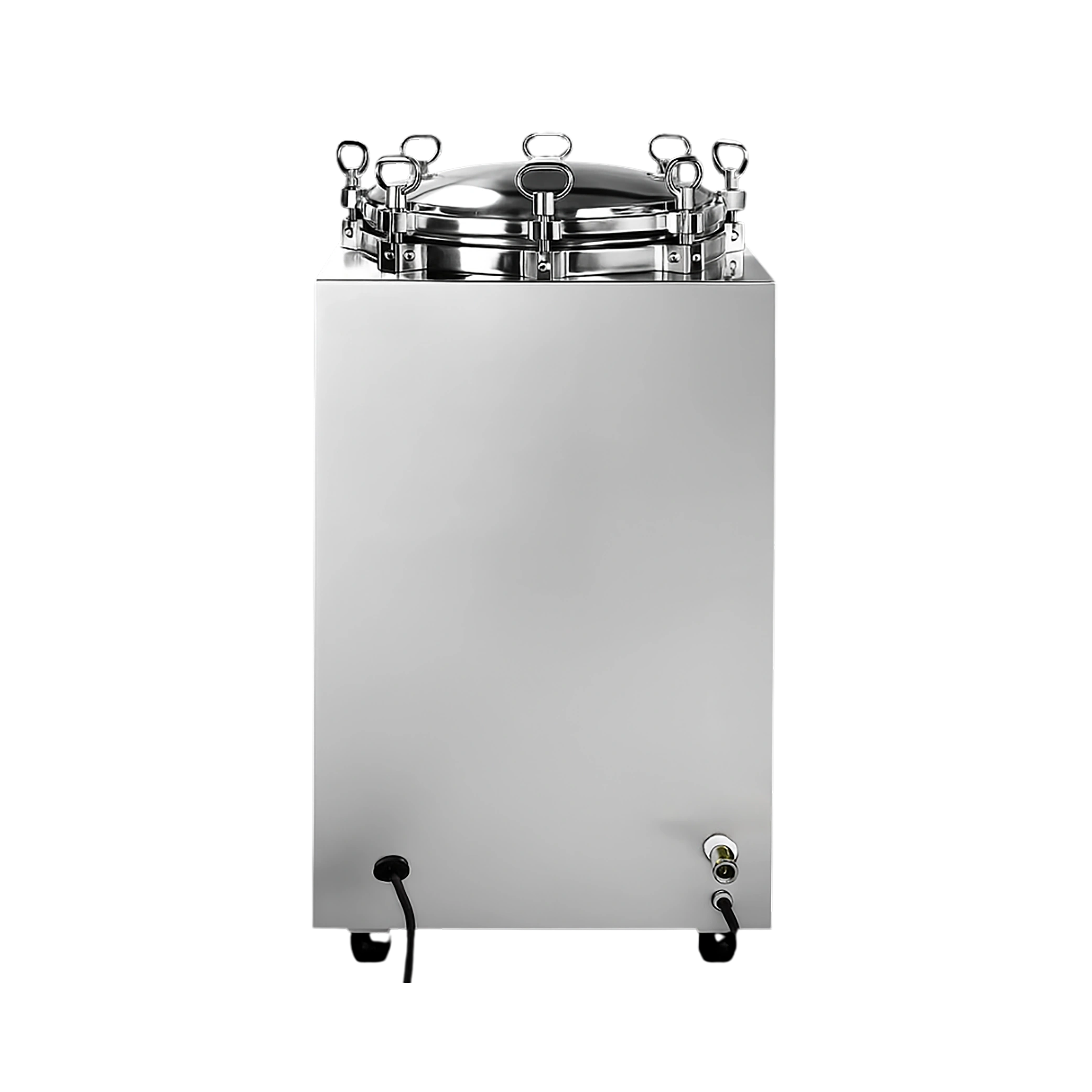

Vertical Autoclave FM-VA-B104 is a top loader sterility autoclave with a 120 L capacity, 134°C sterilization temperature and 0.22 MPa working sterilization pressure. Equipped with two stainless steel baskets and indicator light to indicate working status of the sterilization process. It gives auto protection against over temperature & over pressure. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance property. It is CE certified vertical autoclave.
| Capacity | 120 L |
| Wokring sterilization temperature | 134°C |
| Working sterilization pressure | 0.22 MPa |
| Adjustment of Temperature | 105°C to 134°C |
| Timer range | 0 to 99 min / 0 to 99 hr 59 s |
| Control Precision: Temperature | ≤ ± 1°C |
| Digital display | LCD Display |
| Maximum power consumption | 6 kW |
| Power supply | AC 220 V 50 Hz |
| Chamber dimension (Φ × D) | 480 × 660 mm |
| Dimension (L × W × H) | 600 × 640 × 1140 mm |
| Packaging dimension (L × W × H) | 730 × 730 × 1270 mm |
| Net weight | 100 kg |
| Gross weight | 125 kg |
Especially designed for clinical disposal, biochemistry, pharmaceutical industry, health care industry, fertilizer plant, brewery industry, biotechnology, microbiology and scientific research.
| Accessories no. | Accessories name | Basket capacity | Basket dimension (W × H) | Units |
| 1 | Basket | 120 L | 445 × 250 mm | 2 |
Fison Horizontal Autoclave has larger load capacity of up to 600 L. They operate in temperature range of 134°C to 150°C for rapid sterilization. Our front-loading autoclaves come in cylindrical and rectangular orientation. They are durable and built of corrosion resistant stainless steel. They feature innovative safety systems with warning buzzers, thermo-pressure controllers and automatic water cut off. Our advanced horizontal autoclaves are equipped with intuitive digital interface for automatic operation.
Fison Portable Autoclaves are compact and lightweight steam sterilizers. They feature both electric and LPG type heating to facilitate versatile operation. Adjustable thermostat, auto shut off, pressure gauges and safety valves ensure effective sterilization. Our space-efficient autoclaves are appropriate for medical, dental, laboratory, and field settings. We offer Portable Autoclaves working at 126℃ and 0.16 MPa with loading capacities of 18 L- 24 L.
Fison Benchtop Autoclaves are compact, low wattage steam sterilizers. They operate at effective working conditions of 134°C and 0.22 MPa. They feature thermo-pressure controllers, automatic safety locks, alarm system and digital display. They are certified with successful vacuum and B&D test procedures to ensure cost-effective yet streamline performance. We offer space saving Benchtop autoclaves appropriate for small labs and dental clinics.
Fison Hydrothermal Autoclaves are constructed with corrosion-resistant material to facilitate unconventional chemical reactions. They feature inert internal liners to prevent interactions between the solution and vessel walls. Equipped with thermo-pressure regulators for process monitoring. Reliable seepage-proof design along with rupture discs ensure additional safety. Our high-pressure reactors enable you to conduct advanced hydrothermal applications such as nanomaterial synthesis, crystal growth, chemical transformations and more.
Fison Vacuum autoclave features a rectangular cross-section with a European ring-type jacket and reinforcing ribs, ensuring operational stability. They are constructed with stainless steel for steam-contact surfaces, ensuring durability for up to various sterilization cycles. The jacket is crafted from high-quality carbon steel, ensuring safety for pressure vessel applications. Their double pulsation process effectively removes interior air, improving drying performance. Our Vacuum Autoclave features a variety of safety and alarming systems, ensuring reliable protection in critical situations.
