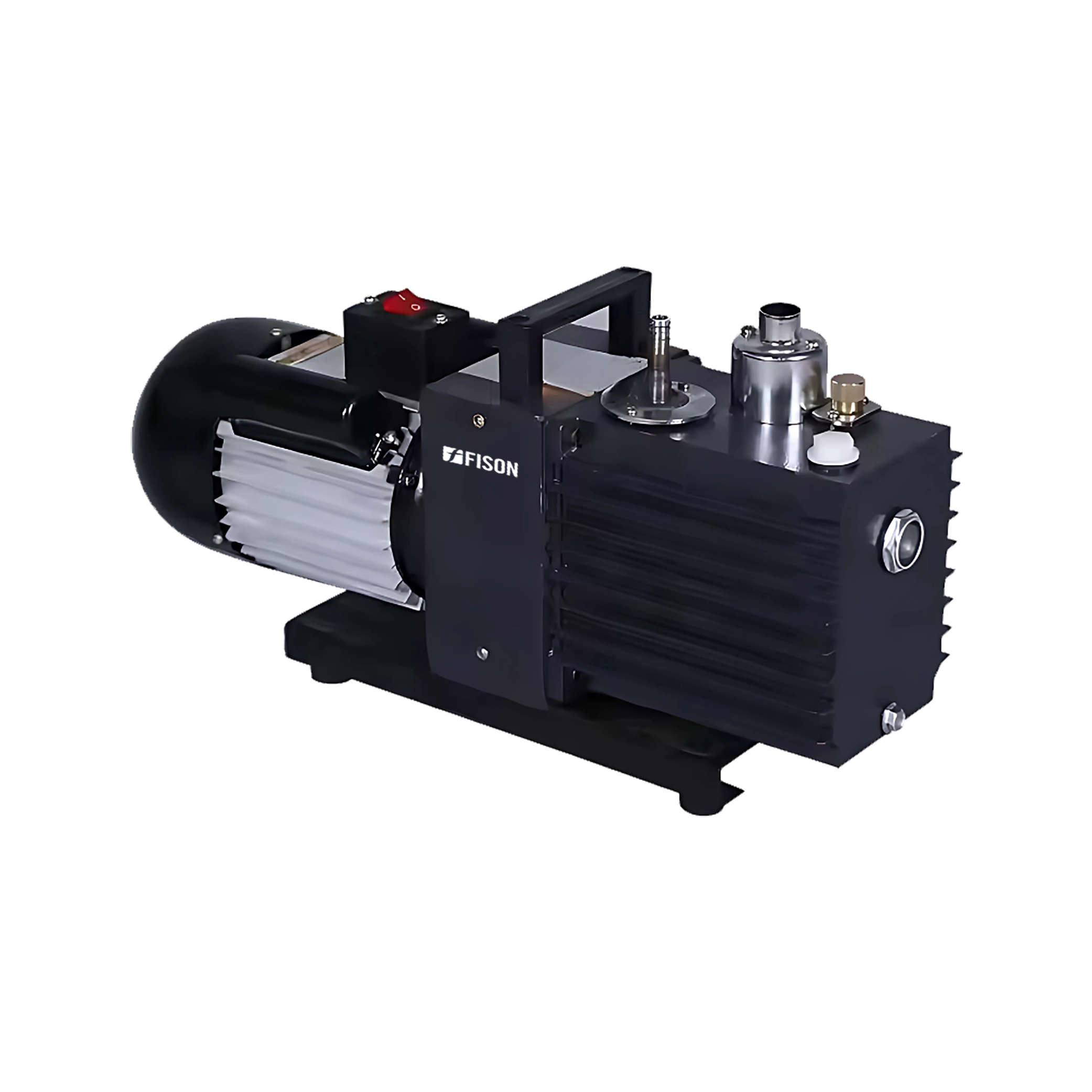

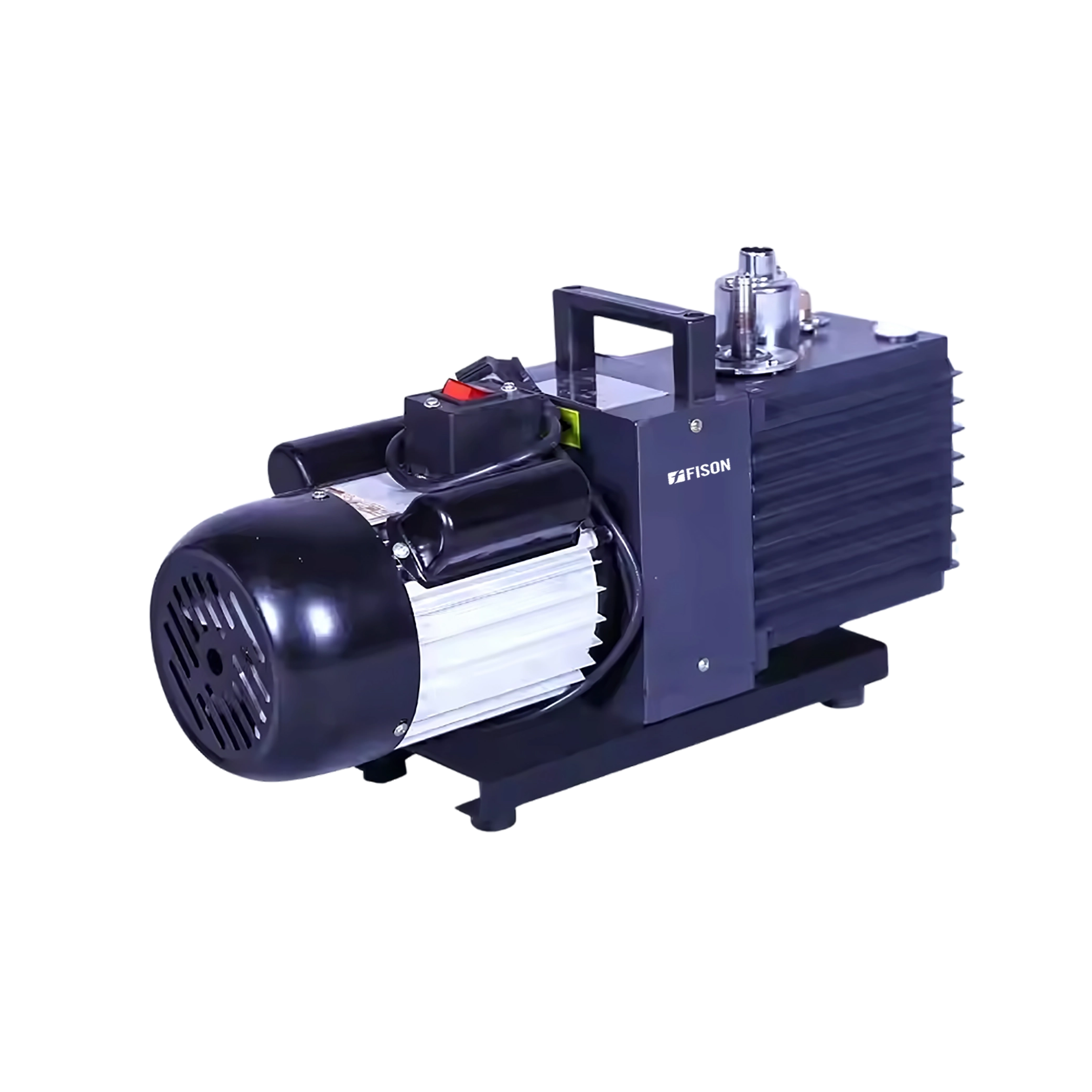

Rotary Vane Vacuum Pump FM-VP-02
Rotary Vane Vacuum Pump FM-VP-02 acts as an optional accessory for Vacuum Oven with 90 L, 210 L Capacity. Its Exhausting speed is 2 L/S and offers 1400 rpm rotary speed. It is suitable for Vacuum Oven FM-VO-A203 and FM-VO-A204. Designed with dual-stage vacuum pumps for reliable long time continuous operation. It offers balance between low cost and high performance. Equipped with gas ballast, which is designed to allows purposefully pull a less deep and slower vacuum by opening the gas ballast. It allow dry air to go directly into the pump and diluting the vacuum pull, and it also helps to keep moisture, solvent, and other contaminants from getting stuck in the pump, and instead passing through to the exhaust. Adopts built-in check valve prevents pump oil backflow.
Specifications
| Exhausting speed | 2 L/S |
| Ultimate vacuum Gas Ballast Off | ≤ 6×10-2 |
| Ultimate vacuum Gas Ballast on | ≤ 1.33 |
| Rotary speed | 1400 rpm |
| Inlet diameter | Φ 25 |
| Oil capacity | 0.8 L |
| Temperature rise of oil pump | ≤45℃ |
| Noise | ≤60 dB |
| Vibration reference number | ≤80 µ |
| Motor power | 0.37 kW |
| Power supply | 220/380 V |
| Dimension | 488 × 145 × 280 mm |
| Weight | 20 kg |
Features
- Structures dual stage and high speed directly connected structure
- Offers small size, light weight, low noise, easy to start, stable operation
- Equipped with specially designed air ballast valve to prevent water mixing with oil pump and prolong working time
- Built-in check valve prevents pump oil back flow
- It helps to keep moisture, solvent, and other contaminants from getting stuck in the pump
- Designed with pump body, rotor, rotary vane, end cover, spring etc
Applications

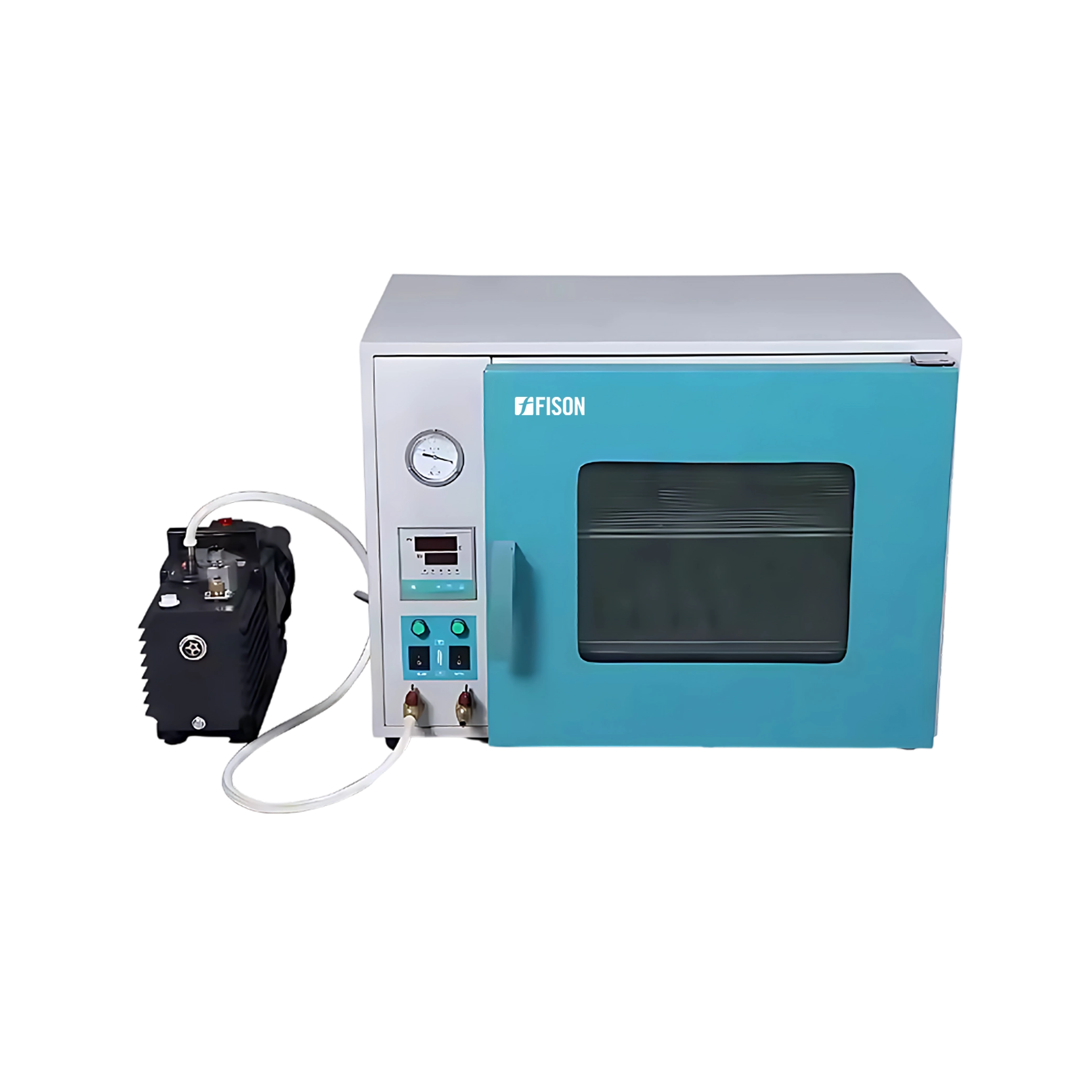

- Rotary Vane Vacuum Pump works in conjunction with Vacuum Oven as an optional accessory. Besides, it finds application in electric vacuum device manufacturing industry, refrigeration industry, medical analysis device industry, solar energy industry, and scientific research unit.
