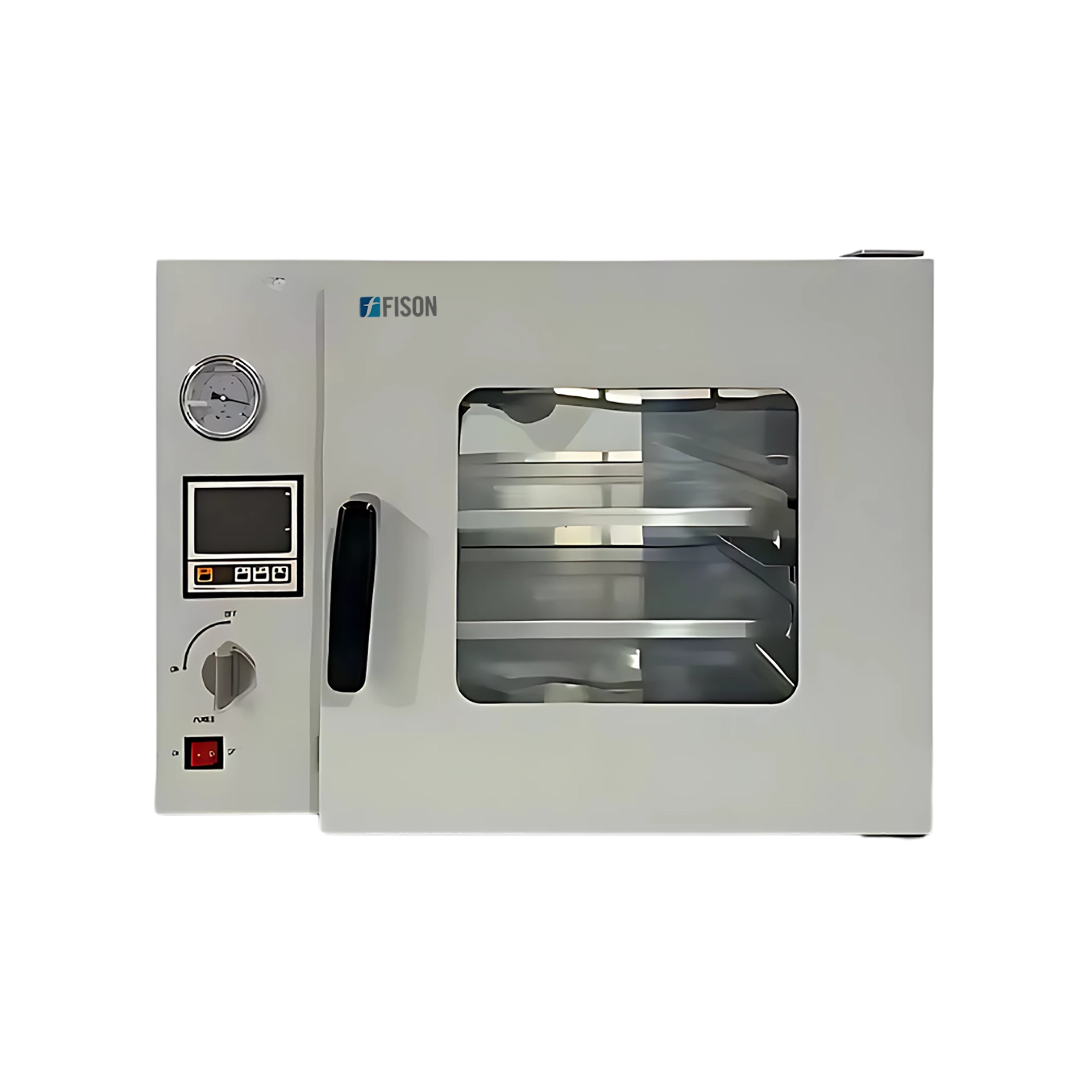

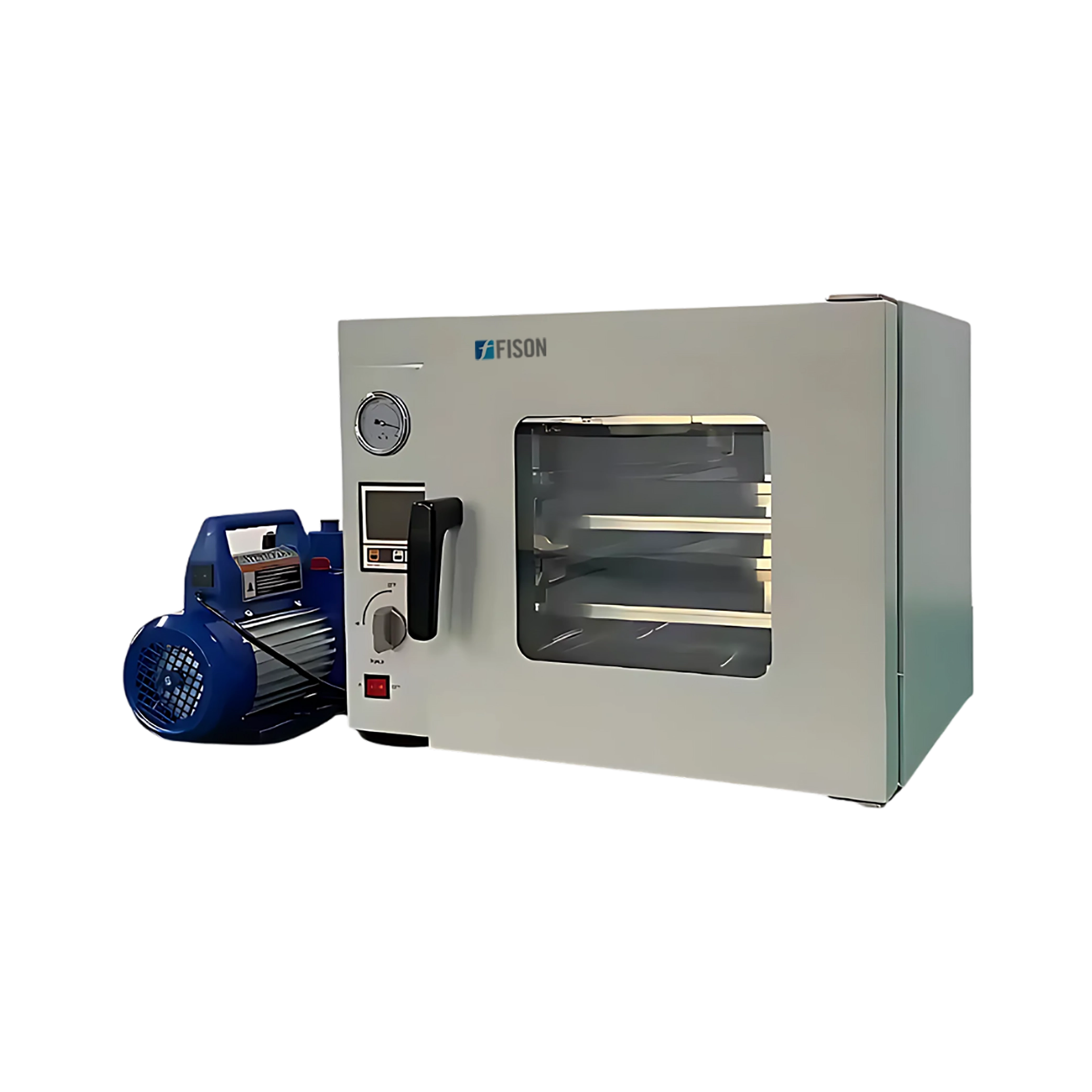

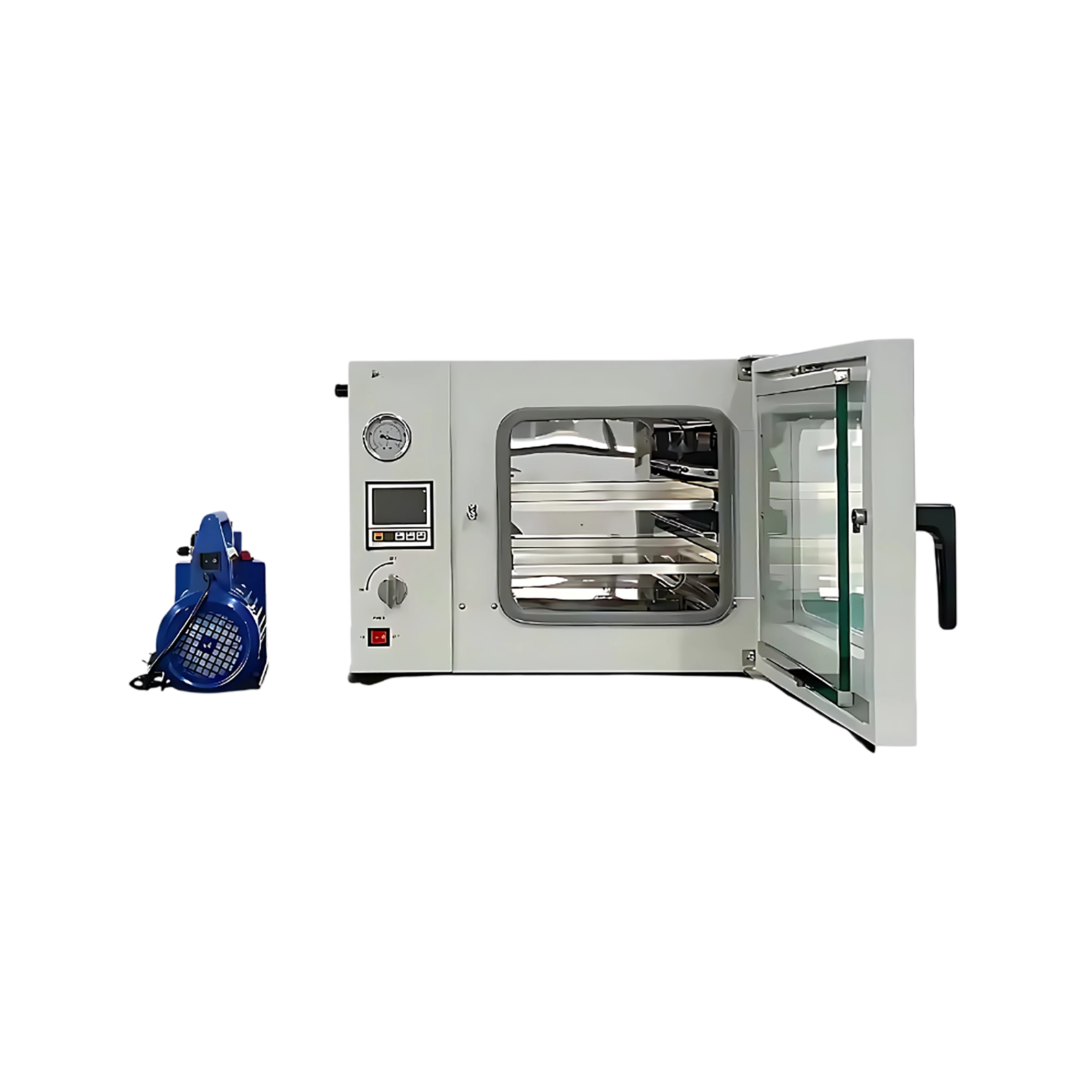

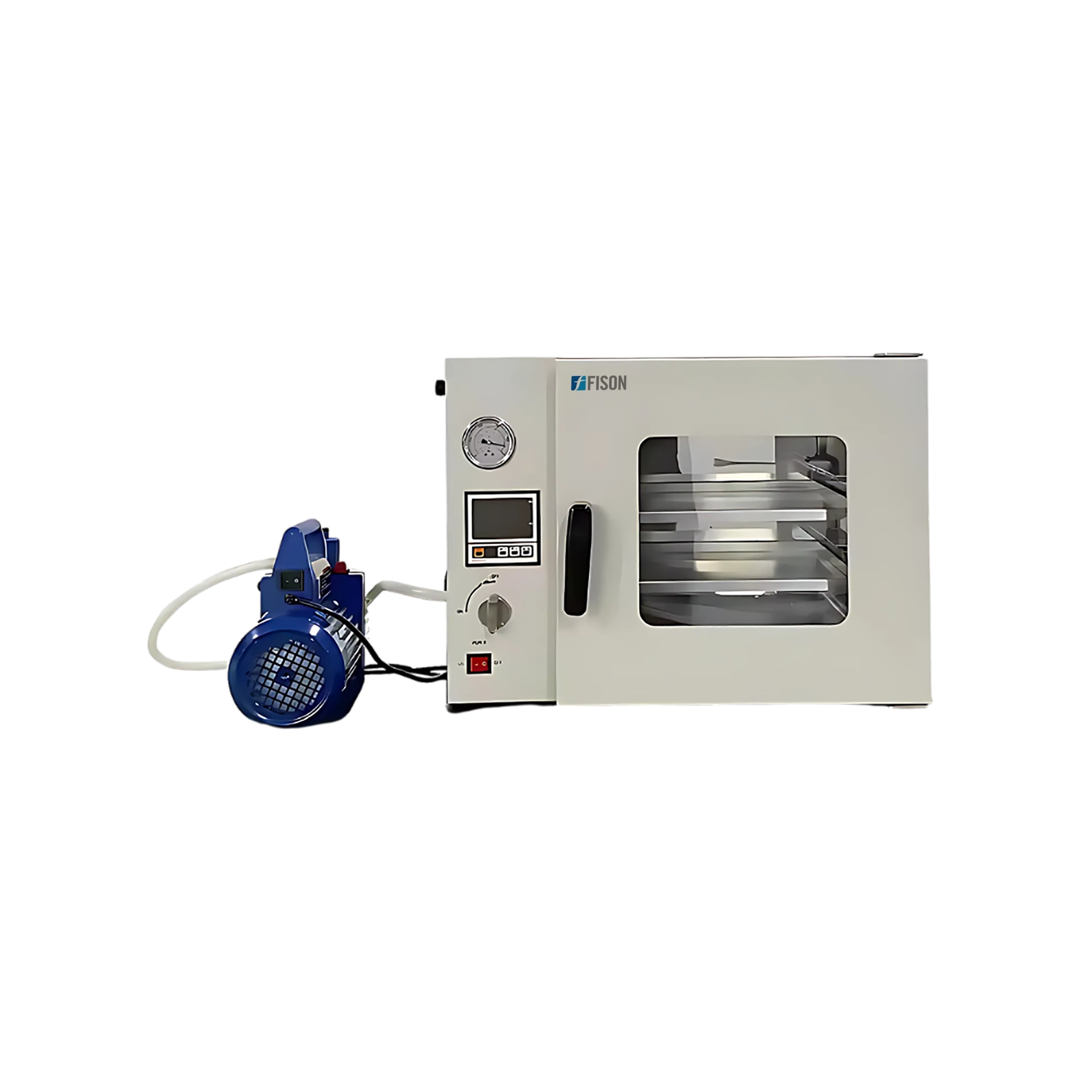

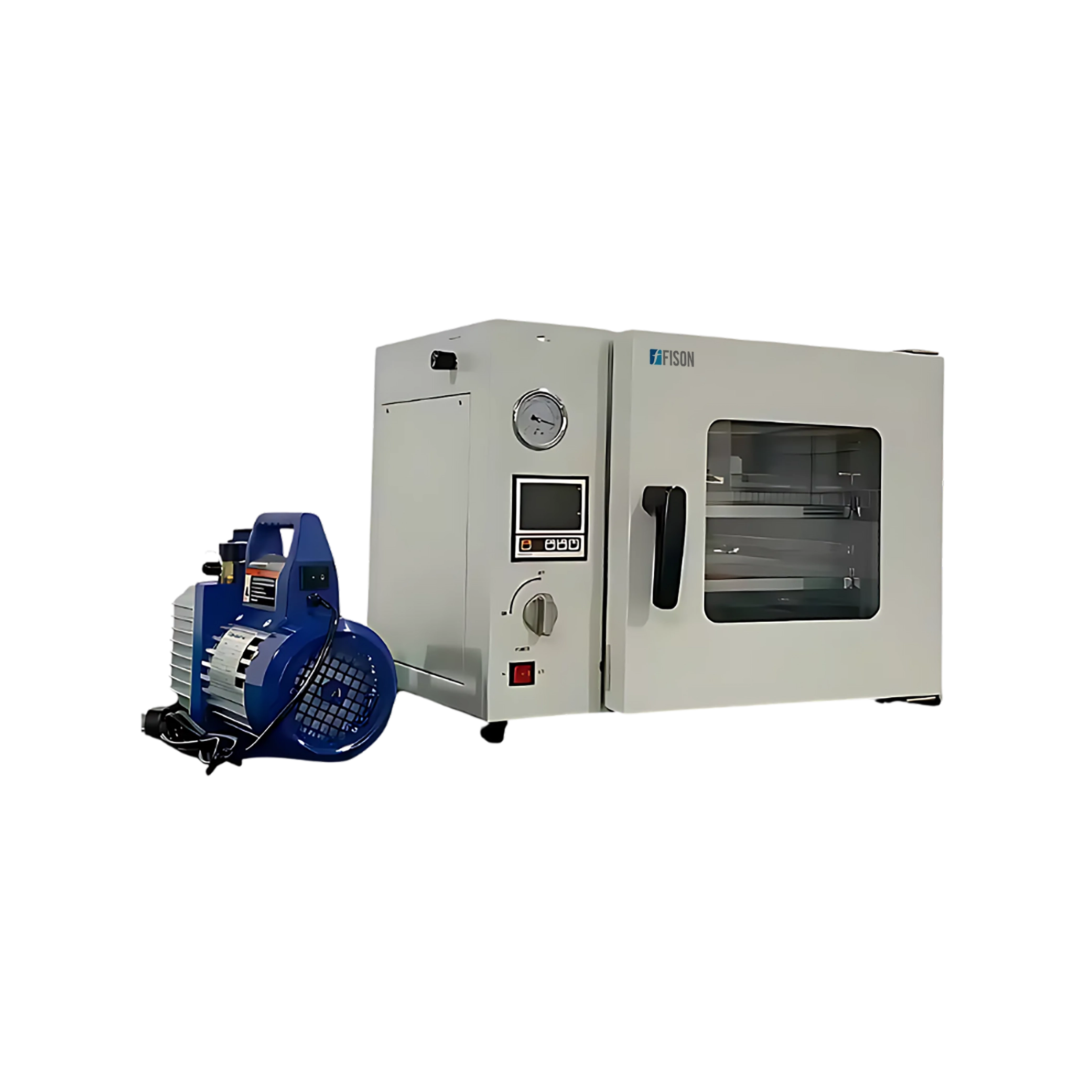

Vacuum Oven FM-VO-A206
Vacuum Oven FM-VO-A206 offers a 90 L capacity and operates within a temperature range of RT + 10°C to 200°C. Its thickened stainless-steel liner provides durability and resistance to high temperatures. The microcomputer temperature controller ensures accurate and reliable control, making it suitable for heat-sensitive materials. It includes a double glass observation window allows easy monitoring of samples. Our vacuum oven is ideal for efficient heat treatment and drying processes.
Specifications
| Temperature Range | RT + 10℃ to 200℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ± 1℃ |
| Capacity | 90 L |
| Ambient Temperature | 5℃ to 35℃ |
| Chamber Material | Stainless steel (1Cr18Ni9Ti) |
| Shelves | 2 (with independent temperature control layers) |
| Reach Vacuum Degree | 133 Pa |
| Power | 1.7 kW |
| Power Supply | 220 V 50 HZ |
| Internal Dimension (W × D × H) | 450 × 450 × 450 mm |
| External Dimension (W × D × H) | 610 × 680 × 1460 mm |
Features
- Aluminium shelf with fast heat conduction
- Oxidation-resistant at high temperatures
- High-quality cold-rolled steel outer shell
- Accurate microcomputer temperature control
- Silicone rubber door sealing ring
- Low heat loss
Applications
- Our Vacuum Oven is used for drying heat-sensitive materials under low-pressure conditions to prevent oxidation. It is commonly used in electronics, pharmaceuticals, and chemical research laboratories.
