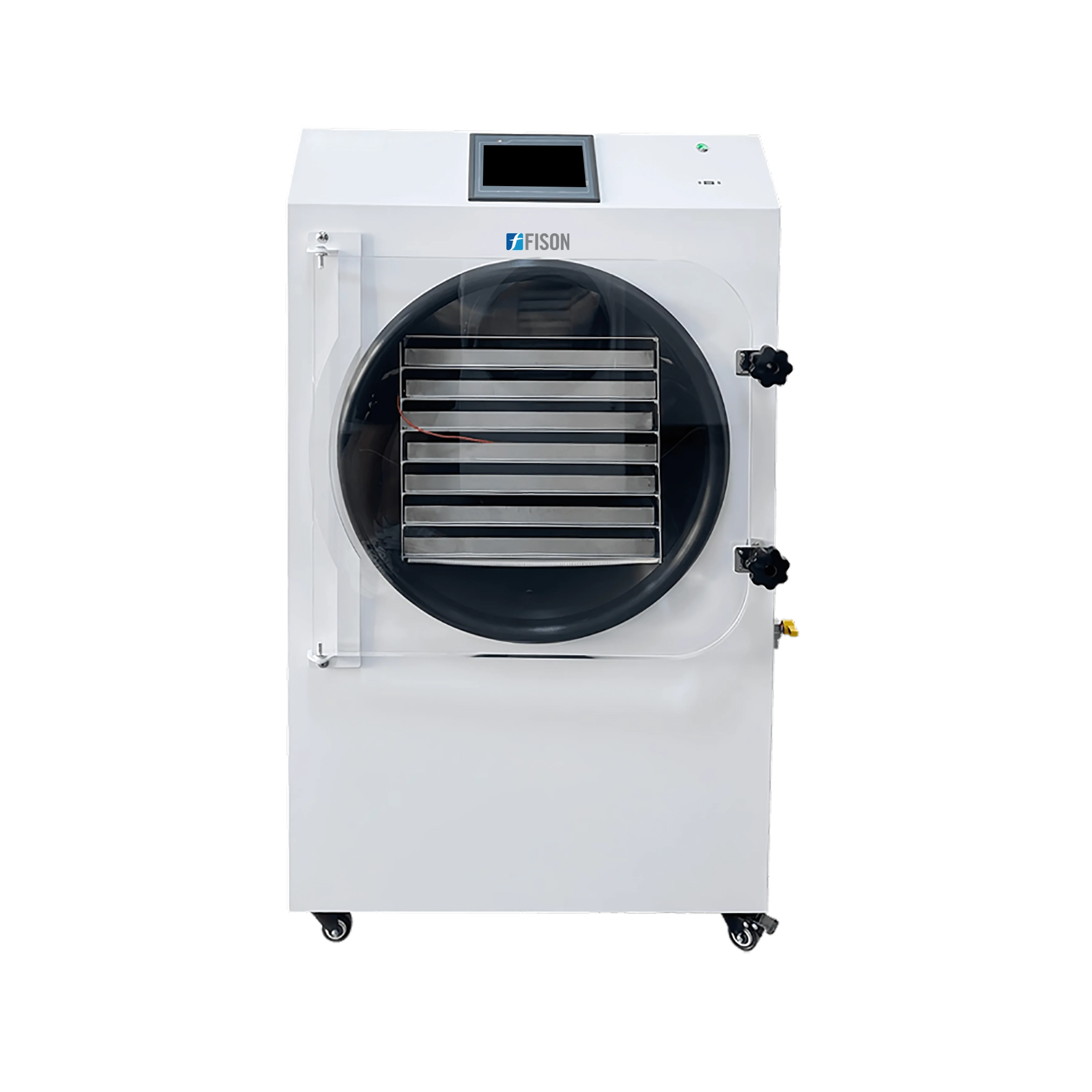

Vacuum Freeze Dryer FM-VFD-A103 delivers 2.0 M² drying area with 6 trays, processing 20–26kg per batch. It is equipped with a -60°C cold trap for rapid drying. Features a 7-inch touchscreen, 18-stage programs, and USB data logging. It seamlessly operates with low noise and has reliable vacuum sealing. It is built for professional and industrial freeze-drying demands.
Specifications
Freeze dried area | 2.0 M² |
Handling capacity | 20 to 26 kg/batch |
Cold trap temperature | -60°C |
Maximum ice capacity/water catch | 26kg/24H |
Shelves spacing | 53mm |
Number of trays | 6 Pcs |
Tray size (L×B×H) | 390×900 mm |
Ultimate vacuum | ≤ 2Pa |
Vacuum pump type | 2XZ-6B |
Pumping speed | 6L/S |
Noise | ≤ 60db |
Power | 4650W |
Power supply | 220V/50Hz |
Dimension (L×B×H) | 800×1100×1335 mm |
Package dimension (L×B×H) | 900×1200×1620 mm |
Net weight | 256 kg |
Gross weight | 313 kg |
Features
Applications
Our Vacuum Freeze Dryer are equipped with high-efficiency cold traps and powerful vacuum systems, these dryers ensure optimal drying performance and long-term preservation. A user-friendly touchscreen interface provides real-time monitoring of temperatures, vacuum levels, and system status, while built-in programs and customizable settings offer flexibility for various material types. They are constructed with food-grade materials to offer safety. Low-noise operation, data export via USB, and optional oil-free pumps further enhance convenience, making vacuum freeze dryers a reliable solution for home, lab, and small-scale commercial use.
Fison Lyophilizer Freeze Dryer features a compact design, making it ideal for laboratories with limited space while still delivering high-performance freeze-drying capabilities. They include an off-cycle defrosting system that reduces maintenance by preventing and automatically clearing ice buildup. The CFC-free refrigerant enhances environmental sustainability while ensuring reliable cooling performance during the freeze-drying process. These high-speed vacuum pump ensures rapid and effective drying by maintaining optimal vacuum conditions. Our Lyophilizer Freeze Dryer Automatic data saving records essential temperature and vacuum data for accuracy and easy future analysis.
