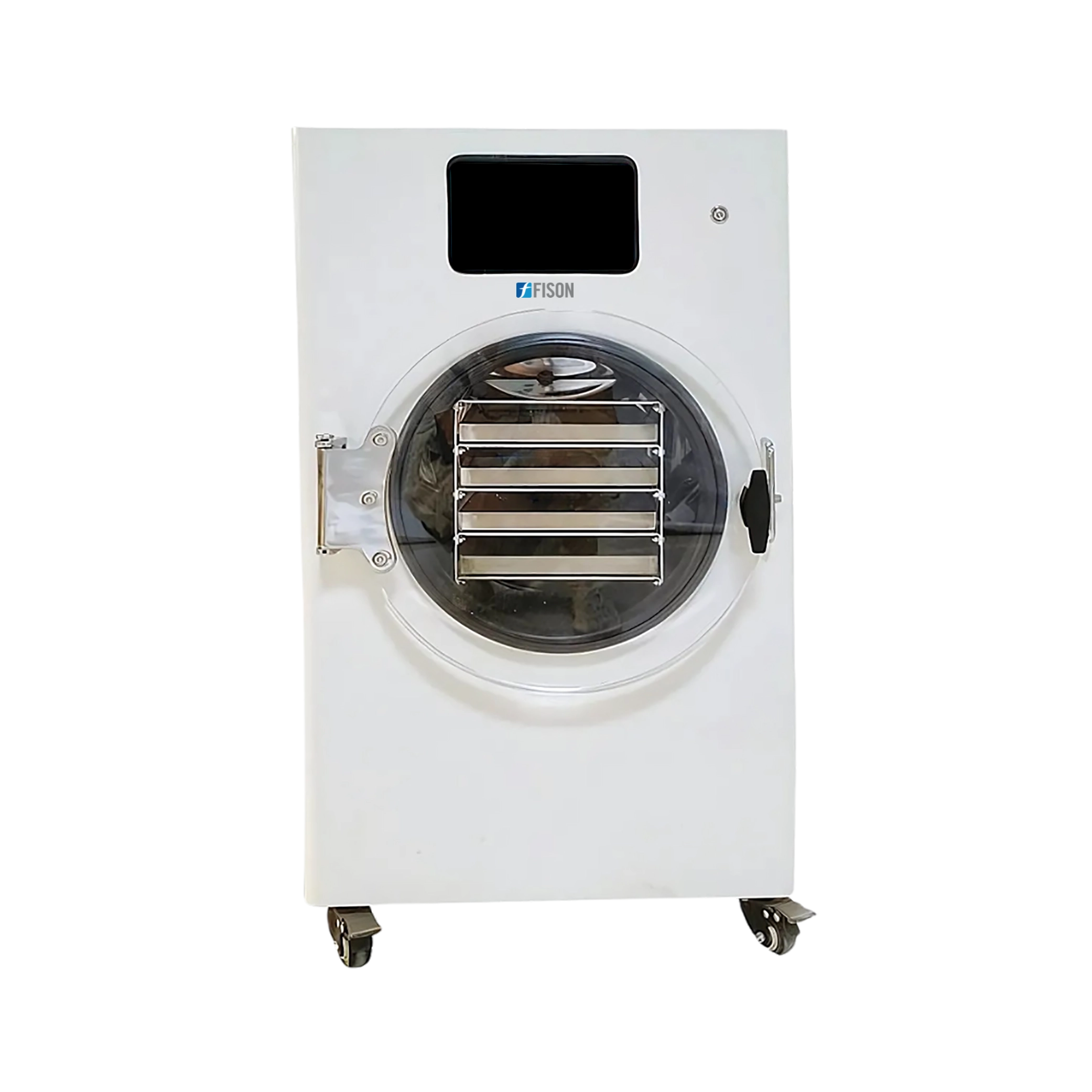

Vacuum Freeze Dryer FM-VFD-A101

Vacuum Freeze Dryer FM-VFD-A101

Vacuum Freeze Dryer FM-VFD-A101 provides 1.0M² drying area with 10 to 12kg per batch processing. It operates at -35°C cold trap temperature for fast drying. Includes a 7-inch touchscreen and 17 customizable drying programs. It is built with aviation-grade acrylic and SUS304 stainless steel for durability. Our Vacuum Freeze Dryer is a reliable choice for medium-scale freeze-drying.

Specifications

Freeze dried area 1.0M²
Handling capacity 10 to 12 kg/batch
Cold trap temperature -35°C
Maximum ice capacity/water catch 10kg/24H
Shelves spacing 38mm
Number of trays 6 Pcs
Tray size (L×B×H) 430×265×25 mm
Ultimate vacuum ≤2Pa (no load)
Vacuum pump type 2XZ-4
Pumping speed 4L/S
Noise ≤60db
Power 2500W
Power supply 220V/50Hz
Dimension (L×B×H) 640×680×1180 mm
Package dimension (L×B×H) 820×800×1540 mm
Net weight 130kg
Gross weight 210 kg

Features

  • High-capacity ice trapping
  • 30mm thick sealing door
  • Compact footprint
  • User friendly

Applications

  • Vacuum Freeze Dryer FM-VFD-A101 is suitable for bulk food preservation, pharmaceuticals, and bio-samples in homes, cafes, and labs.

Alternative Models Of Vacuum Freeze Dryer

Our Vacuum Freeze Dryer are equipped with high-efficiency cold traps and powerful vacuum systems, these dryers ensure optimal drying performance and long-term preservation. A user-friendly touchscreen interface provides real-time monitoring of temperatures, vacuum levels, and system status, while built-in programs and customizable settings offer flexibility for various material types. They are constructed with food-grade materials to offer safety. Low-noise operation, data export via USB, and optional oil-free pumps further enhance convenience, making vacuum freeze dryers a reliable solution for home, lab, and small-scale commercial use.

Vacuum Freeze Dryer FM-VFD-A100

  • Freeze dried area: 0.8M²
  • Handling capacity: 8 to 10 kg/batch
  • Cold trap temperature: -35°C
Catalog

Vacuum Freeze Dryer FM-VFD-A102

  • Freeze dried area: 1.5M²
  • Handling capacity: 15 to 20 kg/batch
  • Cold trap temperature: -60°C
Catalog

Vacuum Freeze Dryer FM-VFD-A103

  • Freeze dried area: 2.0 M²
  • Handling capacity: 20 to 26 kg/batch
  • Cold trap temperature: -60°C
Catalog

Standard Freeze Dryer

Freeze Dryer FM-FD-C100

  • Shelf Area : 0.2 m²
  • Nominal Input Capacity : 2 kg
  • Maximum Input Capacity : 3 kg
Catalog

Freeze Dryer FM-FD-C101

  • Shelf area : 0.5 m²
  • Nominal input capacity : 5 kg
  • Max. input capacity : 7.5 kg
Catalog
Freeze Dryer FM-FD-C102
  • Shelf area : 1 m²
  • Nominal input capacity : 10 kg
  • Max. input capacity : 15 kg
Catalog

Lyophilizer Freeze Dryer

Fison Lyophilizer Freeze Dryer features a compact design, making it ideal for laboratories with limited space while still delivering high-performance freeze-drying capabilities. They include an off-cycle defrosting system that reduces maintenance by preventing and automatically clearing ice buildup. The CFC-free refrigerant enhances environmental sustainability while ensuring reliable cooling performance during the freeze-drying process. These high-speed vacuum pump ensures rapid and effective drying by maintaining optimal vacuum conditions. Our Lyophilizer Freeze Dryer Automatic data saving records essential temperature and vacuum data for accuracy and easy future analysis.

Lyophilizer Freeze Dryer FM-FD-B100
  • Freeze Drying Area : 0.12m²
  • Ice Condenser Capacity : 3 to 4 kg /24h
  • Condenser Temperature : -50℃
Catalog
