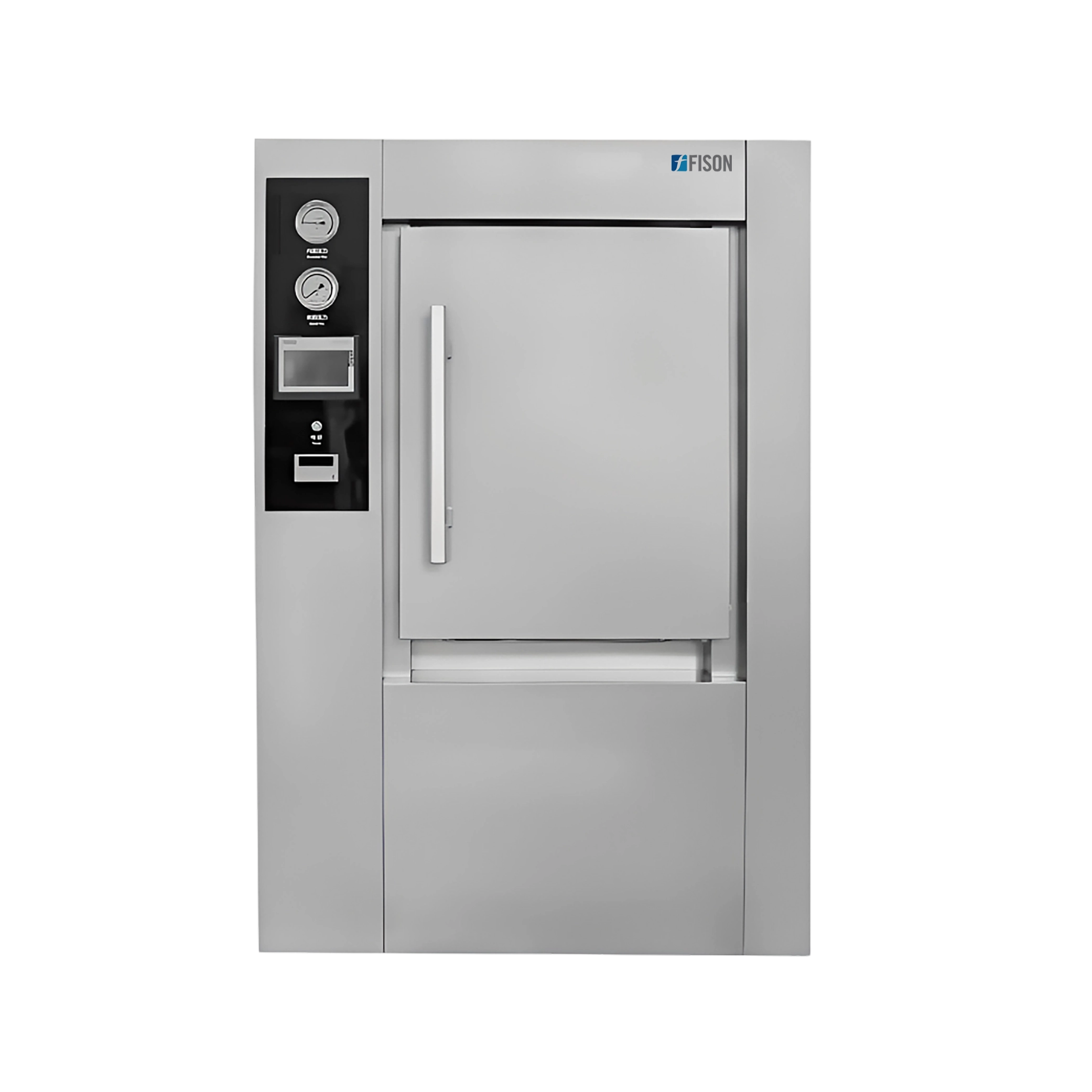

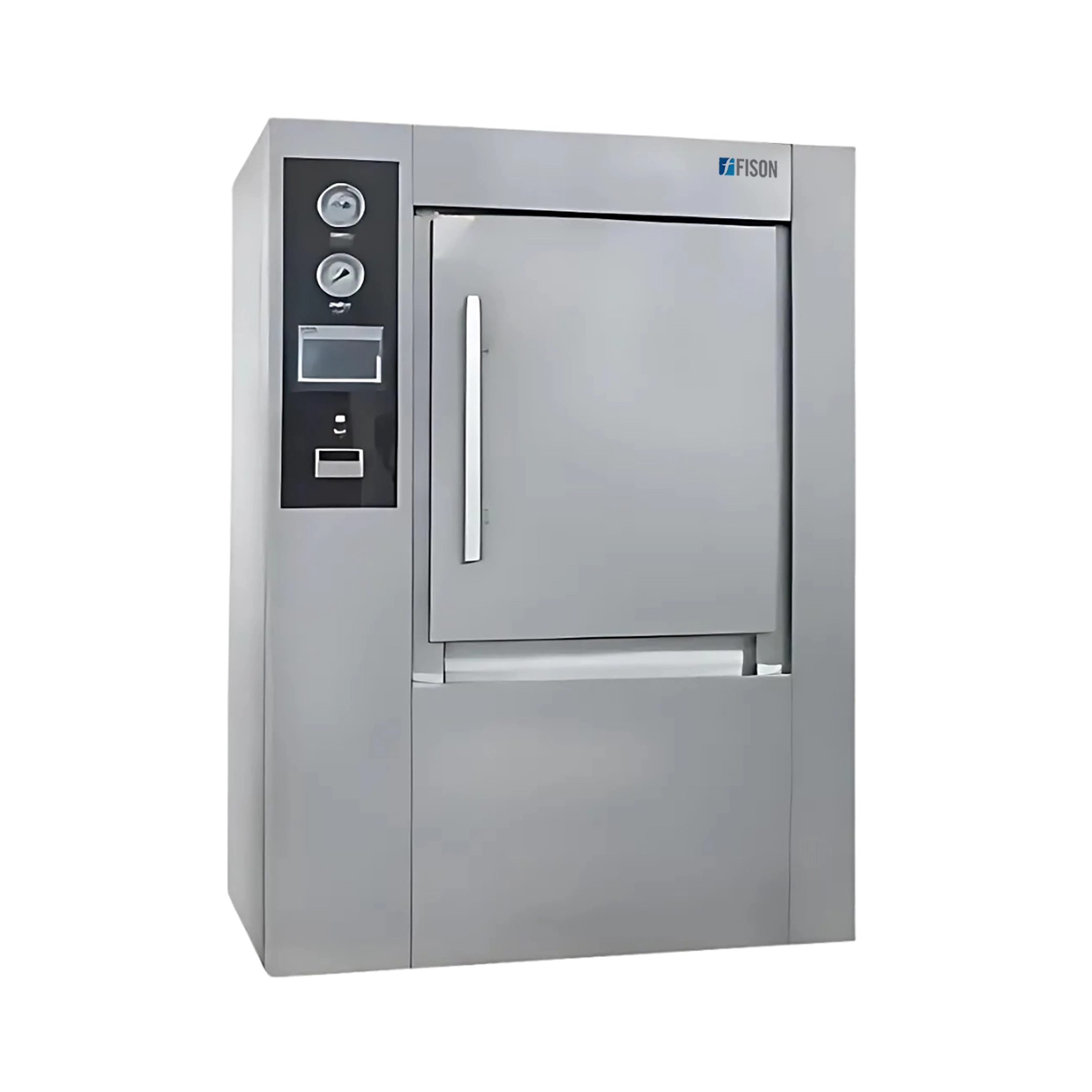

Vacuum Autoclave FM-VMA-A100

Vacuum Autoclave FM-VMA-A100

Vacuum Autoclave FM-VMA-A100 has 360L capacity that features a ring-type jacket, and reinforcing ribs for enhanced structural integrity and efficiency. It adopts an imported programmable logic controller (PLC) for enhanced user control. This unit features an interior liner and door panels made of stainless steel ensuring corrosion resistance. Our vacuum autoclave has sanitary stainless steel pipes with clamps to prevent contamination in sensitive environments.

Specifications

Capacity 360 L
Sterilization Temperature 150 °C
Operational Temperature 139 °C
Temperature Precision ±0 to 2 °C
Temperature Uniformity ±1 °C
Vacuum Range -80 to 0 kPa
Vacuum Pulses 1 to 99
Vacuum Leak Rate ≤0.13 kPa/min
Vacuum -97 kPa
Pulse Pressure -80 to 80 kPa
Pulse Count 1
Positive Pulses 1 to 3
Chamber Pressure -0.1 to 0.3 MPa
Safety Valve (Chamber) 0.28 MPa
Jacket Pressure 0.3 MPa
Safety Valve (Jacket) 0.28 MPa
Maximum Pressure 0.25 MPa
Steam Usage 22 kg/cycle
Water Usage 180 kg/cycle
Power Consumption 30 kW
Power Supply 380 V, 50 Hz
Liner Dimensions (L × W × H) 610 × 610 × 1000 mm
Chamber Dimensions (L × W × H) 1320 × 1350 × 1930 mm
Weight 850 kg

Features

  • Air-tight pneumatic door seal
  • Advanced maintenance system
  • Integrated quality tracing system
  • Built-in safety and alarm systems
  • Includes high-quality pressure vessels

Applications

  • Vacuum Autoclave FM-VMA-A100 uses high-pressure steam and a vacuum to remove air before sterilization, and is widely used in fields such as pharmaceuticals, biotechnology, genetics, environmental science, food safety, forensics, clinical labs, pathology, immunology, neuroscience, and agricultural research.

Horizontal Autoclave

Fison Horizontal Autoclave has larger load capacity of up to 600 L. They operate in temperature range of 134°C to 150°C for rapid sterilization. Our front-loading autoclaves come in cylindrical and rectangular orientation. They are durable and built of corrosion resistant stainless steel. They feature innovative safety systems with warning buzzers, thermo-pressure controllers and automatic water cut off. Our advanced horizontal autoclaves are equipped with intuitive digital interface for automatic operation.

Horizontal Autoclave FM-HA-A100

  • Sterilizing chamber  volume : 150 L
  • Inner tank dimension : 440×1000 mm
  • Design : Cylindrical orientation
Catalog

Horizontal Autoclave FM-HA-A101

  • Sterilizing chamber  volume : 200 L
  • Inner tank dimension : 515×1000 mm
  • Design : Cylindrical orientation
Catalog
Horizontal Autoclave FM-HA-A102
  • Sterilizing chamber  volume : 280 L
  • Inner tank dimension : 600×1000 mm
  • Design : Cylindrical orientation
Catalog

Vertical Autoclave

Fison Vertical Autoclave line features top loading steam sterilizers with different capacities of 35 L to 150 L. Designed with larger chamber volumes to achieve effective sterilization within space-restricted labs. They operate at 134°C and 0.22 MPa for quick autoclaving within few minutes. We offer versatile functions like semiautomatic control, warning buzzer systems, additional bacteria filters, customizable programs and multiple pulse vacuum drying. Our CE certified top loading sterilizers come with advanced safety mechanisms to ensure user-friendly operation.

Vertical Autoclave FM-VA-A100
  • Capacity : 35 L
  • Sterilization temperature : 134°C
  • Wokring sterilization pressure : 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A101

  • Capacity : 50 L
  • Sterilization temperature : 134°C
  • Wokring sterilization pressure : 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A102

  • Capacity : 75 L
  • Sterilization temperature : 134°C
  • Wokring sterilization pressure : 0.22 MPa
Catalog

Portable Autoclave

Fison Portable Autoclaves are compact and lightweight steam sterilizers. They feature both electric and LPG type heating to facilitate versatile operation. Adjustable thermostat, auto shut off, pressure gauges and safety valves ensure effective sterilization. Our space-efficient autoclaves are appropriate for medical, dental, laboratory, and field settings. We offer Portable Autoclaves working at 126? and 0.16 MPa with loading capacities of 18 L- 24 L.

Portable autoclave FM-PA-A101
  • Chamber capacity : 18 L
  • Chamber dimension : 280 × 260 mm
  • Working temperature : 126 ℃
Catalog
Portable autoclave FM-PA-A102
  • Chamber capacity : 24 L
  • Chamber dimension : 280 × 390 mm
  • Working temperature : 126 ℃
Catalog

Portable autoclave FM-PA-A200

  • Chamber capacity : 18 L
  • Chamber dimension : 280 × 260 mm
  • Working temperature : 126℃
Catalog

Benchtop Autoclave

Fison Benchtop Autoclaves are compact, low wattage steam sterilizers. They operate at effective working conditions of 134°C and 0.22 MPa. They feature thermo-pressure controllers, automatic safety locks, alarm system and digital display. They are certified with successful vacuum and B&D test procedures to ensure cost-effective yet streamline performance. We offer space saving Benchtop autoclaves appropriate for small labs and dental clinics.

Benchtop Autoclave FM-BA-A100

  • Chamber Capacity (Volume) : 35 L
  • Chamber dimension : 300 × 500 mm
  • Working pressure : 0.22 MPa
Catalog
Benchtop Autoclave FM-BA-A101
  • Chamber Capacity (Volume) : 50 L
  • Chamber dimension : 340 × 550 mm
  • Working pressure : 0.22 MPa
Catalog
Benchtop Autoclave FM-BA-A102
  • Chamber Volume : 50 Liters
  • Max working temperature : 1340 ℃ ± 10 ℃
  • Max working pressure : 0.22 mpa
Catalog

Hydrothermal Autoclave

Fison Hydrothermal Autoclaves are constructed with corrosion-resistant material to facilitate unconventional chemical reactions. They feature inert internal liners to prevent interactions between the solution and vessel walls. Equipped with thermo-pressure regulators for process monitoring. Reliable seepage-proof design along with rupture discs ensure additional safety. Our high-pressure reactors enable you to conduct advanced hydrothermal applications such as nanomaterial synthesis, crystal growth, chemical transformations and more.

Hydrothermal Autoclave FM-HTA-102

  • Capacity : 100 ml
  • Heating / Cooling rate : 5℃/min
  • Working temperature : 200℃
Catalog

Hydrothermal Autoclave FM-HTA-A100

  • Capacity : 200 ml
  • Heating / Cooling rate : 5 ℃/min
  • Working temperature : ≤ 230 ℃
Catalog
Hydrothermal Autoclave FM-HTA-A101
  • Capacity : 500 ml
  • Heating / Cooling rate : 5 ℃/min
  • Working temperature : ≤ 230 ℃
Catalog
