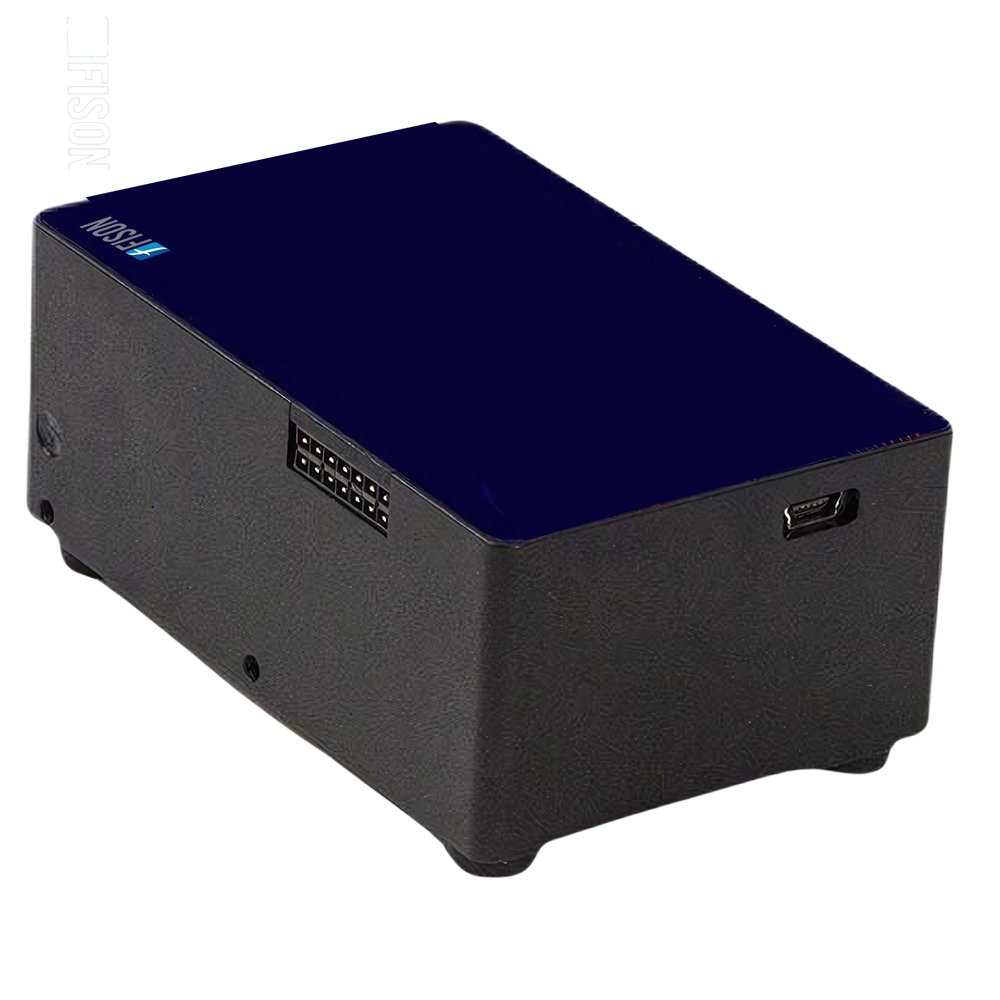

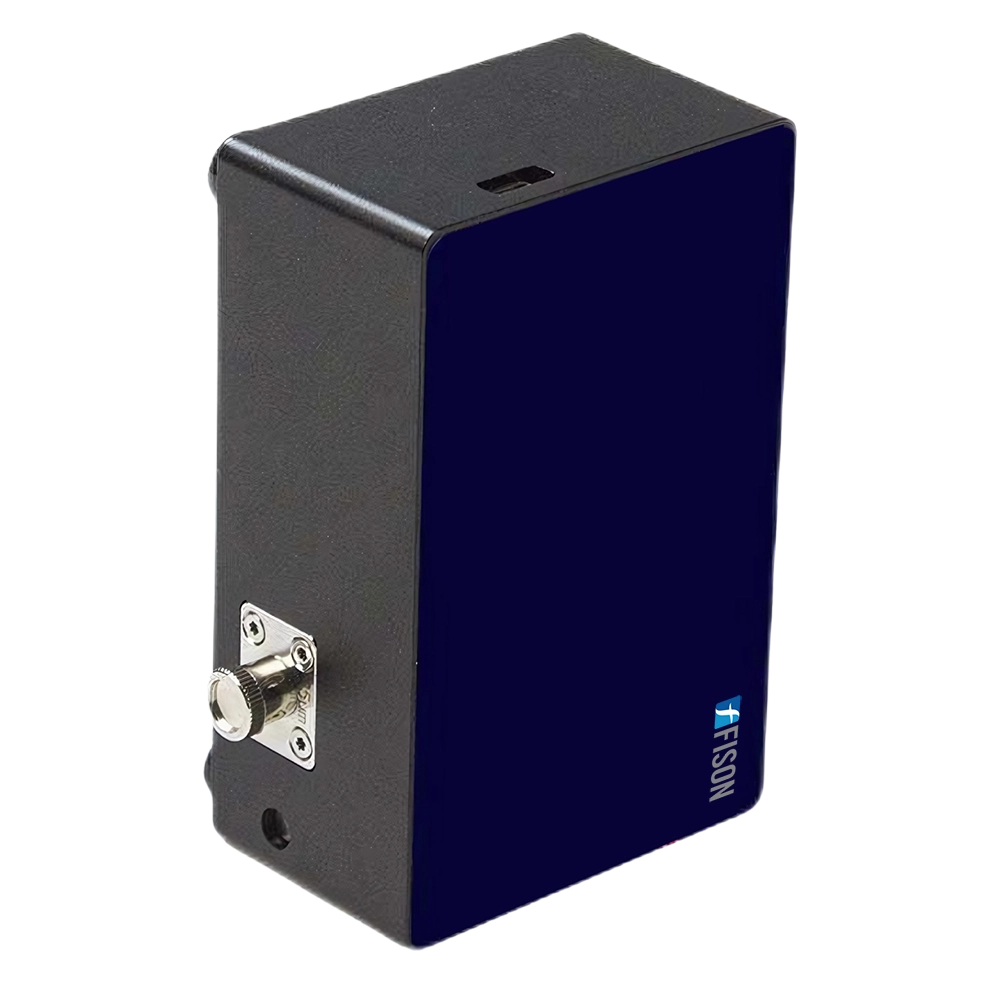

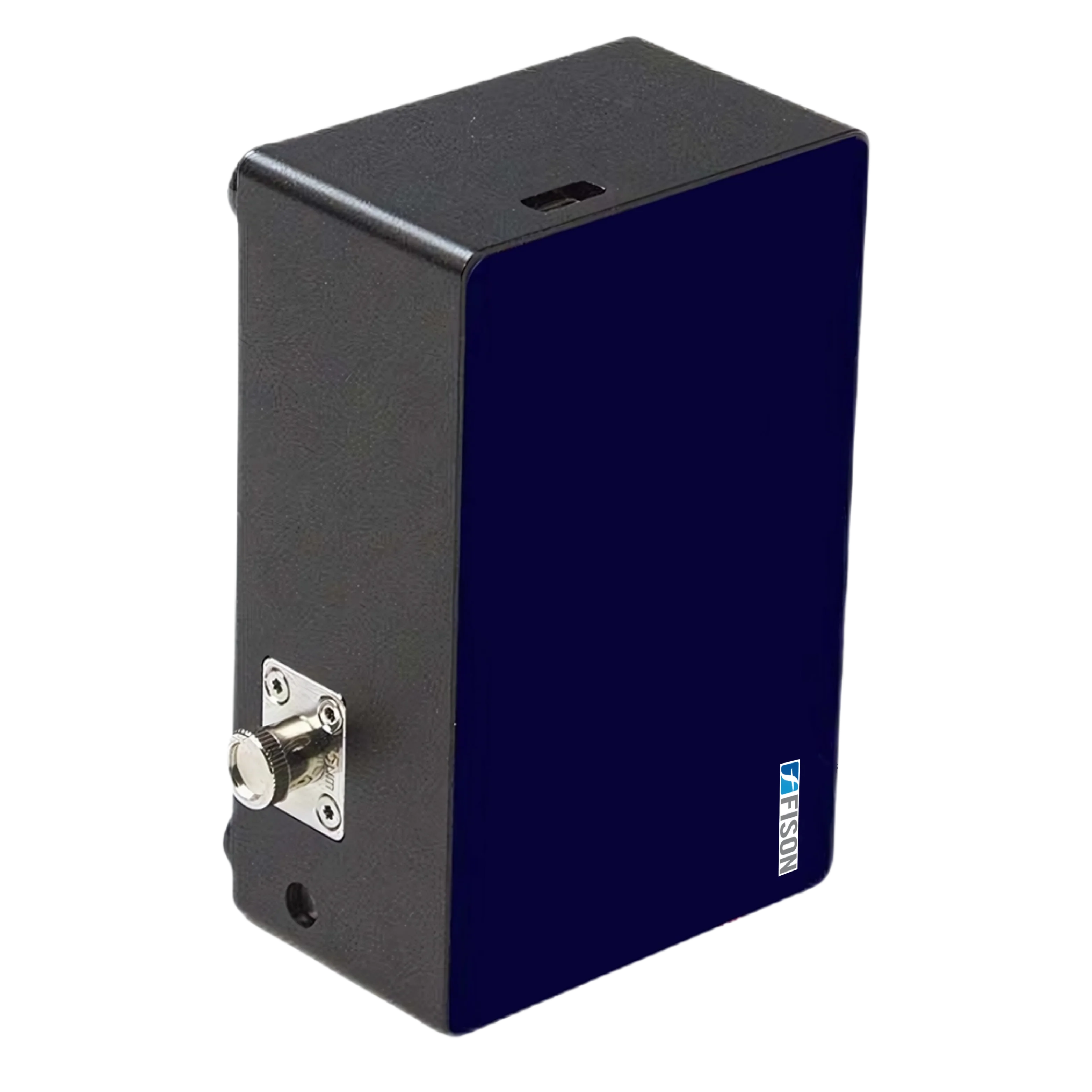

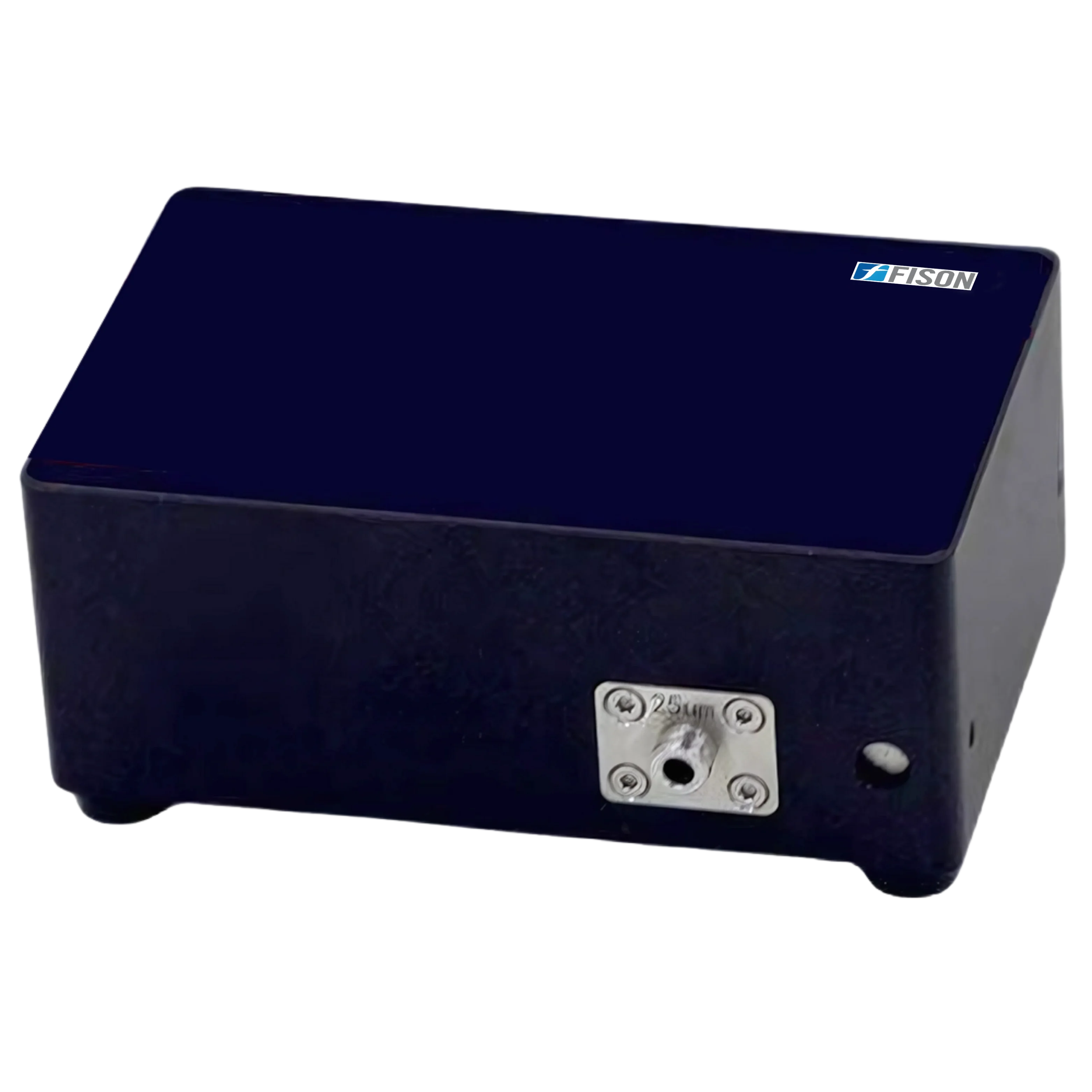

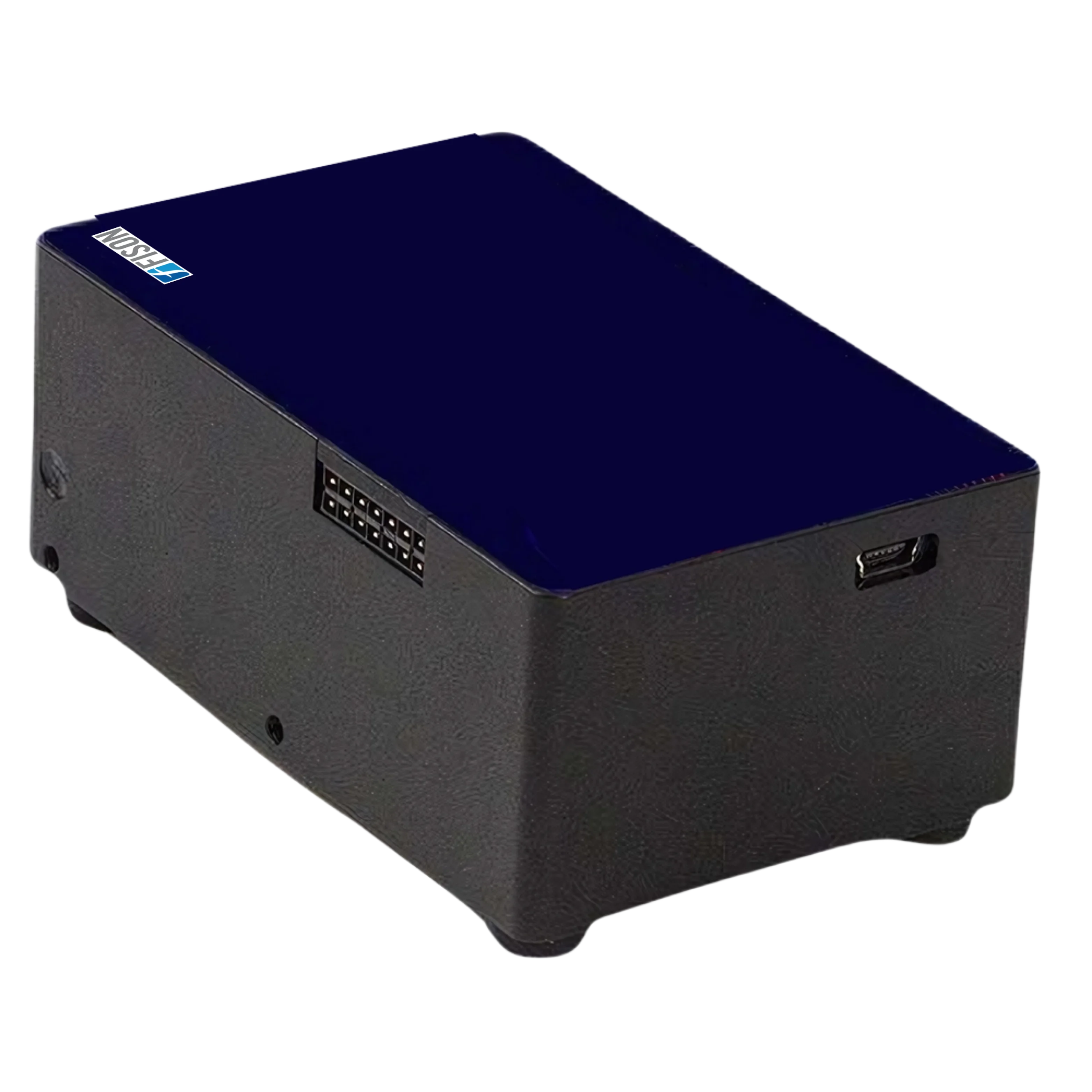

UV Visible Spectrometer FM-UVV-A100 provides a resolution range of approximately 0.35 nm to 5 nm for accurate and reliable measurements. It effectively provides high optical resolution options for various analytical requirements. The system includes advanced secondary diffraction elimination for enhanced accuracy in measurements. Our spectrometer has USB 2.0 data transmission for swift and secure connectivity.
Specifications
Optical Resolution | ~0.35 nm to 5 nm |
Wavelength Response Range | 180 nm to 1100 nm |
Operating Temperature | 5℃ to 35℃ |
Integration Time | 0.5 ms to 65 s |
Signal-to-Noise Ratio | 600:1 at full signal |
Dynamic Range (Single) | 10000:1 |
Fiber Connector | SMA905 |
Detector | Hamamatsu S11639 2048 Linear CCD |
A/D Resolution | 16 bit |
Pixel | 2048 Pixels |
Pixel Size | 14 μm × 200 μm |
Operating System | Win XP, Win7, Win8, Win10 |
Fixing Holes | 4 × M3 fixing holes at the bottom 2 × M3 fixing holes on the side |
Power Consumption | 250 mA, 5 VDC |
Power Supply | USB / 5 VDC |
Dimensions (W × D × H) | 94 × 60 × 34.5 mm |
External Dimensions (W × D × H) | 785 × 1041 × 1947 mm |
Packaging Dimensions (W × D × H) | 300 × 250 × 160 mm |
Net Weight | 0.3 kg |
Gross Weight | 1.2 kg |
Features
Applications
Accessories
Fison FTIR spectrometers are designed for precise molecular analysis across various fields. They deliver high spectral resolution, ensuring detailed and accurate spectral data. These units include multiple detector options for high sensitivity uses. They provide a user-friendly software interface, enabling easy data analysis, report generation, and spectrum comparison. Our spectrometers feature USB & Wi-Fi connectivity, guaranteeing seamless data transfer and remote operation.
Fison Flame Atomic Absorption Spectrometer has a wide wavelength range allowing precise detection of various metal elements. They have an Adjustable Spectral Bandwidth that enables optimization of resolution and sensitivity. These have a Stable and Efficient Flame Atomizer that provides uniform sample introduction ensuring consistent results. They have Automatic Lamp Selection that supports multiple lamps with automatic alignment for multi-element analysis. These have Built-in Safety Features including flame monitoring, gas pressure regulation, and an automatic gas shutoff system for safety. Our Spectrometer has an easy-to-use touchscreen or software for method setup, calibration, and data analysis.
