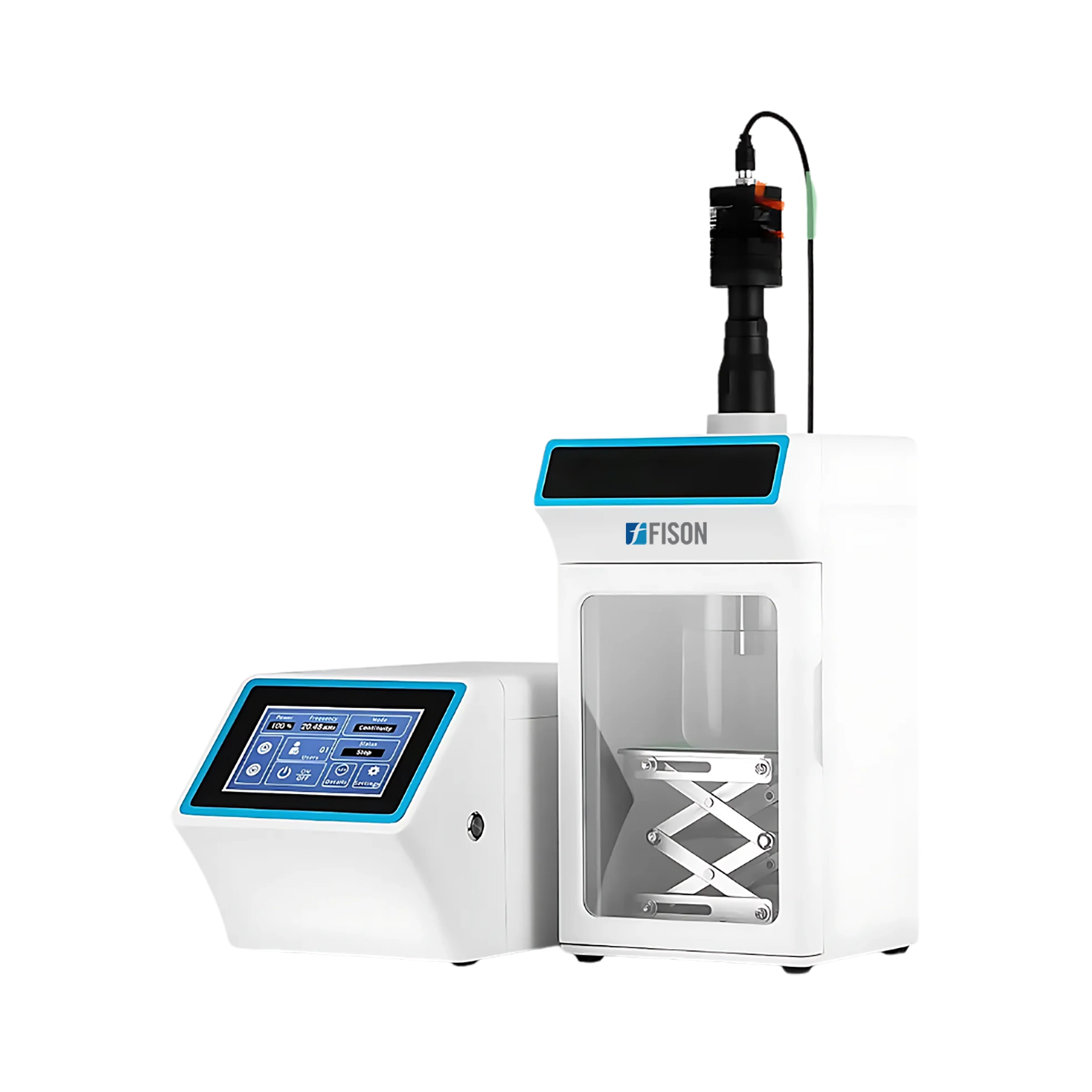

Ultrasonic Sonicator FM-ULS-A100 operates at a nominal frequency of 20 kHz, delivering efficient ultrasonic energy for precise sample processing and emulsification. It is equipped with a temperature sensor to maintain optimal conditions. This incorporates an exponential ultrasonic probe for efficient energy transmission and uniform sample processing. Our ultrasonic sonicator adopts a color industrial touchscreen control for operational efficiency.
Specifications
Frequency | 20 KHz |
Timer | 1 Minute to 99 Hours |
Power Regulation | 1 % to 100 % |
Power Precision | 0.01 |
Temperature Setting | 0 to 300 ℃ |
Temperature Precision | 1 ℃ |
User Program | 10 groups |
Pulse Interval Time | 1 Second to 60 Minutes |
Operating Mode | Pulse, Time, Continuous |
Main Interface Display Parameters | Power switch, User group, Setting key, Frequency, Power increase, Power ratio, Power decrease, Working mode, Equipment operating status, Equipment operating parameter details key |
Run Interface Display | Total running time, Working time, Stop time, Overload temperature, Real-time temperature, Power output ratio, Operating mode, Back and pause |
Standard Configuration of Probe | Titanium alloy (Ti—6A) |
Power Consumption | 1000W |
Power Supply | 110 or 220V/50 to 60Hz |
Generator Dimensions | 440 × 250 × 255 mm |
Soundproof Box Dimensions | 255 × 240 × 455 mm |
Packaging Dimensions (L × W × H) | 720 × 580 × 360 mm |
Generator Weight | 7 Kg |
Soundproof Box Weight | 6 Kg |
Gross Weight | 22 Kg |
Features
Applications
Accessories
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Accessories Optional
Fison Ultrasonic Cell Disruptor offers adjustable runtime, providing flexibility for precise control over sample processing times. Their temperature sensor provides precise monitoring, ensuring optimal conditions for accurate results. They offer automatic energy compensation, maintaining stable performance by adjusting power levels. The independent continuous pulse mode switch enables customizable operation, improving user efficiency. Our Ultrasonic Cell Disruptor features variable amplitude poles, allowing fine-tuned adjustments to optimize efficiency for different sample types.
