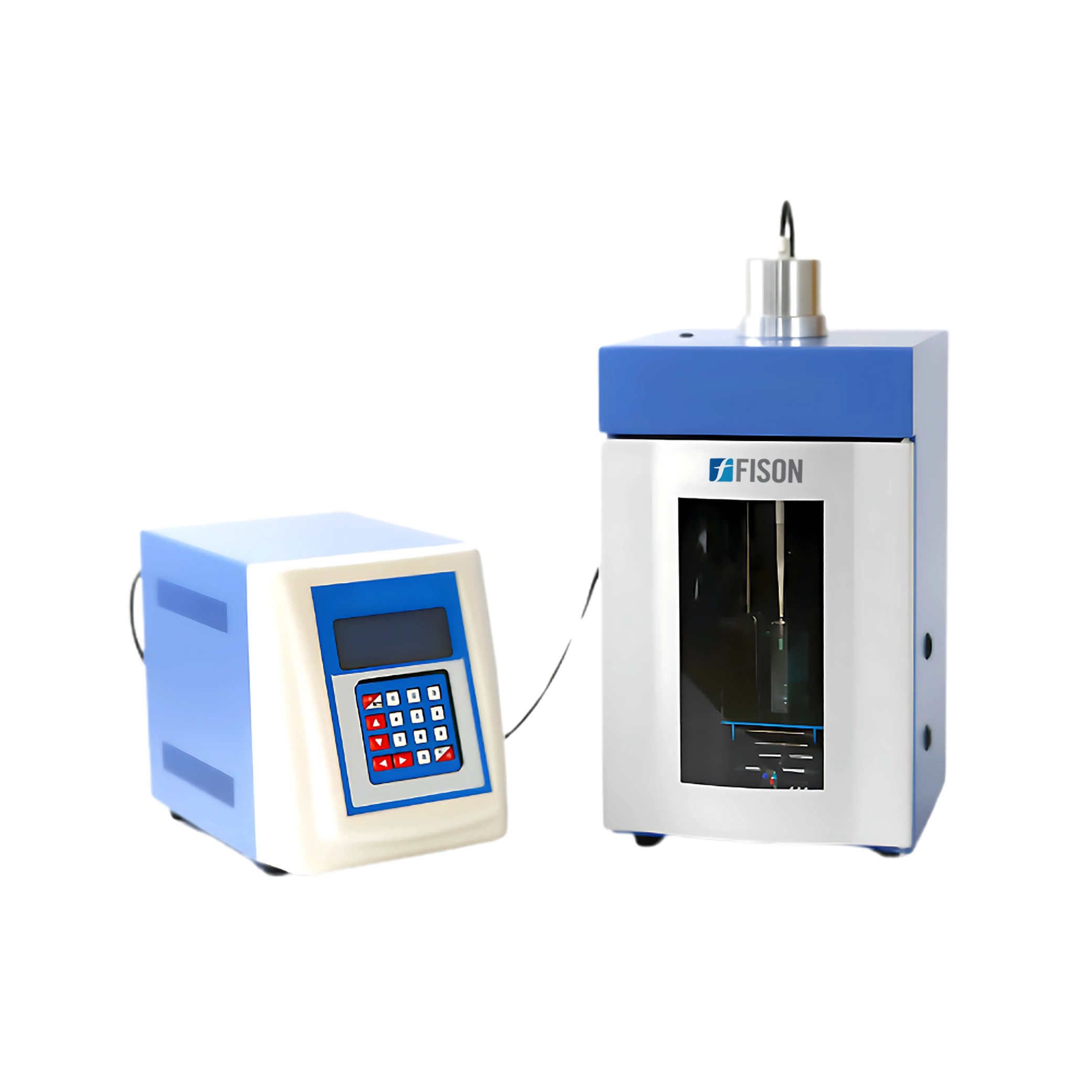

Ultrasonic Homogenizer FM-UH-A102
Ultrasonic Homogenizer FM-UH-A102 Offering an impressive 1000–3000W ultrasonic power, built for high-performance operations. It features a 4.3-inch TFT touch display that manages timing, intensity, and precision settings. The centralized control system includes data tracking, temperature detection, and overload safety. It is designed to handle demanding tasks with accuracy, reliability, and robust build quality.
Specifications
| Power | 1000 to 3000W manual amplitude adjustable |
| Breaking capacity | 500 to 5000ml (requires the corresponding horn) |
| Display method | True colour 4.3-inch capacitive touch screen display |
| Single ultrasound time | 0.1 |
| Single gap time | 0.1 to 99.9S |
| Total time (ultrasound gap) | 1 to 99H59M59S |
| Frequency range | 19.5 to 20.5 KHz |
| Temperature control range | 0 to 100 degrees (optional low temperature constant temperature) |
| Alarm function | Temperature, time, overload, no load, over temperature |
| Random horn | Ø40(mm) lengthened |
| Data storage | 20 groups |
| Voice alarm prompt function | yes |
| Contact ultrasound function | Yes |
| Control method | MCU TFT touch |
| Power supply | 220V/110V/50Hz/60Hz |
| Instrument size (L×B×H) | 510×225×290 mm |
| Weight | 22 kg |
Features
- Durable and convenient
- Customizable power amplitude
- Sample temperature detection display
- Fault automation alarm
Applications
- Our Ultrasonic Homogenizer are used extensively in biochemistry, pharmaceuticals, microbiology, surface science, and zoological labs for disrupting cells, accelerating chemical reactions, creating stable emulsions, and enhancing sample homogenization in both research and industrial settings.
