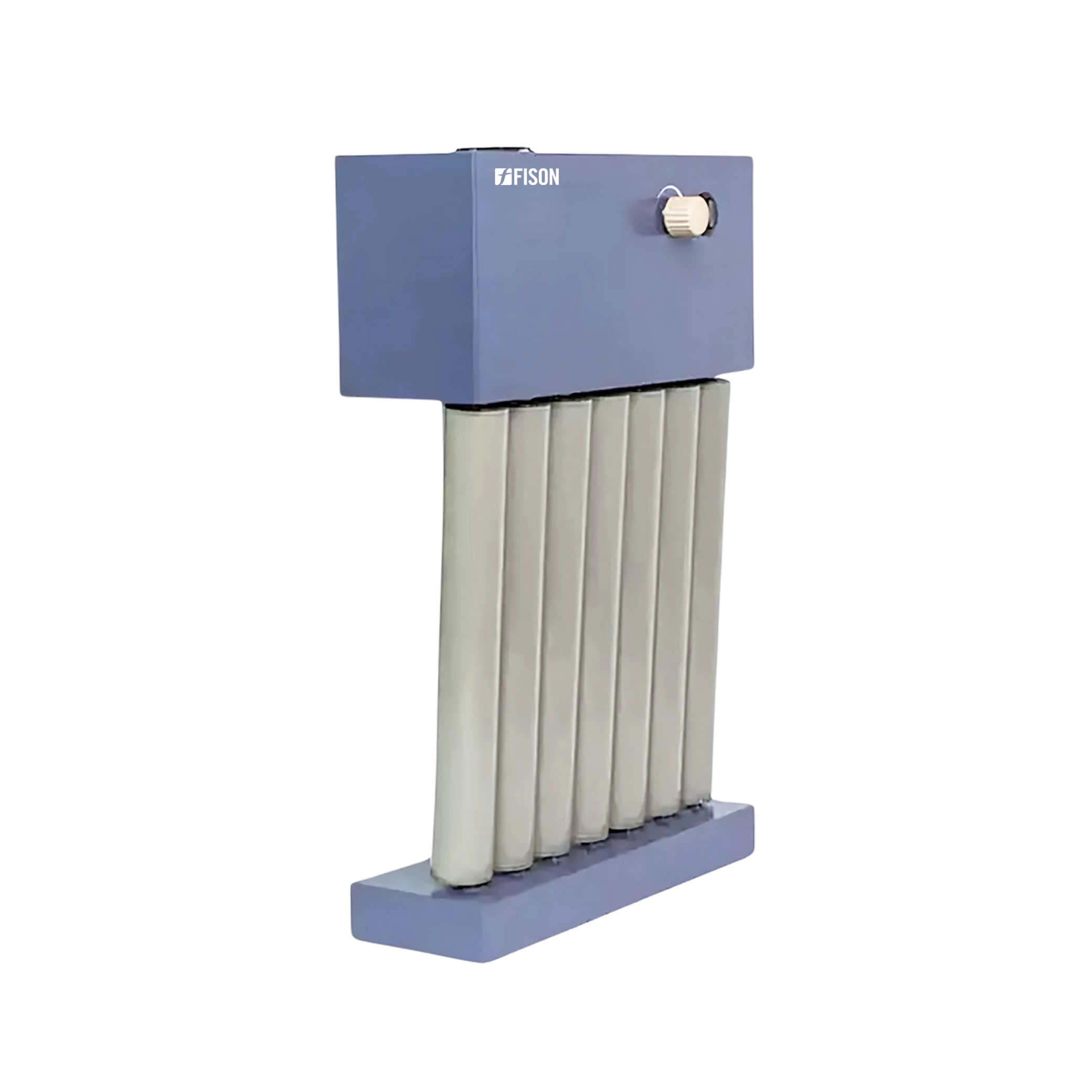

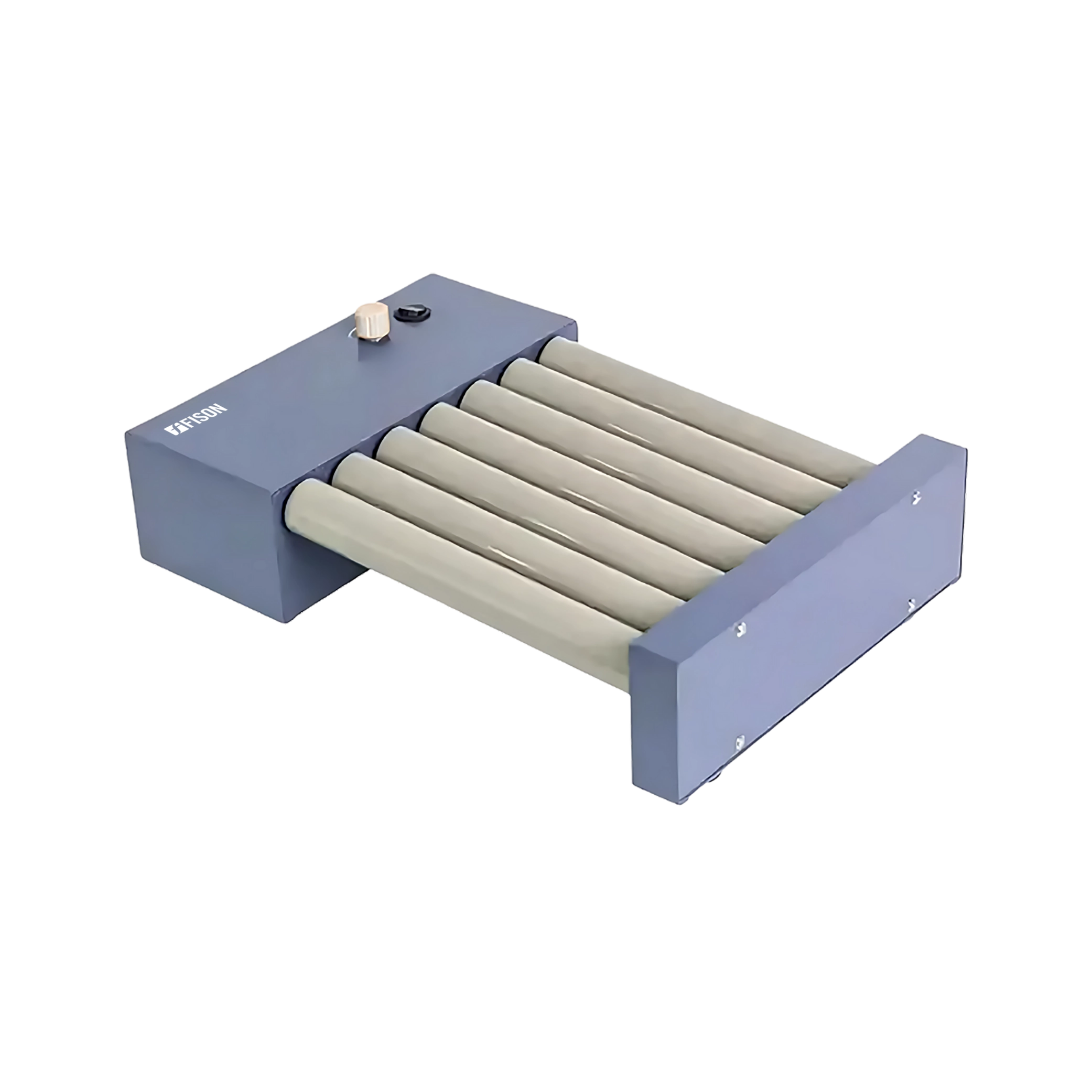

Tube Roller Mixer FM-TRM-A100

Tube Roller Mixer FM-TRM-A100

Tube Roller Mixer FM-TRM-A100 operates continuously with speeds from 0 to 80 rpm. It offers both rolling and anticlockwise rolling options, with adjustable speed settings. Equipped with a high-performance DC motor, it ensures reliable operation. The adjustable roller spacing accommodates various tube sizes. Our mixer ensures superior blending of blood, reagents, and control materials, delivering results beyond manual mixing

Specifications

Speed Shaking: 0 to 80 times/min
Rolling: 0 to 80 turns/min
Swing amplitude 22mm ± 1mm
Roller size 236 mm
Roller count 7
Roll length 236mm
Protective class IP21
Allowed temperature range 5 to 50℃
Mode of operation Continuous
Acceptable humidity level 0.8
Power Consumption 12W
Power supply 220V ± 10 % (50 Hz)
Dimension 394 × 266 × 98 mm
Packing Dimension 500 × 360 × 220 mm
Net Weight 3.6 Kg
Gross weight 6.7 Kg

Features

  • Tube Roller Mixer with consistent and thorough mixing
  • Compatible with various tube sizes
  • Continuous speed
  • Easy handling
  • Customizable rotation features
  • Extendable rollers for added capacity

Applications

  • Tube Roller Mixer is used in diverse sectors, including medical diagnostics, biotechnology, pharmaceuticals, chemical industries, and research laboratories

Vortex Mixer

Fison Vortex Mixer is constructed with a heavy, non-slip base to absorb vibrations and prevent the mixer from moving during operation. They feature digital controls and an LED/LCD screen for precise RPM settings and timers. Their chemical-resistant coatings are used for durability and to handle accidental spills. The built-in timer sets a specific mixing duration for extended applications, ranging from seconds to hours. Our Vortex Mixer accommodates various tube sizes for versatile lab use, including microcentrifuge and test tubes.

Vortex Mixer FM-VM-A200

  • Shaking Mode : Orbital
  • Orbital Diameter : 4 mm
  • Speed Range : 0 to 2500 rpm
Catalog

Vortex Mixer FM-VM-A201

  • Shaking Mode : Orbital
  • Orbital Diameter : 4 mm
  • Speed Range : 2500 rpm
Catalog
Vortex Mixer FM-VM-C100
  • Speed : 200rpm to 3000rpm
  • Vortex (Max.) Speed : 3500rpm
  • Timer : 1min to 99h59m/0: infinite time
Catalog

Powder Mixer

Fison Powder Mixer is crafted for low energy consumption, making it ideal for blending free-flowing materials with similar physical properties. Their intensifier bar enhances blending efficiency, particularly for challenging formulations. The gentle mixing action minimizes mechanical wear, extending the lifespan of both the mixer and the materials being processed. They ensure that materials are mixed homogeneously with minimal segregation, even for powders with differing particle sizes or densities. Our Powder Mixers are capable of achieving high throughput with reduced mixing times, for high-volume production lines.

Powder Mixer FM-PWM-A100
  • Total Volume : 300L
  • Operation Volume : 120L
  • Maximum Loading : 60kg
Catalog

Mini Vortex Mixer

Fison Mini Vortex Mixer is capable of vortexing samples at high speeds, ensuring thorough mixing even in small volumes. They allow the user to adjust the mixing speed based on the sample requirements. Their built-in overload protection prevents damage by automatically adjusting the motor under excessive strain. The cooling system prevents the sample from overheating during prolonged mixing sessions. Our Mini Vortex Mixers are crafted to consume less energy than their larger counterparts, making them more energy-efficient.

Mini Vortex Mixer FM-MVM-A100

  • Capacity : 50ml
  • Speed : 3500 rpm
  • Amplitude : 4mm (Horizontal rotation)
Catalog

Mini Vortex Mixer FM-MVM-A101

  • Speed : 2800rpm
  • Orbital Diameter : 3.6mm
  • Operation : Touch/Continuous
Catalog
Mini Vortex Mixer FM-MVM-B100
  • Control Method : Knob Speed Regulation
  • Motor : Brushless Motor
  • Shaking Orbit : 4.5 mm (circle)
Catalog

Multi Tube Vortex Mixer

Fison Multi Tube Vortex Mixer is equipped with suction feet, which provide safety and minimize movement during high-speed operation. The mixer has an interchangeable tube holder, making it compatible with various test tube sizes. Their anti-slip rubber feet have stability by preventing movement during high-speed operation. They also minimize vibrations, ensuring safer and more efficient mixing. They feature variable speed, and the timer provides customizable mixing settings, ensuring optimal results. Our Multi Tube Vortex Mixer has a digital control panel for seamless operation and monitoring.

Multi Tube Vortex Mixer FM-MTVM-A100
  • RPM Range : 1500 to 3000 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 4 mm
Catalog

Multi Tube Vortex Mixer FM-MTVM-A101

  • RPM Range : 500 to 3000 rpm
  • Amplitude : 4 mm horizontal swing
  • Operating Mode : Run
Catalog

Multi-tube Vortex Mixer FM-MTVM-B100

  • Speed : 500rpm to 2500rpm
  • Speed Control Accuracy : ±1rpm
  • Timer : 1min to 99h59m/0: infinite time
Catalog

Roller Mixer

Fison Roller Mixer has adjustable speed settings for precise control, ensuring optimal mixing for various sample types and requirements. The multi-tube compatibility accommodates various tube sizes, making it suitable for diverse applications. Their anti-skid base allows for secure placement during operation, eliminating movement and enhancing safety. They offer variable roller speeds, allowing precise adjustments to suit different sample requirements. They operate efficiently across a wide temperature range for various laboratory environments. Our roller mixer supports viscous liquids for handling samples like gels or thick solutions.

Roller Mixer FM-RM-A100
  • Speed : 20 to 80 rpm
  • Motor Type : Brush Motor
  • Type : Rotating Shaking
Catalog
Roller Mixer FM-RM-A101
  • Speed : 20 to 80 rpm
  • Motor Type : Brushless Motor
  • Type : Rotating Shaking
Catalog

Roller Mixer FM-RM-A102

  • Speed : 20 to 80 rpm
  • Motor Type : Brushless Motor
  • Type : Rotating Shaking
Catalog
