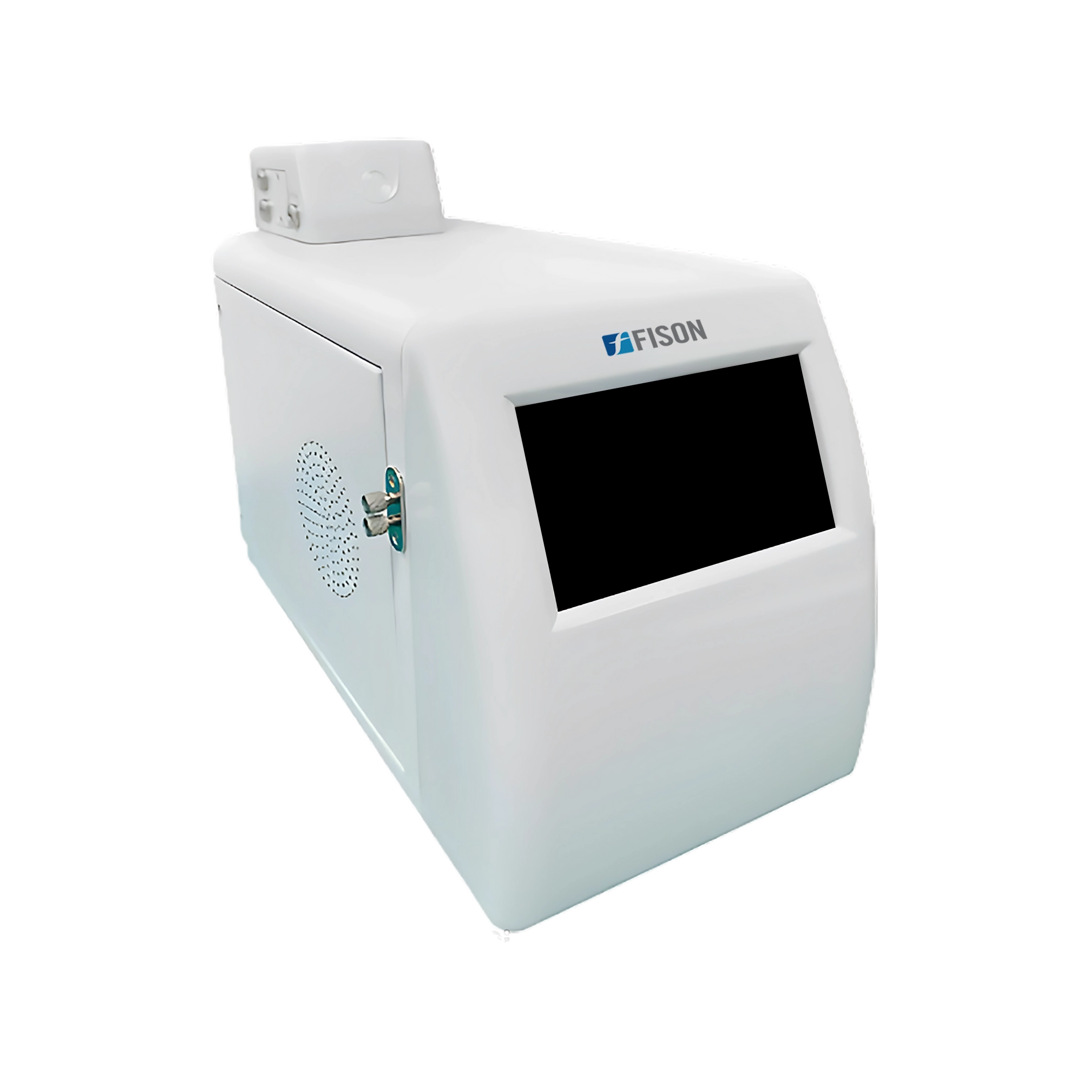

TOC Analyzer FM-TOC-B101
TOC Analyzer FM-TOC-B101 accurately measures Total Organic Carbon (TOC) levels ranging from 0.001 to 1.5 mg/L. Featuring a user-friendly 7-inch touch screen and intuitive interface, it ensures easy operation. Tests are swiftly completed in under 3 minutes, delivering results within 10 minutes. With the capability to handle sample temperatures from 1 to 95°C, it is well-suited for a wide range of applications.
Specifications
| Measuring range | 0.001 to 1.5 mg/l |
| Limit of detection | 0.001 mg / l |
| Maximum Tolerance | ± 5 % |
| Testing Time | 3 min |
| Response time | Under 10 minutes |
| Sample temperature range | 1 to 95°C |
| Flow rate of samples | 3 ml/min |
| Repeatability Tolerance | ≤ 3 % |
| Drifting | ± 5 % |
| Operating Temperature | 10 to 40°C with temperature change ± 5°C/d |
| Relative Humidity | < 85 % |
| Power Supply | AC 220 V, 50 / 60 Hz |
| Power Consumption | 100 W |
| External dimension ( L × W × H) | 440 × 220 × 405 mm |
| Packing dimension ( L × W × H) | 640 × 490 × 440 mm |
| Net Weight | 12.25 kg |
| Gross Weight | 18 kg |
Features
- TOC Analyzer with conductivity detector
- Supports online mode
- Suitable for microelectronics, purified water, and injections
- Each analysis takes less than 3 minutes
- One-button setting prevents contamination
- Searchable historical records
- switch between online and offline modes
- 8GB capacity with no data or time restrictions
- USB interference
Applications
- TOC Analyzer is widely used across diverse sectors including pharmaceuticals, organic pollutants, food and beverage production, chemical industry, research and development.
