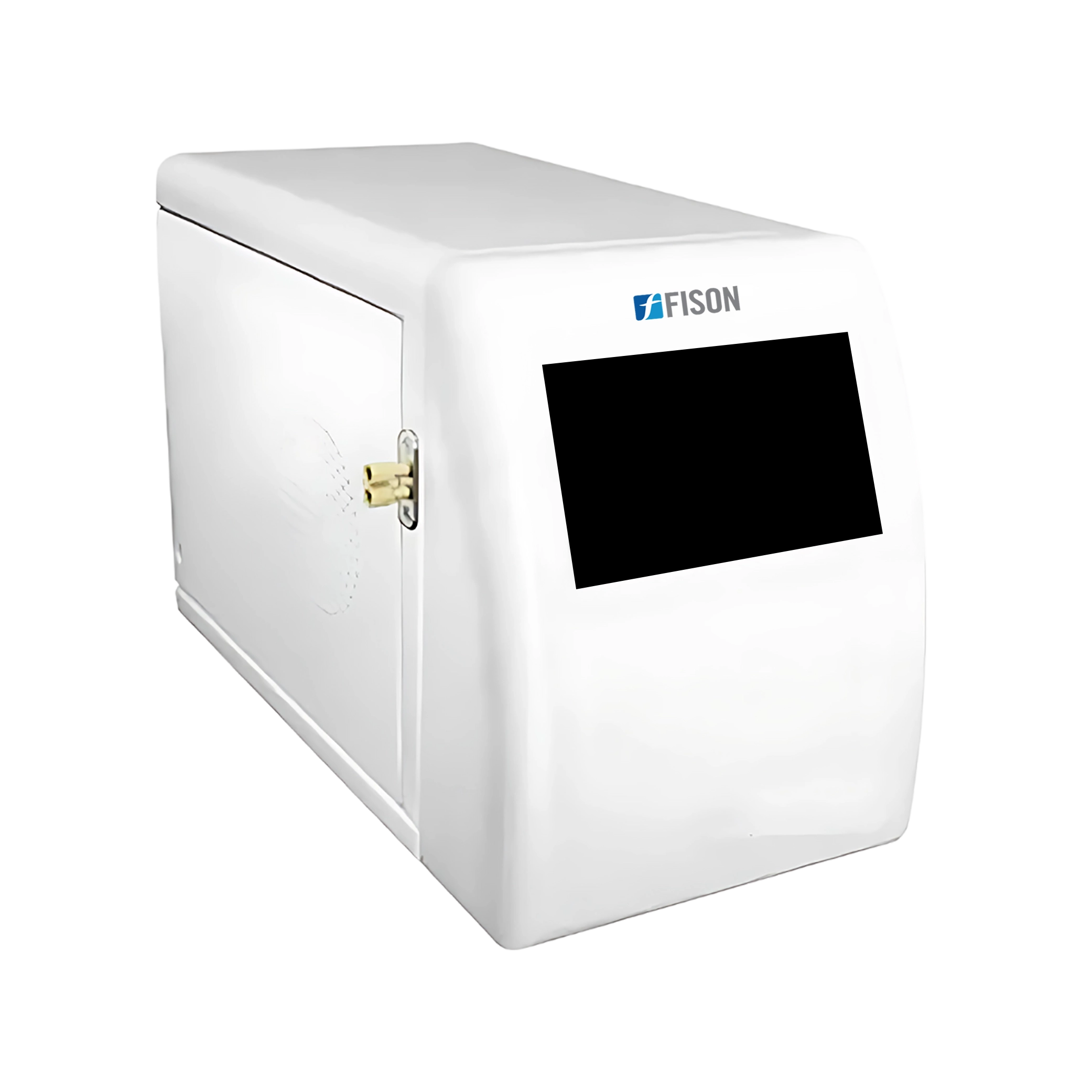

TOC Analyzer FM-TOC-B100
TOC Analyzer FM-TOC-B100 is a compact, offline TOC Analyzer designed with 7 inch touch screen display, 8 GB mass storage data capacity. Based on Conductometric Detection Method, it offers 0.001 to 1.5 mg/L (ppm) sample measurement range, 1 to 95°C sample temperature range. Sample analysis is done within 10 minutes with 3 ml/ min sample floe speed. It is complied with FDA standard, 21 CFR Part 11 regulations, and USP32-643 requirements. Used for applications in QC (quality control) testing of drinking water, waste and sewage water, industrial water and microelectronics water.
Specifications
| Type | Offline |
| Measurement range | 0.001 to 1.5 mg/L (ppm) |
| Detection limit | 1 ppb |
| Maximum tolerance | ± 5% |
| Detection method | Conductometric detection method |
| Analysis time | Within 10 min |
| Sample temperature | 1 to 95°C |
| Working environment | 10 to 40°C with temperature change ± 5°C/d |
| Sample flow speed | 3 ml/min |
| Relative humidity | ≤ 85% |
| Drifting | ± 5% |
| Repeatability tolerance | ≤ 3% |
| Storage | 8 GB mass storage |
| Power | 100 W |
| Power supply | AC 220 ± 10 %, 50/60 Hz |
| Dimension | 440 × 220 × 300 mm |
| Packaging dimension | 600 × 460 × 420 mm |
| Weight | 20 kg |
Features
- Automatic sample introduction
- UV Catalytic oxidation
- 7 inch touch screen display
- Password for protection compliance with FDA-21 CFR Part 11 requirements, also compliance with USP32-643 requirements
- Automatic alarm protection
- Measures water testing less than 1.5 ppm
- 8 GB mass storage memory
- Data for specific day can be derived and saved to USB directly
- Records traceable by analysis date
- Equipped with Bluetooth printer
Applications
- Used for applications in QC (quality control) testing of drinking water, waste and sewage water, industrial water and microelectronics water. Also used in validation of water required in pharmaceuticals procedures.
