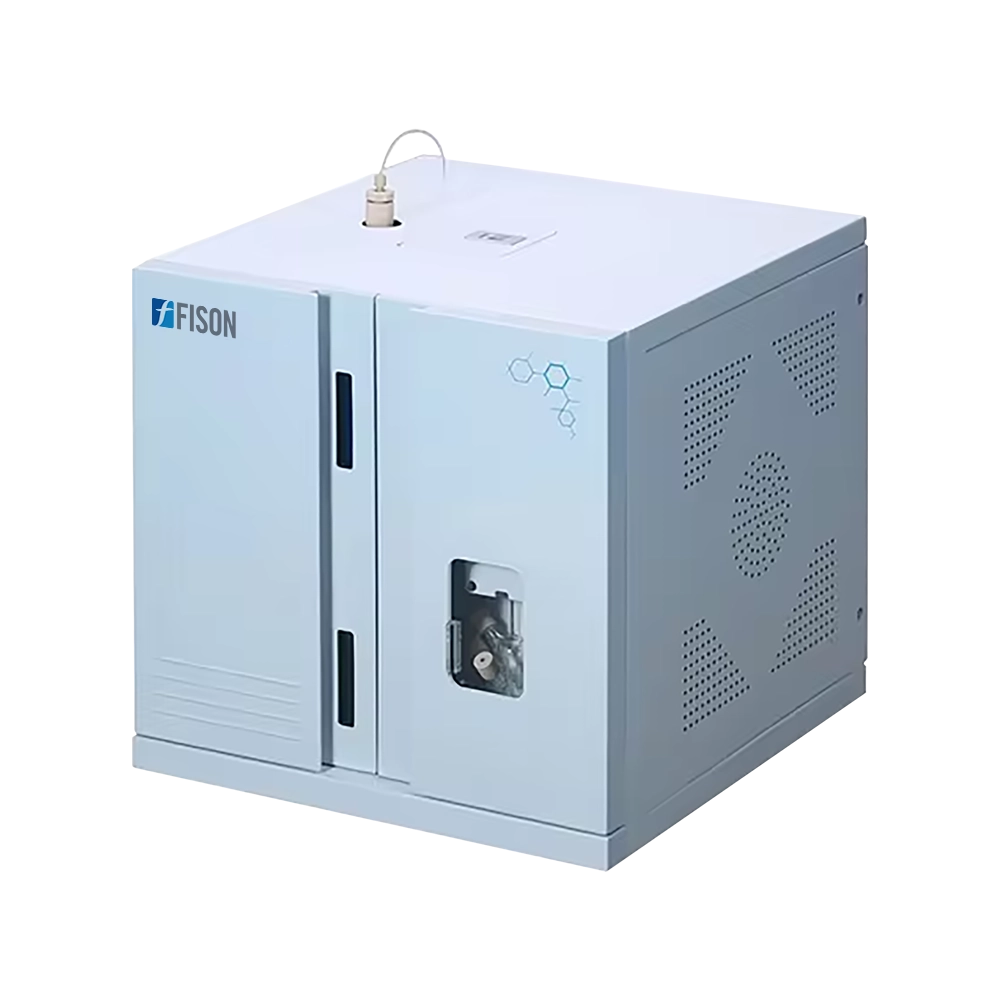

TOC Analyzer FM-TOC-A101

TOC Analyzer FM-TOC-A101

TOC Analyzer FM-TOC-A101 measures TOC concentrations from 0 to 30000 mg/L (ppm). It features a signal management system for precise online settings, real-time monitoring, self-testing, and flow rate control. Additionally, adjustable temperature settings ensure efficient sample digestion across various sample types. Our analyzer is operated using user-friendly PC software, ensuring efficient management.

Specifications

Measurement range 0 to 30000 mg/l ( ppm )
Detection limit 50 μg/l ( ppb)
Digestion method High-temperature combustion
Detector NDIR
Variables TC, TIC, TOC, NPOC
Gas Specifications Oxygen ≥ 99.995 %
Repeatability 0.03
Mode of operation PC Control
Highest salinity 85 g/l
Power Supply AC 220 V, 50 / 60 Hz
Power Consumption 200 W
External dimension ( L × W × H ) 460 × 430 × 450 mm
Packing dimension ( L × W × H ) 820 × 570 × 680 mm
Net weight 28 kg
Gross weight 52 kg

Features

  • TOC Analyzer uses dry method
  • Offers adjustable flow rate control
  • Automatic leakage checking system
  • NDIR detector
  • Applicable for liquid sample
  • High-purity oxygen for precise analytical performance
  • Measure TC, TIC, TOC, and NPOC

Applications

  • TOC Analyzer ideal for Environmental Monitoring , Chemical Industry , Wastewater Treatment , Research Laboratories.

Alternative Models Of TOC analyzers

Our TOC Analyzers are important tools for measuring total organic carbon levels in water. They provide accurate and reliable results across a variety of uses. Commonly used in industries like pharmaceuticals, electronics, food, and environmental testing, these analyzers are designed for both offline and online monitoring.

TOC Analyzer FM-TOC-B100

  • Type: Offline
  • Measurement range: 0.001 to 1.5 mg/L (ppm)
  • Detection limit: 1 ppb
Catalog

TOC Analyzer FM-TOC-B101

  • Measuring range: 0.001 to 1.5 mg/l
  • Limit of detection: 0.001 mg / l
  • Maximum Tolerance: ± 5 %
Catalog

TOC Analyzer FM-TOC-A100

  • Measurement Range: 0-10000 mg/l
  • Detection Limit: 5 μg/l (ppb)
  • Digestion Mode: Wet chemical Oxidation by UV
Catalog
TOC Analyzer FM-TOC-B102
  • Type: Offline
  • Measurement range: 0.001 mg/ L to 1 mg / L ( 1 to 1000ppb )
  • Detection limit: 0.055 μs /cm to 8.000 μs/cm
Catalog
TOC Analyzer FM-TOC-B103
  • Measurement range: 0 to 1000 mg / l , can extend to 0 to 100 , 000 mg / L ( Automatic dilution )
  • Detection limit: IC: 20 μg / L
  • Detection method: High-Temperature Catalytic Combustion
Catalog

Auto Sampler for TOC Analyzer FM-AS-A100

  • Type of specimen: Solid or Suspension liquid sample
  • Range of measurement: 0.1 to 30.0 mg
  • Control Mode: PC software controlled
Catalog
