- ✔ Incorporated with an alarm system to ensure safety measures
- ✔ Outfitted with reliable design for long paraffin reutilization
- ✔ An intuitive and user-friendly interface
- ✔ Facilitates smart software programming
- ✔ The internal dry heating mechanism offers precise temperature control
- ✔ Equipped with two bottles each of condensate and cleaning solution
- ✔ A Wax clean program is adapted with 10 reagent bottles
- ✔ Process 10 programs with 9 reagents and 3 paraffin wax steps effortlessly
- ✔ Configured with Recirculation pump with accessible ON/ OFF switches
- ✔ Included with multiple-specimen protection system
| Capacity |
6.8 L |
| Cassettes |
300 |
| Reagent Volume |
5.3 L |
| Operating Temperature Range |
15 ℃ to 35 ℃ |
| Paraffin Temperature |
65 ℃ |
| Processing Reagent Temperature |
Ambient or 35 ℃ |
| Cleaning Reagent Temperature |
65 ℃ |
| Accuracy |
±1℃ |
| Filling Time |
5 min |
| Drain Time |
5 min |
| Impregnation pressure |
35 kPa (g) |
| Drain Pressure |
35 kPa (g) |
| Volume of paraffin Bath |
4.81 per bath |
| Maximum Bottle Volume |
4.01 L |
| Number of Baths |
3 |
| Time Range |
0 to 99 hours, 59 minutes |
| Relative Humidity |
10 % to 80 % |
| Power |
1000VA |
| Fuse |
10 A |
| Power Supply |
AC220V 60HZ |
| Dimension |
80 × 740 × 1460 mm |
| Weight |
172 kg |

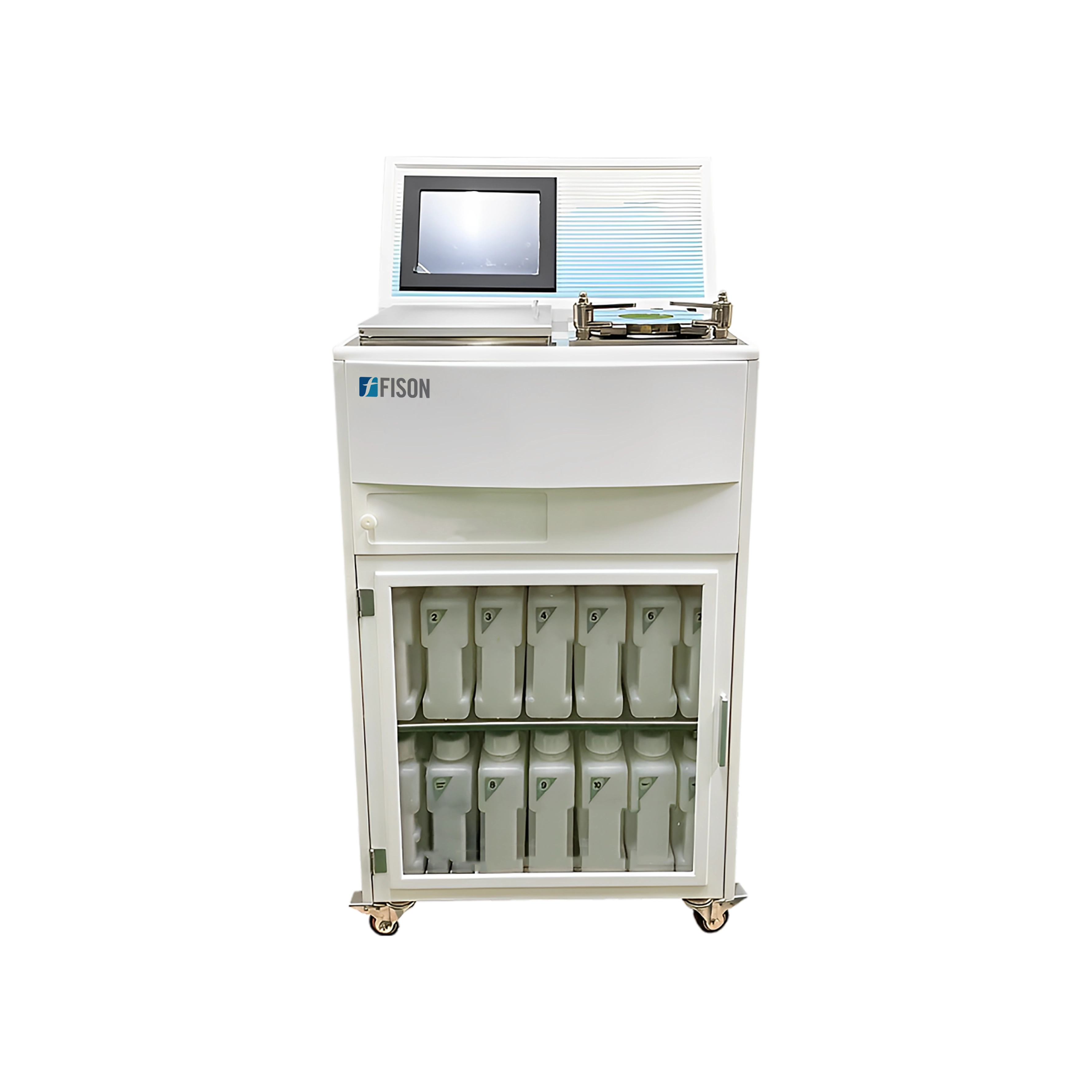

Tissue Processor is widely used in the field of pathology, enabling analysis and preparation of tissue samples for research laboratories, medical diagnosis, and forensic investigations
Tissue Basket :1 pc
Reagent Bottle: 17 pcs
Fuse (10 A): 2pcs
Power Line: 1 Line
Tissue Basket
Reagent Basket
