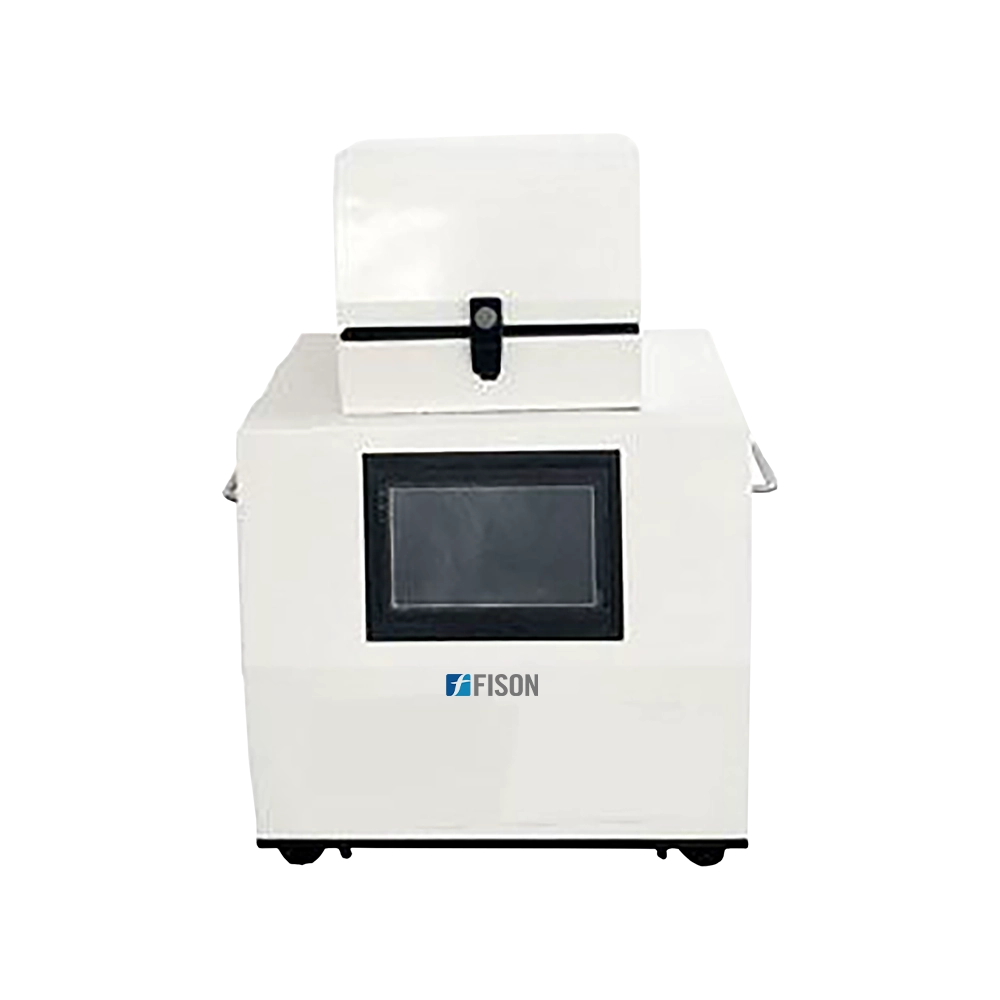

Tissue Grinder FM-TG-A101
Tissue Grinder FM-TG-A101 is a versatile and efficient laboratory unit crafted for homogenizing biological samples. It efficiently grinds 2 x 96 samples in just 1 minute. It employs a specialized three-dimensional vibration mode to ensure thorough mixing. With enclosed sample tubes, it minimizes the risk of cross-contamination . Equipped with a built-in program controller for easy parameter adjustments.
Specifications
| Sample size | 96 × ( 0.2 to 0.5 ml ) |
| Display | 7 TFT touch screen |
| Speed | 0 to 70 Hz（0 to 2100rpm/min) |
| Working time | 0 to 99 minutes, settable |
| Diameter of Grinding ball | 0.1 to 30 mm |
| Material of Grinding ball | Stainless steel |
| Grinding Platforms | > 2 |
| Accelerate | Reaching maximum speed within 2 seconds |
| Deceleration | Reaching minimum speed within 2 seconds |
| Power Supply | Two-phase 220V/50 Hz |
| Packaging Dimension ( W× D × H ) | 600 × 620 × 780 mm |
| Gross Weight | 48 kg |
Features
- Tissue Grinder featuring microcomputer-controlled operation
- Working time is adjustable from 0 to 99 minutes
- Powerful homogenization with a high-speed motor
- Easy operation
- Quiet performance
- Adjustable speed settings
- Offers wet, dry, and low-temperature grinding methods
- Safety lock ensures full protection during operation
- Final discharge particle size of ≤ 5 µm
Applications
- Tissue grinder finds application across diverse sectors, including biomedical research, pharmaceuticals, agriculture, food science, and environmental science.
Accessories Optional
- Freezer Adapter
Chromium steel, Zirconia, Tungsten carbide, Quartz sand Material of grinding ball
