| Adapter No. | Adapter Name | Specification |
| 1 | Adapter 01 | 12×5 ml |
| 2 | Adapter 02 | 4×10 ml |

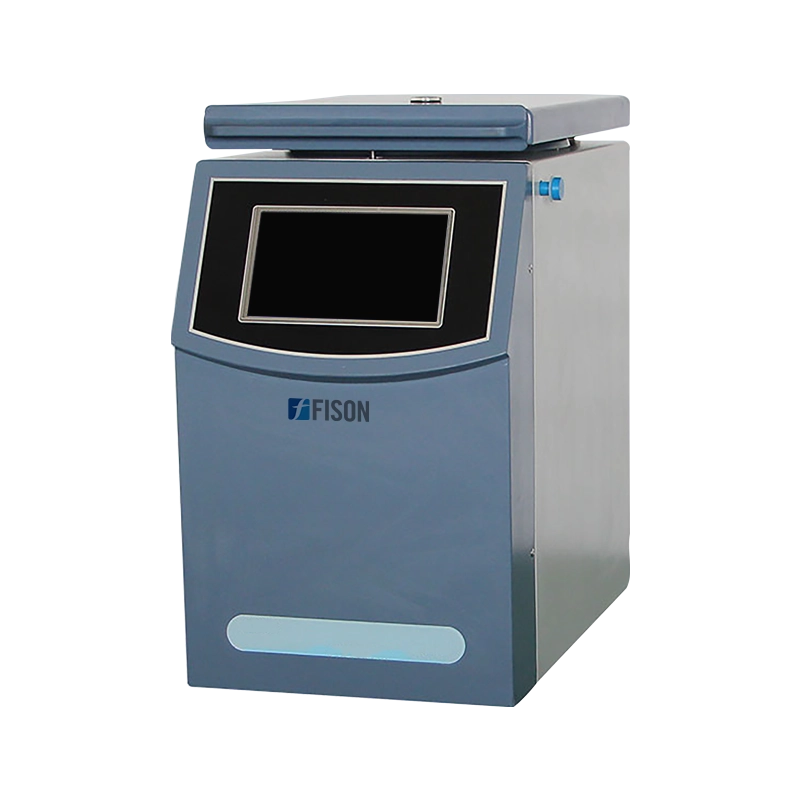

Tissue Grinder FM-TG-A100
Tissue Grinder FM-TG-A100 is a high flux tissue grinder, comes with 48×2 ml of capacity and 0 to 70 Hz/s of oscillation frequency. Incorporated with vertical reciprocating ball grinding method, offers dry grinding, wet grinding, and precooling grinding at RT temperature range with 0 to 99 mins of time range. Designed with LCD HD touch screen and upgradeable programming function, can provide micron-mesh of up to 5 µm. Equipped with brushless DC motor, automatic centre positioning, and safety lock, has acceleration/deceleration time of 2 sec. With alloy steel grinding beads and short grinding time, this tissue grinder effectively inhibits the degradation of nucleic acid and retain protein activity.
Specifications
| Capacity | 48×2 ml |
| Sample type | Plant tissues, Animal tissues, Micro-organisms, Food and drug components, volatile samples, plastic, polymers etc. |
| Oscillation frequency | 0 to 70 Hz/s |
| Temperature range | RT |
| Timer range | 0 to 99 min |
| Grinding principle | Impact force, Friction |
| Grinding method | Vertical reciprocating |
| Grinding mode | Dry grinding, Wet grinding, Precooling grinding |
| Micron-mesh | Up to 5 µm |
| Acceleration/Deceleration time | 2 sec |
| Display | LCD (HD) touch screen |
| Motor | Brushless DC motor |
| Grinding beads | Alloy steel |
| Safety functions | Automatic center positioning and safety lock |
| Noise | < 55 dB |
| Power supply | AC 220 V ± 22 V, 50 Hz 10 A |
| Power | 180 W |
| Dimension (W×D×H) | 440×300×500 mm |
| Packaging dimension (W×D×H) | 470×330×530 mm |
| Net weight | 35 kg |
| Gross weight | 55 kg |
Features
- A high flux tissue grinder, fast and efficient with high performance and stability
- 48×2 ml of standard capacity and 0 to 70 Hz/s of oscillation frequency
- Vertical reciprocating ball grinding method, effective and thoroughly grinding
- Offers dry grinding, wet grinding, and precooling grinding
- RT temperature range with 0 to 99 mins of time range
- LCD HD touch screen and upgradeable programming function, easy to operate
- Provide micron-mesh of up to 5 µm, results with high repeatability
- Brushless DC motor, high-efficient and low maintenance
- Automatic centre positioning, and safety lock, prevents cross contamination
- Acceleration/deceleration time of 2 sec, fast and efficient operation
- Inhibits the degradation of nucleic acid and retain protein activity
- Highly efficient, stable and low noise with room temperature operation
Applications
- Tissue Grinder is used to extract DNA, RNA and proteins for blot, staining etc., and for effective grinding of dry, soft, elastic, fibrous, fat-containing, water-containing, and oil-containing and medium-hard samples across agriculture, medicines, biology, food industries etc.
Accessories
- 3 mm Alloy steel grinding beads × 1 bottle
5 mm Alloy steel grinding beads × 1 bottle
Adapter Selection
