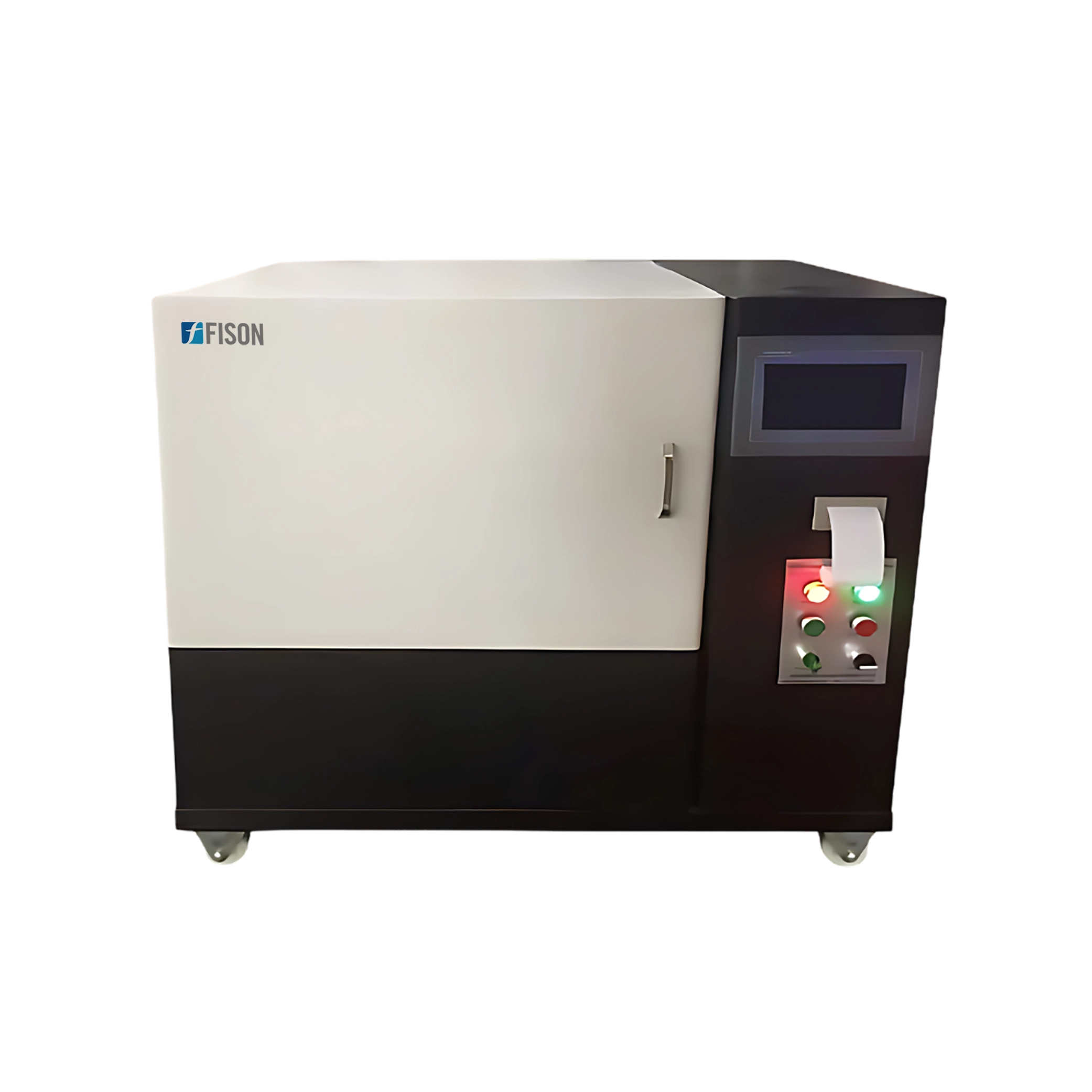

Thermal Conductivity Tester FM-TCT-B100
Thermal Conductivity Tester FM-TCT-B100 measures thermal conductivity from 0.005 to 3.0 W/m·K, ensuring precise evaluation. It operates within a variable temperature range of -20 to 70℃ for controlled testing under different thermal conditions. Its electrically operated plate-lifting system enables smooth and controlled sample placement, minimizing manual intervention. Our tester is equipped with a smart sample thickness measurement, ensuring precise and effortless operation.
Specifications
| Thermal Conductivity Range | 0.005 to 3.0 W/m·K |
| Temperature Range | -20 to 70℃ variable |
| Cooling System | External water bath |
| Sample Size (L×W×H, mm) | 300×300 × (5-100) |
| Thermal Resistance Range | 0.1 to 8.0 m²K/W |
| Repeatability | 2% |
| Accuracy | ±1 to 3% |
| Temperature Accuracy/Resolution | 0.1℃ / 0.01℃ |
| Data Result Analysis | Automatic thermal analysis software, Windows 8/7/XP (English) |
| Product List | Testing host, Accurate thermostat chiller, Testing software, Communication interface |
| Supply Voltage & Power | AC 220V ±5%, 3.0 kW |
| Dimension | 860×650×1200 mm |
| Weight | 195kg |
Features
- Fully Insulated Test Chamber
- Intelligent Thickness & Temperature Compensation
- Versatile Cooling Options
- Integrated Single Board Computer
Applications
- Thermal Conductivity Tester FM-TCT-B100 is widely used in Construction and Building Materials, Aerospace and Automotive, Electronics and Semiconductors, Energy and Power, Polymers and Plastics, and Research and Laboratories.
Accessories
1 Set Thermostatic Cooling Bath
1 Pc Testing Software
