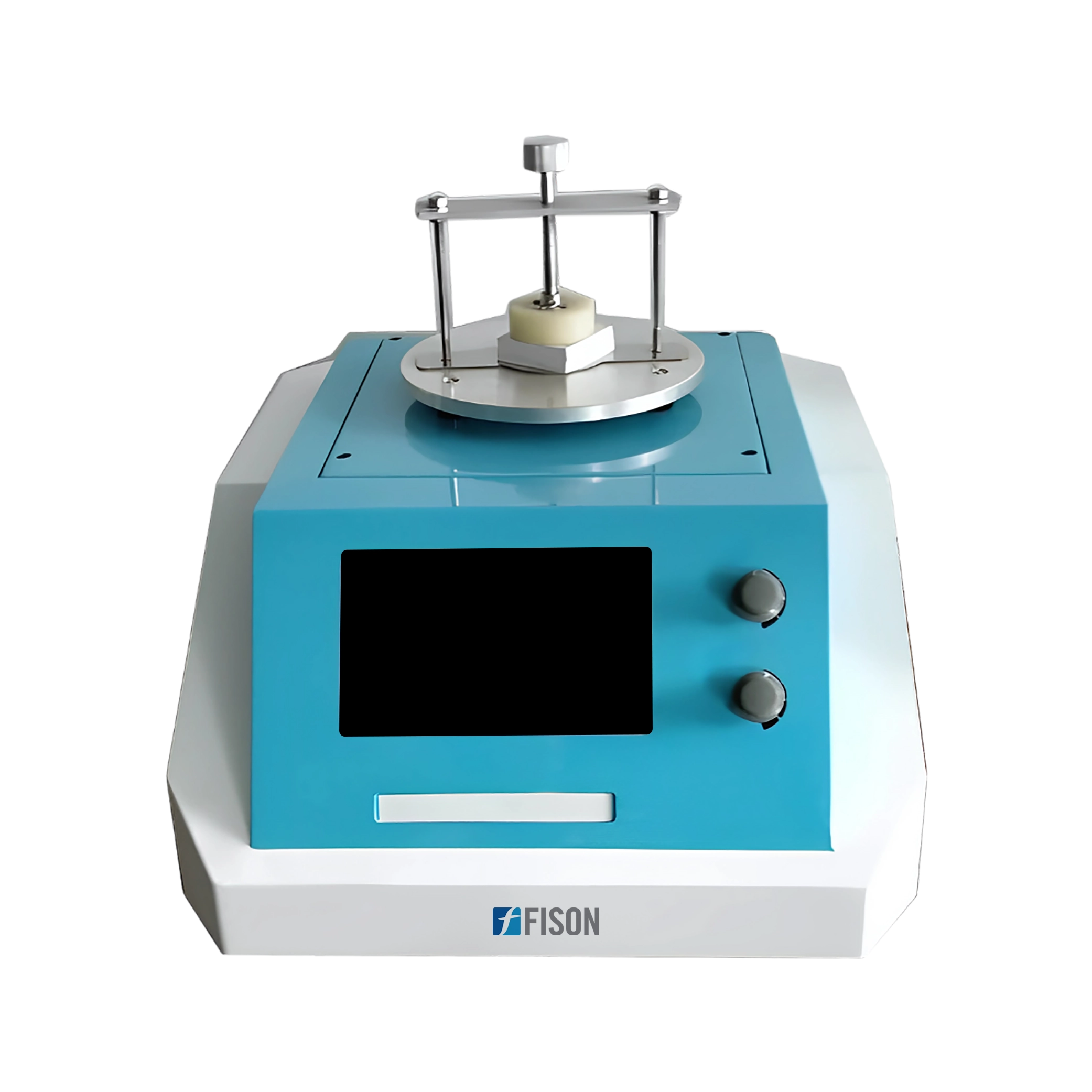

Thermal Conductivity Tester FM-TCT-A200 measures liquid thermal conductivity through TPS (Transient Plane Source technology) with RT to 130°C temperature range. The double-helix structure design probes equipped in this conductivity tester collects data on the probe using the core algorithm analysis. Microprocessors (ARM) controlled technology is used to improve the processing capacity, speed, and obtain more accurate results.
| Sample temperature range | Room temperature to 130°C |
| Test measurement range | 0.005 to 300 W/ (mK) |
| Probe diameter size | 15 mm, 7.5 mm |
| Test objects | Solid, liquid, powder, paste, colloid, granule |
| Test Sample size | No particular size for the sample |
| Test Sample Measurement Accuracy | ± 3% |
| Repeatability | ≤ 3% |
| Measurement time | 5 to 160 seconds |
| Physical properties measurement | Direct access to the thermal conductivity and thermal diffusivity |
| Total power | 500 W |
| Power supply | AC 220 V, 50 Hz |
| Weight | 25 kg |
Used to test heat conduction properties of bulk, pasty, and granular solids, paste, gels, liquids, powders, coatings, thin film, and thermal insulation materials across quality control, production sectors.
| Type | Details |
| Single Material | Metal, ceramics, alloys, minerals, polymers, composite materials, paper, fabric, foam (smooth surface insulation material, plate), mineral wool, cement wall |
| Composite Material | Glass-reinforced composite plate CRC, cement polystyrene board, sandwich concrete, glass and steel panels composite plates, paper honeycomb panels, gel, liquid, powder, granular and pasty solid |
