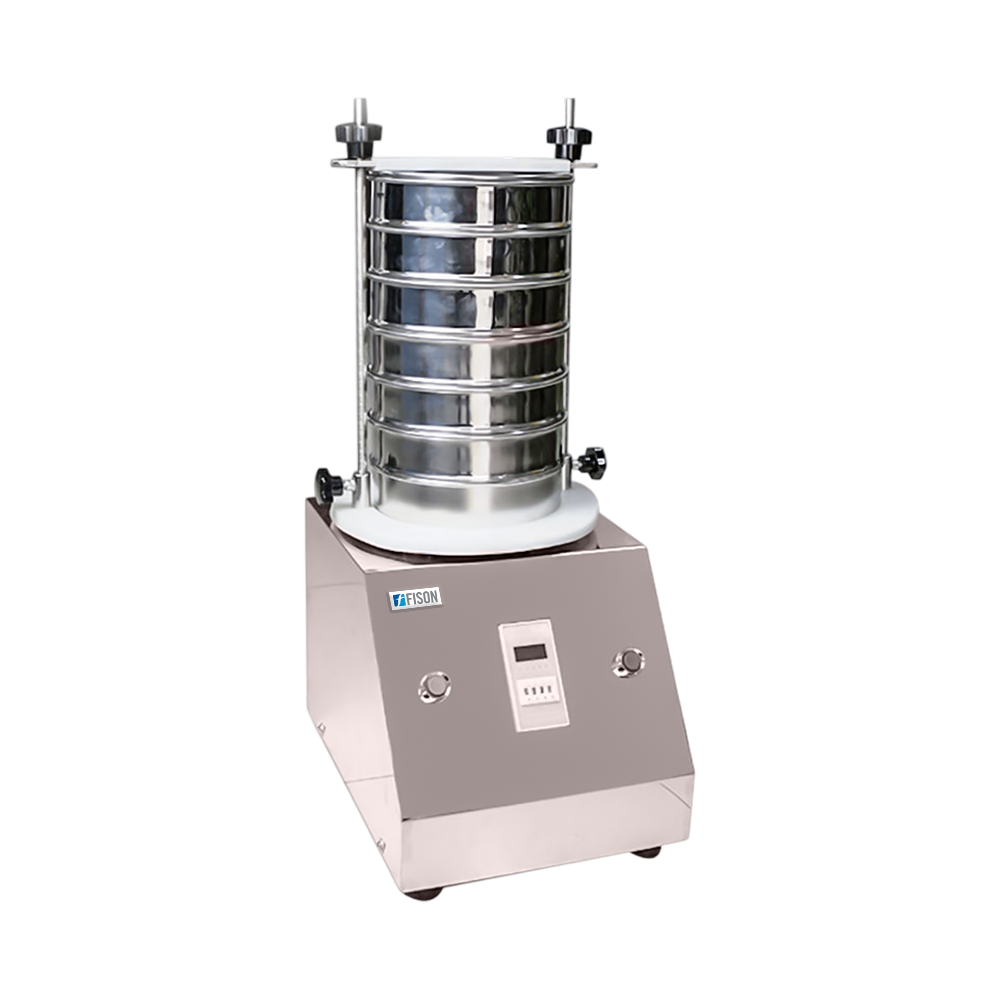

Test Sieve Shaker FM-TSS-A100

Test Sieve Shaker FM-TSS-A100

Test Sieve Shaker FM-TSS-A100 determines particle size distribution with speed of 1400 r/min and requires sample in the range of 50 to 150 grams. Timer can be set from 0 to 99 minutes and 59 seconds, useful for conducting specific testing protocols. Designed with stainless steel 304 for providing corrosion resistance to the shaker.

Specifications

Working Layer 1 to 8 layers
Diameter 300 mm
Material Stainless steel 304
Timing Range 0 to 99 min 59 s
Speed 1400 r/min
Screen Mesh Size 1 to 10, 10 to 250, 250 to 350, 350 to 400, 450, 500, 550, 600, 635
Power Supply AC 110/220 V ± 10% 60/50 Hz
Power 180 W
External Size (W × D × H) 400 × 330 × 370 mm
Package Size (W × D × H) 580 × 490 × 460 mm
Gross Weight 47 kg

Features

  • Analyzes various types of particles with high precision
  • Accommodates a wide range of screen mesh sizes, from 4 mesh to 500 mesh
  • User can set timer ranging from 0 to 99 minutes and 59 seconds as per requirement
  • Particle size distribution analysis requires sample in the range of 50 to 150 grams
  • 1 to 8 working layers allows multiple samples or various sieve sizes to be used simultaneously
  • Supports a variety of screen mesh sizes, ranging from 1 to 635 mesh
  • Stainless steel 304 sieve guarantees corrosion resistance
  • Sieve operates at a speed of 1400 revolutions per minute (r/min), ensuring effective sieving

Applications

  • Test Sieve Shaker is widely used for particle size distribution analysis, offering various mesh sizes, a wide timing range, and compatibility with different sample material across laboratories and quality control departments.

Accessories

  • Lid
    Base

Accessories Optional


  • Accessories no. Sieve type Specification
    1 Sieve diameter 300 mm 1 mesh to 10 mesh, Type: weaving

Double Sided Vertical Shaker

Fison Double-Sided Vertical Shakers are designed for efficient sample mixing and agitation, ensuring uniform distribution. They feature a user-friendly digital control panel with a digital interface for easy operation. They are equipped with adjustable speed and time settings for customized shaking intensity and duration. They provide stable, quiet operation with a vibration-damping system for smooth performance. They deliver a compact and space-saving design, making them ideal for laboratories.

Double Sided Vertical Shaker FM-DVS-A100

  • Shaking speed : 300 T (turns)/ min
  • Shaking (distance) range : 40 mm
  • Shaking method : Vertical and Slanting shaking (tilt angle 0 to 20° adjustable)
Catalog

Reciprocating Horizontal Shaker

Fison Reciprocating Horizontal Shakers are designed for precise and efficient sample agitation. They offer a controlled reciprocating motion that ensures uniform mixing of various samples. These units feature quiet, low-vibration operation to minimize disruptions in sensitive laboratory settings. They provide variable speed control, allowing users to adjust the shaking intensity based on experimental requirements. Our shakers are equipped with a user-friendly interface allowing easy handling and monitoring.

Reciprocating Horizontal Shaker FM-RHS-A100

  • Shaking method : Reciprocating shaking
  • Shaking range : 40 mm
  • Shaking speed : 0 to 200 T/ min (Adjustable)
Catalog

Microplate Shaker

Fison Microplate Shaker features adjustable shaking speeds to customize the mixing intensity to suit specific experimental requirements. Their multiple shaking modes, including orbital, linear, and vortex motions, optimize sample mixing for various applications. They include an LCD or touch display for precise parameter adjustments and real-time monitoring. The non-slip platforms or spring-loaded clamps provide stability, even during high-speed operation. Our Microplate Shaker operates quietly, minimizing disruptions in shared lab environments.

Microplate Shaker FM-MPS-A100
  • Speed : 100 to 1200 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 4 mm
Catalog
Microplate Shaker FM-MPS-A101
  • Speed : 100 to 1200 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 4 mm
Catalog

Microplate Shaker FM-MPS-A102

  • Speed : 100 to 1200 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 3 mm
Catalog

Water Bath Shaker

Water Bath Shaker FM-WBS-A100

  • Capacity : 45 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog
Water Bath Shaker FM-WBS-A101
  • Capacity : 83 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog
Water Bath Shaker FM-WBS-A102
  • Capacity : 175 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog

De-staining Shaker

De-staining Shaker FM-DS-A100

  • Controller : Microprocessor PID control system
  • Shaking mode : Orbital
  • Shaking speed : 30 to 300 rpm
Catalog

De-staining Shaker FM-DS-A101

  • Controller : Microprocessor PID control system
  • Shaking mode : Orbital
  • Shaking speed : 30 to 300 rpm
Catalog
De-staining Shaker FM-DS-A102
  • Controller : Microprocessor PID control system
  • Shaking mode : Linear
  • Shaking speed : 30 to 300 rpm
Catalog
