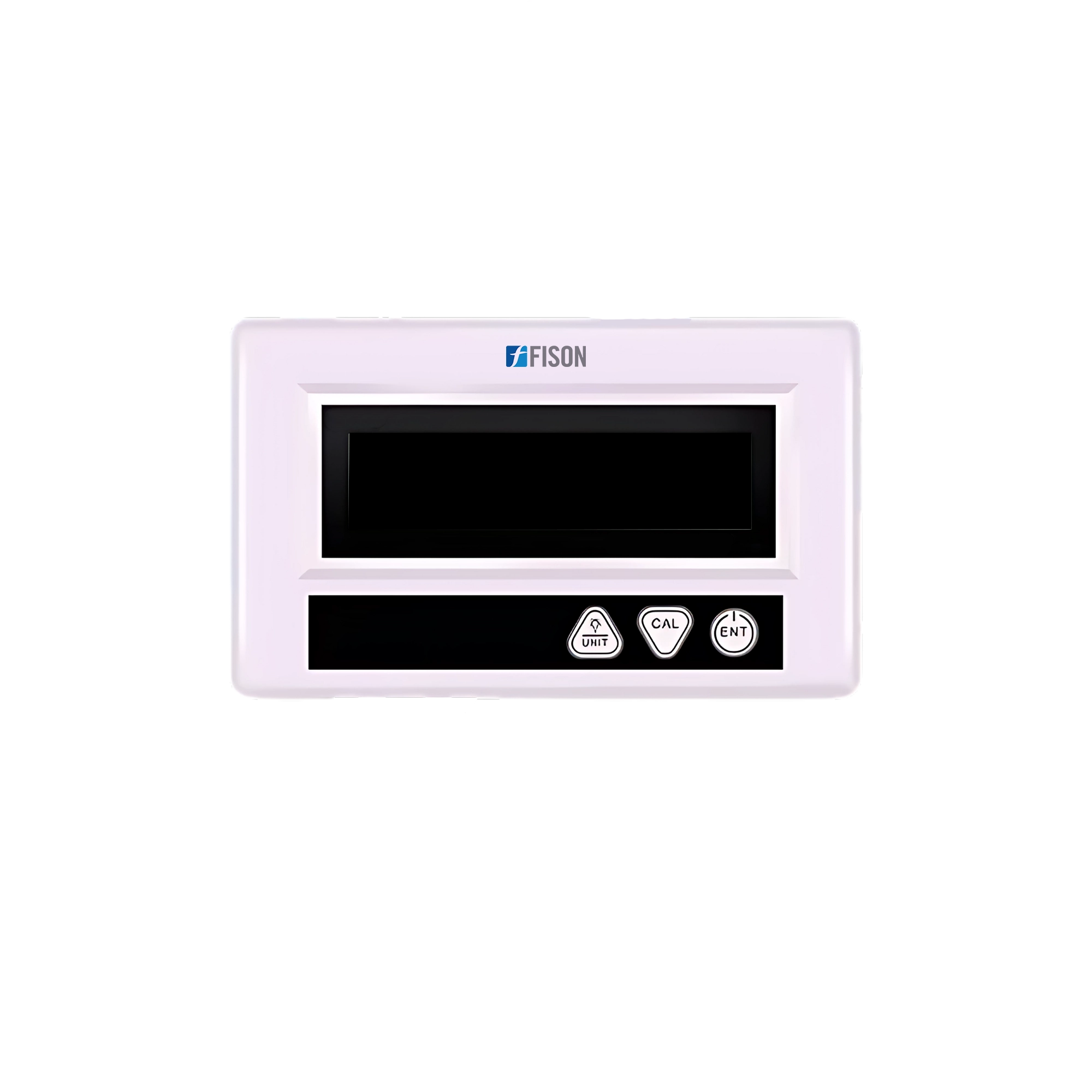

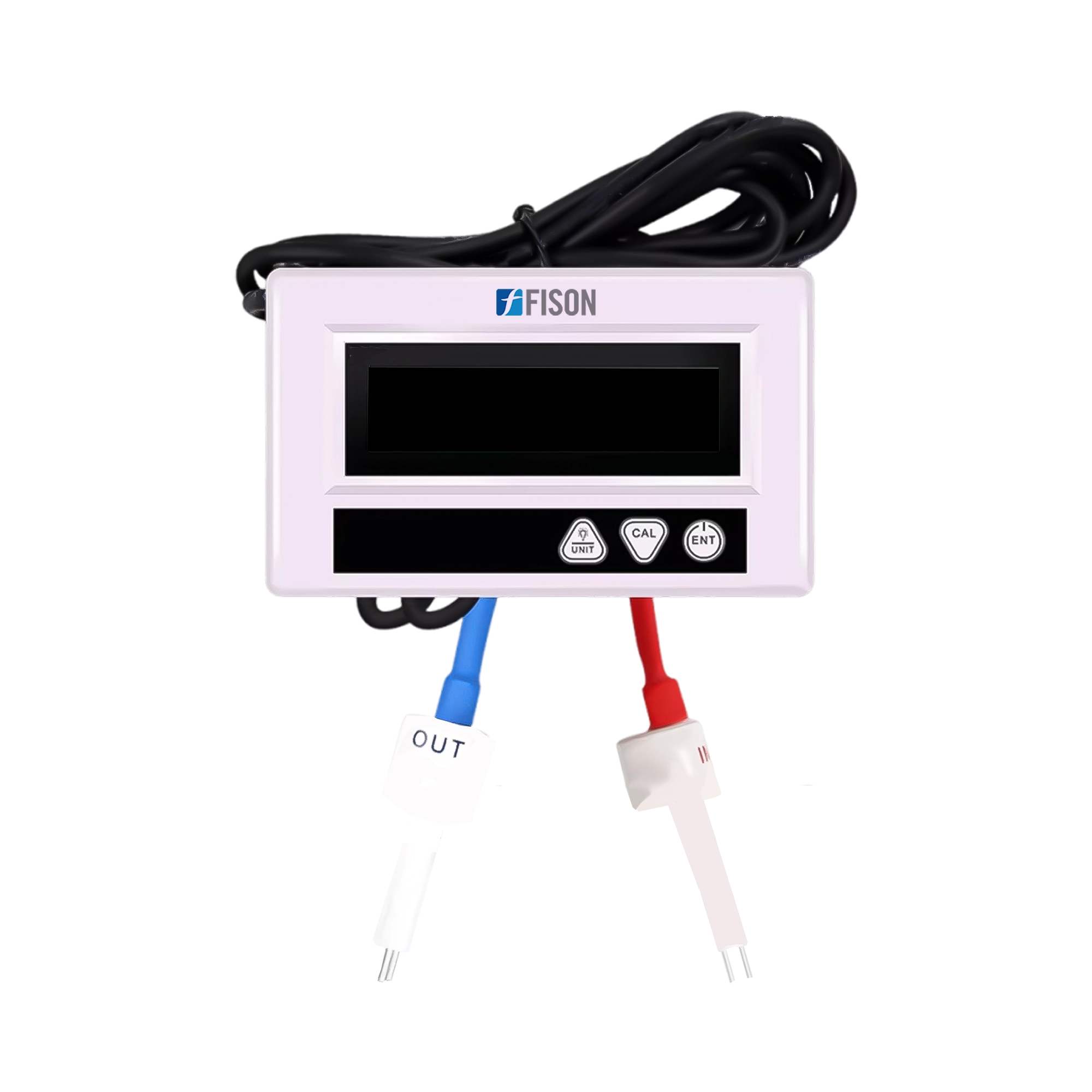

TDS Monitor FM-TDS-A100
TDS Monitor FM-TDS-A100 has an Electrical Conductivity (EC) measurement range of 0 to 9999 μS/cm or 0 to 9.99 mS/cm, ensuring precise monitoring for various applications. This includes a large, backlit screen that ensures clear readings even in low-light environments. It features an automatic shut-off to conserve power, for efficient continuous monitoring tasks. Our TDS Monitor is pre-calibrated and allows for digital recalibration for precise adjustments.
Specifications
| Electrical Conductivity Range | 0 to 9999μS/ 0 to 9.99mS |
| Total Dissolved Solids Range | 0 to 5000ppm/ 0 to 5ppt |
| Resolution EC | 0.1μS (0 to 99.9), 1μS (100 to 999), 10μS (1000 to 9990), 0.01mS (0.00 to 9.99) |
| Resolution TDS | 0.1ppm (0 to 99.9), 1ppm (100 to 999), 10ppm (1000 to 5000), 0.01 ppt (0.00 to 5.00) |
| Accuracy | ±2% |
| Conversion Factor | NaCl (Factor. 0.5) |
| Cable Length | 1.2m /3.9ft, shielded cables |
| Sensor | Dual, 1/4″ diameter for quick-connect fittings |
| Digital Calibration | Digitally factory calibrated to NaCl 342 ppm |
| Power Consumption | 1.5 W |
| Dimension (L×W×H) | 116 × 19 × 70 mm |
| Weight | 0.225 kg |
Features
- Highly accurate measurement
- Dual-line monitoring capability
- Durable shielded sensor cables
- Reliable long-lasting battery life
- Accurate conversion factor
Applications
- TDS Monitor FM-TDS-A100 is used in water filtration systems, including Reverse Osmosis (RO) and Deionized (DI) setups, to monitor water quality. It is ideal for applications in drinking water systems, aquariums, hydroponics, and water treatment facilities.
