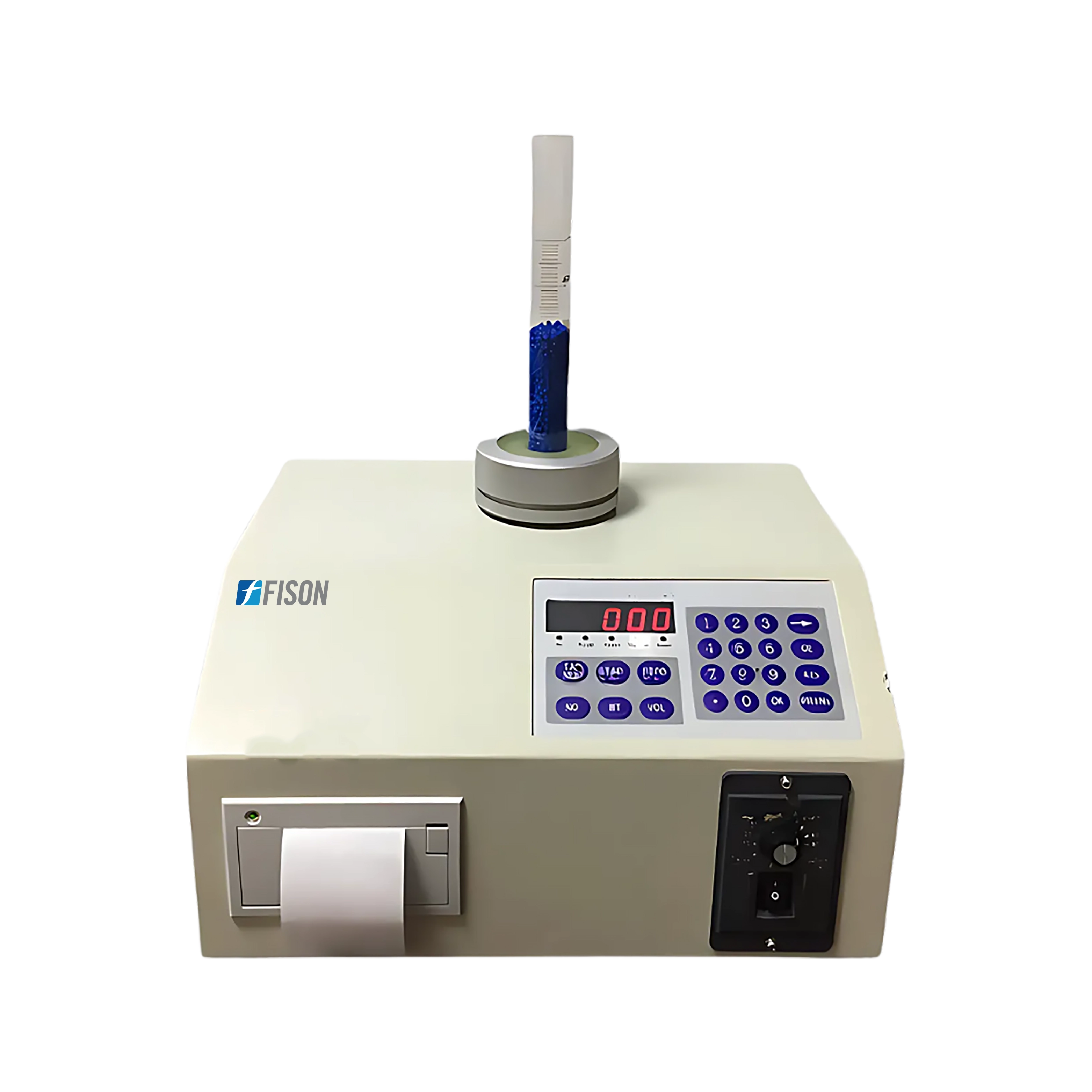

Tap Density Meter FM-TDM-A103

Tap Density Meter FM-TDM-A103

Tap Density Meter FM-TDM-A103 handles testing objects up to 500 g, ensuring usability. It delivers high-accuracy measurements for precise material analysis. The corrosion-resistant surface guarantees durability and long-term performance. Their innovative multi-height tap washers for diverse testing needs. Our meter has enhanced testing efficiency for quick and reliable results, while real-time speed control allows for precise adjustments during operation.

Specifications

Weight of Testing Object ≤ 500 g
Capacity of Testing Object ≤ 250 ml
Single Vibration Times ≤ 0 to 99,999 times
Motor Force 0.86 N.m.
Vibration Frequency 300 rounds per minute
Vibration Amplitude <15 mm
Repeatability Error ≤1%
Accuracy Error ≤1%
Power Consumption 40 W
Power Supply 220 V (50/60 Hz)
Dimensions (W × D × H) 330 × 265 × 165 mm
Packaging Dimensions (W × D × H) 430 × 400 × 400 mm
Net Weight 13 kg
Gross Weight 15 kg

Features

  • Quick data printing
  • Easy-to-clean cover
  • Adjustable drop height
  • Intuitive working panel
  • Customizable RPM control

Applications

  • Tap Density Meter FM-TDM-A103 is a precision instrument used to measure the tapped density of powders, granules, and similar materials. It helps industries assess material flow properties, optimize formulations, and ensure quality control in pharmaceuticals, chemicals, and metallurgy.

Accessories

  • Name Quantity
    Vibration Assembly 1 set
    Polyurethane (PU) Gasket 4 pcs
    25 ml Measuring Cylinder 1 pc
    50 ml Measuring Cylinder 1 pc
    100 ml Measuring Cylinder 2 pcs
    250 ml Measuring Cylinder 1 pc
    1 mm Anti-vibration Pad 2 pcs
    2 mm Stainless Steel Pad 2 pcs
    Φ12 mm x 5 mm Anti-vibration Pad 2 pcs
    250V 10A Power Cable 2 pcs
    5 x 20 mm, 1A Fuse 5 pcs
    Φ70 mm x 2 mm Silicone Pad 1 pc
    Tube Brush 1 pc
    Sample Spoon 1 pc
    10 mm Wrench 1 pc

Alternative Models Of Tap Density Meter

Fison Tap Density Meters are designed to measure the tapped density of powders providing precise evaluation of material. They are equipped with versatile sample compatibility, allowing analysis of a wide range of powders across various industries. These density meters provide a user-friendly interface with a touchscreen display for easy operation and real-time data monitoring. They offer accurate tap density measurement for precise powder characterization. Our units include automated data logging and storage, ensuring traceability.

Tap Density Tester FM-TDM-A100

  • Work station: 1
  • Sample volume: ≤ 250 ml
  • Sample weight: ≤ 500 g
Catalog

Tap Density Tester FM-TDM-A101

  • Work station: 2
  • Sample volume: ≤ 250 ml
  • Sample weight: ≤ 500 g
Catalog

Tap Density Tester FM-TDM-A102

  • Work station: 3
  • Sample volume: ≤ 100 ml
  • Sample weight: ≤ 500 g
Catalog

Powder Characteristic Machine

Fison Powder Characteristic Machines are designed to analyze the physical and flow properties of powders. They offer high-precision measurement for accurate and reliable powder analysis. These units are equipped with a user-friendly touchscreen display for easy operation and data visualization. They Provides quick results, reducing analysis time for improved productivity. Our machines feature versatile sample compatibility, allowing analysis of various powders across different industries.

Powder characteristic machine FM-PCM-A101

  • Damping Pad : Stainless Steel (diameter of 12 mm)
  • Damping Pad Thickness : 1 mm, 2 mm, 500 mm
  • Silicon pad : 70 × 2 mm
Catalog
