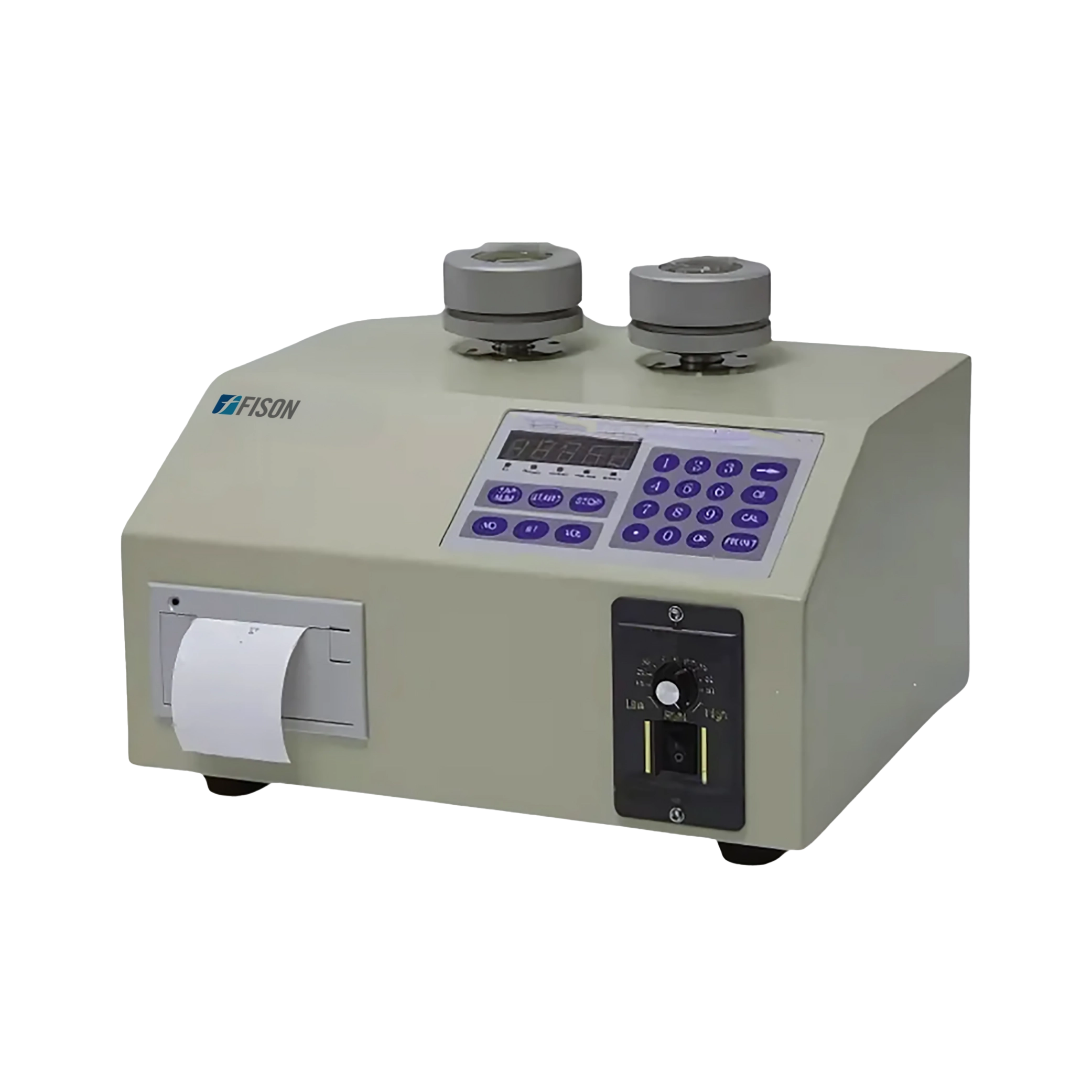

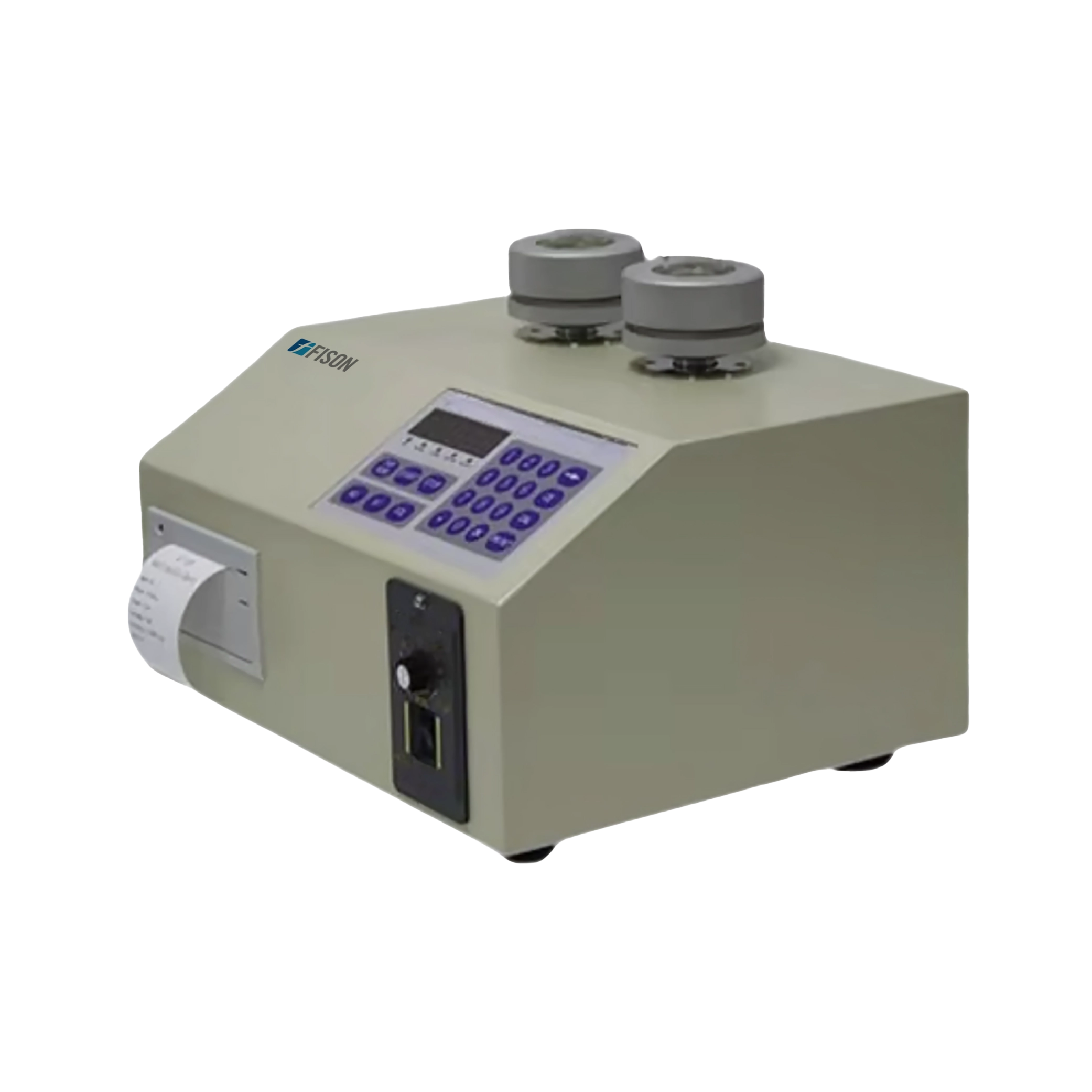

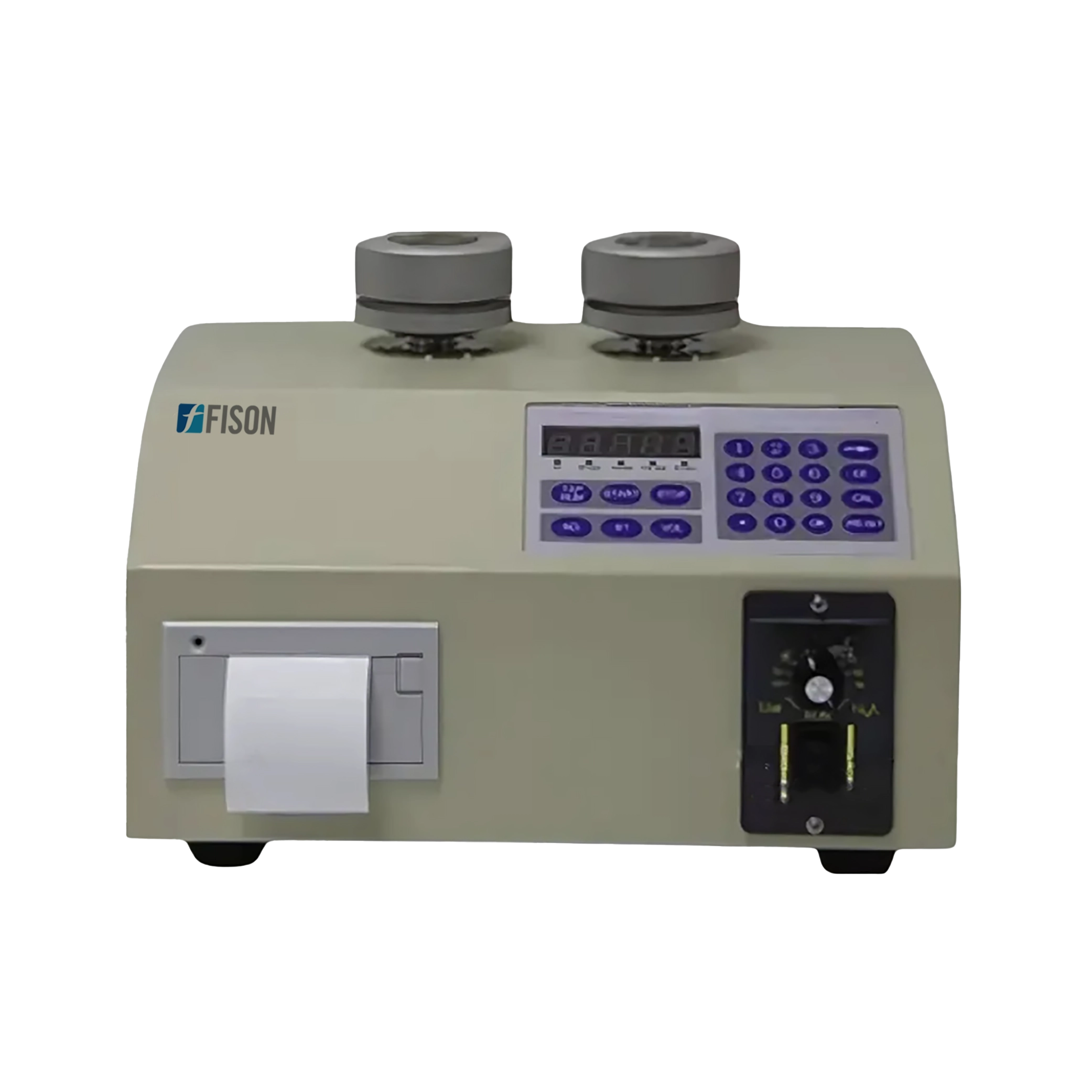

Tap Density Tester FM-TDM-A101

Tap Density Tester FM-TDM-A101

Tap density tester FM-TDM-A101 is a two test stations unit, measures two powder samples simultaneously. It’s designed in accordance with USP I & USP II Tapped density Method. Measures tapped density, flowability of powder to optimize size of the packaging container. Tapped density is calculated in gm/ ml by dividing the sample weight by the final tapped volume.

Specifications

Work station 2
Sample volume ≤ 250 ml
Sample weight ≤ 500 g
Number of Tapping 0 to 99999 (set 0 to output bulk density)
Frequency 300 rpm (continuous adjustable in 0 to 300 rpm)
Amplitude Maximum 15 mm ( 1 to 15 mm integer variable)
Stroke height Stroke height 3 mm
Strokes/ min 250 strokes/ min
Display LED display
Repeatability ≤ 1 %
Accuracy ≤ 1 %
Humidity ≤ 85 % RH
Motor torque 0.86 N. m
Power 40 W
Power supply AC 220 V± 10 %, 50 Hz

Features

  • Test figure accuracy up to 4 decimal places
  • Stores test data in shut down mode
  • Highly advanced result interpretation
  • Built-in printer to print test report
  • Measures Hausner Ratio (TD/BD), Compressibility Index (TD-BD/TD × 100)
  • No need to adjust an integer
  • Automatically saves test result

Applications

  • Used to test tapped density, simultaneously calculate bulk density, Hausner ratio across production, packaging, quality and research testing units in pharma, food, medicine, life science and other industries.

Complied Work Standards

  • Sr. No. Standards
    1 ISO 3953: Metallic powder determination of tap density
    2 USP Tapped Density Method II
    3 USP Tapped Density Method I
    4 ASTM B 527
    5 DIN ISO EN 787/11
    6 EP 2.9.15

Accessories

  • Accessories no. Name Details Qty.
    1 Washer Polyurethane 4 each
    2 Glass measuring cup 25 ml 1 each
    3 Glass measuring cup 50 ml 1 each
    4 Glass measuring cup 100 ml 2 each
    5 Glass measuring cup 250 ml 1 each
    6 Damping washer 1 mm thickness 2 each
    7 Damping washer 2 mm thickness 2 each
    8 Damping washer 5 mm thickness 2 each
    9 Power cable 250 V, 10 A 1 each
    10 Fuse 5 × 20 mm, 1 A 5 each
    11 Silicone gasket 70 × 2 mm 1 each
    12 Tum brush 1 each

Alternative Models Of Tap Density Meter

Fison Tap Density Meters are designed to measure the tapped density of powders providing precise evaluation of material. They are equipped with versatile sample compatibility, allowing analysis of a wide range of powders across various industries. These density meters provide a user-friendly interface with a touchscreen display for easy operation and real-time data monitoring. They offer accurate tap density measurement for precise powder characterization. Our units include automated data logging and storage, ensuring traceability.

Tap Density Tester FM-TDM-A100

  • Work station: 1
  • Sample volume: ≤ 250 ml
  • Sample weight: ≤ 500 g
Catalog

Tap Density Tester FM-TDM-A102

  • Work station: 3
  • Sample volume: ≤ 100 ml
  • Sample weight: ≤ 500 g
Catalog

Tap Density Meter FM-TDM-A103

  • Weight of Testing Object: ≤ 500 g
  • Capacity of Testing Object: ≤ 250 ml
  • Single Vibration Times: ≤ 0 to 99,999 times
Catalog

Powder Characteristic Machine

Fison Powder Characteristic Machines are designed to analyze the physical and flow properties of powders. They offer high-precision measurement for accurate and reliable powder analysis. These units are equipped with a user-friendly touchscreen display for easy operation and data visualization. They Provides quick results, reducing analysis time for improved productivity. Our machines feature versatile sample compatibility, allowing analysis of various powders across different industries.

Powder characteristic machine FM-PCM-A101

  • Damping Pad : Stainless Steel (diameter of 12 mm)
  • Damping Pad Thickness : 1 mm, 2 mm, 500 mm
  • Silicon pad : 70 × 2 mm
Catalog
