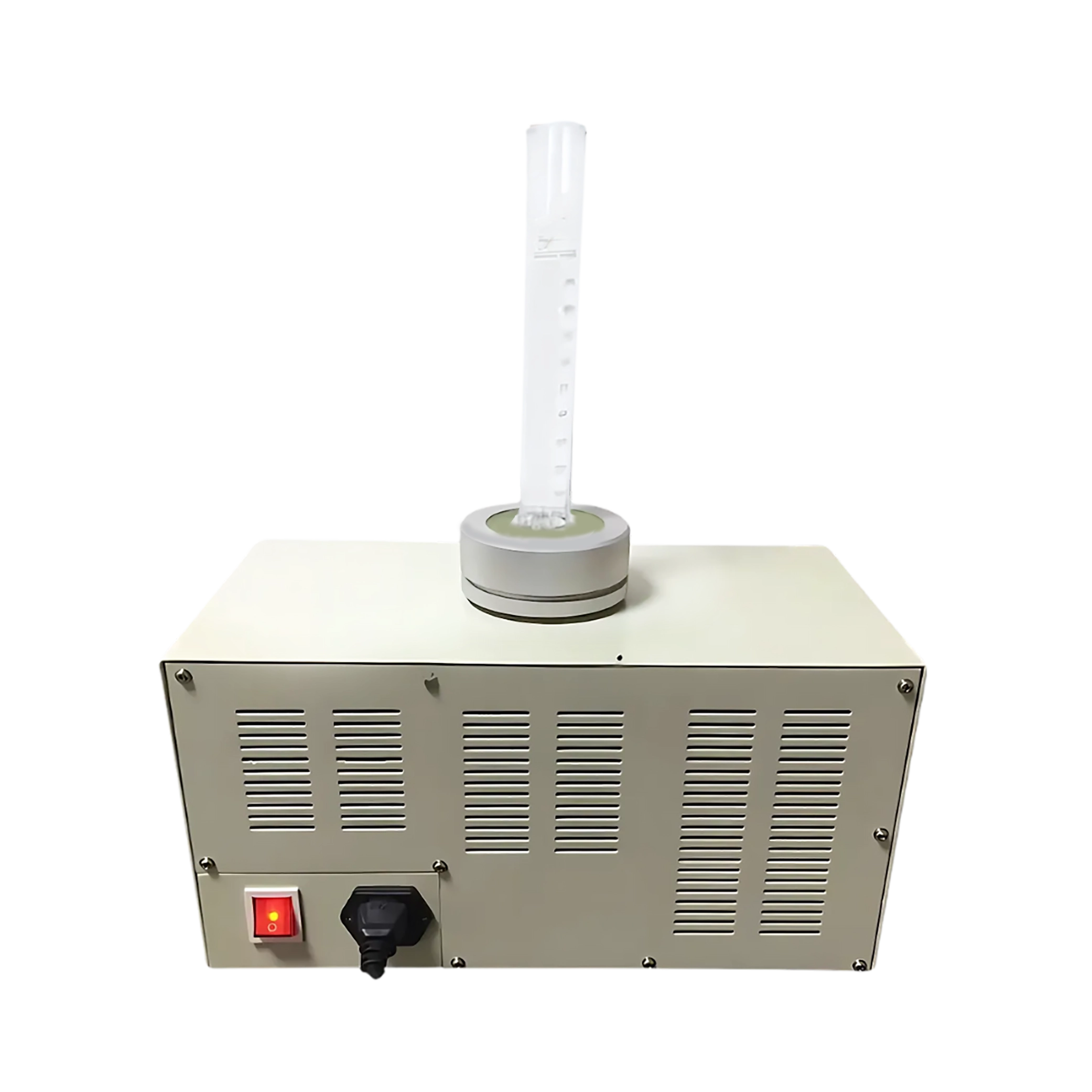

Tap density tester FM-TDM-A100 is a single test station unit. It’s designed in accordance with USP I & USP II Tapped density Method. Measures tapped density, flowability of powder to optimize size of the packaging container. Tapped density is calculated in gm/ ml by dividing the sample weight by the final tapped volume.
Specifications
Work station | 1 |
Sample volume | ≤ 250 ml |
Sample weight | ≤ 500 g |
Number of Tapping | 0 to 99999 (set 0 to output bulk density) |
Frequency | 300 rpm (continuous adjustable in 0 to 300 rpm) |
Amplitude | Maximum 15 mm ( 1 to 15 mm integer variable) |
Stroke height | Stroke height 3 mm |
Strokes/ min | 250 strokes/ min |
Display | LED display |
Repeatability | ≤ 1 % |
Accuracy | ≤ 1 % |
Humidity | ≤ 85 % RH |
Motor torque | 0.86 N. m |
Power | 40 W |
Power supply | AC 220 V± 10 %, 50 Hz |
Features
Applications
Complied Work Standards
Sr. No. | Standards |
1 | ISO 3953: Metallic powder determination of tap density |
2 | USP Tapped Density Method II |
3 | USP Tapped Density Method I |
4 | ASTM B 527 |
5 | DIN ISO EN 787/11 |
6 | EP 2.9.15 |
Accessories
Accessories no. | Name | Details | Qty. |
1 | Washer | Polyurethane | 4 each |
2 | Glass measuring cup | 25 ml | 1 each |
3 | Glass measuring cup | 50 ml | 1 each |
4 | Glass measuring cup | 100 ml | 2 each |
5 | Glass measuring cup | 250 ml | 1 each |
6 | Damping washer | 1 mm thickness | 2 each |
7 | Damping washer | 2 mm thickness | 2 each |
8 | Damping washer | 5 mm thickness | 2 each |
9 | Power cable | 250 V, 10 A | 1 each |
10 | Fuse | 5 × 20 mm, 1 A | 5 each |
11 | Silicone gasket | 70 × 2 mm | 1 each |
12 | Tum brush | 1 each |

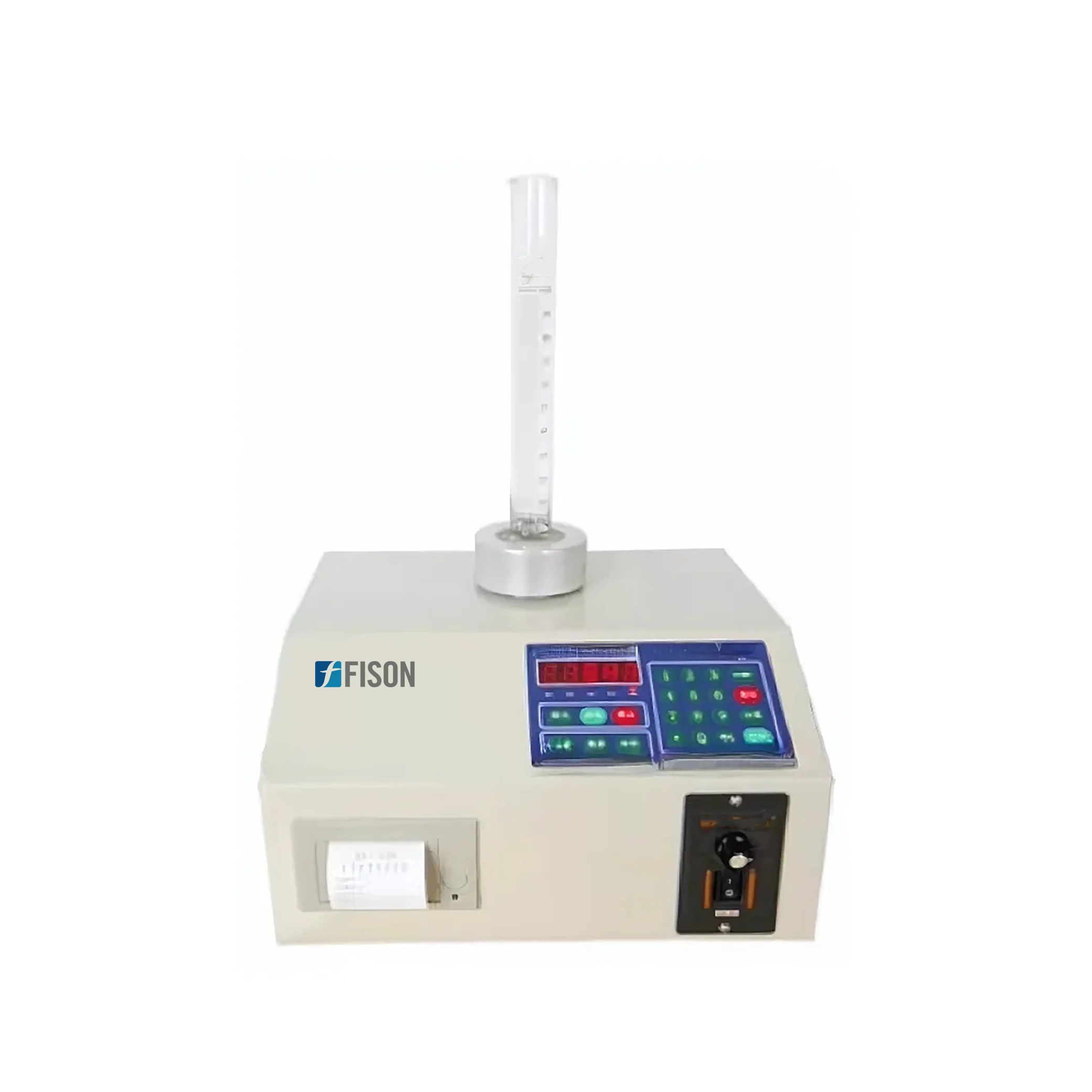

Fison Tap Density Meters are designed to measure the tapped density of powders providing precise evaluation of material. They are equipped with versatile sample compatibility, allowing analysis of a wide range of powders across various industries. These density meters provide a user-friendly interface with a touchscreen display for easy operation and real-time data monitoring. They offer accurate tap density measurement for precise powder characterization. Our units include automated data logging and storage, ensuring traceability.
Fison Powder Characteristic Machines are designed to analyze the physical and flow properties of powders. They offer high-precision measurement for accurate and reliable powder analysis. These units are equipped with a user-friendly touchscreen display for easy operation and data visualization. They Provides quick results, reducing analysis time for improved productivity. Our machines feature versatile sample compatibility, allowing analysis of various powders across different industries.
